Best Mini Home Sawmill

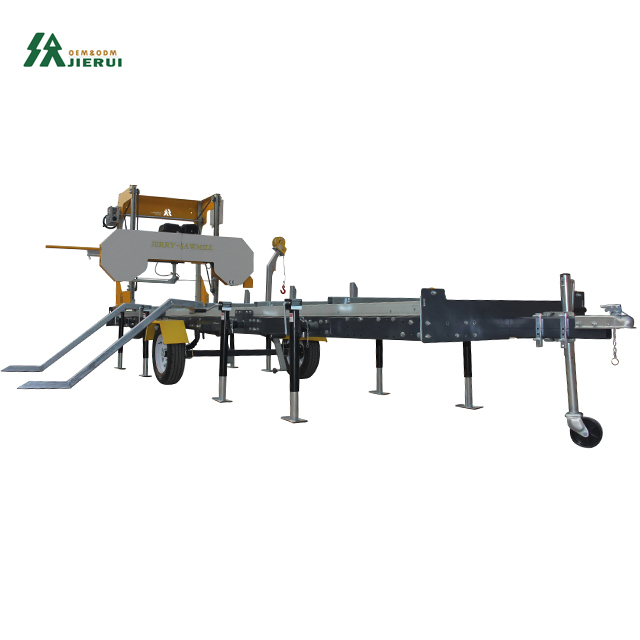

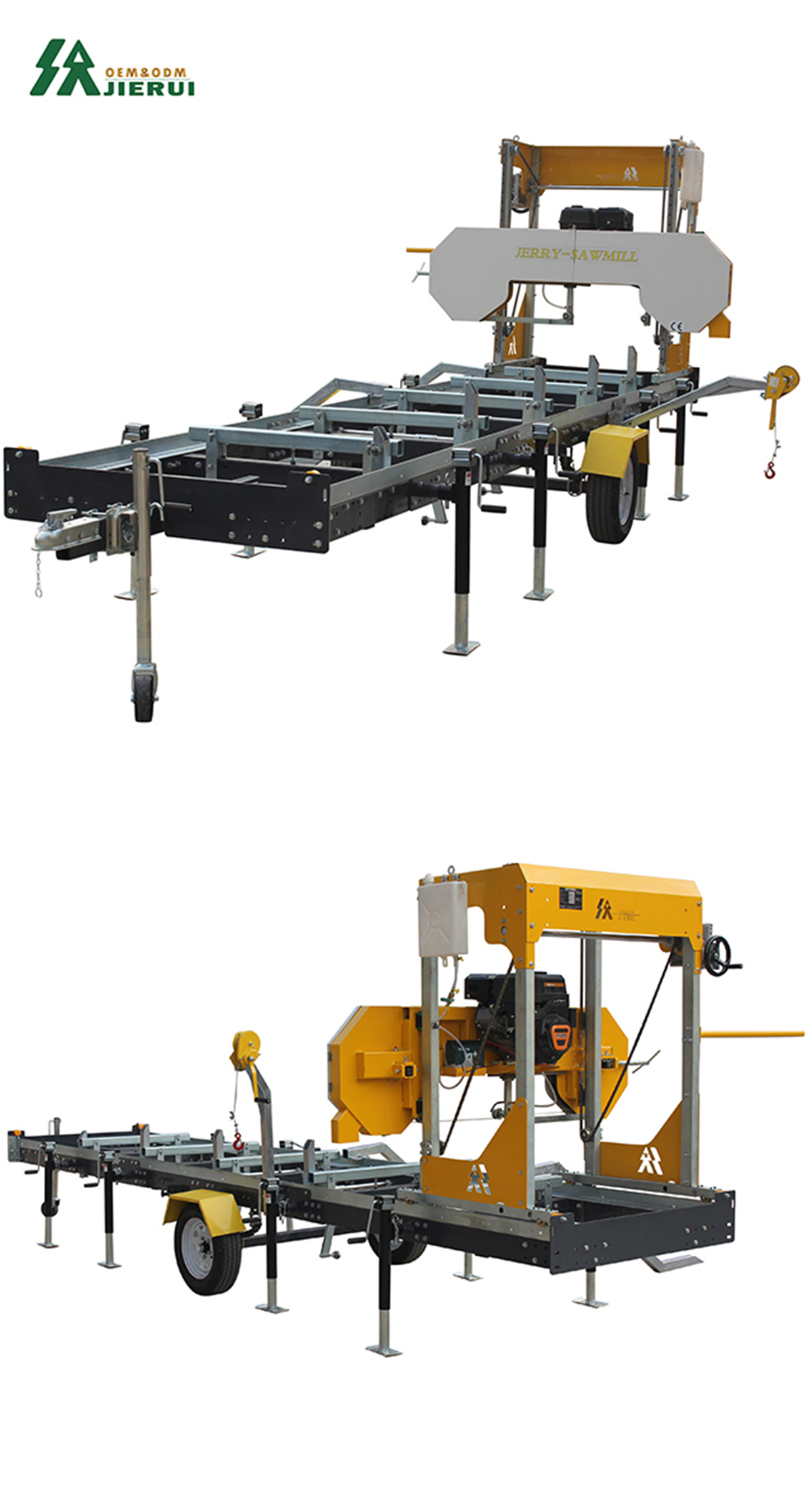

JR59 Portable Sawmills With trailer The use of spring plates in trailers can better reduce vibration damage to the track. Portable sawmill the best choice for you.No matter where or how big of a job, the JIERUI SAWMILL is sure to meet your needs.
Make an inquiry will get the best shipping quotation

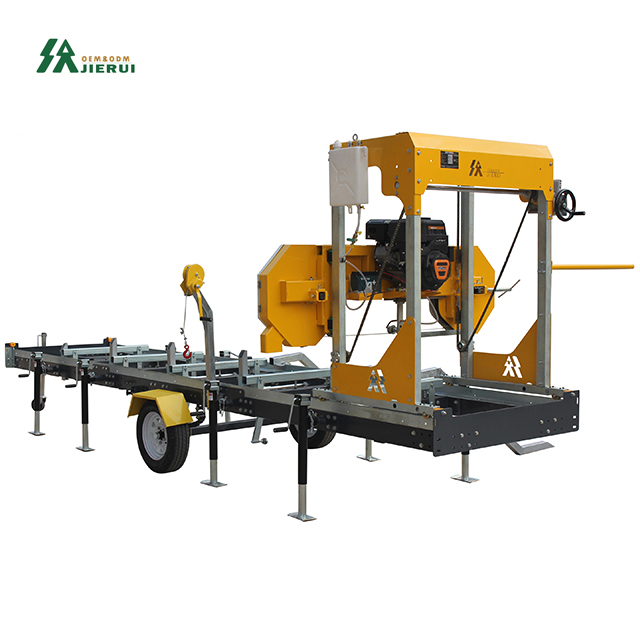

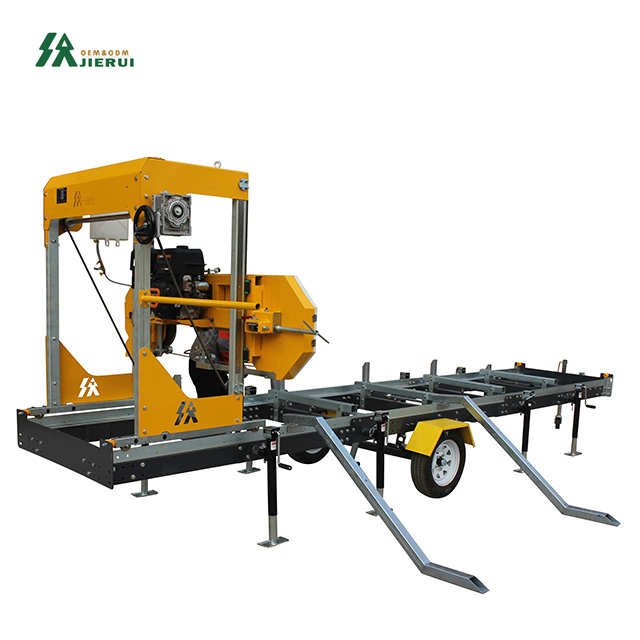

Portable sawmill with trailer with adjustable horizontal log supports. Double tracks are more robust. The use of spring plates in trailers can better reduce the damage of vibration to the track.
Make an inquiry now and receive a FREE product brochure loaded with vital product information and creative inspiration. Join us at JIERUI Machinery Equipment Co., LTD to elevate your operations and experience the future of machinery!
Sawmill parameters | JR59 | JR69 | JR80 | JR100 |
Max Log Cutting Dia(cm) | 60 | 70 | 92 | 105 |
Max Log Cutting Dia(inch) | 24 | 28 | 36 | 41 |
Max Log Cutting Length | 3.5m | 3.5m | 3.5m | 3.5m |
Track Length | 4m | 4m | 4m | 4m |
Motor Power | 5.5KW/18HP | 5.5KW/18HP | 7.5KW/18HP | 11KW/27HP |
Engine power | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel |
Packing Size | 2.1m*1m*1.5m | 2.1m*1m*1.6m | 2.1m*1m*1.76m | 2.1m*1m*1.76m |
Voltage Options | 220V/380V | 220V/380V | 220V/380V | 380V |
Saw Wheel Diameter | 400mm | 400mm | 500mm | 500mm |
Blade Size | 3300*35*0.9mm | 3300*35*0.9mm | 4200*35*0.9mm | 4200*35*0.9mm |
Lifting | Manual | Manual | Manual | Manual |
Walking | Manual | Manual | Manual | Manual |
Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
Dimension | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m |
Weight | 500kg | 500kg | 650kg | 770kg |
Warranty | 1 year | 1 year | 1 year | 1 year |
Color customization | Supported | Supported | Supported | Supported |
Logo customization | Supported | Supported | Supported | Supported |
From the details,where are our advantages

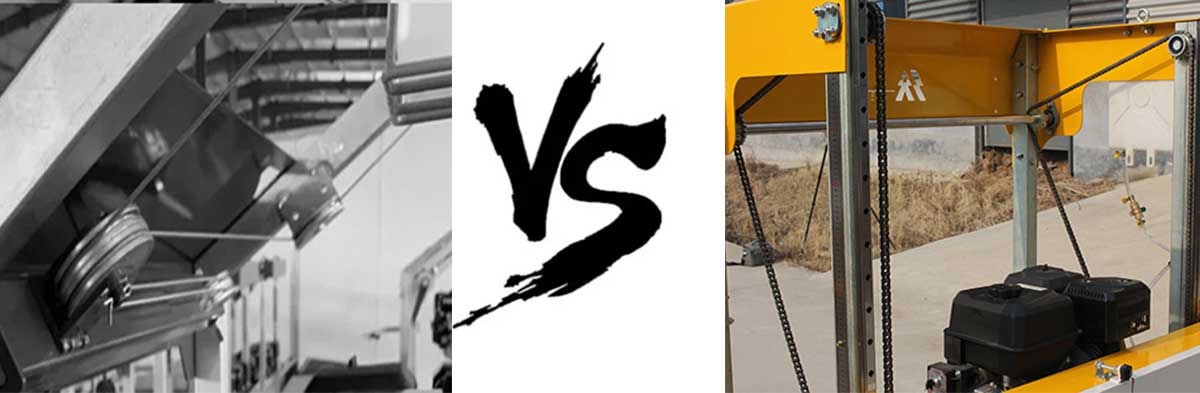

1.About lifting system
Others Our
Others :
1.Steel wire rope is used for lifting and easy to wear.
2.Sudden interruption will lead to great security risks.
3.Pulley design is adopted,the structure is complex, and there may be more fault points.
Our:
1.Chain design,simple structure and convenient replacement.
2.The sprocket rotates with a bearing,which is not easy to wear,It has been tested without fault after 30000 times of lifting and lowering.

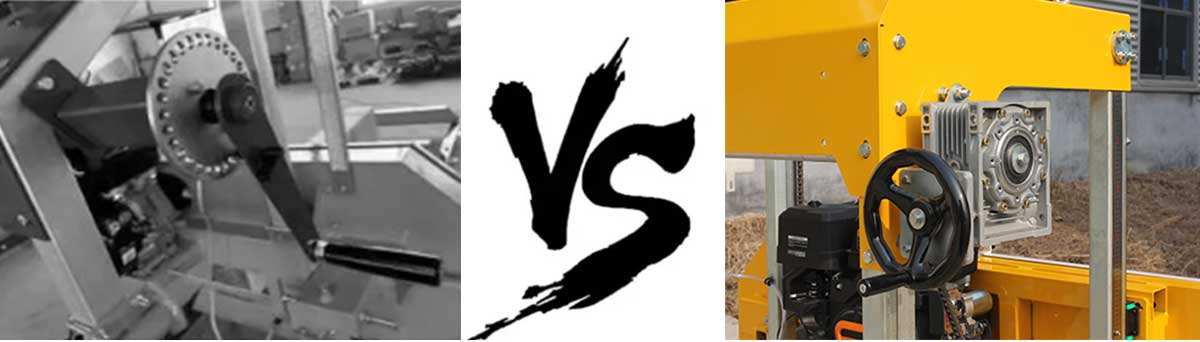

2.About Saw Head Positioning Unit
Others Our
Others:
1.Mechanical locking device through pin shaft and wheel disc.
2.The size adjustment is not accurate enough,Precision Challenges: The current design may not allow for highly precise size adjustments. This could lead to inaccuracies during operation, which might affect the quality of the output or the efficiency of the process. Ensuring accurate adjustments is crucial for maintaining consistent performance, particularly in applications requiring exact specifications. 3.Pin Shaft Wear and Safety Hazards
Vibration-Induced Wear: The pin shaft is susceptible to wear due to the vibrations generated during operation. Over time, this wear can compromise the integrity of the locking mechanism, leading to potential safety hazards. Regular inspection and maintenance of the pin shaft are essential to prevent such risks, but the inherent vulnerability of the component suggests that design improvements might be necessary to enhance durability and safety.
4.Lifting of sawing machine is more laborious.
Our:
1.Reducer for Lifting: The system adopts a reducer (a gear or mechanism that reduces the speed of a motor while increasing torque) for the lifting process. This makes the operation more stable and requires less effort, making it labor-saving.
2.Locking System: The reducer is equipped with a locking system that allows it to be securely locked in any position. This ensures safety and stability during operation, preventing unwanted movement.
3.Accurate Sawing: The overall design, including the locking system and stable lifting mechanism, ensures that the sawing process is more precise, leading to better-quality cuts.

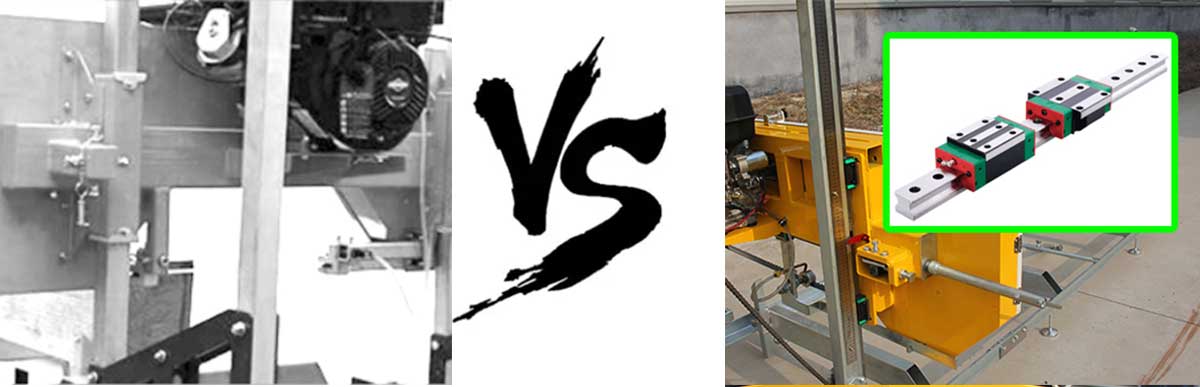

3.About sawhead lifting track
Others Our
Others:
1.The lifting track adopts hard friction which is easy to wear, the lifting is not smooth,and it is easy to get stuck.
2.The sawwheel needs to be adjusted on four sides,which is difficult to adjust.
Our:
1.Saw blade lifting adopts linear guide rail with double sliding blocks.
2.Smooth lifting,no jamming,high sawing precision andbetter stability blade lifting adopts linear guide rail.

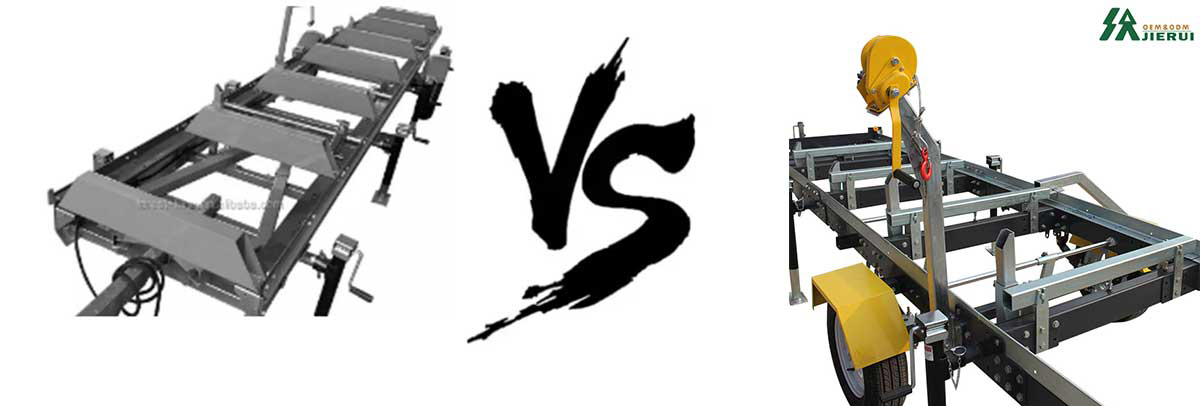

4.About the trailers track and log supporting
Others Our
Others :
1.T-shaped guide rail is adopted , and the operation is not stable enough.
Our:

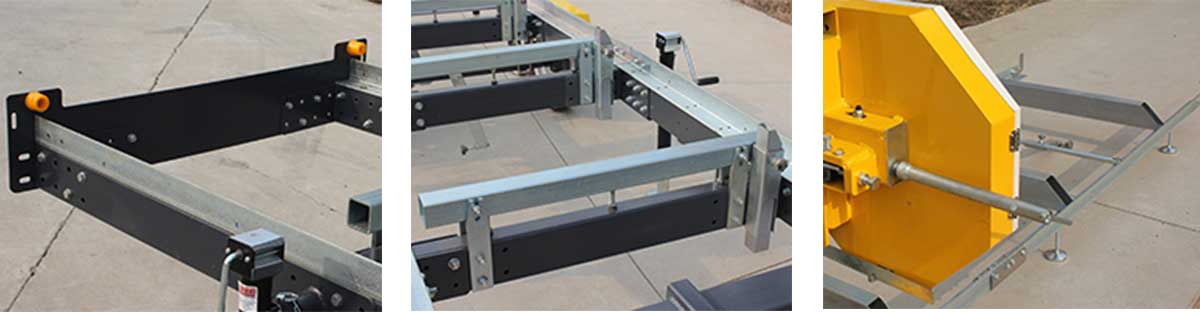

1. With adjustable horizontal log supporting
5.Aout engine starting
Others Our
Others:
1.Manual start only.
2.The engine support frame is thin and vibrates greatly.
Our:
1. Electric start with key.
2. There is a dedicated battery storage box.

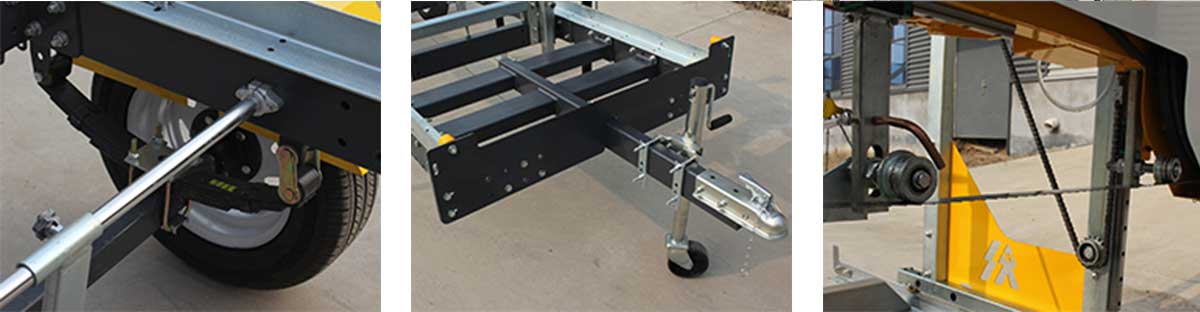

Function
With trailer spring plate Sturdy trailer towing device Saw blade roller guide device,
Band saw blade cooling system
Rail anti-collision block Adjustable log support Portable saw blade tensioning
wrench
