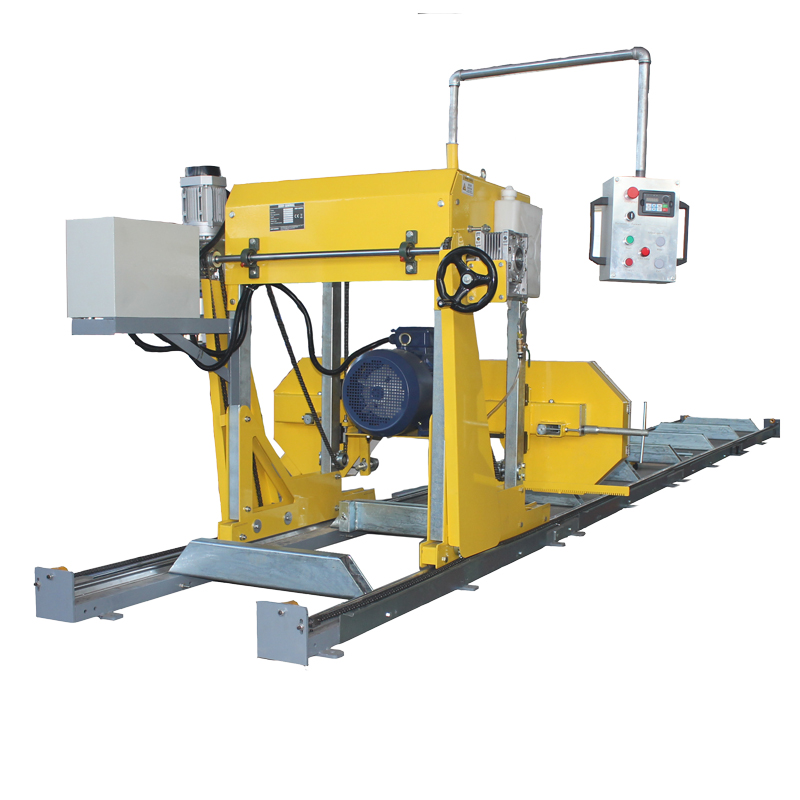

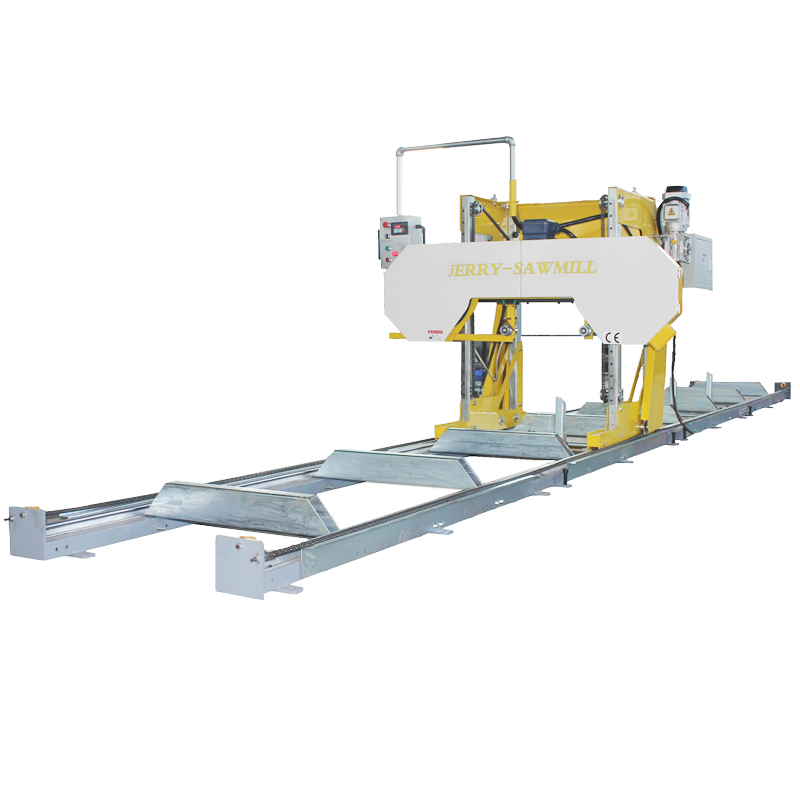

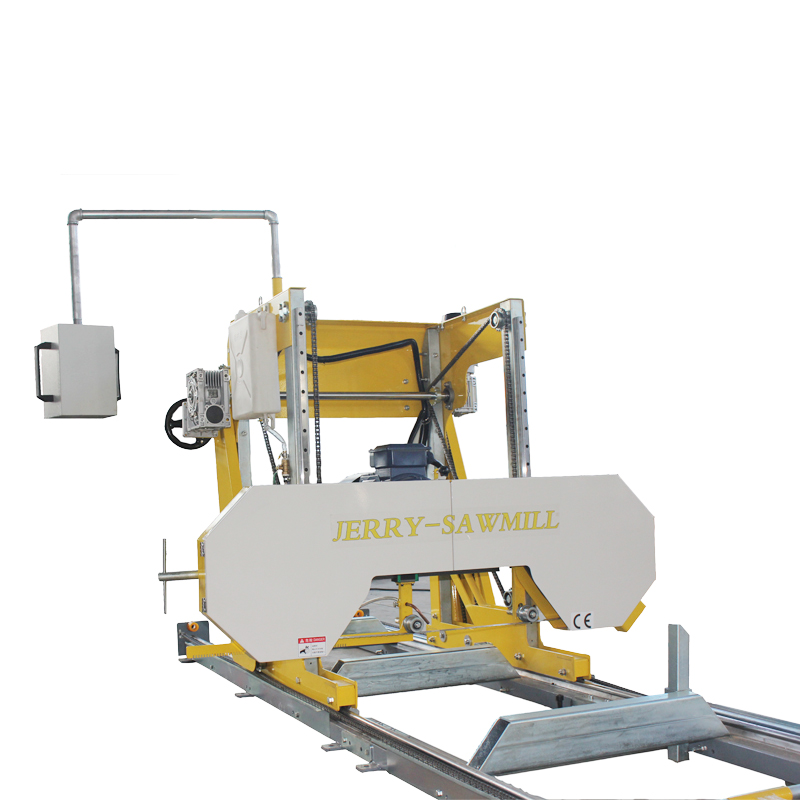

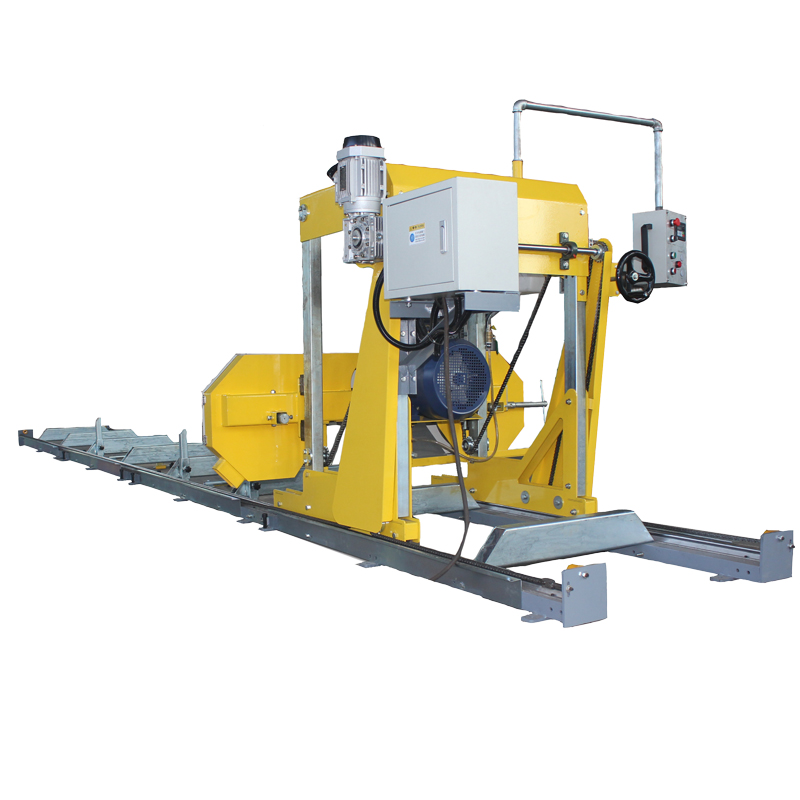

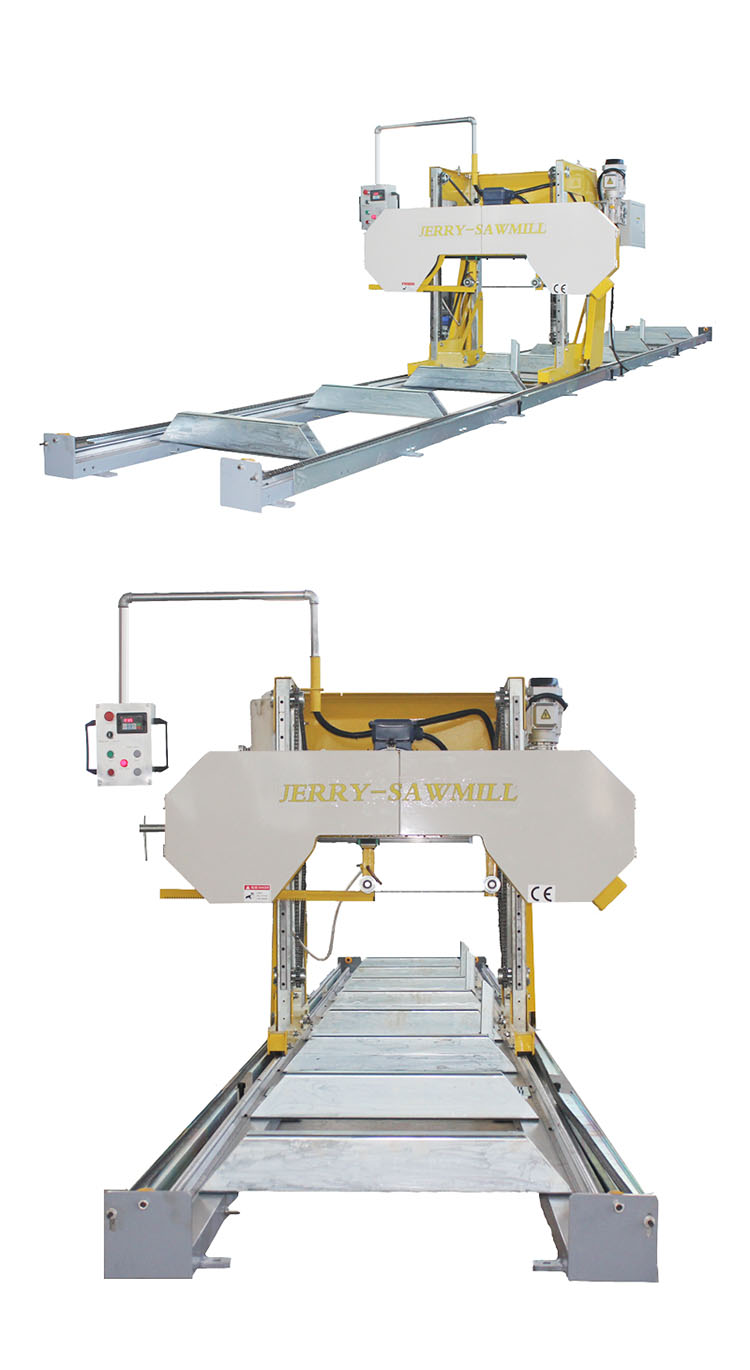

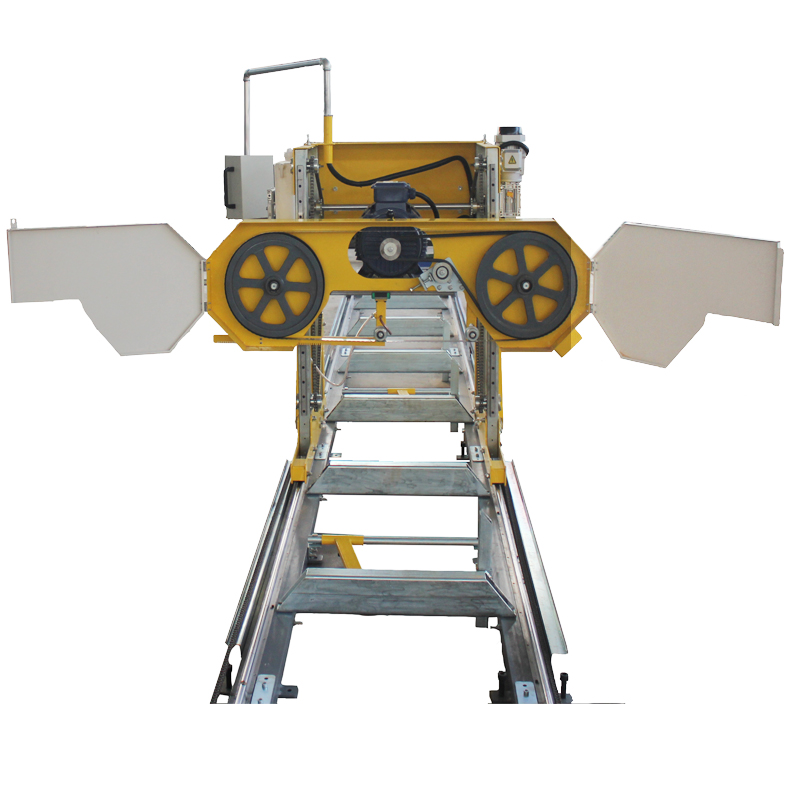

Automatic Portable Electric Sawmill
The most popular celectric autom portable Sawmills wood cutting.
The reducer is equipped witha locking system to ensure more accurate sawing.Can lift with one key, smooth and labor-saving.
Make an inquiry will get the best shipping quotation
Exceptional value entry-level portable sawmill with premium quality features and SUPER upgrades including a stronger steel sawmill frame, more powerful gas engine, longer sawing length, durable laser cut steel bed with leveling feet, extra quick-set log handling, and more!
Contact us today for an inquiry and unlock a FREE product brochure bursting with valuable information, inspiration, and insights. Explore how JIERUI Machinery Equipment Co., LTD can enhance your projects and drive your success!
| Sawmill parameters | JR59 | JR69 | JR80 | JR100 |
| Max Log Cutting Dia(cm) | 60 | 70 | 92 | 105 |
| Max Log Cutting Dia(inch) | 24 | 28 | 36 | 41 |
| Max Log Cutting Length | 3.5m | 3.5m | 3.5m | 3.5m |
| Track Length | 4m | 4m | 4m | 4m |
| Motor Power | 5.5KW/18HP | 5.5KW/18HP | 7.5KW/18HP | 11KW/27HP |
| Engine power | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel |
| Packing Size | 2.1m*1m*1.5m | 2.1m*1m*1.6m | 2.1m*1m*1.76m | 2.1m*1m*1.76m |
| Voltage Options | 220V/380V | 220V/380V | 220V/380V | 380V |
| Saw Wheel Diameter | 400mm | 400mm | 500mm | 500mm |
| Blade Size | 3300*35*0.9mm | 3300*35*0.9mm | 4200*35*0.9mm | 4200*35*0.9mm |
| Lifting | Auto | Auto | Auto | Auto |
| Walking | Auto | Auto | Auto | Auto |
| Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
| Dimension | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m |
| Weight | 500kg | 500kg | 650kg | 770kg |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Color customization | Supported | Supported | Supported | Supported |
| Logo customization | Supported | Supported | Supported | Supported |
1.About lifting system
Others Our
Others ：
1.Steel wire rope is used for lifting and easy to wear.
2.Sudden interruption will lead to great security risks.
3.Pulley design is adopted,the structure is complex, and there may be more fault points.
Our：
1.Chain design,simple structure and convenient replacement.
2.The sprocket rotates with a bearing,which is not easy to wear,It has been tested without fault after 30000 times of lifting and lowering.

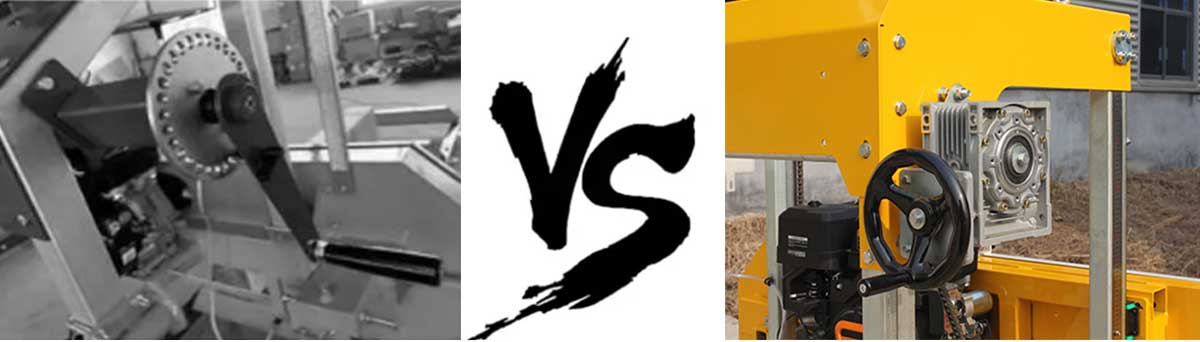

2.About Saw Head Positioning Unit
Others Our
Others：
1.Mechanical locking device through pin shaft and wheel disc.
2.The size adjustment is not accurate enough.
3.The pin shaff is easily worn due to vibration,resulting in potential safety hazards.
4.Lifting of sawing machine is more laborious.
Our：
1.Adopt reducer for lifting ,stable and labor-saving.
2.The reducer is equipped with a locking system,which can be locked at any position.
3.Ensure more accurate sawing.

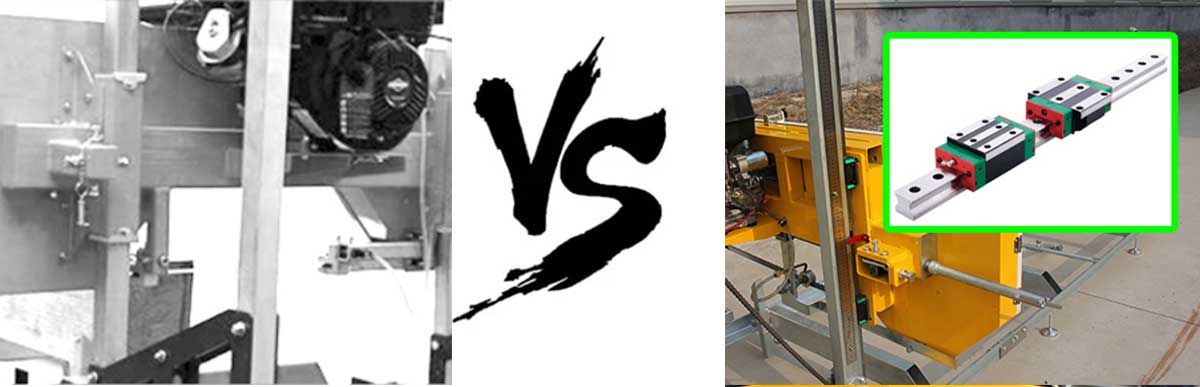

3.About sawhead lifting track
Others Our
Others：
1.The lifting track adopts hard friction which is easy to wear, the lifting is not smooth,and it is easy to get stuck.
2.The sawwheel needs to be adjusted on four sides,which is difficult to adjust.
Our：
1.Saw Blade Lifting Adopts Linear Guide Rail with Double Sliding Blocks
Purpose: Utilizes a linear guide rail system with double sliding blocks to lift and lower the saw blade.
Benefits: Ensures precise and smooth movement of the saw blade, enhancing the accuracy of cuts and extending the life of the equipment.
2. Smooth Lifting, No Jamming, High Sawing Precision, and Better Stability
Purpose: The linear guide rail system is designed to provide smooth and reliable lifting of the saw blade without jamming.
Benefits:
Smooth Lifting: Reduces friction and wear, resulting in consistent performance.
No Jamming: Ensures uninterrupted operation, reducing downtime and maintenance.
High Sawing Precision: Achieves accurate cuts with minimal deviation, improving the quality of the finished product.
Better Stability: Enhances overall stability of the saw blade during operation, reducing vibration and improving cutting accuracy.

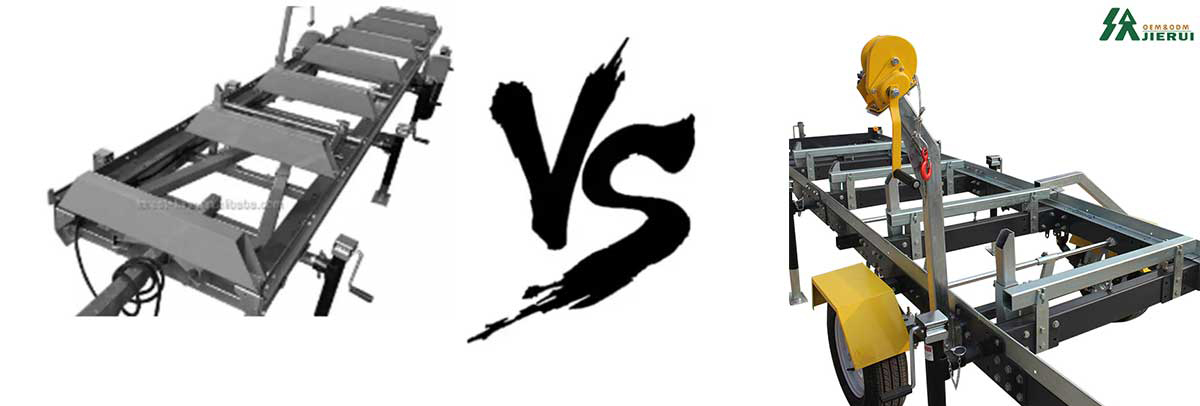

4.About the trailers track and log supporting
Others Our
Others :
1.T-shaped guide rail is adopted , and the operation is not stable enough.
Our:
1.Adjustable Horizontal Log Supporting: This feature enhances stability by providing better support and alignment for the logs during the cutting process.
2.Double-Layered Tracks: Offering greater sturdiness, double-layered tracks reduce movement and improve overall stability, leading to more consistent and accurate cuts.

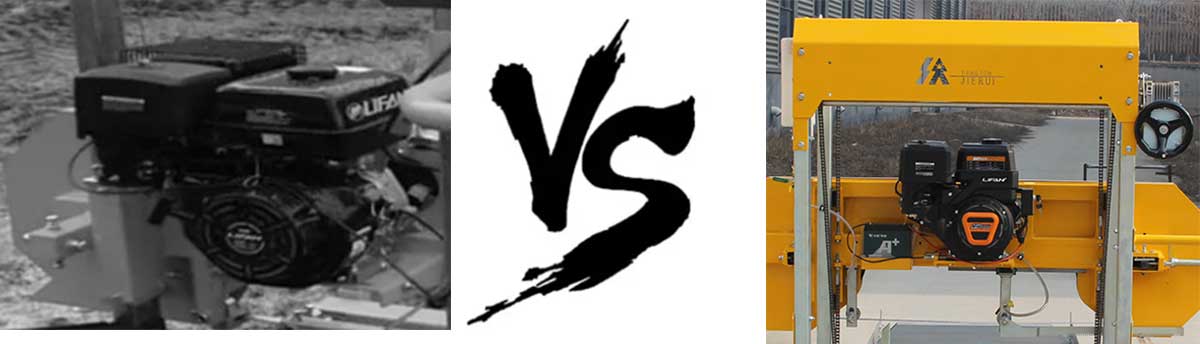

5.Aout engine starting
Others Our
Others:
1.Manual start only.
2.The engine support frame is thin and vibrates greatly.
Our:
1. Electric Start with Key
Purpose: Enables convenient and reliable starting of the equipment with the turn of a key.
Benefits: Simplifies the starting process, reducing the effort required compared to manual starting methods, and enhances ease of use.
2. Dedicated Battery Storage Box
Purpose: Provides a secure and protected space for the battery.
Benefits: Ensures that the battery is housed safely, preventing damage and extending its lifespan. It also helps maintain optimal power supply to the equipment.

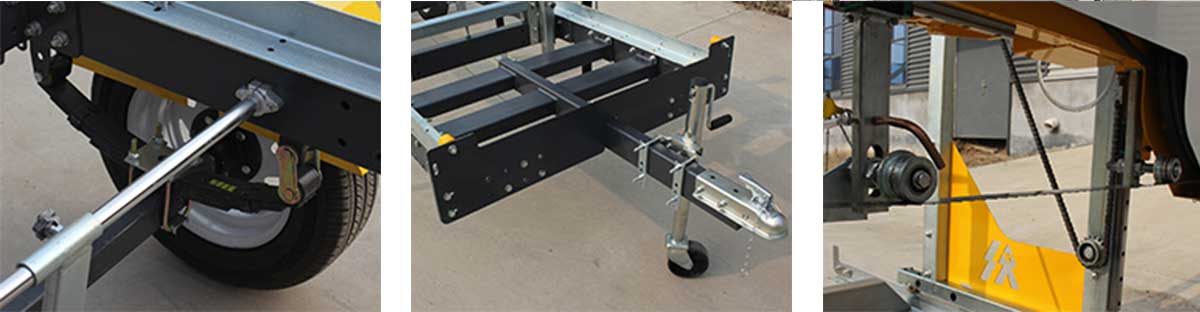

Function
1.With trailer spring plate
2.Sturdy trailer towing device
3.Saw blade roller guide device，Clean Blades with Gravity-Fed Blade Lubrication
High-Performance Sawing with Blade Guide Rollers
High-performance blade guide rollers provide extra support and stability for sawmill blades to saw accurately and consistently compared to blade guide blocks. In addition to continuously feeding the blades, the blade guide rollers apply downward pressure on the blade while sawing for better cut quality. Sawmill blades run on belted 16" diameter cast iron band wheels for additional stability in the cut.
Clean Blades with Gravity-Fed Blade Lubrication
Keep the sawmill blade cool and free of pitch, sap, and sawdust while sawing with the gravity-fed blade lubrication that applies directly to the blade. A water tank conveniently located close to the operator is easy to refill and features an on/off valve for consistently distributing lubrication to the blade.

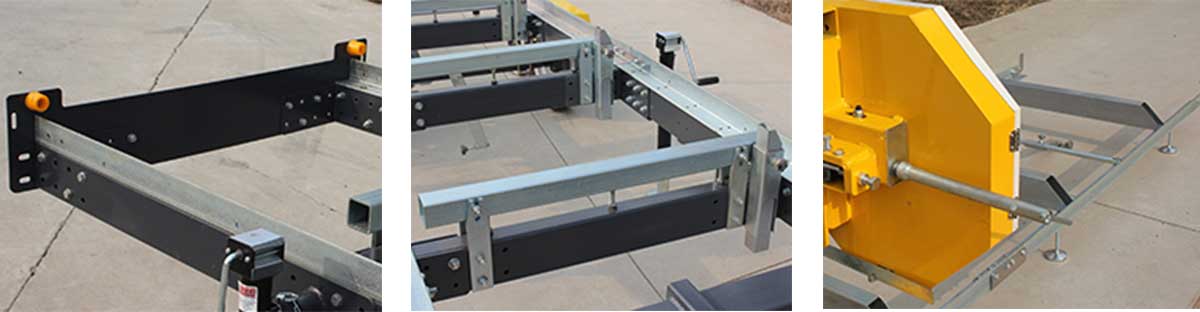

1. Rail Anti-Collision Block
Purpose: Prevents damage to the rail system by stopping collisions, ensuring smooth operation and prolonging the lifespan of the equipment.
Benefits: Enhances the durability of the rail system and maintains accurate tracking of the saw blade.
2. Adjustable Log Support
Purpose: Provides support for logs of varying sizes and ensures they are securely positioned during cutting.
Benefits: Improves cutting precision and stability, reducing the risk of log movement and ensuring consistent results.
3. Portable Saw Blade Tensioning Wrench
Purpose: Allows for the easy adjustment of saw blade tension, which is crucial for optimal cutting performance and blade longevity.
Benefits: Facilitates convenient maintenance and adjustments, ensuring the saw blade remains properly tensioned for effective cutting.
