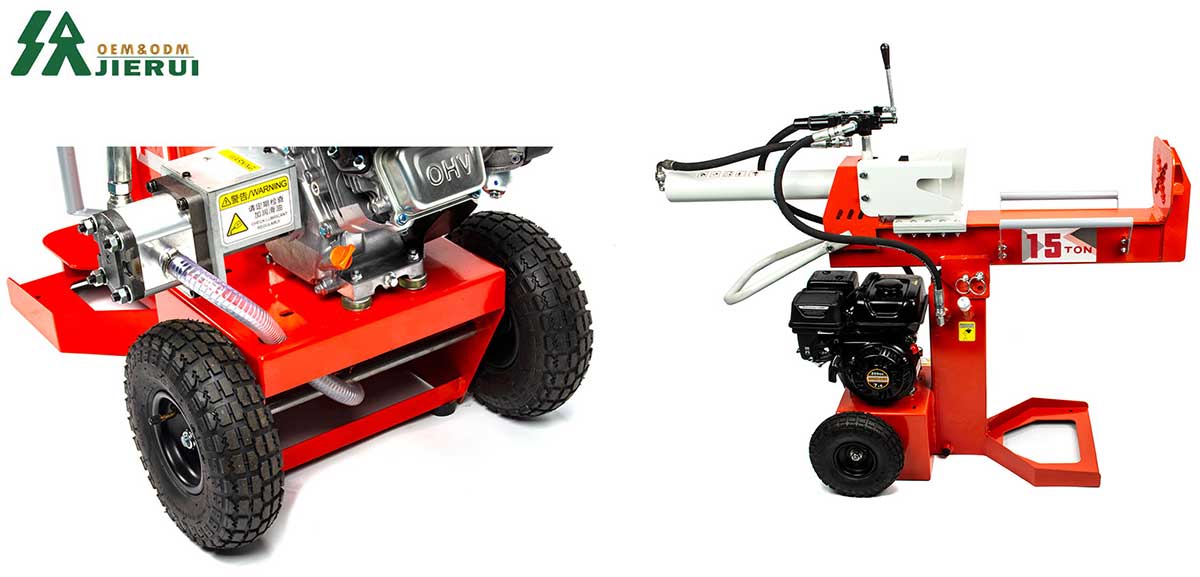

15T Vertical And Sleeping Gasoline Splitter

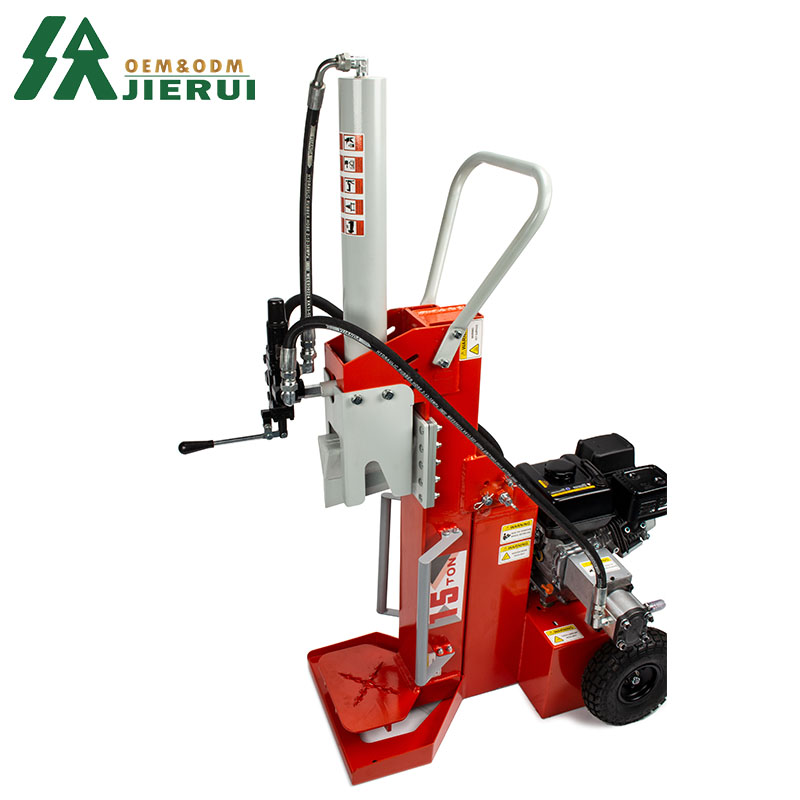

JIERUI Machinery introduced the vertical and horizontal dual-use 15T log splitter, control the hand valve to control the machine, improve work safety, the split cycle of 15 seconds a cycle, the split length of 20.5 inche






Make an inquiry will get the best shipping quotation

15T
$650.00
  Contact Now WhatsApp
15T
$650.00
Product Details

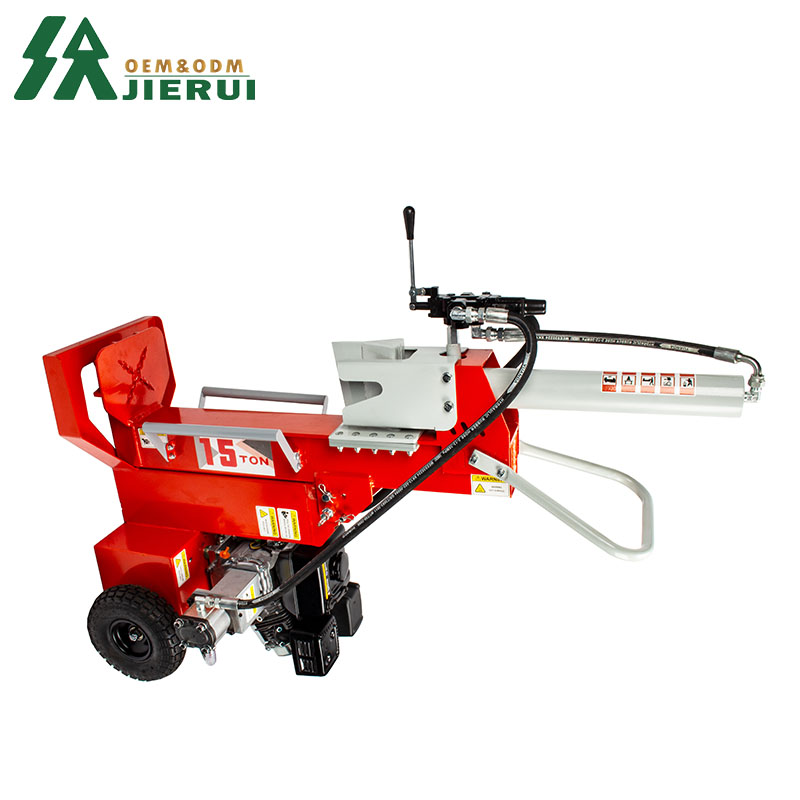

The vertical and horizontal gasoline log splitter is a versatile log splitter that can operate in both vertical and horizontal directions and is powered by a gasoline engine. These machines are ideal for splitting large logs because the vertical mode allows heavy logs to be handled more easily, reducing the need to lift them to the machine, while the horizontal mode provides a convenient option for splitting smaller or medium-sized logs.



15T Vertical And Sleeping Gasoline Splitter

Contact us today for a consultation and receive a free product brochure from Jierui Machinery Equipment Co., Ltd., packed with exciting product information, inspiration, and innovative solutions!

Whether you're involved in forestry, wood processing, or industrial woodworking, our wide range of sawmills, firewood processors, wood splitters, and other machinery is designed to help you achieve more.

Get in touch today to learn how we can assist you with:

Customized machinery solutions

Expert consultation for your projects

Innovative equipment features that can optimize your operations

15T Vertical And Sleeping Gasoline Splitter

15T Vertical And Sleeping Gasoline Splitter

15T vertical and sleeping splitter
Parameter type
Parameter
Production dimension (L/W/H *inch)
56.3/20.5/45.6
Net weight (KG)
125
Packing size (inch)
30.7/16.5/46
Total weight of packing (KG)
145
Horizontal/vertical
Horizontal and vertical
Splitting method (optional)
2 ways
Cycle
15S
Model
CBT/203
Control valve
23.3GAL three-position automatic return
Max. tonnage
15T
Hydraulic oil No.
46#
Filter
Available
Wheel tires
4.1-3.5-4
Traction(inch)
10
Min. hydraulic oil level
1.32GAL
Max. hydraulic oil level
1.72GAL
Inner diameter of oil cylinder (inch)
2.76
Splitting stroke Length (inch)
20.5
Working pressure
16MP-25MP adjustable
OEM
Acceptable
Engine brand
RATO
Engine type
Air-cool and four-stroke gasoline engine, OHV
Engine displacement
7P 209CC
Axial direction of engine
Horizontal axis
Start engine
Electric/recoil
Rated torque* (N.m@3060rpm)
12.9


The 15T Vertical and sleeping splitter main features usually include:

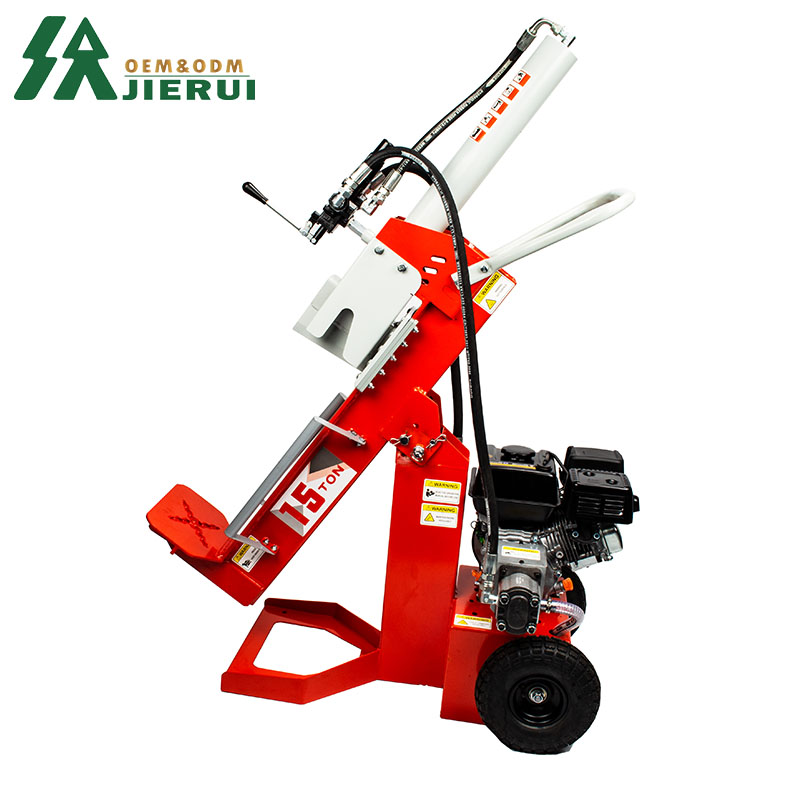

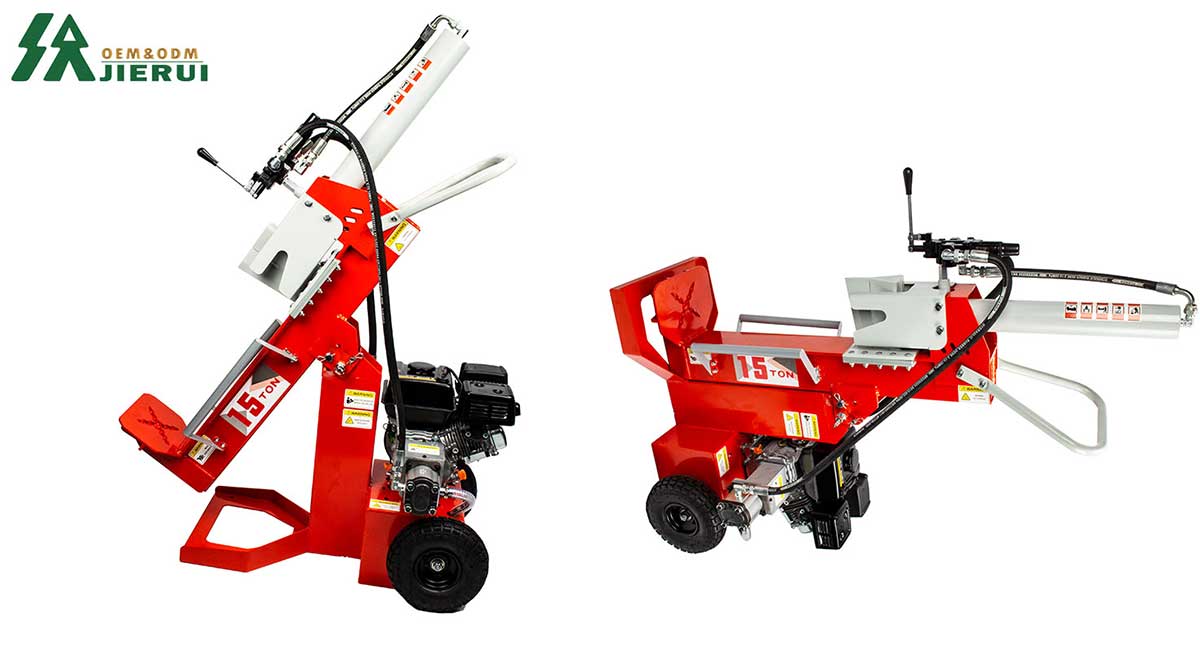

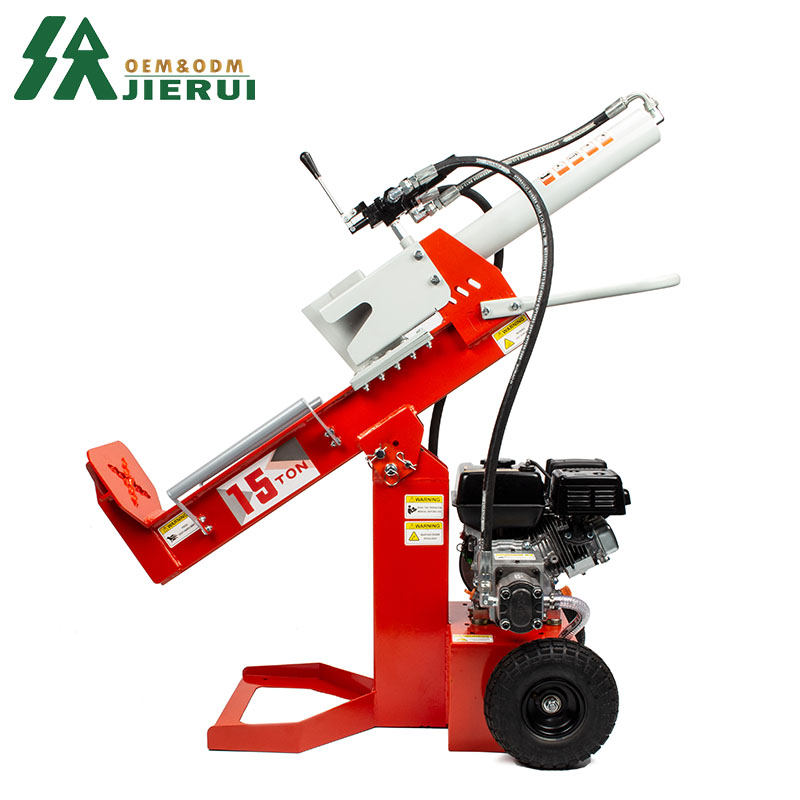

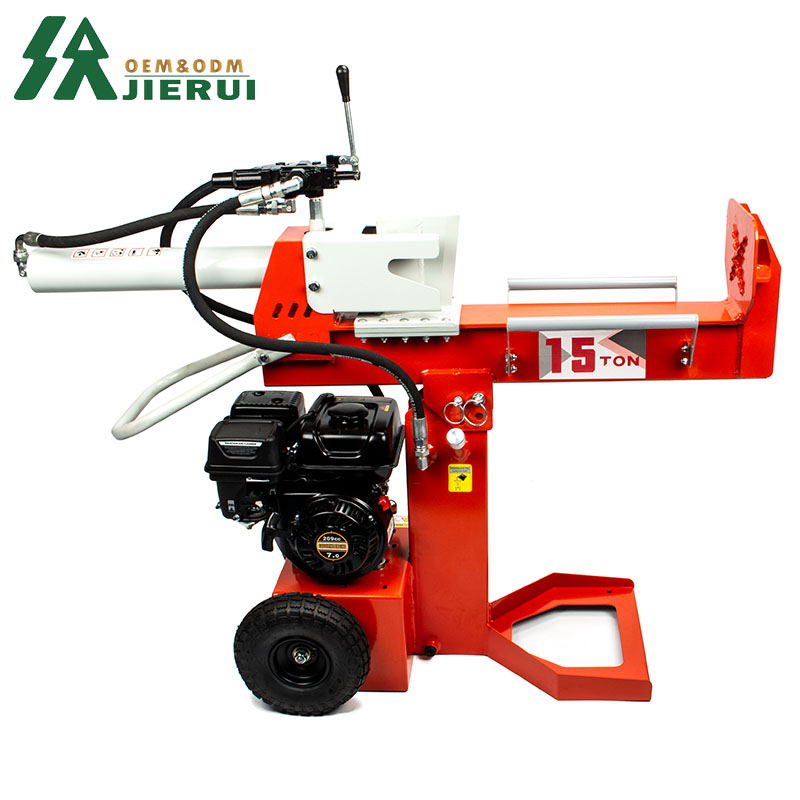

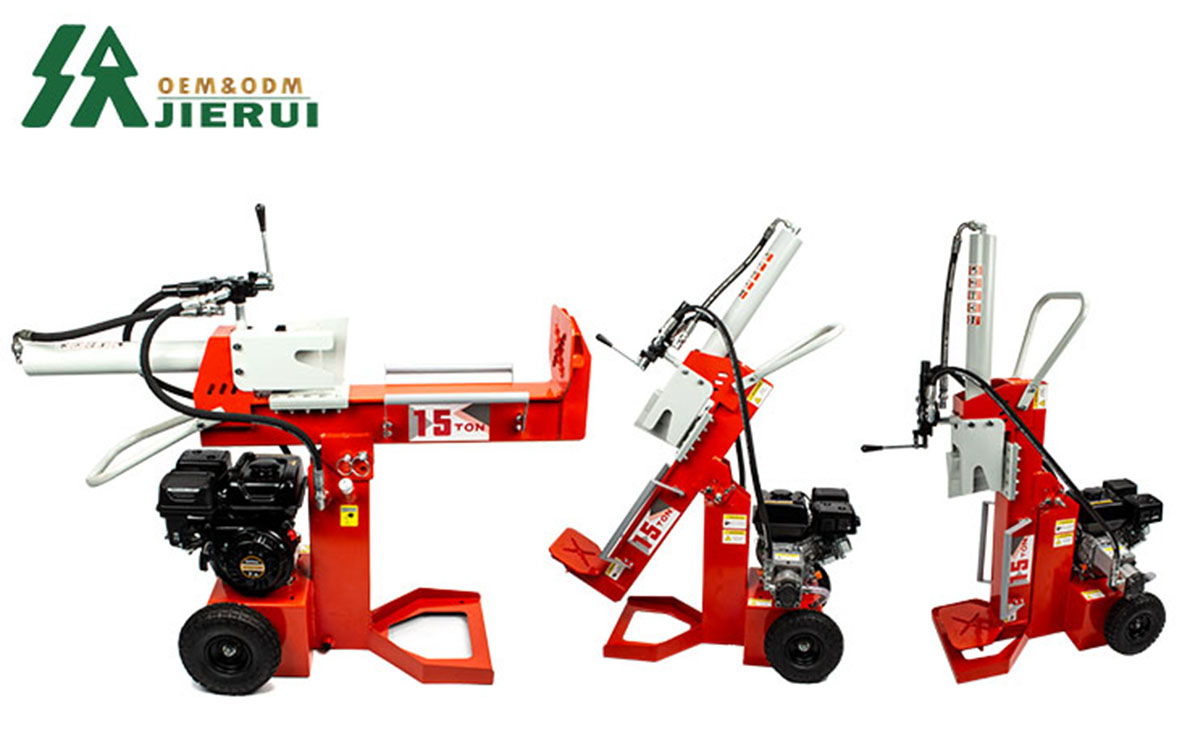

Dual operation mode: Vertical mode: Suitable for larger, heavier logs. Logs can be loaded by rolling into place without the need to lift them. Horizontal mode: Ideal for small logs that can be easily lifted into a separator for handling. Powerful gasoline engine: The gasoline engine provides the maneuverability and power required for outdoor wood splitting tasks: Security features: Safety protection, automatic shutdown system, manual operation to ensure safety during use. Portability: With wheels for easy transportation to different work sites or around the yard. Ease of use: Design user-friendly control and efficient hydraulic system to ensure smooth operation. This type of wood processor is suitable for a variety of tasks, including forestry operations, preparing firewood for homes, and even small and medium-sized business operations.

Product Details

15T Vertical And Sleeping Gasoline Splitter

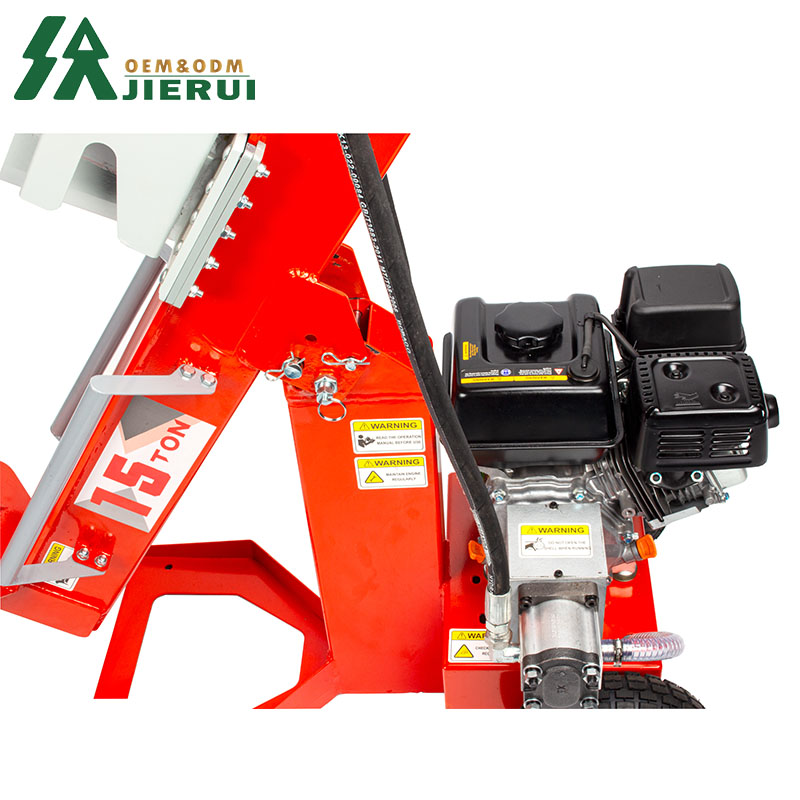

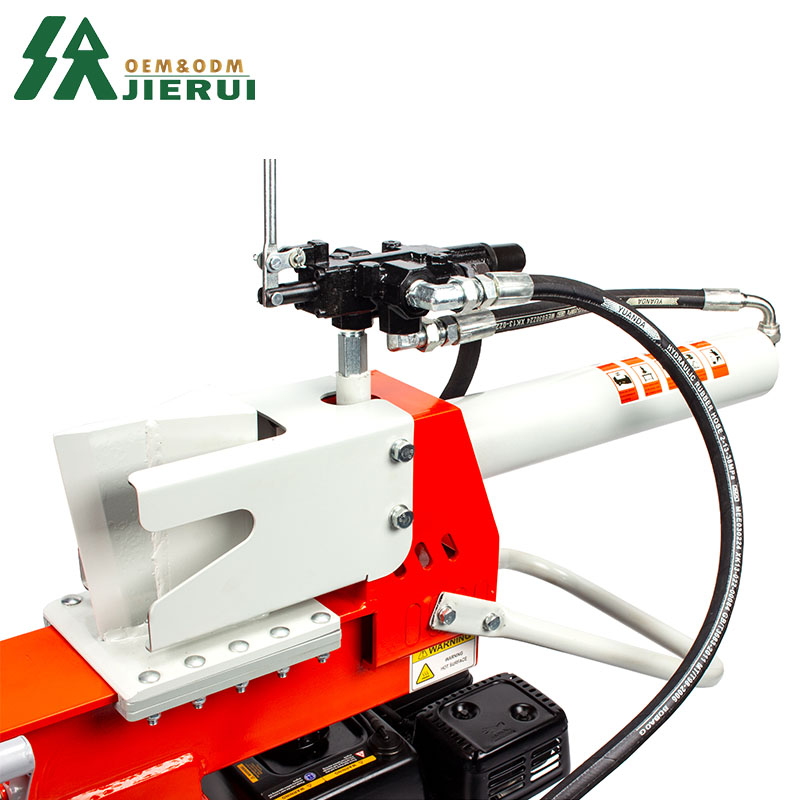

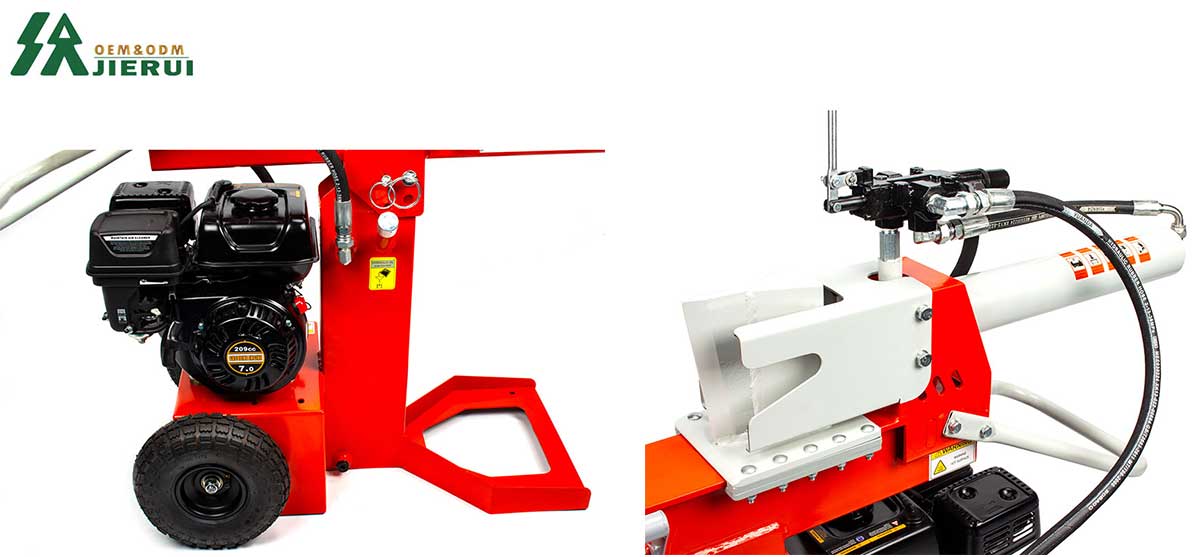

Famous brand engine                                                                          High strength solid hydraulic rod


15T Vertical And Sleeping Gasoline Splitter

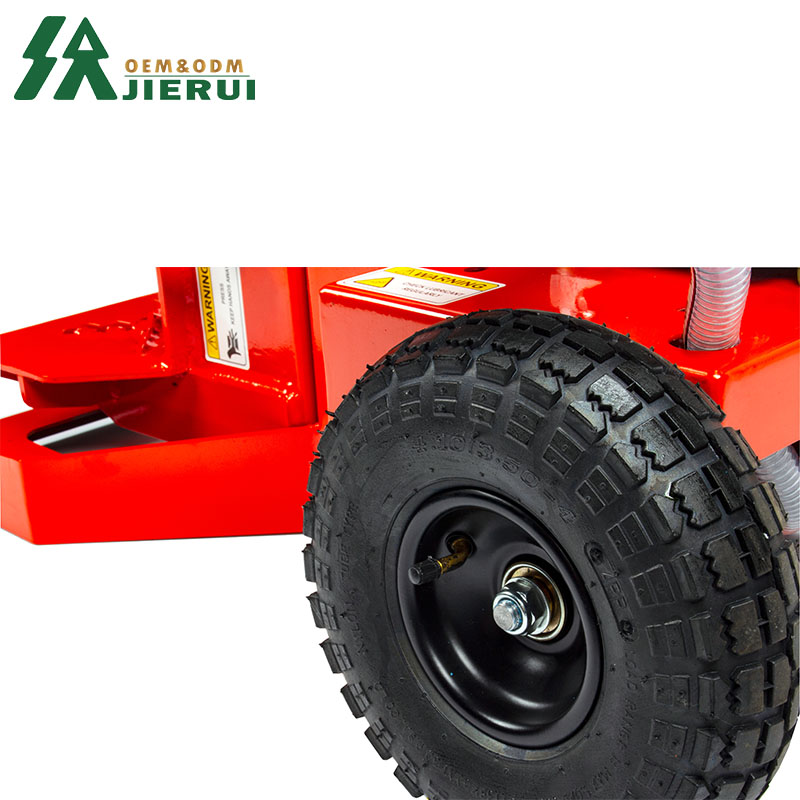

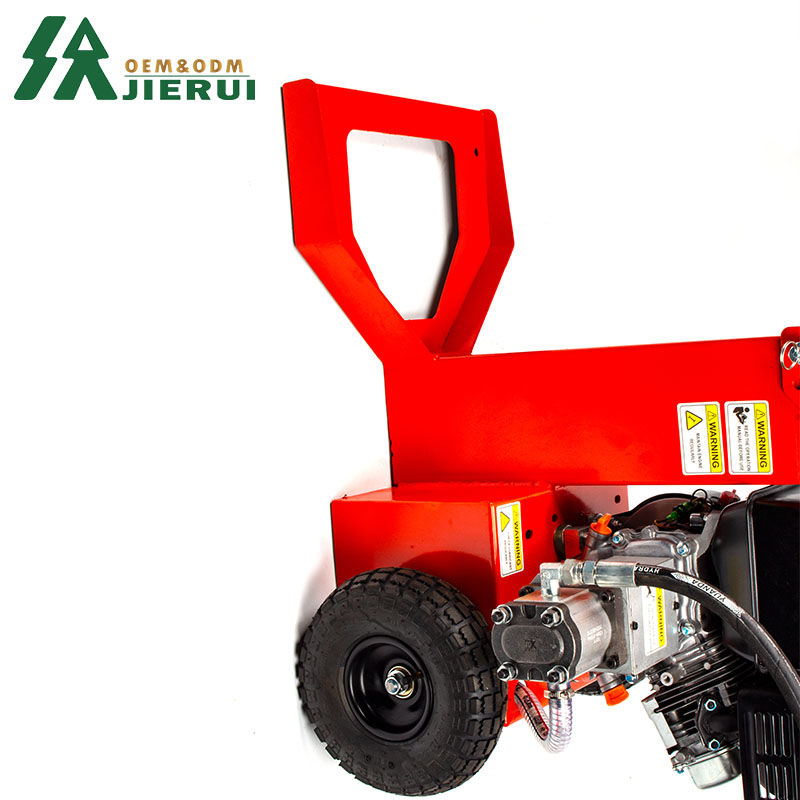

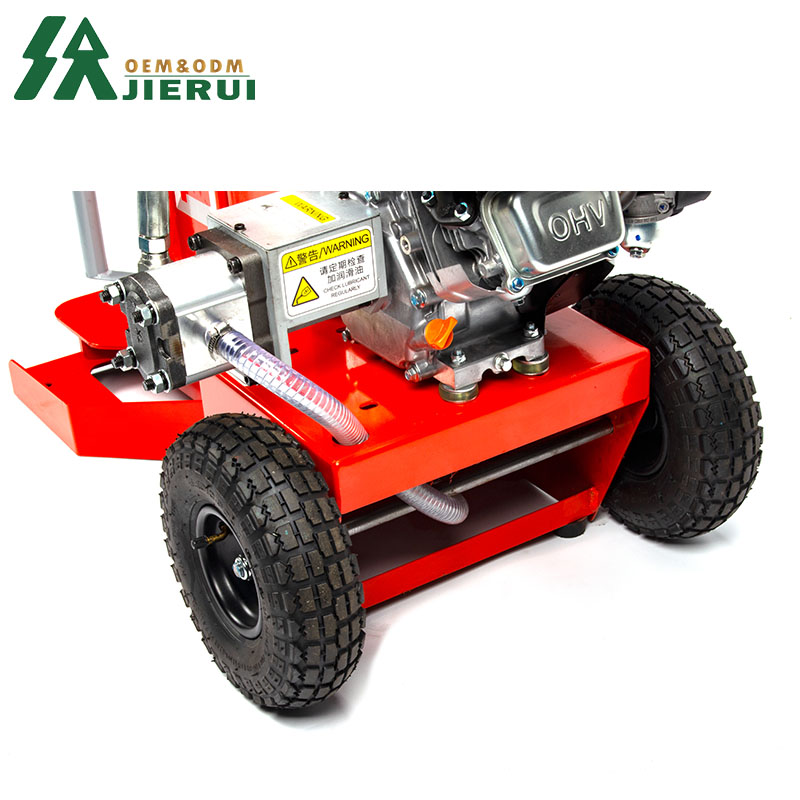

High quality tires                                                                                    Integrated welding cleaver


15T Vertical And Sleeping Gasoline Splitter
