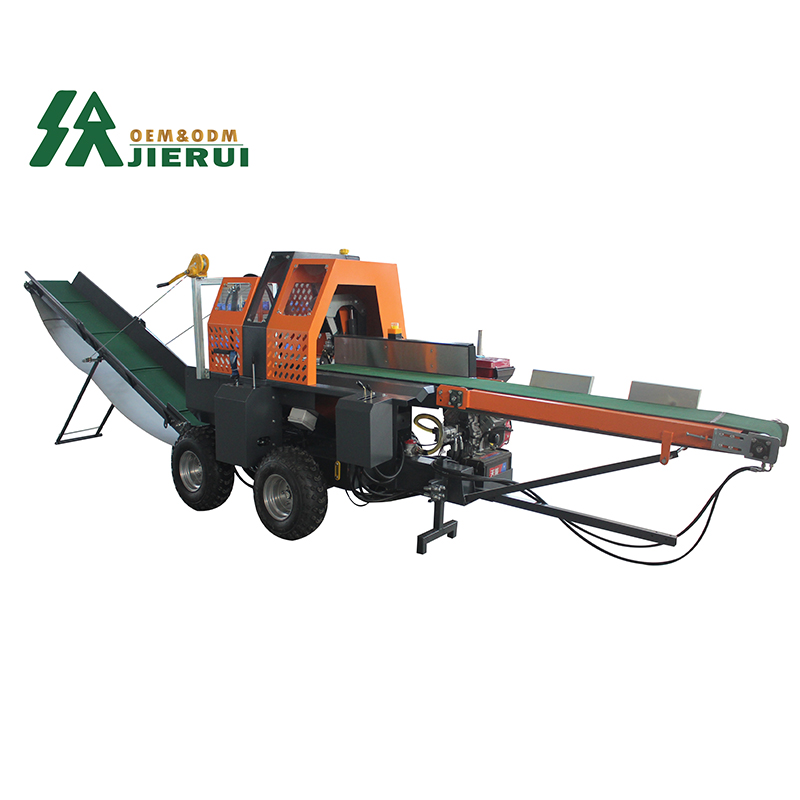

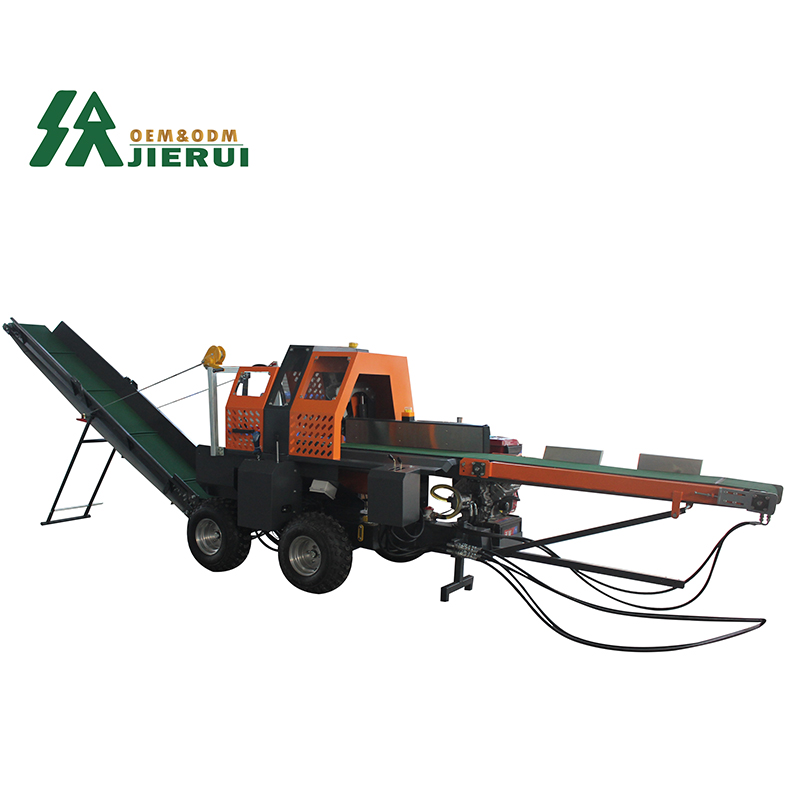

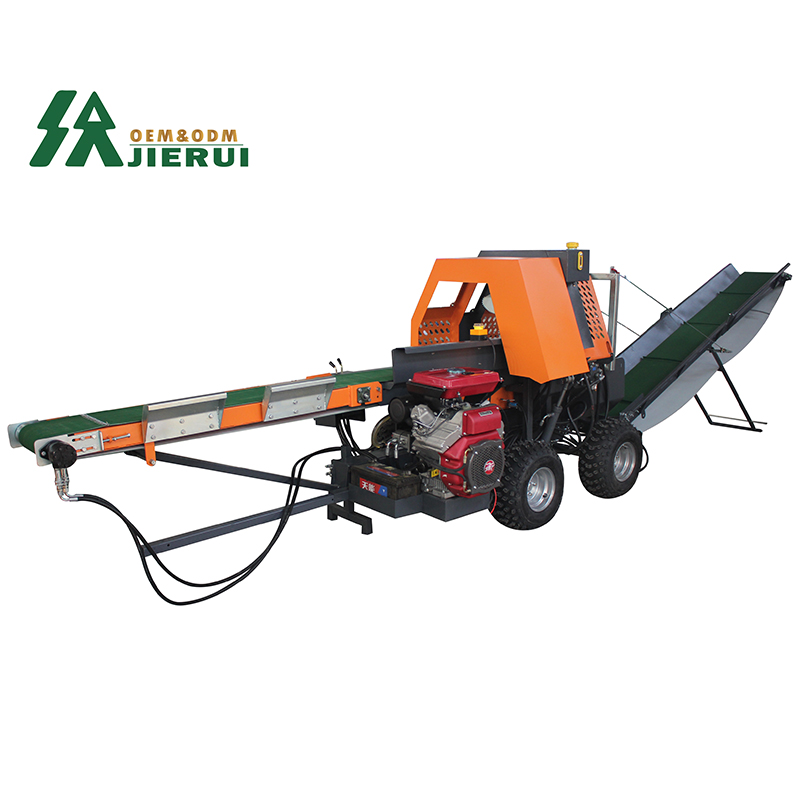

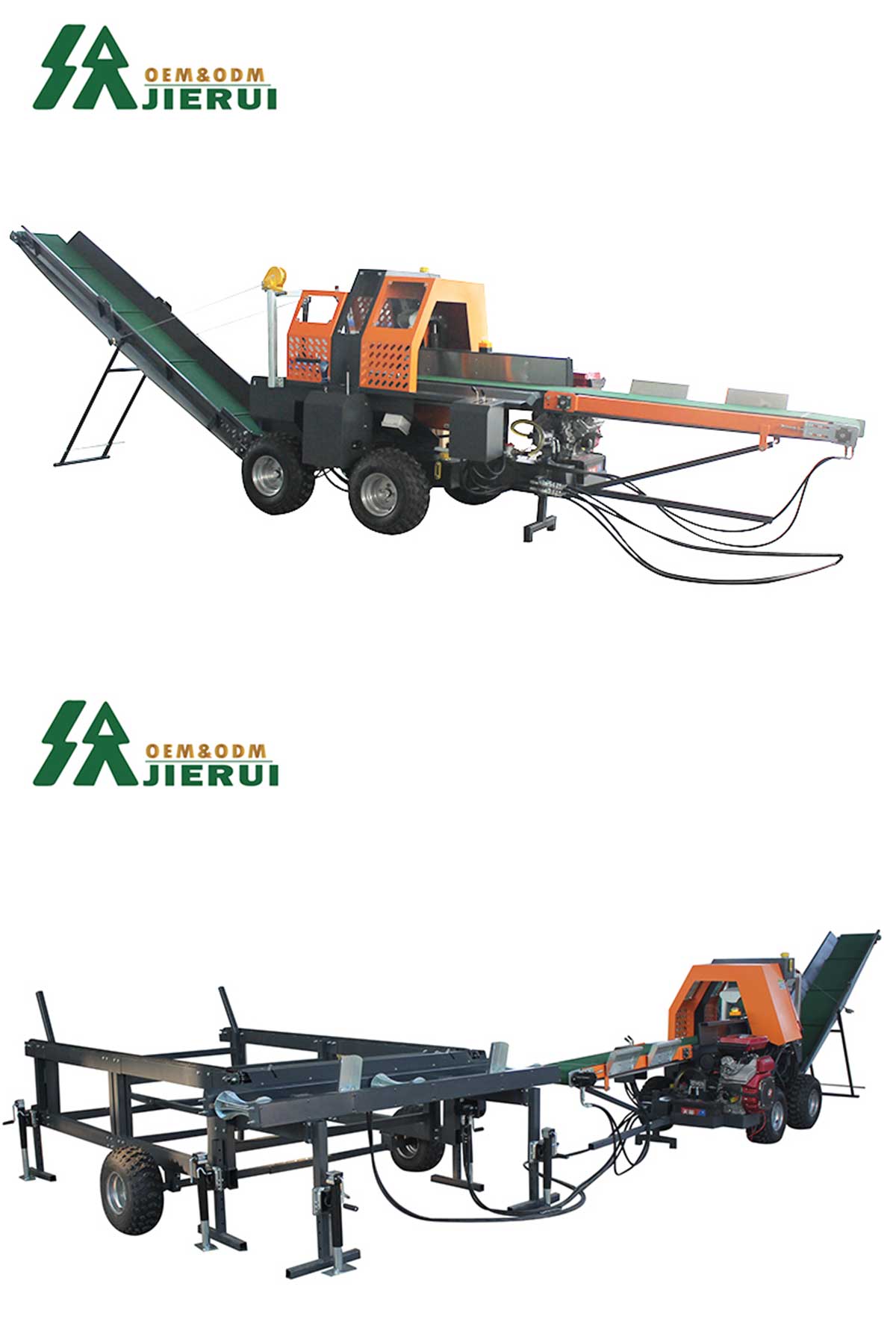

30T Firewood Processor

30T diesel firewood processor for hardwoods and other large diameter logs, we have more options!The maximum cutting length is a standard 610 mm (24 inches).

Inquire now and receive a FREE product brochure brimming with essential product information and inspiration. Let JIERUI Machinery Equipment Co., LTD empower your work with cutting-edge solutions!

WHY CHOOSE US

1. Unmatched Quality and Performance

• Durable and Reliable: Our equipment is built to last, using high-quality materials and advanced engineering to ensure consistent and reliable performance, even in demanding environments.

• Efficient Operation: Our machines are designed for maximum efficiency, allowing you to process firewood faster and with less effort compared to other brands.

2. Safety First

• With built-in safety features like automatic safety shutdowns, protective guards, and user-friendly controls, your machines are designed to minimize the risk of accidents, providing peace of mind for operators.


3. Easy to Use and Maintain

• Simple Operation: We design our equipment to be easy to use, even for those who are new to firewood processing.

• Low Maintenance: Our machines require minimal maintenance, saving you time and reducing downtime, so you can keep working efficiently.

• Performance	Max Splitting	30T
  	Cycle Time	8 seconds
  	Max Splitting Length	610mm
  	Max Splitting Diameter	500mm
  	Work Efficiency	4 -8CBM/H
  	Power	27 HP gasoline engine
  	Engine band	LIFAN
  	Engine Displacement	560cc
  	Fuel Tank Capacity	6.5L
  	Engine Oil Capacity	1.1L
  Machine assembly	Firewood Conveyor length	3.2m
  	Width of belt	370MM
  	Width of chute	420mm
  	Hydraulic rotator	1 set
  	Chain Saw length	22"
  	Chain Saw Rotate Speed	7000rpm
  	Sawing Speed	Adjustable
  	Oil Pump	22GMP, 2-stage
  Packing	Knife	4 ways (6 -8ways option)
  	Weight(N.W./G.W.)	1100kg
  	Package:size	2800*1720*1650mm

• Powerful 20-Ton Splitting Force:

• Modern Hydraulic System: The JR480D is equipped with a highly efficient hydraulic system that ensures smooth and consistent operation, making firewood processing effortless.

• Comprehensive Package:

• Hydraulic Feeder: Seamlessly feed logs into the processor with the integrated hydraulic feeder.

• 3-Meter Conveyor: Easily transport processed firewood with the 3-meter conveyor, optimizing your workflow.

• Simplified of operation:

• User-Friendly Design: The JR480D is designed for simplicity, ensuring that the operation is straightforward and safe.

• Automatic Safety Mechanisms: The saw only engages when the safety handle is in use, and the guards are securely in place. If the guard is raised, the hydraulic system immediately stops the saw and splitter, prioritizing operator safety.

• Enhanced Safety Features:

• CE Safety Compliance: The JR480D meets the 2018 CE safety standards, offering peace of mind with its robust safety features.

• Automatic Splitting Process: Once the timber is cut and dropped into the splitting area, the ram automatically engages, pushing the log into the fully height-adjustable 4-way splitting head.

Product Details

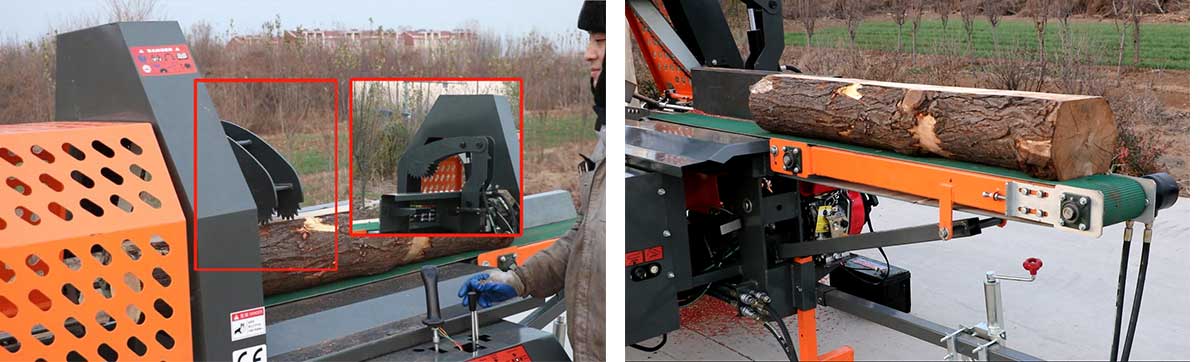

• Hydraulic automatic log clamping                                                Automatic feed conveyor system

•

• Setting the length of firewood                                                               Fully automatic control system

• Both 4-way and 6-way are supported

•

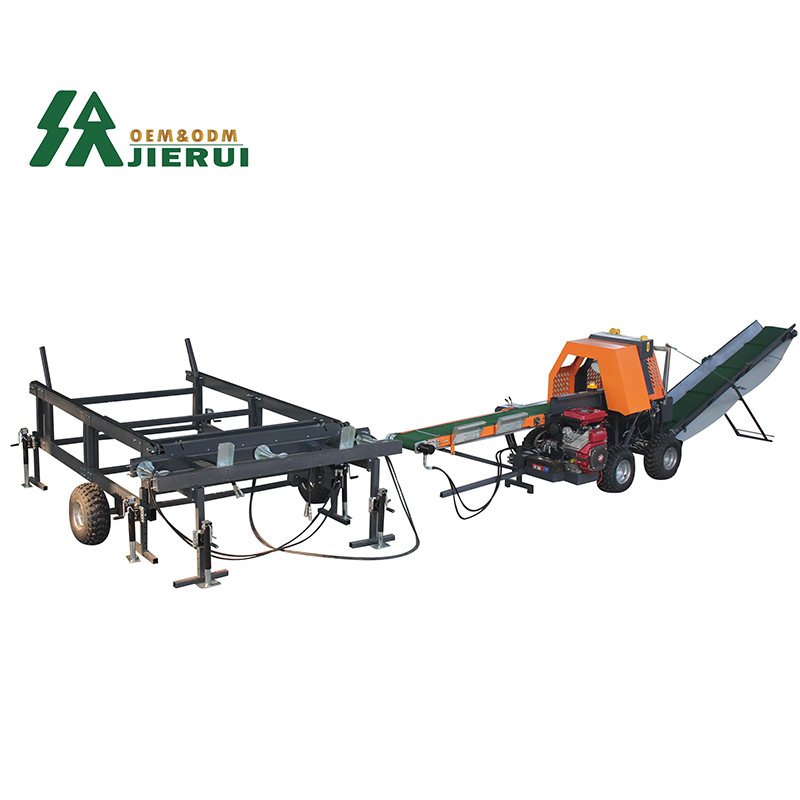

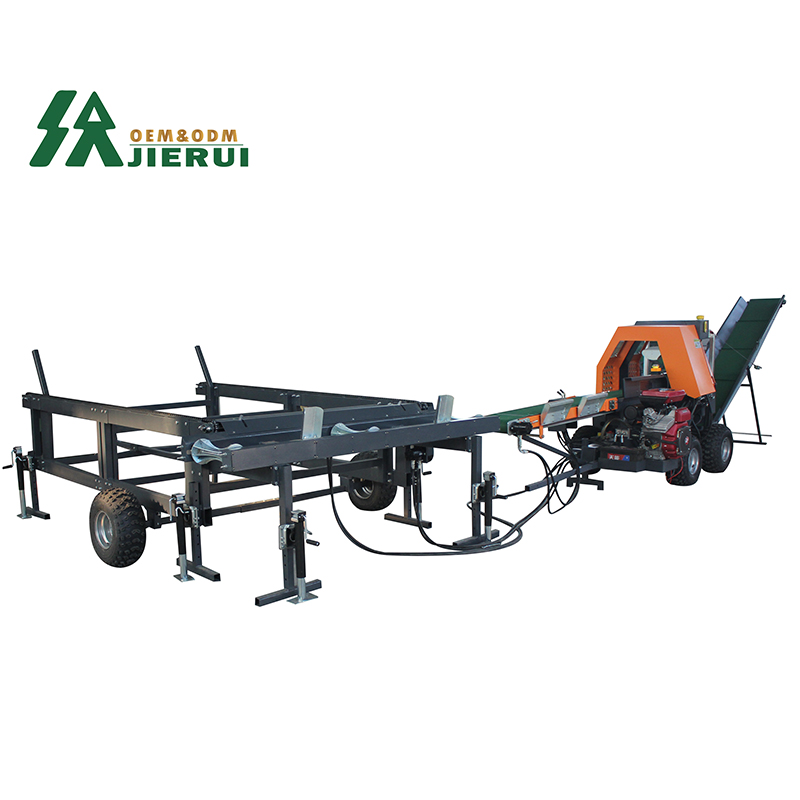

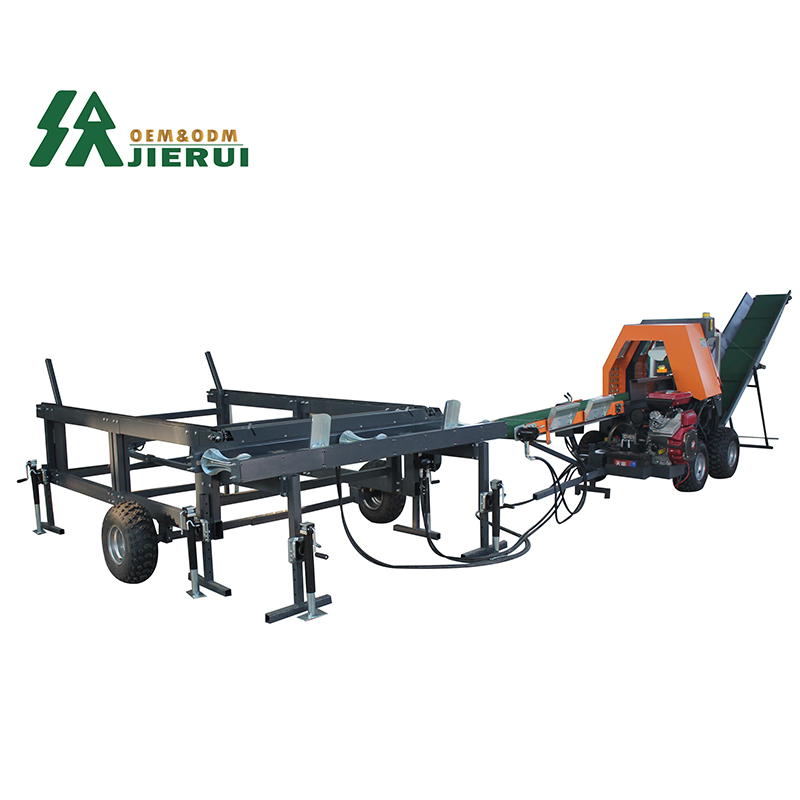

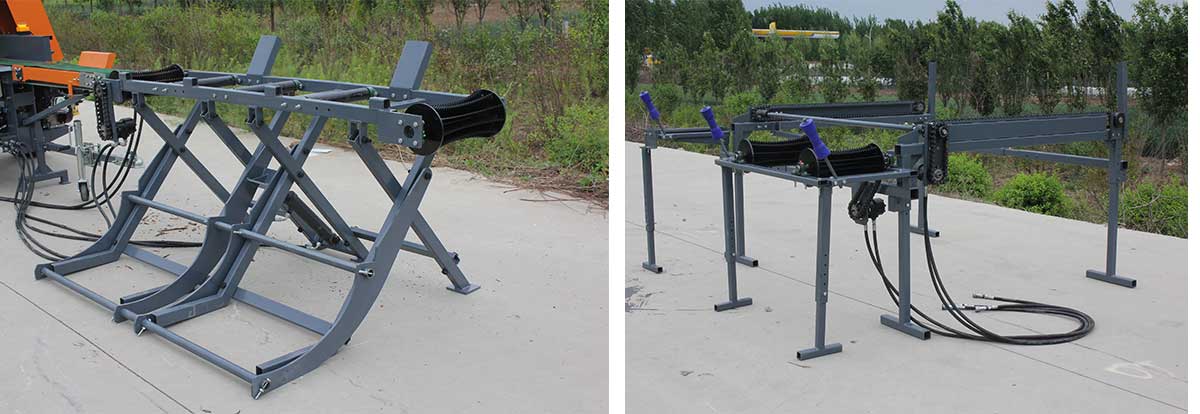

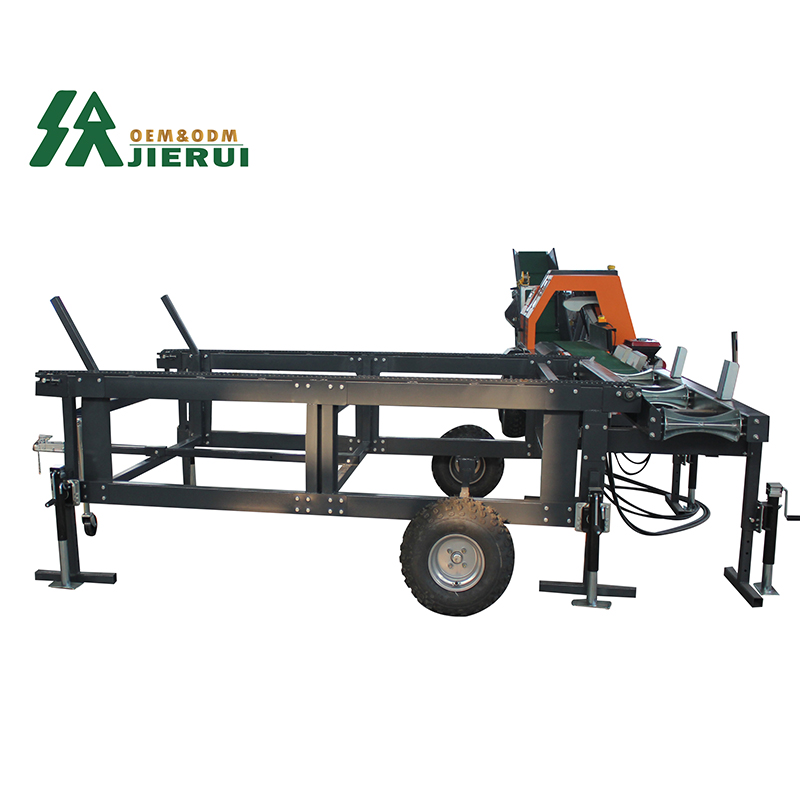

• Log lifter-JR100                                                                                     Log table-JR200


•

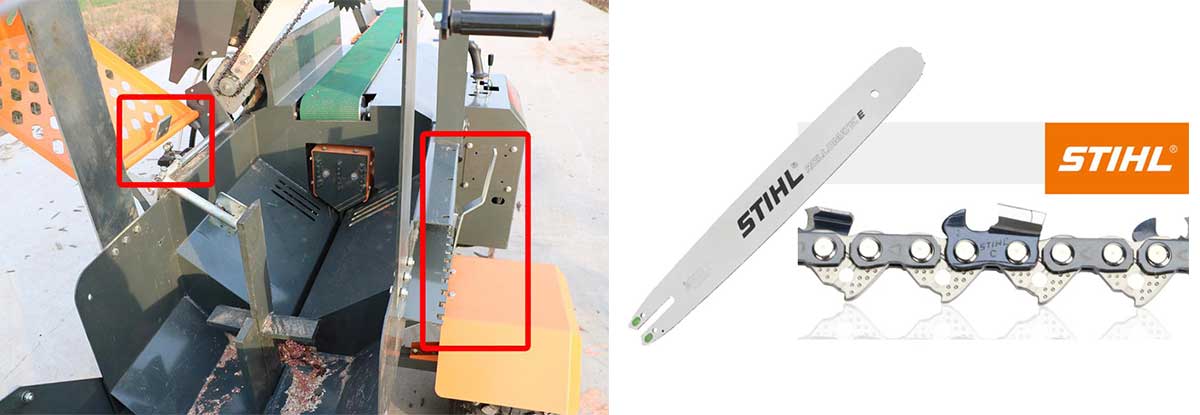

  Automatic safety protection device                                              We use STIHL chain saw guides and chains

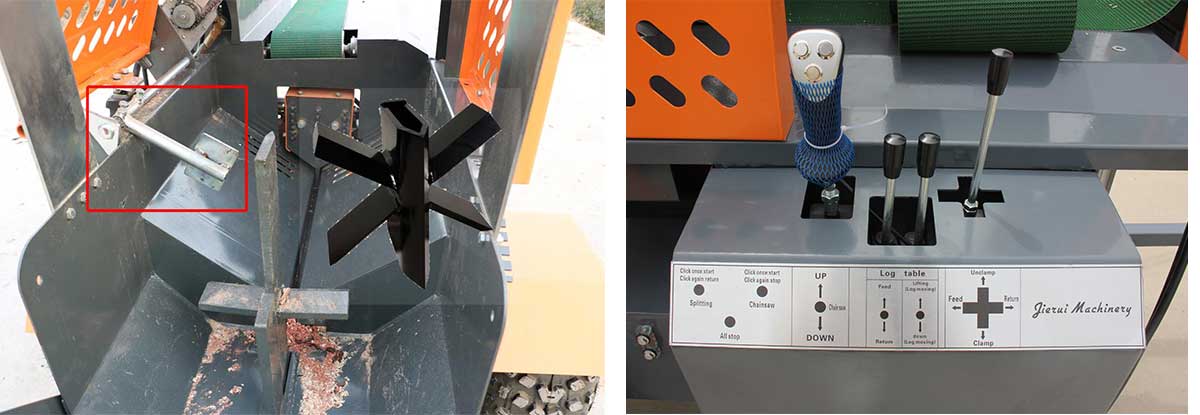

  Splitting wedges can be adjusted up or down                             imported from Germany

1. who are we?
We are based in Shandong, China, start from 2020,sell to South Asia(50.00%),Africa(50.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Firewood processor, Wood log splitter, Woodworking machinery,Sawing machine,Hardware cutter,Saw blade,Mechanical customization

4. why should you buy from us not from other suppliers?

A) As the leading manufacturer of forest machines, we have exported to European market for more than ten years, familiar with forest and farm market and can recommend to clients right products.

5.What are the power options available for the wood processor?

The wood processor can be powered by gasoline, diesel, or electric options, providing flexibility based on your power availability and preferences.
