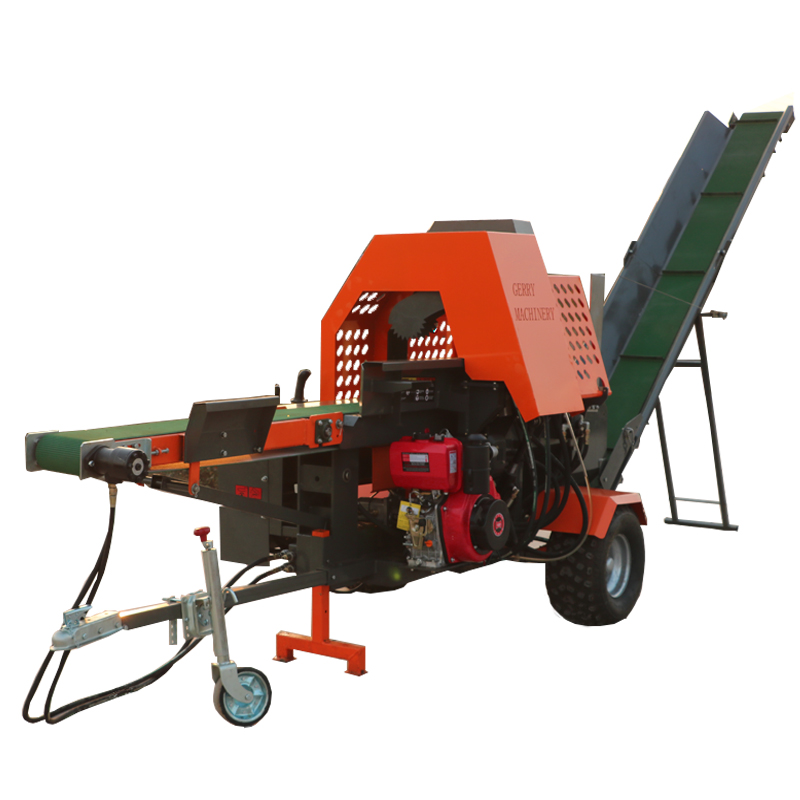

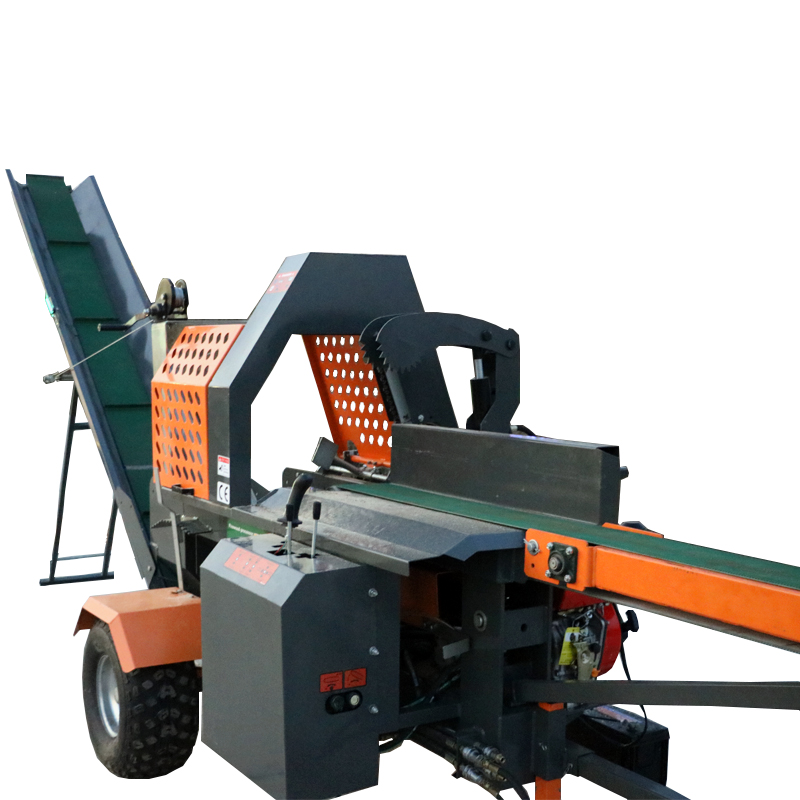

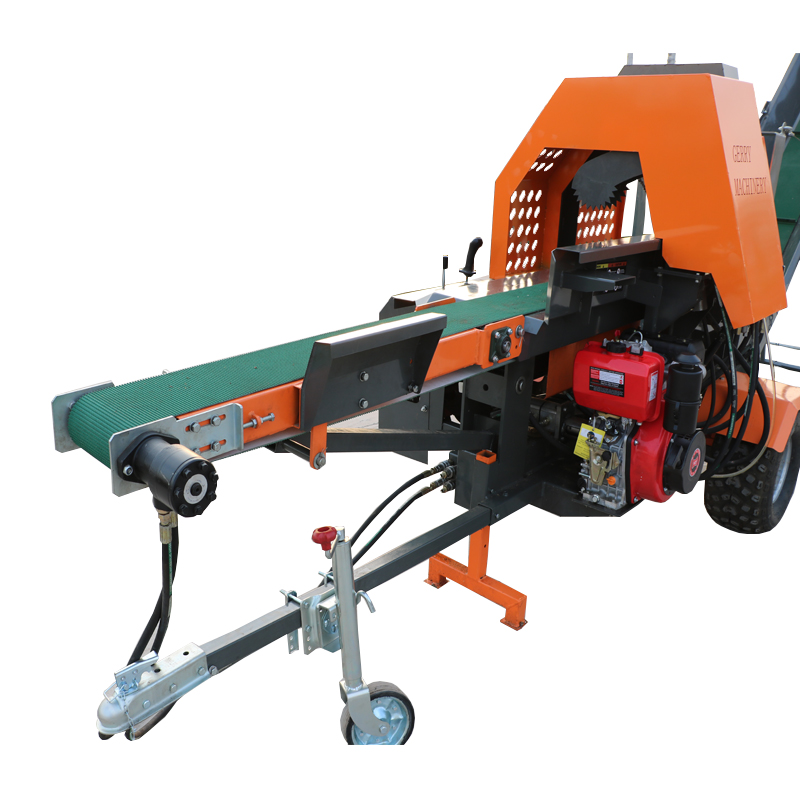

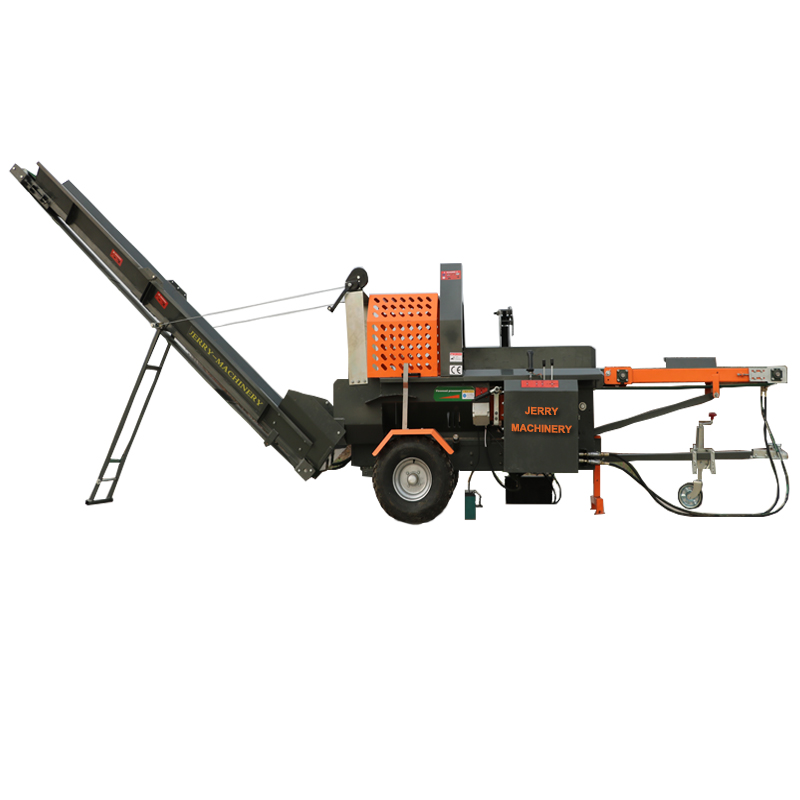

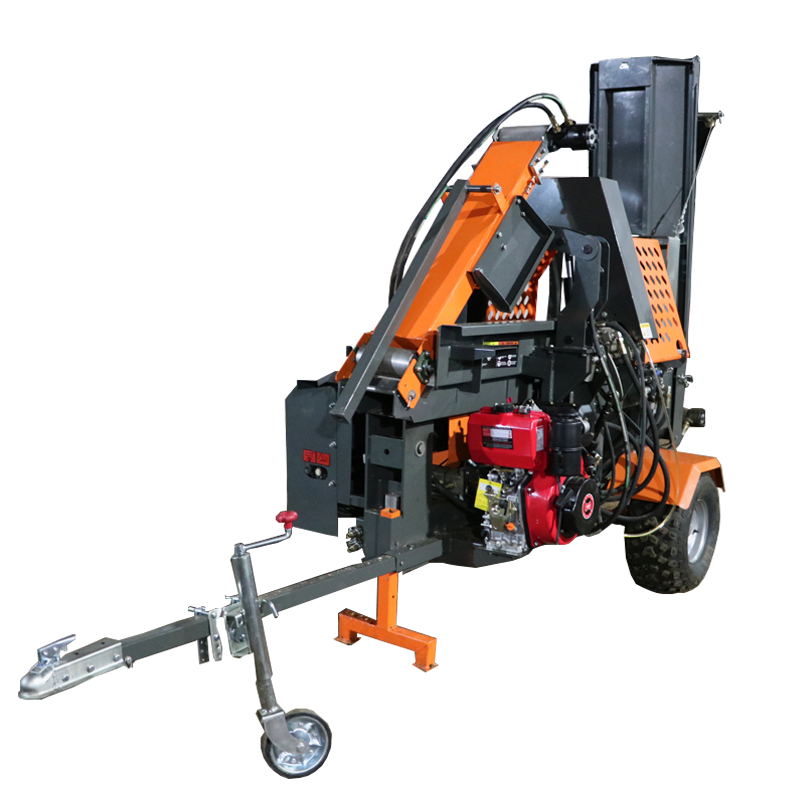

JIERUI 20T Commercial Firewood Log Splitter
Firewood Processor machines provide excellent power, portability, and versatility, making them a top choice for anyone needing efficient wood processing in both residential and industrial settings. Whether you are preparing firewood or tackling large-scale timber tasks, Wood Splitter Processor offer a reliable and efficient solution.
Make an inquiry will get the best shipping quotation
This wood processor is designed for versatility and efficiency, with the capacity to handle logs up to 500 mm (19.8 inches) in diameter. Its robust design makes it suitable for both residential and industrial use. Whether you're cutting firewood at home or processing large quantities of timber in an industrial setting, this machine can handle even the densest hardwoods with ease. The ability to manage a wide range of log sizes ensures that it can meet a variety of needs, from personal wood cutting to large-scale wood processing operations.
Why Choose Us?
1.Unmatched Quality and Performance
We are committed to providing machinery that delivers exceptional performance while maintaining the highest standards of quality. Our machines are crafted using premium materials and incorporate the latest technology, ensuring durability and reliability that will stand the test of time. Whether you're using our equipment for personal or industrial purposes, you can count on it to perform consistently, day in and day out.
2.Safety First
Your safety is our top priority. Every piece of equipment we design is equipped with state-of-the-art safety features, ensuring that operators are protected during use. From emergency stop systems to protective shields, we’ve thought of everything to keep you safe, so you can focus on the task at hand with complete peace of mind.
3.Easy to Use and Maintain
We believe in simplicity and efficiency, which is why our machinery is designed to be user-friendly and easy to maintain. The intuitive controls and simple maintenance procedures ensure that operators can get started quickly and keep the equipment running smoothly with minimal effort. With our equipment, you won’t face unnecessary complications, allowing you to stay focused on your work and improve productivity.
| Performance | Max Splitting | 20T |
| Max splitting length | Standard 610mm (24 inch) | |
| Max cutting & splitting diameter | 480mm (19 inch) | |
| Cycle time | 8-12S | |
| Work efficiency | 4-7CBM/H | |
| Wood fixing | Hydraulic | |
| Saw cutting | Joystick with solenoid valve | |
| Saw lubrication | Automatic by hydraulic system | |
| Splitting | Automatic | |
| Splitting wedge | 4 way (height adjustable) | |
| Machine assembly | Engine | 18HP LIFAN gasoline (electric start) |
| Pump | 20GMP (2-stage) | |
| Splitting cylinder | 3.15”x24”x2” | |
| Hydraulic oil tank | 100L | |
| Feeding conveyor | 2400*200mm | |
| Rear loading conveyor | 3200*250mm | |
| Tyre | 22x11-10 | |
| Traction | 50mm ball couple | |
| Packing | Size | 2300x1250x1750mm |
| Weight | 980KG | |
| Loading Q\ty | 7/16 pcs (20GP/40HQ) |

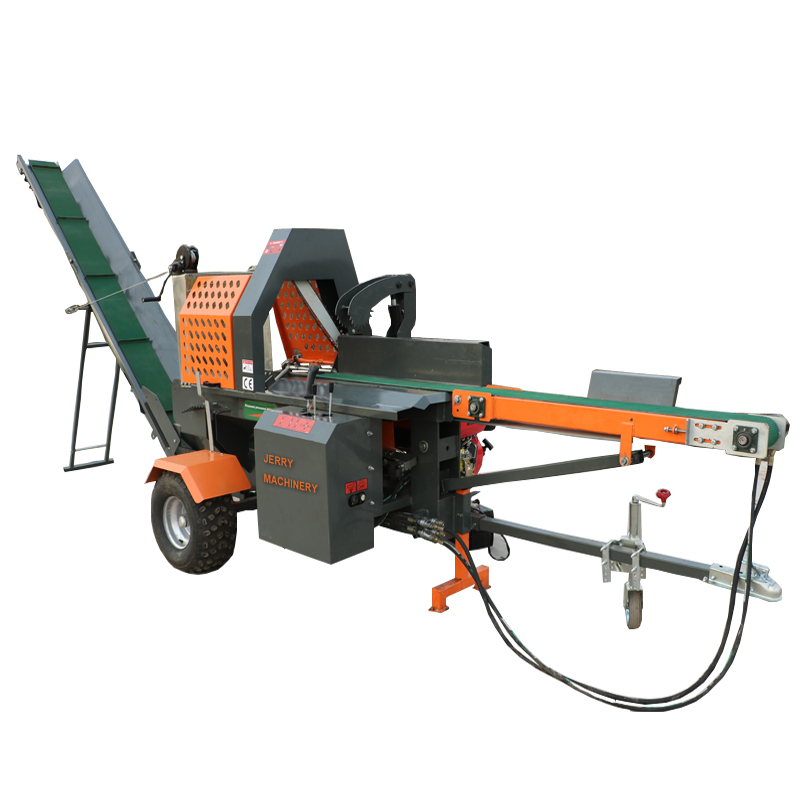

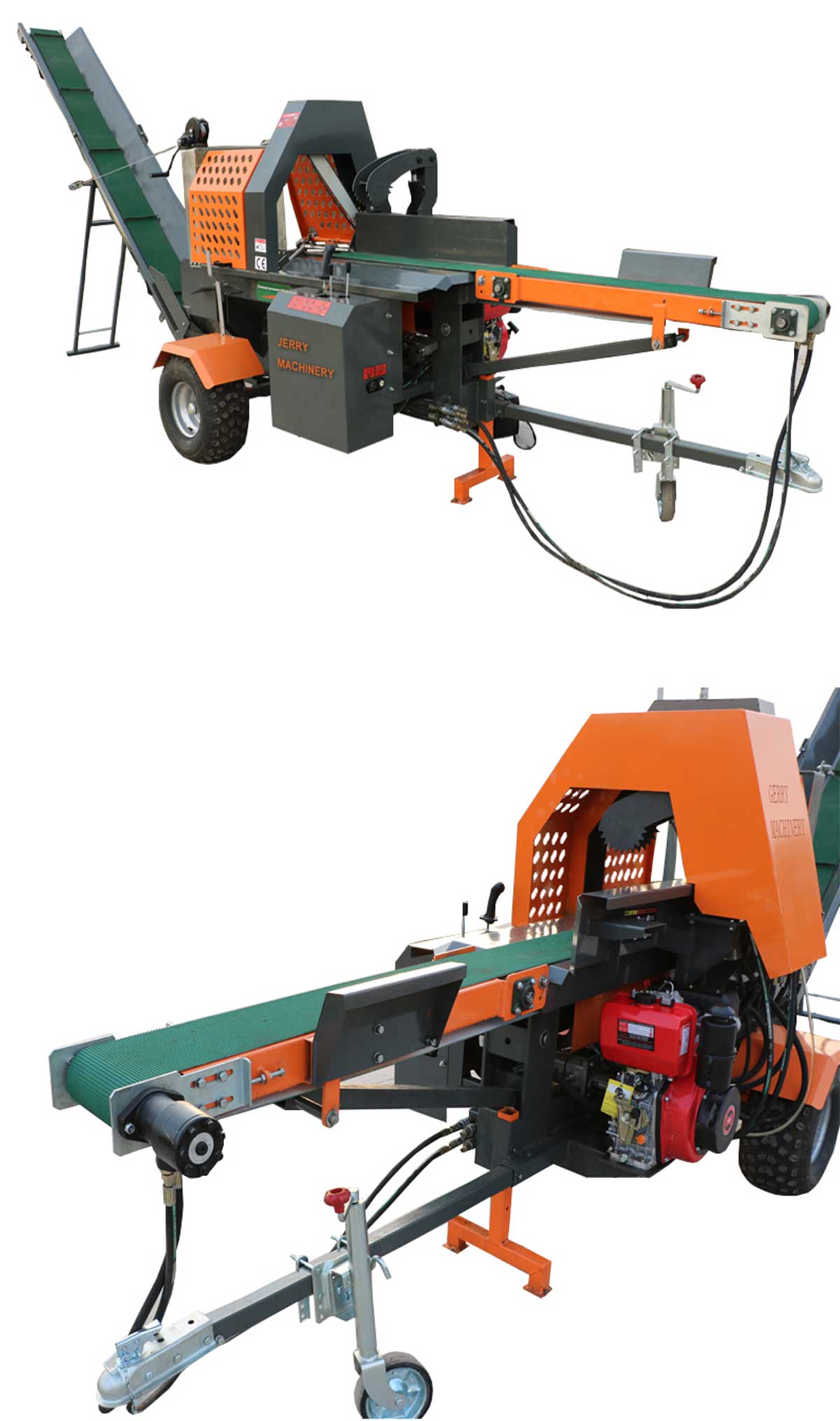

JR480D Wood Processor
The JR480D is our powerful 20-ton splitting force model, designed for efficiency and ease of use. Featuring a modern hydraulic system, this machine delivers smooth operation while adhering to the latest (2018) CE safety standards.
Key Features:
Hydraulic Feeder: Streamlines the loading process for enhanced productivity.
3 Meter Conveyor: Facilitates easy movement of processed wood.
22" STIHL Chainsaw Blade: Provides reliable cutting performance.
Briggs & Stratton Engine: Comes with an electric start as standard for effortless operation.
Safety First:
We prioritize operator safety with a design that keeps operation simple and secure. The saw will only engage when the safety handle is activated, and the guards are properly in place. If the guard is raised, the hydraulic system will automatically halt the saw and splitter, ensuring a safe working environment. Once timber is sawn and dropped into the splitting area, the ram automatically engages, pushing the log into the fully height-adjustable 4-way splitting head.
Portability:
The JR480D is equipped with a 50mm tow hitch, making it easy to maneuver around your yard or worksite.
Discover how the JR480D can elevate your wood processing efficiency while keeping safety at the forefront!
Product Details
1.Hydraulic Automatic Log Clamping
The hydraulic automatic log clamping system securely holds the log in place during the splitting process, ensuring stability and precision. This feature minimizes operator effort while providing consistent, safe handling of logs, especially during high-speed operations.
2.Automatic Feed Conveyor System
The automatic feed conveyor efficiently moves logs into position for processing. It streamlines workflow by reducing manual labor and allowing for continuous, hands-free operation. This system is ideal for high-volume tasks, improving productivity and reducing operator fatigue.
3.Adjustable Firewood Length Settings
Our machines allow you to easily set the length of firewood to meet your specific needs. Whether you require short or long pieces, you can choose between 4-way or 6-way splitting options, offering greater flexibility in cutting logs into the desired size. This adaptability is perfect for both residential and commercial applications.

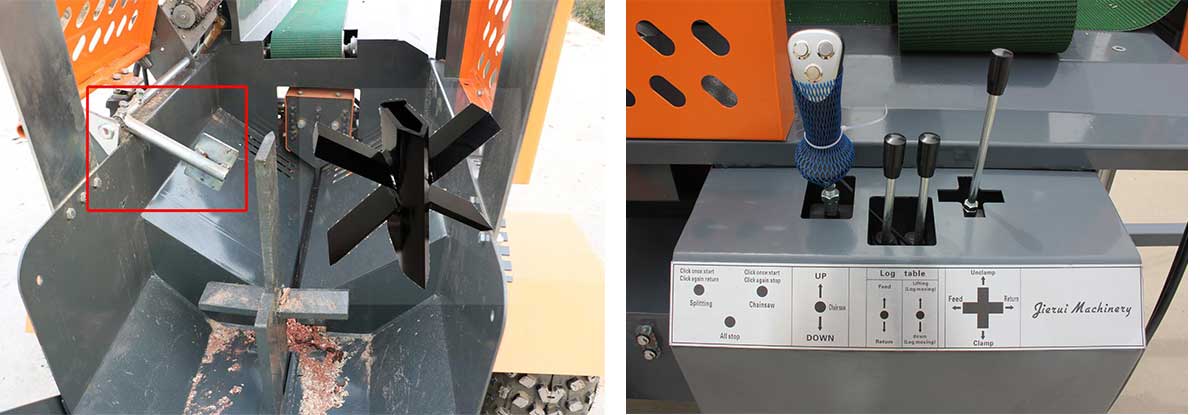

4.Fully Automatic Control System
The fully automatic control system simplifies operation. With this advanced control system, operators can manage all functions—from log clamping and splitting to conveyor operation—through a single, easy-to-use interface. Automation boosts efficiency, reduces the risk of human error, and ensures consistent results.

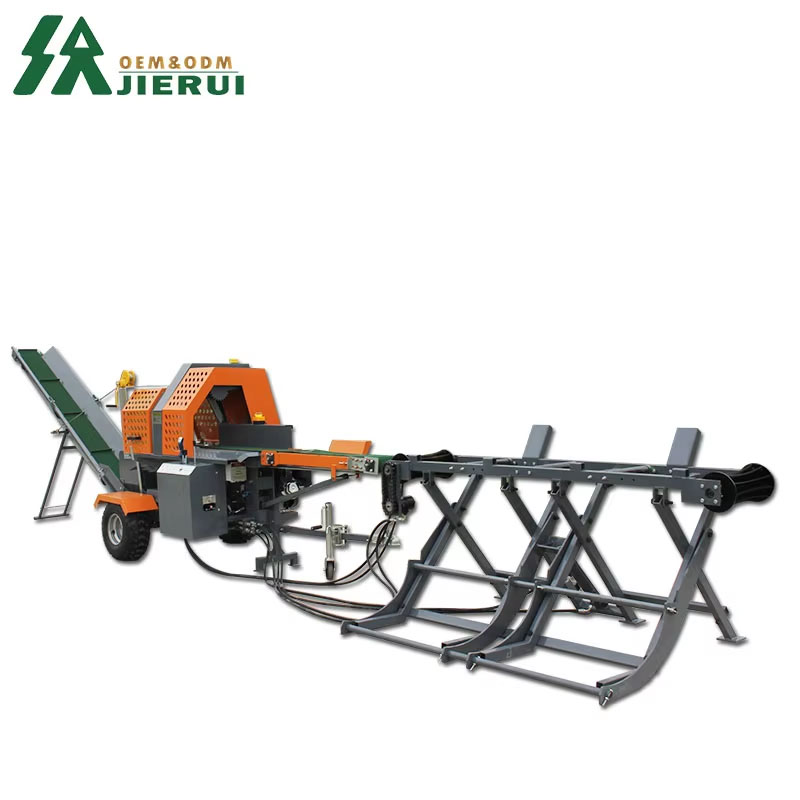

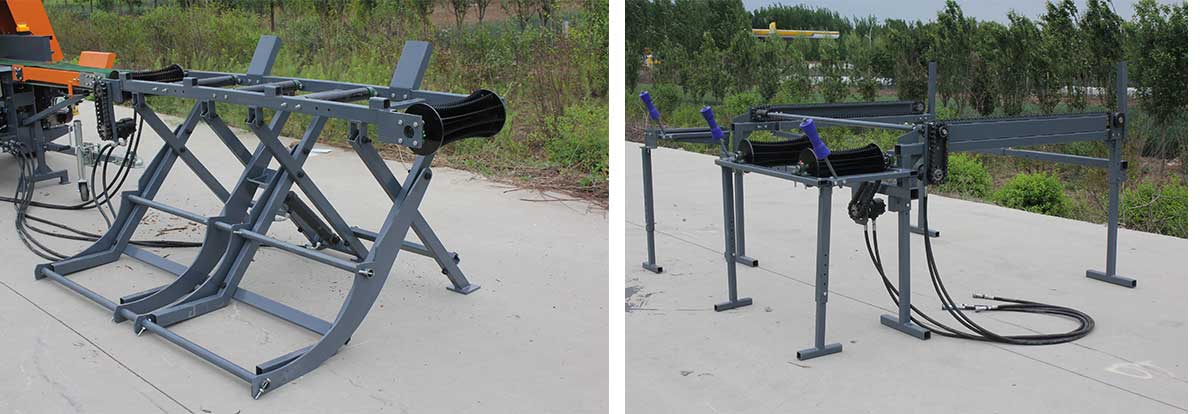

5.Log lifter-JR100 6.Log table-JR200

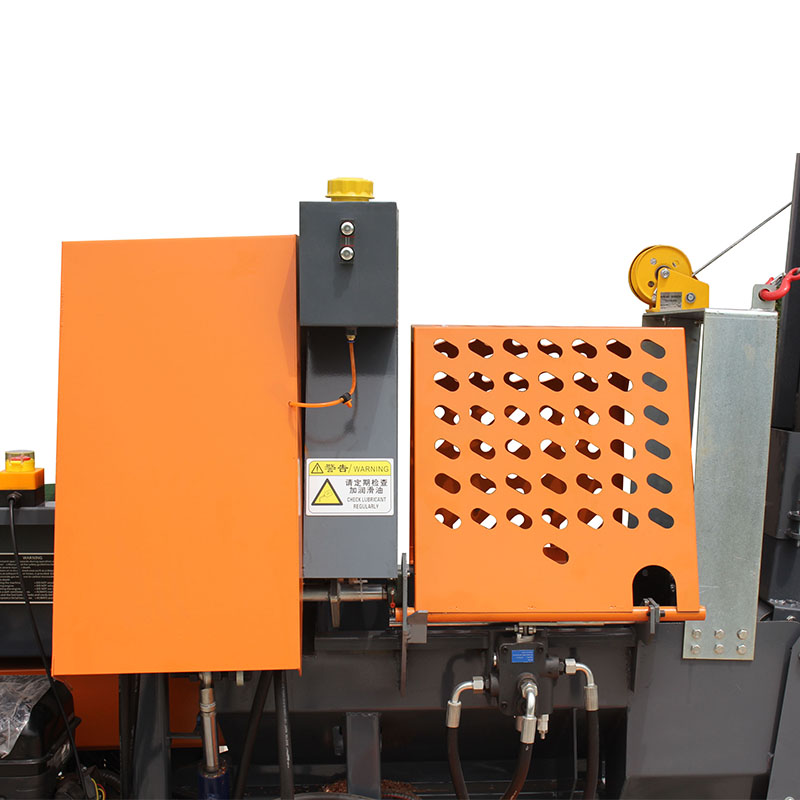

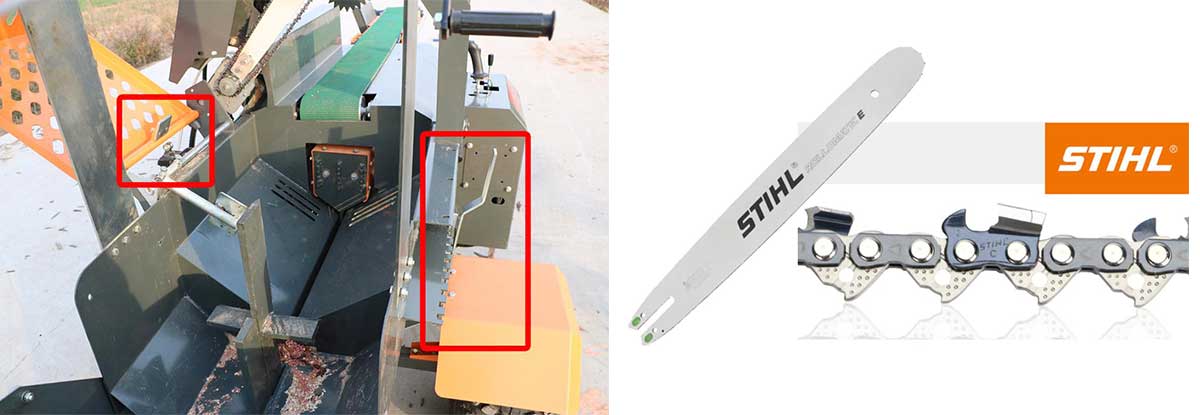

7.Automatic safety protection device splitting wedges can be adjusted up or down

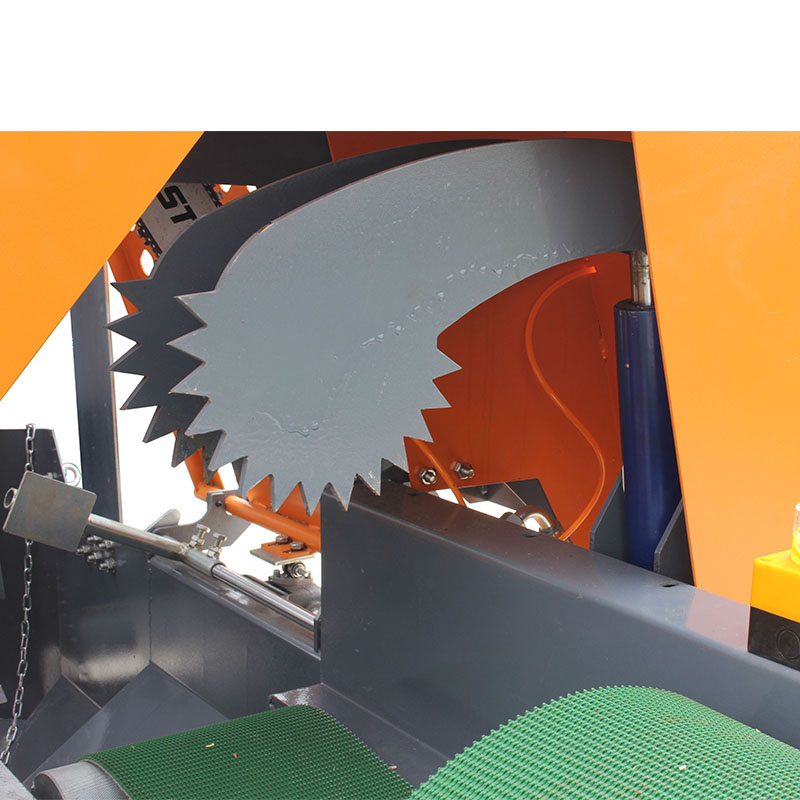

8. We use STIHL chain saw guides and chains imported from Germany
Shandong Jierui Machinery Equipment Co., Ltd. is one of the world's leading high-quality sawmill manufacturers. The company has been committed to the production and R & D of sawmills and sincerely serves 12000 enterprises. Our products have been exported to 61 countries in the world.
At present, the company covers a large number of product lines, including log sawing equipment, solid wood furniture processing equipment and wood chopping equipment. With standardized quality management and service, the company has won the favor of many customers and become the best sawmill supplier in the world. The company is committed to continuously strengthening its own technological innovation and accelerating the R & D of sawmill machinery, Strive to provide each partner with the best combination of sawmill production lines
FAQ
1. What types of wood can be processed?
Firewood processors can handle a wide variety of wood types, including both softwoods (like pine or spruce) and hardwoods (like oak, maple, or hickory). The machine’s performance may vary slightly depending on the wood’s density, but the majority of processors are designed to work with both soft and hard species.
2. Is the machine safe to use?
Yes, safety is a top priority. Most firewood processors are equipped with a variety of safety features, such as:
Automatic safety protection devices that stop the machine in case of malfunction or danger.
Hydraulic log clamping for secure log handling.
Protective shields to prevent accidental contact with moving parts.
Emergency stop buttons and operator safety controls to quickly shut down the machine in the event of an emergency.
Always follow the manufacturer's safety guidelines and wear appropriate protective gear while operating the machine.
3. What power source does a firewood processor use?
Firewood processors can be powered by:
Gasoline engines: These are the most common, offering portability and power, especially in remote locations where electricity is unavailable.
Diesel engines: Often used for larger, more industrial models that require higher power outputs.
Electric motors: These are available in some models and are ideal for applications where access to electricity is available, typically in commercial or residential settings.
