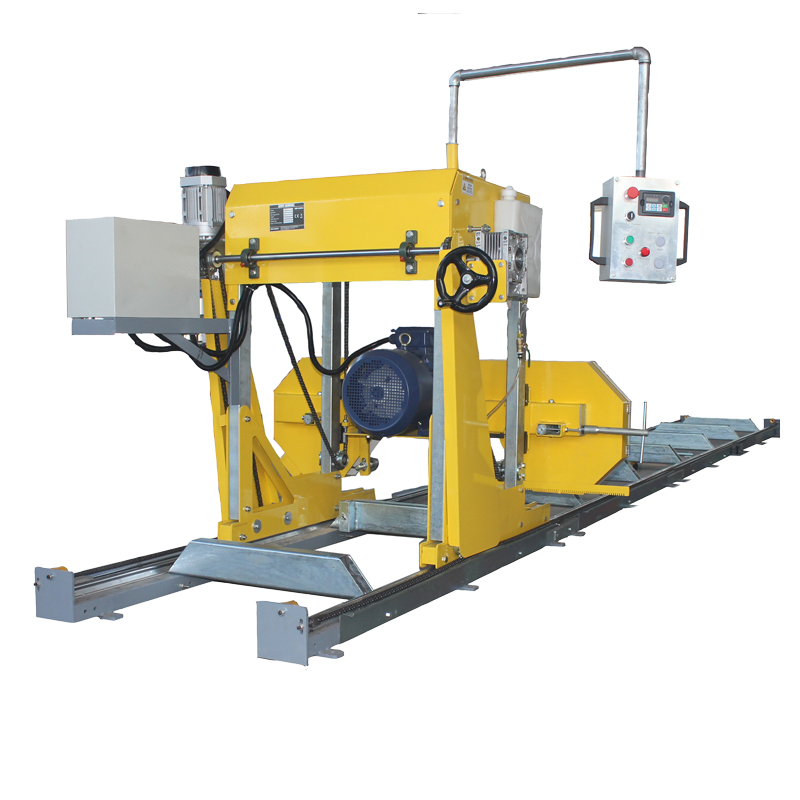

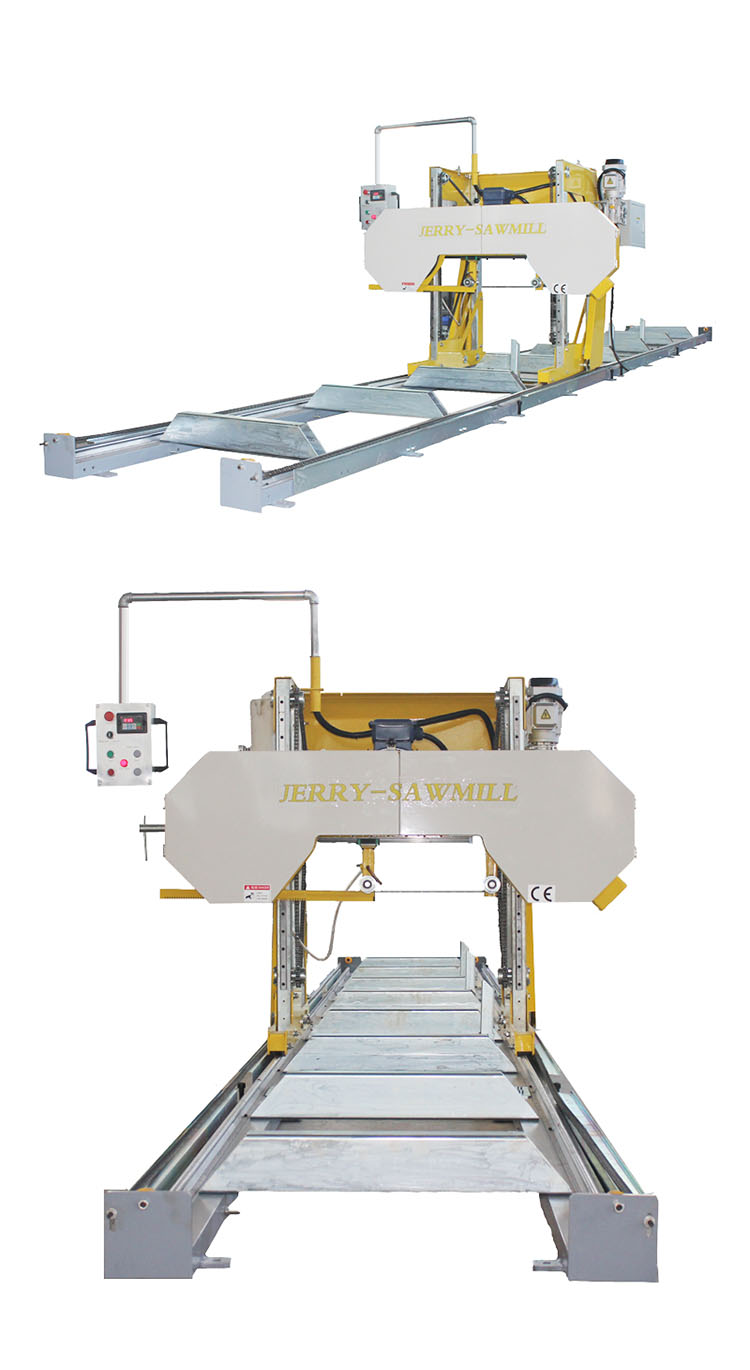

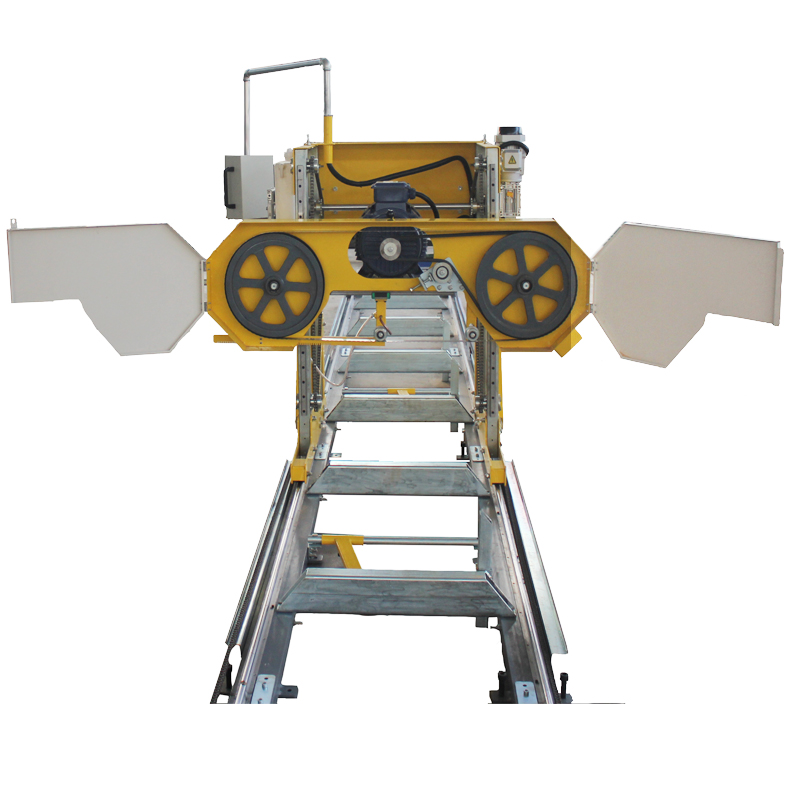

Automatic Log Portable Horizontal Sawmill
Portable automatic sawmills combine convenience with the efficiency of electric motors and easy to operate automatic functions. Portable electric automatic sawmills are ideal for small and medium-sized wood production.
Make an inquiry will get the best shipping quotation
High performance electric automatic portable sawmill with advanced features to make the cutting process more efficient, convenient and precise. These types of sawmills employ innovative technologies to reduce manual labor, improve cutting accuracy, and increase overall stability during operation.
| sawmill parameters | JR59 | JR69 | JR80 | JR100 |
| Max Log Cutting Dia(cm) | 60 | 70 | 92 | 105 |
| Max Log Cutting Dia(inch) | 24 | 28 | 36 | 41 |
| Max Log Cutting Length | 3.5m | 3.5m | 3.5m | 3.5m |
| Track Length | 4m | 4m | 4m | 4m |
| Motor Power | 5.5KW/18HP | 5.5KW/18HP | 7.5KW/18HP | 11KW/27HP |
| Engine power | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel |
| Packing Size | 2.1m*1m*1.5m | 2.1m*1m*1.6m | 2.1m*1m*1.76m | 2.1m*1m*1.76m |
| Voltage Options | 220V/380V | 220V/380V | 220V/380V | 380V |
| Saw Wheel Diameter | 400mm | 400mm | 500mm | 500mm |
| Blade Size | 3300*35*0.9mm | 3300*35*0.9mm | 4200*35*0.9mm | 4200*35*0.9mm |
| Lifting | Auto | Auto | Auto | Auto |
| Walking | Auto | Auto | Auto | Auto |
| Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
| Dimension | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m |
| Weight | 500kg | 500kg | 650kg | 770kg |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Color customization | Can | Can | Can | Can |
| Logo customization | Can | Can | Can | Can |

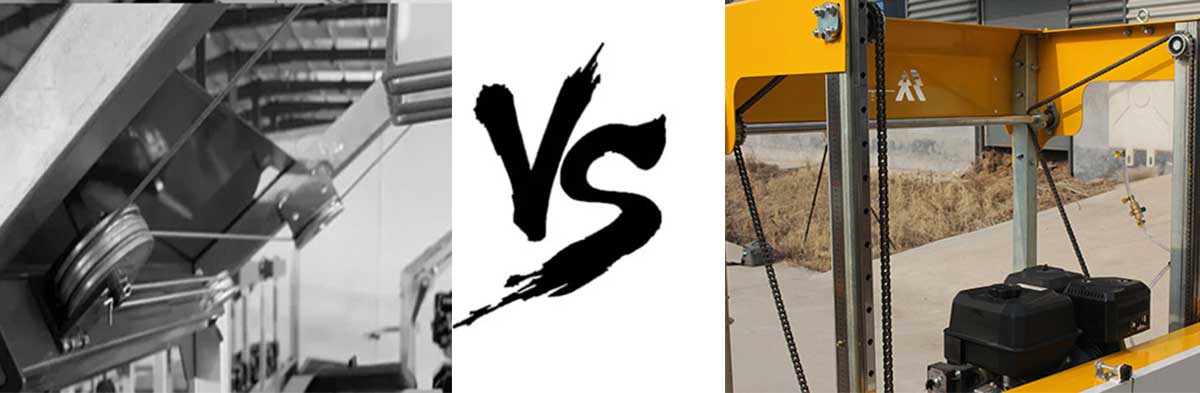

1. From the perspective of the lifting system
Competitor Our Advantages
Competitor
3.Pulley design is adopted,the structure is complex,and there may be more fault points.
Our Advantages
Simplicity & Convenience: Stress that the chain design’s simplicity not only makes the system more affordable but also significantly reduces the time and labor required for maintenance.
Durability & Long-Term Performance: Emphasize the robust design of the sprocket with a bearing, underlining its ability to handle high usage with minimal wear. Mention the 30,000-cycle test as proof of the system’s superior durability and reliability.
Cost-Effectiveness: Highlight that with fewer maintenance needs and less frequent part replacement (thanks to the chain design and bearing system), your system reduces both operational costs and total cost of ownership.

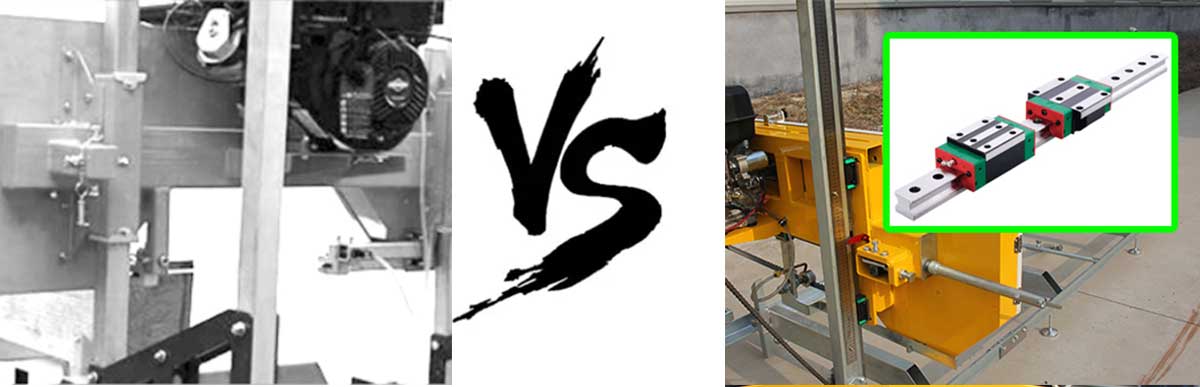

2.About sawhead lifting track
Competitor Our Advantages
Competitor
2.The sawwheel needs to be adjusted on four sides,which is difficult to adjust.
Our Advantages
Precision & Accuracy: Highlight the high saw blade precision that comes from using a linear guide rail and double sliding blocks, making the system perfect for industries where cutting accuracy is vital.
Smooth Operation & Reliability: Emphasize that the system’s smooth lifting action eliminates jamming and reduces downtime, making it ideal for high-efficiency environments.
Long-Term Durability: Stress the durability of the linear guide rail and double sliding blocks, which provide better load distribution, less wear, and greater stability, ensuring the system operates efficiently for a long time.
Stability & Cutting Quality: Connect the stability of the system to improved cutting results. The more stable the lifting mechanism, the more accurate and clean the cuts, leading to better-quality products and fewer material wastage.

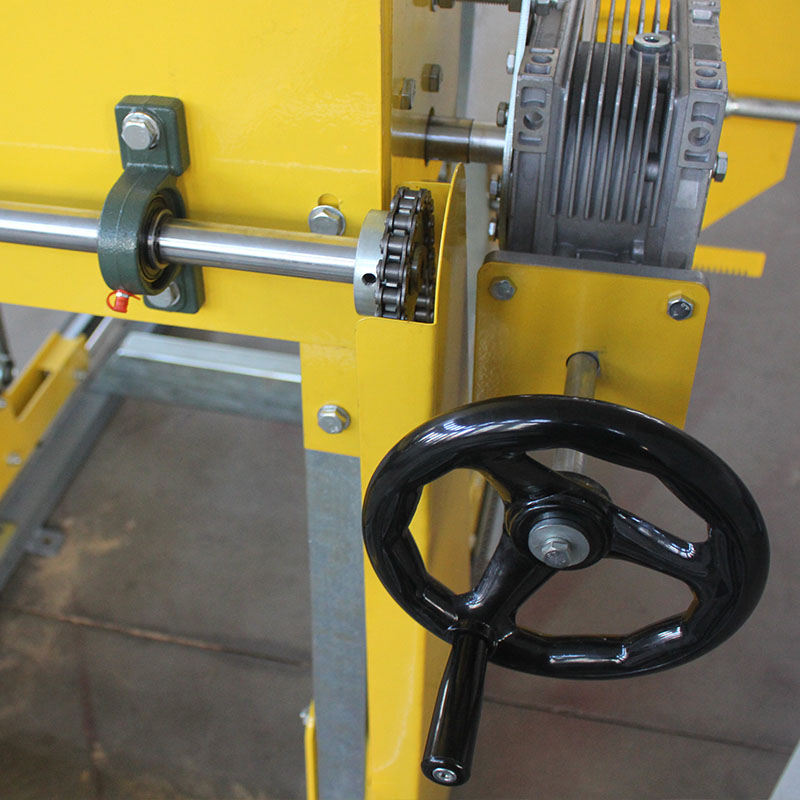

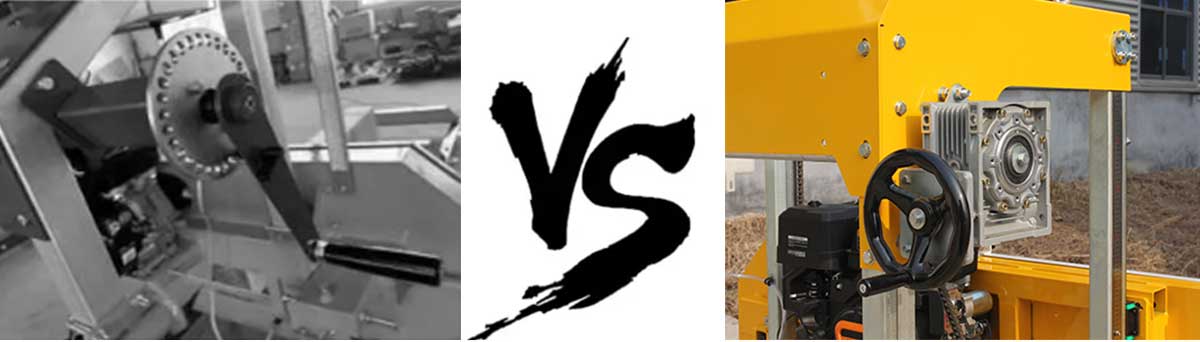

3.About Saw Head Positioning Unit
Competitor Our Advantages
Competitor
1.Mechanical locking device through pin shaft and wheel disc.
3.The pin shaff is easily worn due to vibration,resulting in potential safety hazards.
4.Lifting of sawing machine is more laborious.
Our Advantages
Highlight the reducer's role in ensuring smooth, stable lifting with minimal physical effort. The labor-saving feature will appeal to operators and managers looking to reduce fatigue and improve efficiency.
Emphasize that the locking system provides fine-tuned control over the lifting mechanism. Operators can lock the system at any point, ensuring perfect alignment and preventing unwanted shifts during tasks requiring high precision, such as sawing.
The combination of the reducer, locking system, and stable lifting ensures that your system supports high-precision sawing and cutting operations, which is essential for industries demanding high-quality cuts and minimal errors.
By offering the ability to lock the system at any position, you ensure that the operation is not only more flexible but also safer, as there’s less risk of unintended movement.

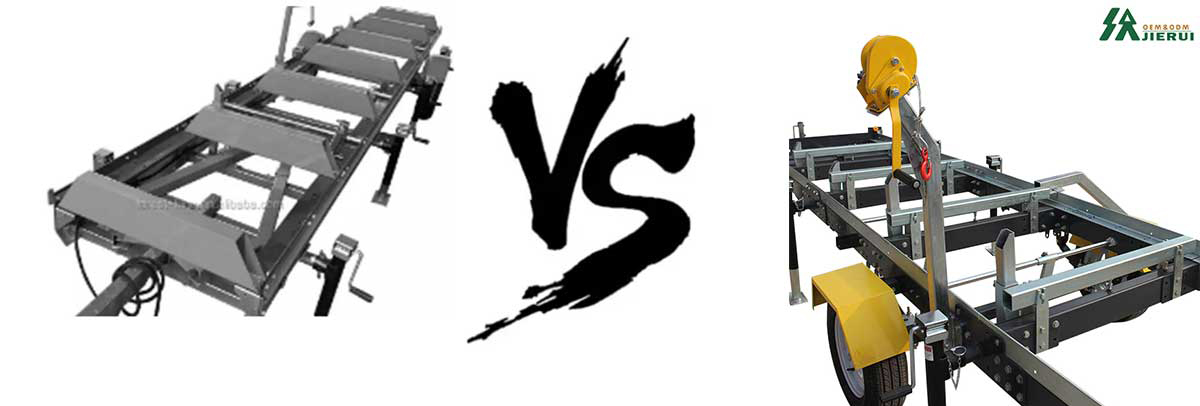

4.About the trailers track and log supporting
Competitor Our Advantages
Competitor
1.T-shaped guide rail is adopted , and the operation is not stable enough.
Our Advantages
1. With adjustable horizontal log supporting
3.The use of spring plates in trailers can better reduce vibration damage to the track

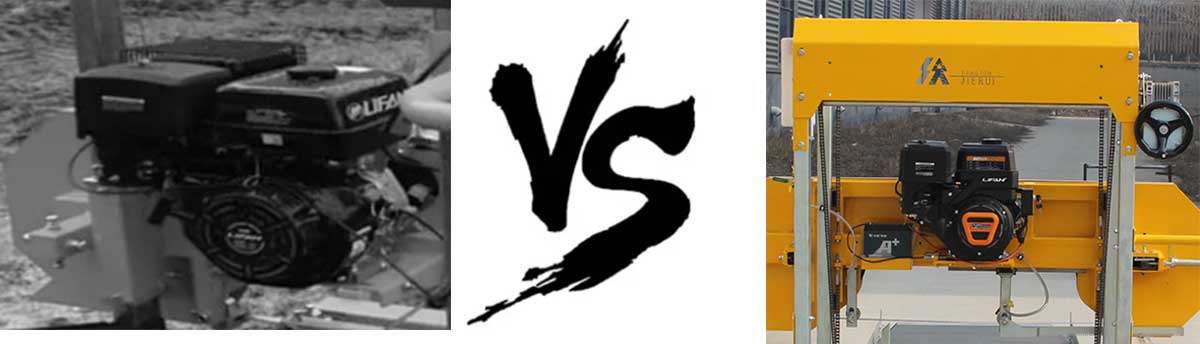

5.Aout engine starting
Competitor Our Advantages
Competitor
1.Manual start only.
2.The engine support frame is thin and vibrates greatly
Our Advantages
Advantage: The electric start with key simplifies the starting process, making it more convenient and efficient for the operator. This feature eliminates the need for manual cranking or pulling, which is particularly valuable in harsh environments or when the machine needs to start quickly.
Benefit: The key start offers ease of use, reducing the time and physical effort required to start the machine. This is a great advantage in fast-paced work environments where every second counts. Additionally, it reduces wear on manual starting mechanisms, leading to longer-lasting components.
Highlight: Emphasize convenience, reliability, and speed. The key-start system ensures that the operator can start the machine quickly and easily with the turn of a key, which enhances workflow efficiency and operational smoothness.
Function

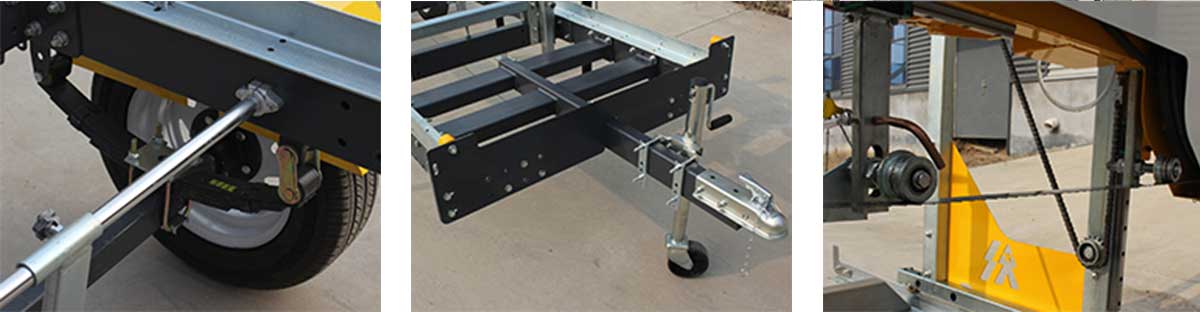

1. With Trailer Spring Plate:
Advantage: The trailer spring plate helps to absorb shock and vibrations during transportation, improving the stability and safety of the equipment while on the move. The spring plate acts like a suspension system for the trailer, reducing wear and tear on the equipment and ensuring smoother transportation over uneven surfaces.
Benefit: This feature ensures that the machine or equipment stays stable and protected during transport, whether it’s being moved between job sites or stored for long periods. It also reduces the risk of damage caused by road vibrations or bumpy terrain.
Highlight: Emphasize that the spring plate improves mobility and durability during transportation, making the machine easier to move between locations and increasing its overall lifespan by protecting it from the stresses of transportation.
2.Sturdy Trailer Towing Device:
Advantage: A sturdy trailer towing device ensures that the equipment can be safely and securely hitched to a towing vehicle for transport. A robust towing device is essential for ensuring the safety of both the equipment and the operator when the machine is moved.
Benefit: The strong towing device guarantees that the equipment remains securely attached during transport, reducing the likelihood of accidents or detachment. It provides the necessary strength to move heavy-duty equipment, particularly in challenging terrains or long-distance transport.
Highlight: You can position the towing device as a key safety feature, highlighting its durability and reliability in safely moving the equipment without worrying about potential towing failures.
3.Saw Blade Roller Guide Device:
Advantage: The saw blade roller guide device ensures precise alignment of the saw blade during operation. It guides the blade in a stable, controlled manner, preventing deviation or misalignment that could lead to inaccurate cuts, blade wear, or system damage.
Band Saw Blade Cooling System:
Advantage: The band saw blade cooling system ensures the saw blade stays at an optimal temperature during operation, reducing overheating, which can lead to premature wear, warping, or even blade breakage. By cooling the blade, this system ensures longer blade life and better cutting performance.

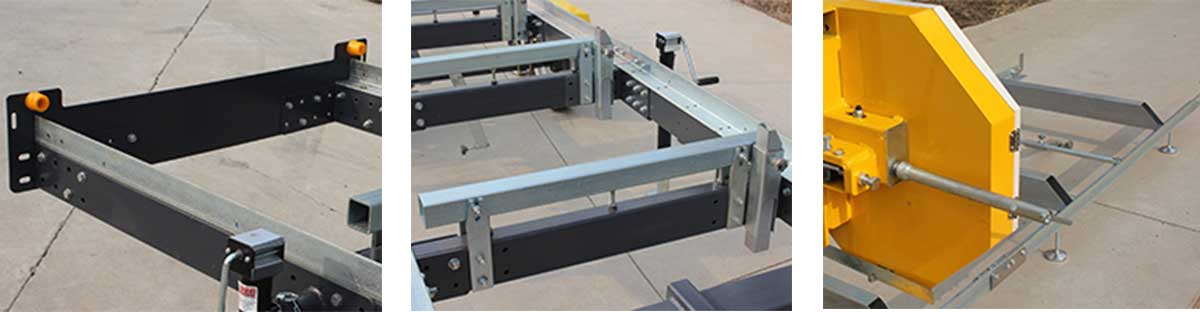

4. Rail Anti-Collision Block:
Advantage: The rail anti-collision block is designed to prevent damage to the rail system by acting as a buffer or protective mechanism. This feature helps protect the rails from accidental collisions, impacts, or overrun, ensuring the structural integrity of the rail system is maintained.

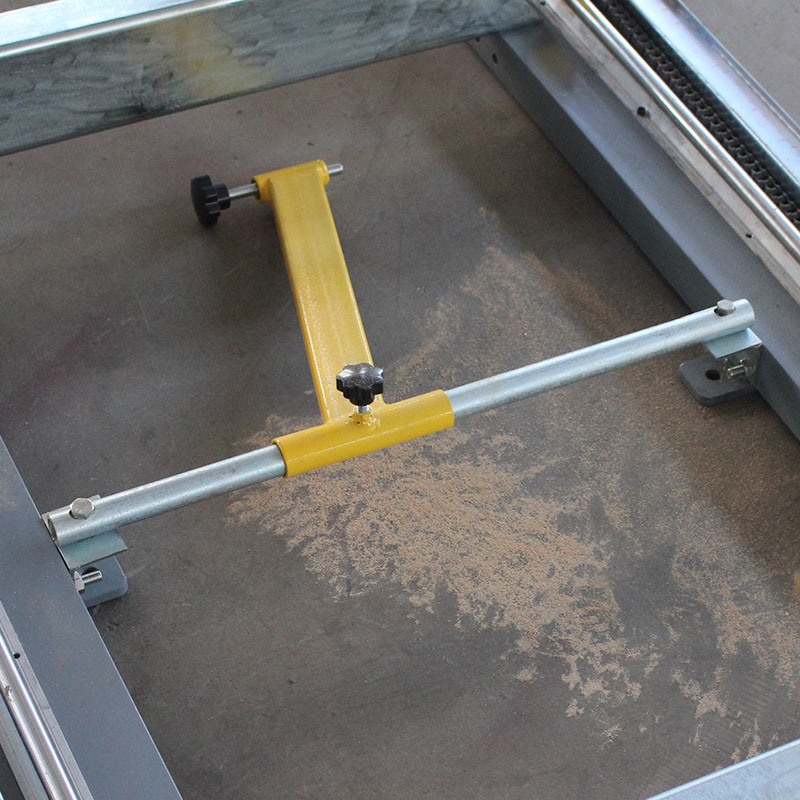

5.Adjustable Log Support:
Advantage: The adjustable log support allows for versatility in holding and stabilizing logs of different sizes and shapes during cutting. By adjusting the position of the support, operators can ensure that logs are securely held in place while minimizing the chance of movement, which is critical for achieving precise cuts.
6.Portable Saw Blade Tensioning Wrench:
Advantage: The portable saw blade tensioning wrench allows for easy and precise tensioning of the saw blade, which is essential for ensuring optimal cutting performance. Proper blade tension prevents issues like blade wobbling, misalignment, or uneven wear.
Make an inquiry now and receive a FREE product brochure loaded with vital product information and creative inspiration. Join us at JIERUI Machinery Equipment Co., LTD to elevate your operations and experience the future of machinery!
