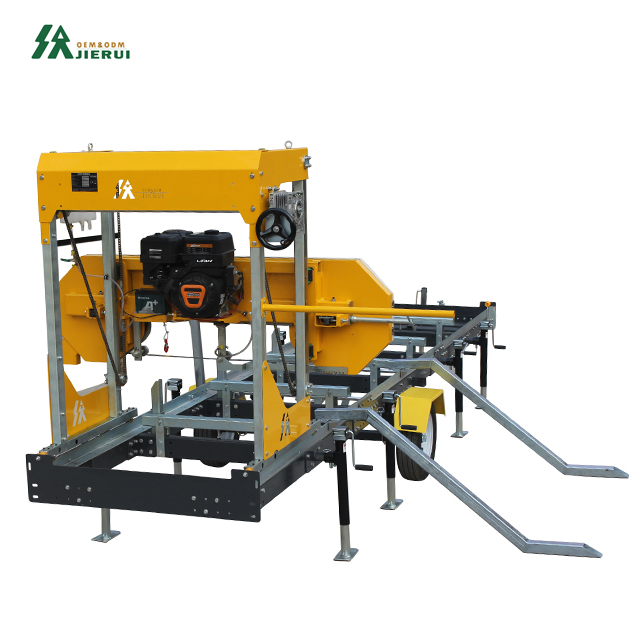

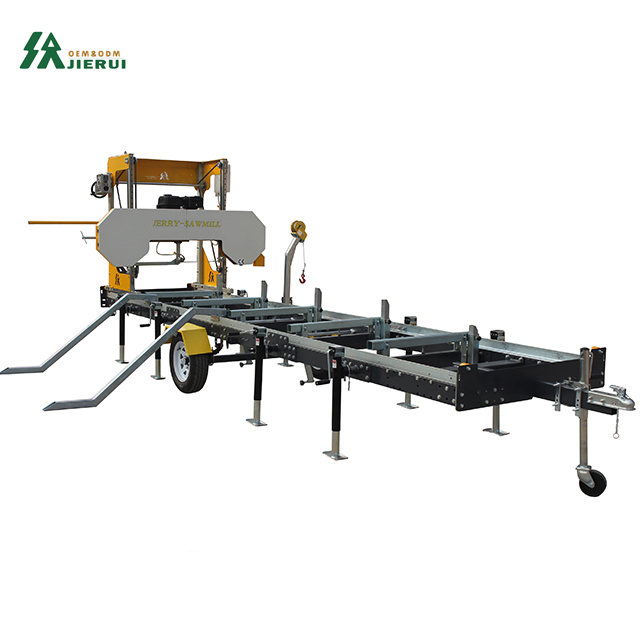

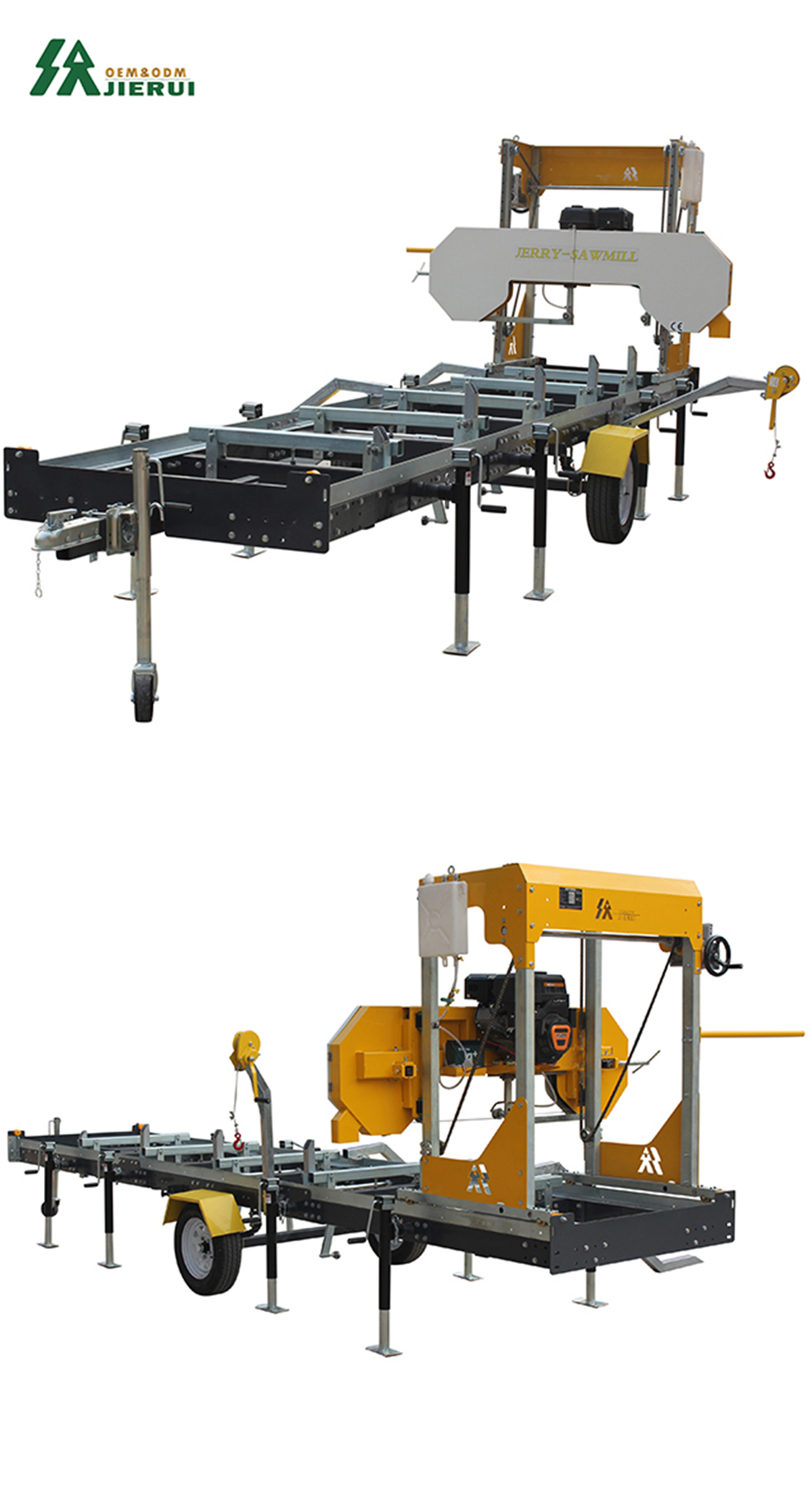

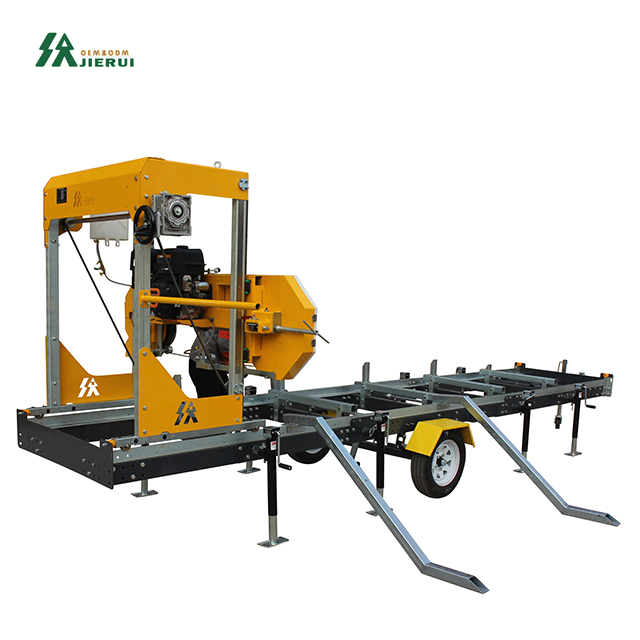

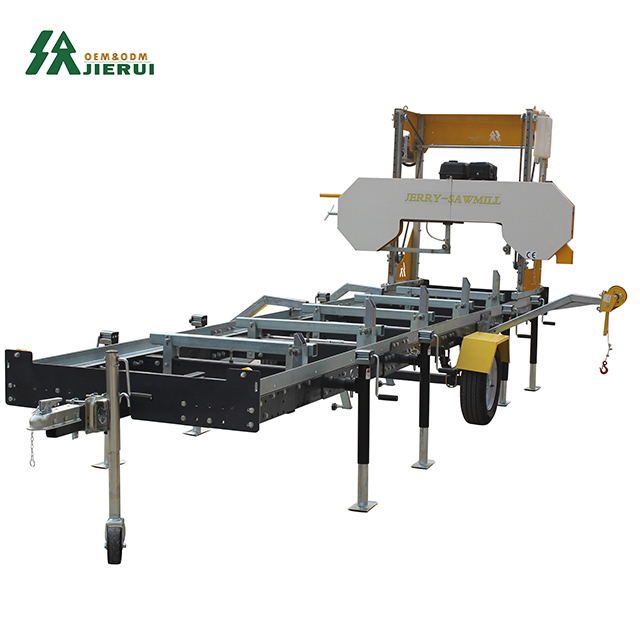

2024 Best Selling Sawmill With Trailer
1. With adjustable horizontal log supporting
2.Double layered tracks are more sturdy
3.The use of spring plates in trailers can better reduce vibration damage to the track
Make an inquiry will get the best shipping quotation
The Most Popular Portable Sawmill for Wood Cutting Reducer with Locking System: Equipped with a precise locking system to ensure more accurate sawing, enhancing cutting precision and consistency.
Make an inquiry now and receive a FREE product brochure loaded with vital product information and creative inspiration. Join us at JIERUI Machinery Equipment Co., LTD to elevate your operations and experience the future of machinery!
Sawmill parameters | JR59 | JR69 | JR80 | JR100 |
Max Log Cutting Dia(cm) | 60 | 70 | 92 | 105 |
Max Log Cutting Dia(inch) | 24 | 28 | 36 | 41 |
Max Log Cutting Length | 3.5m | 3.5m | 3.5m | 3.5m |
Track Length | 4m | 4m | 4m | 4m |
Motor Power | 5.5KW/18HP | 5.5KW/18HP | 7.5KW/18HP | 11KW/27HP |
Engine power | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel |
Packing Size | 2.1m*1m*1.5m | 2.1m*1m*1.6m | 2.1m*1m*1.76m | 2.1m*1m*1.76m |
Voltage Options | 220V/380V | 220V/380V | 220V/380V | 380V |
Saw Wheel Diameter | 400mm | 400mm | 500mm | 500mm |
Blade Size | 3300*35*0.9mm | 3300*35*0.9mm | 4200*35*0.9mm | 4200*35*0.9mm |
Lifting | Manual | Manual | Manual | Manual |
Walking | Manual | Manual | Manual | Manual |
Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
Dimension | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m |
Weight | 500kg | 500kg | 650kg | 770kg |
Warranty | 1 year | 1 year | 1 year | 1 year |
Color customization | Supported | Supported | Supported | Supported |
Logo customization | Supported | Supported | Supported | Supported |

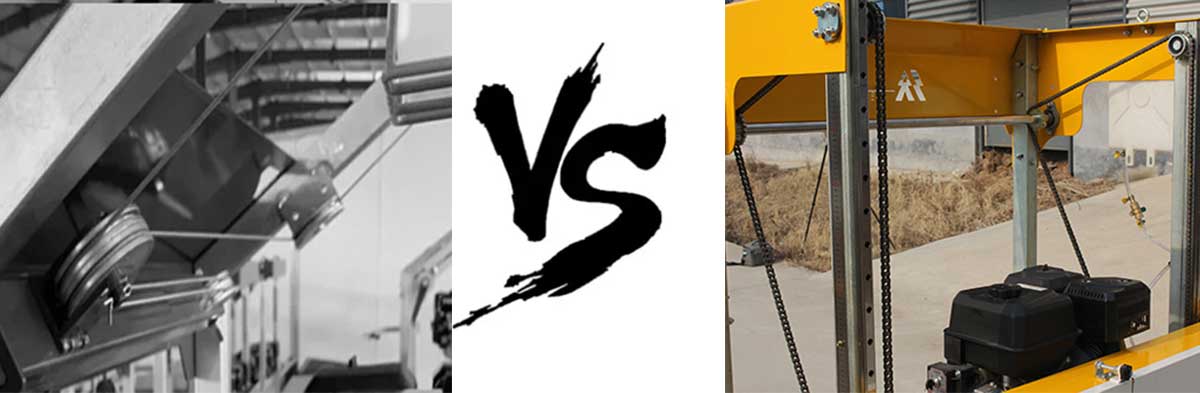

1.About lifting system
The problem of competitors Our advantages
The problem of competitors :
1.Steel wire rope is used for lifting and easy to wear.2.Sudden interruption will lead to great security risks.
3.Pulley design is adopted,the structure is complex,and there may be more fault points.
Our:
1.Chain design,simple structure and convenient replacement.
2.The sprocket rotates with a bearing,which is not easy to wear,It has been tested without fault after 30000 times of lifting and lowering.
2.About Saw Head Positioning Unit
The problem of competitors Our advantages
The problem of competitors :
1.Mechanical locking device through pin shaft and wheel disc.
3.The pin shaff is easily worn due to vibration,resulting in potential safety hazards.
4.Lifting of sawing machine is more laborious.
Our:
1.Reducer for Lifting: Uses a reducer for lifting, which provides stability and save both time and labour.
2.Locking System: The reducer is equipped with a locking system that allows it to be locked at any position.
Enhanced Accuracy: Ensures more precise sawing, improving overall cutting accuracy.

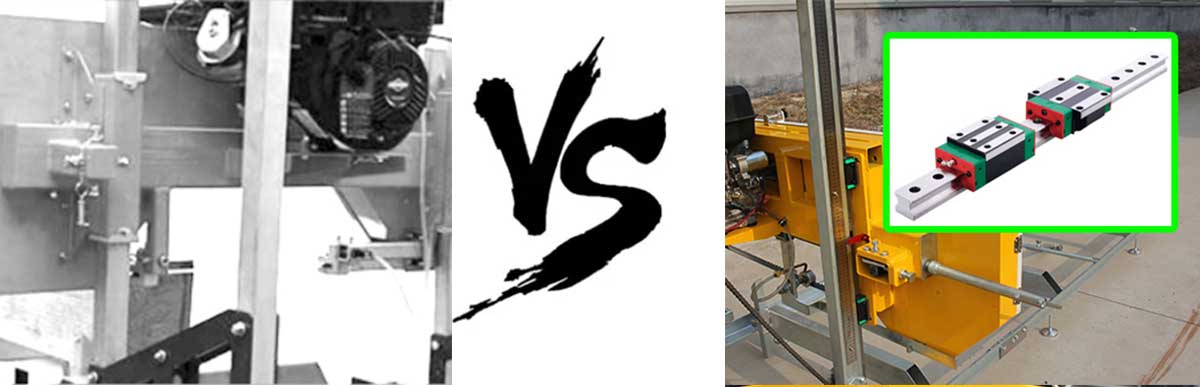

3.About sawhead lifting track
The problem of competitors Our advantages
The problem of competitors :
1.The lifting track adopts hard friction which is easy to wear, the lifting is not smooth,and it is easy to get stuck.
2.The sawwheel needs to be adjusted on four sides,which is difficult to adjust.
Our:
1.Saw blade lifting adopts linear guide rail with double sliding blocks.
2.Smooth lifting,no jamming,high sawing precision andbetter stability blade lifting adopts linear guide rail.

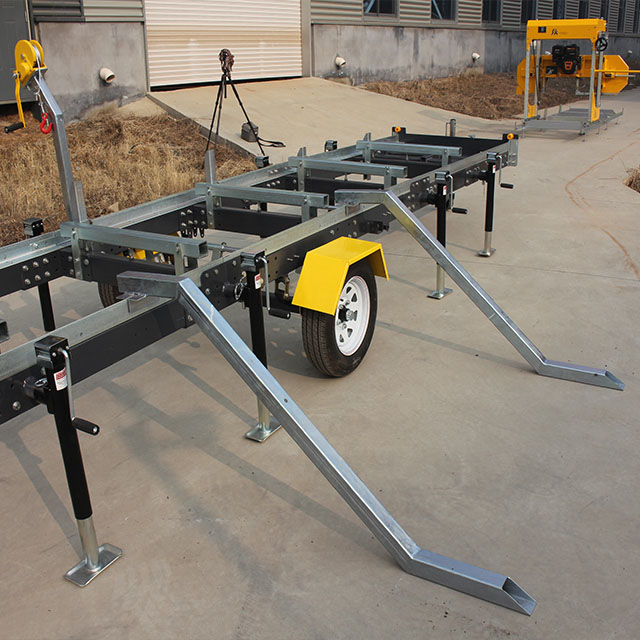

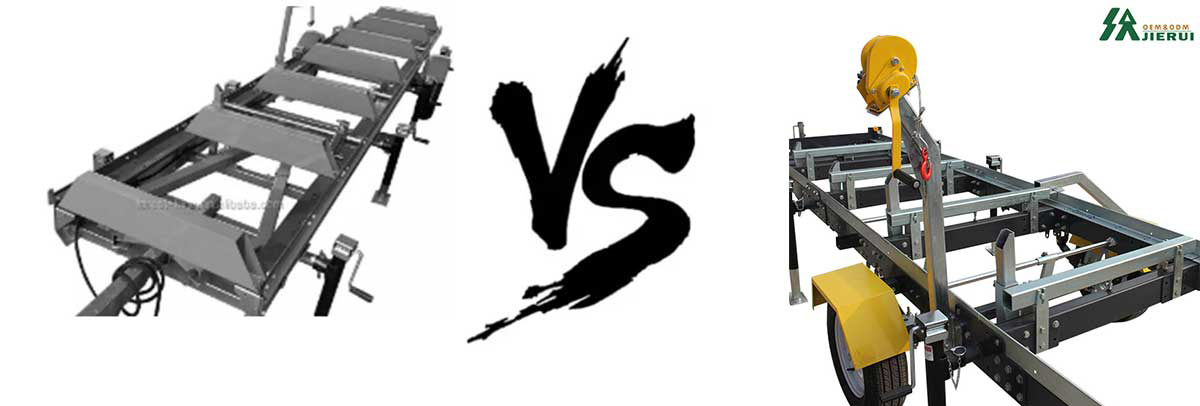

4.About the trailers track and log supporting
The problem of competitors Our advantages
The problem of competitors :
1.T-shaped guide rail is adopted , and the operation is not stable enough.
Our advantages:
1. With adjustable horizontal log supporting

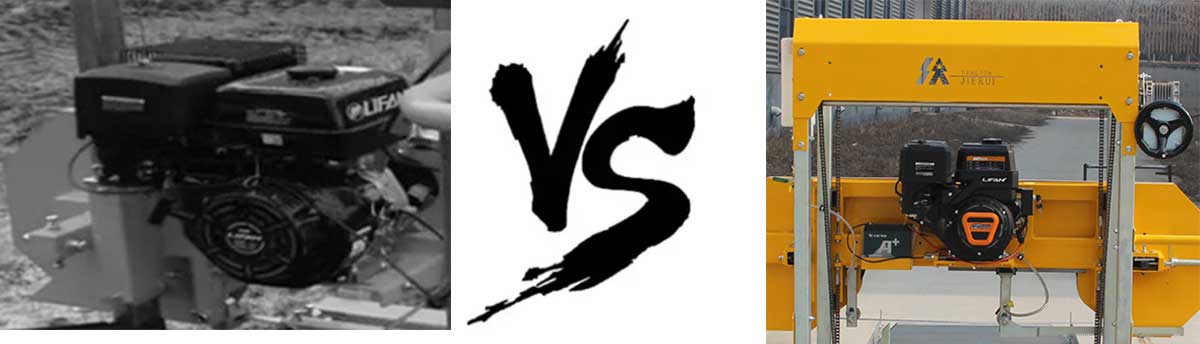

5.Aout engine starting
The problem of competitors Our advantages
The problem of competitors :
1.Manual start only.
2.The engine support frame is thin and vibrates greatly.
Our advantages:
1. Electric start with key.
2. There is a dedicated battery storage box.

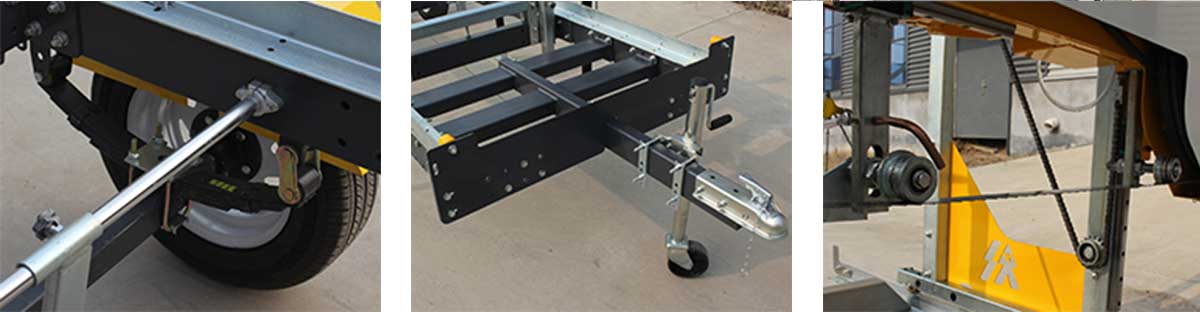

Advantage

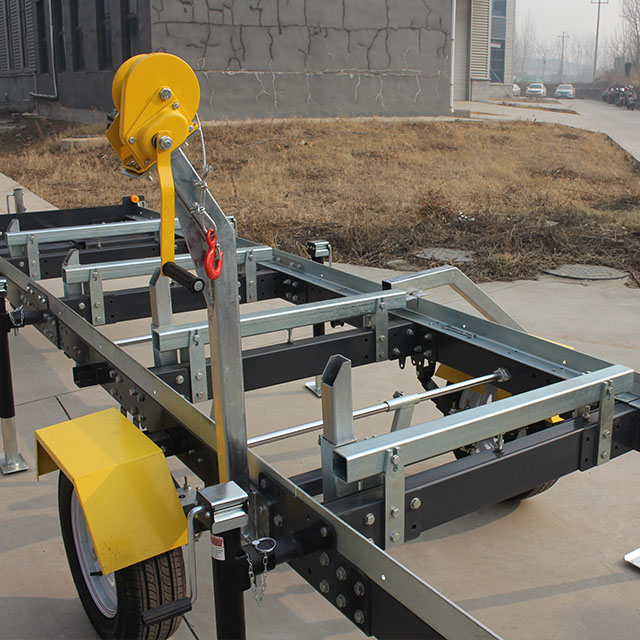

1.With trailer spring plate

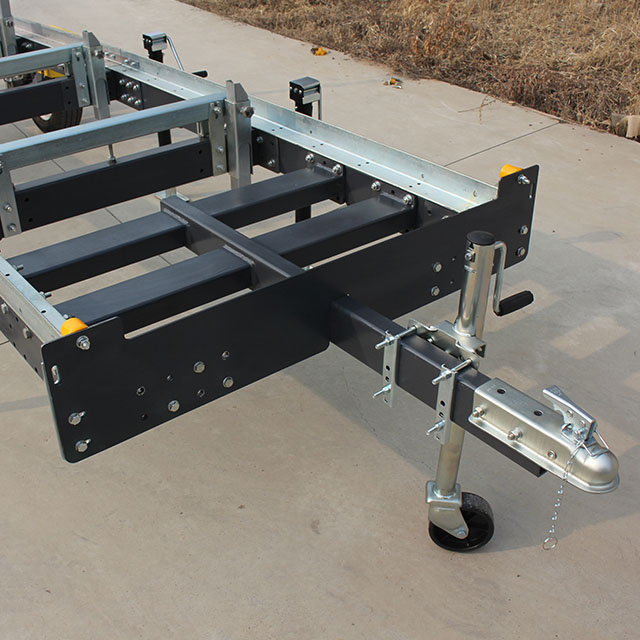

2.Sturdy trailer towing device
3.Saw blade roller guide device,Band saw blade cooling system

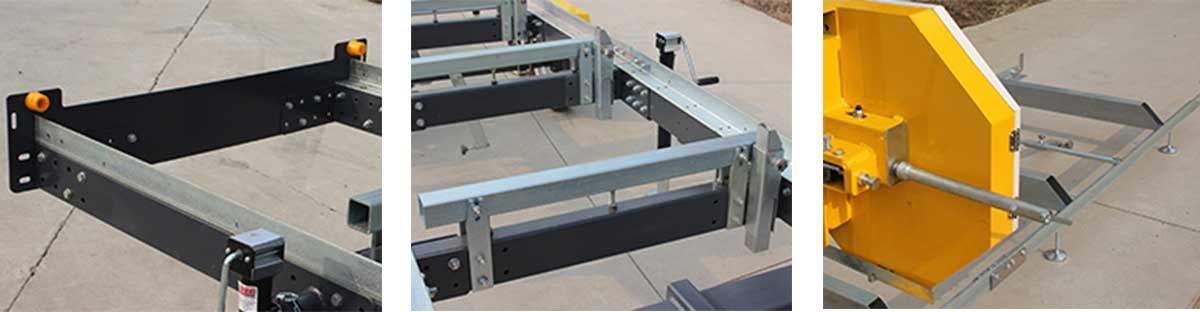

1.Rail Anti-Collision Block
Feature: Includes an anti-collision block on the rail.
Advantage: Protects the rail from damage caused by collisions, ensuring long-term durability and consistent performance.

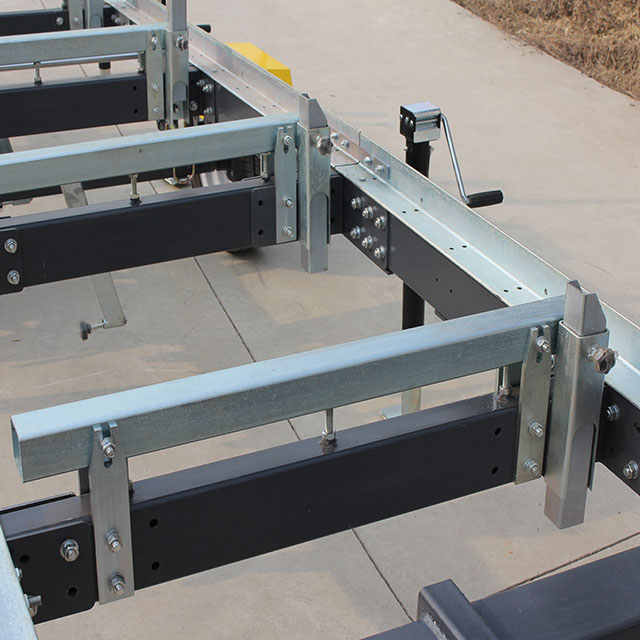

2.Adjustable Log Support
Feature: Provides adjustable support for logs.
Advantage: Allows for flexible positioning and stabilization of various log sizes, enhancing cutting precision and stability.
3.Portable Saw Blade Tensioning Wrench
Feature: Comes with a portable wrench for saw blade tensioning.
Advantage: Facilitates easy and accurate blade tension adjustments on the go, ensuring optimal performance and extending blade life.
