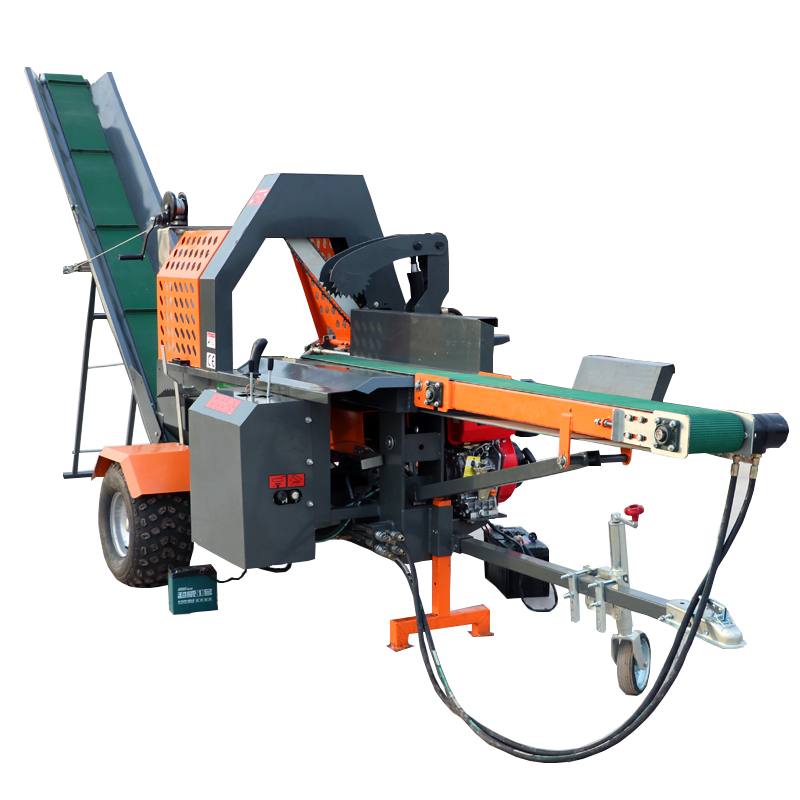

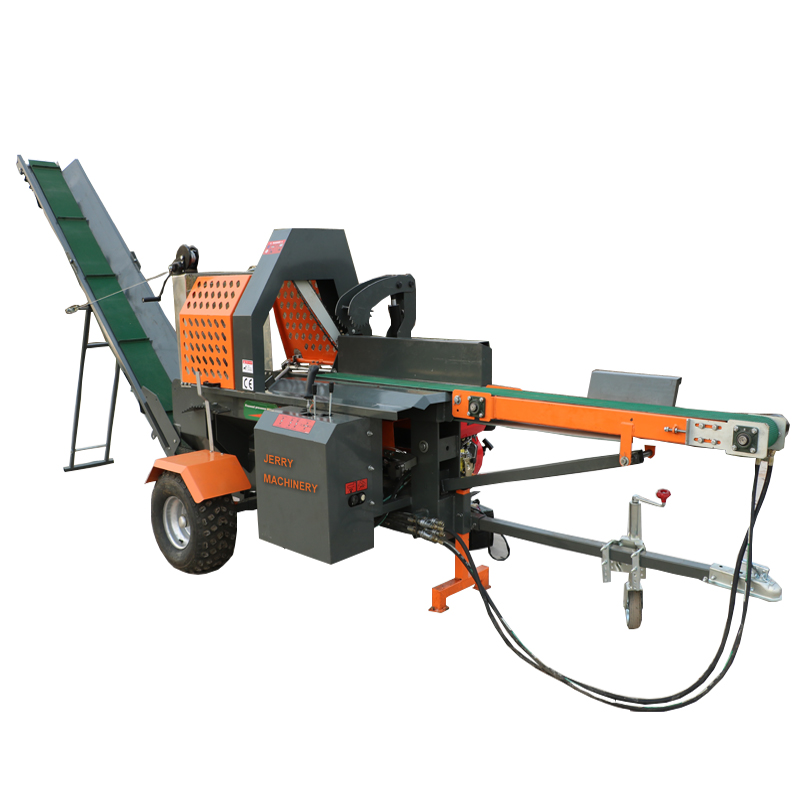

20T Combination Firewood Processing
1.Setting the length of firewood Both 4-way and 6-way are supported
2. Fully automatic control system
Make an inquiry will get the best shipping quotation
This fireewood processor can manage logs with a maximum diameter of 500 mm (19.8 inches), making it suitable for both standard and large-sized logs. This wide range makes it ideal for various applications, from residential firewood production to industrial wood processing, handling even the densest hardwoods with ease.
Reach out for an inquiry and receive a FREE product brochure filled with essential product details, inspiring ideas, and innovative solutions from JIERUI Machinery Equipment Co., LTD. Discover how our cutting-edge machinery can elevate your productivity and bring more efficiency to your work!
WHY CHOOSE US
1. Unmatched Quality and Performance
Durable and Reliable: Our equipment is built to last, using high-quality materials and advanced engineering to ensure consistent and reliable performance, even in demanding environments.
Efficient Operation: Our machines are designed for maximum efficiency, allowing you to process firewood faster and with less effort compared to other brands.
2. Safety First
Compliant with CE Standards: All our equipment, including the JR480D, complies with the latest CE safety standards, ensuring that you can operate our machines with peace of mind.
Built-In Safety Features: Our machines are equipped with automatic safety shutdowns, protective guards, and user-friendly controls to minimize the risk of accidents.
3. Easy to Use and Maintain
Simple Operation: We design our equipment to be easy to use, even for those who are new to firewood processing. With intuitive controls and automated features, you can focus on getting the job done without hassle.
Low Maintenance: Our machines require minimal maintenance, saving you time and reducing downtime, so you can keep working efficiently.
| Performance | Max Splitting | 20T |
| Max splitting length | Standard 610mm (24 inch) | |
| Max cutting & splitting diameter | 480mm (19 inch) | |
| Cycle time | 8-12S | |
| Work efficiency | 4-7CBM/H | |
| Wood fixing | Hydraulic | |
| Saw cutting | Joystick with solenoid valve | |
| Saw lubrication | Automatic by hydraulic system | |
| Splitting | Automatic | |
| Splitting wedge | 4 way (height adjustable) | |
| Machine assembly | Engine | 18HP LIFAN gasoline (electric start) |
| Pump | 20GMP (2-stage) | |
| Splitting cylinder | 3.15”x24”x2” | |
| Hydraulic oil tank | 100L | |
| Feeding conveyor | 2400*200mm | |
| Rear loading conveyor | 3200*250mm | |
| Tyre | 22x11-10 | |
| Traction | 50mm ball couple | |
| Packing | Size | 2300x1250x1750mm |
| Weight | 980KG | |
| Loading Q\ty | 7/16 pcs (20GP/40HQ) |

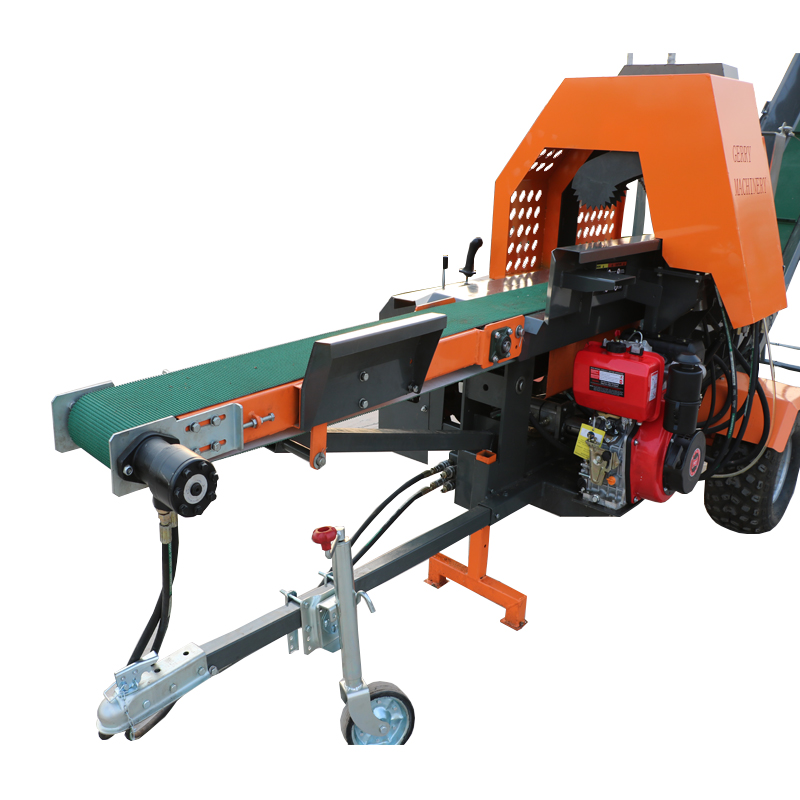

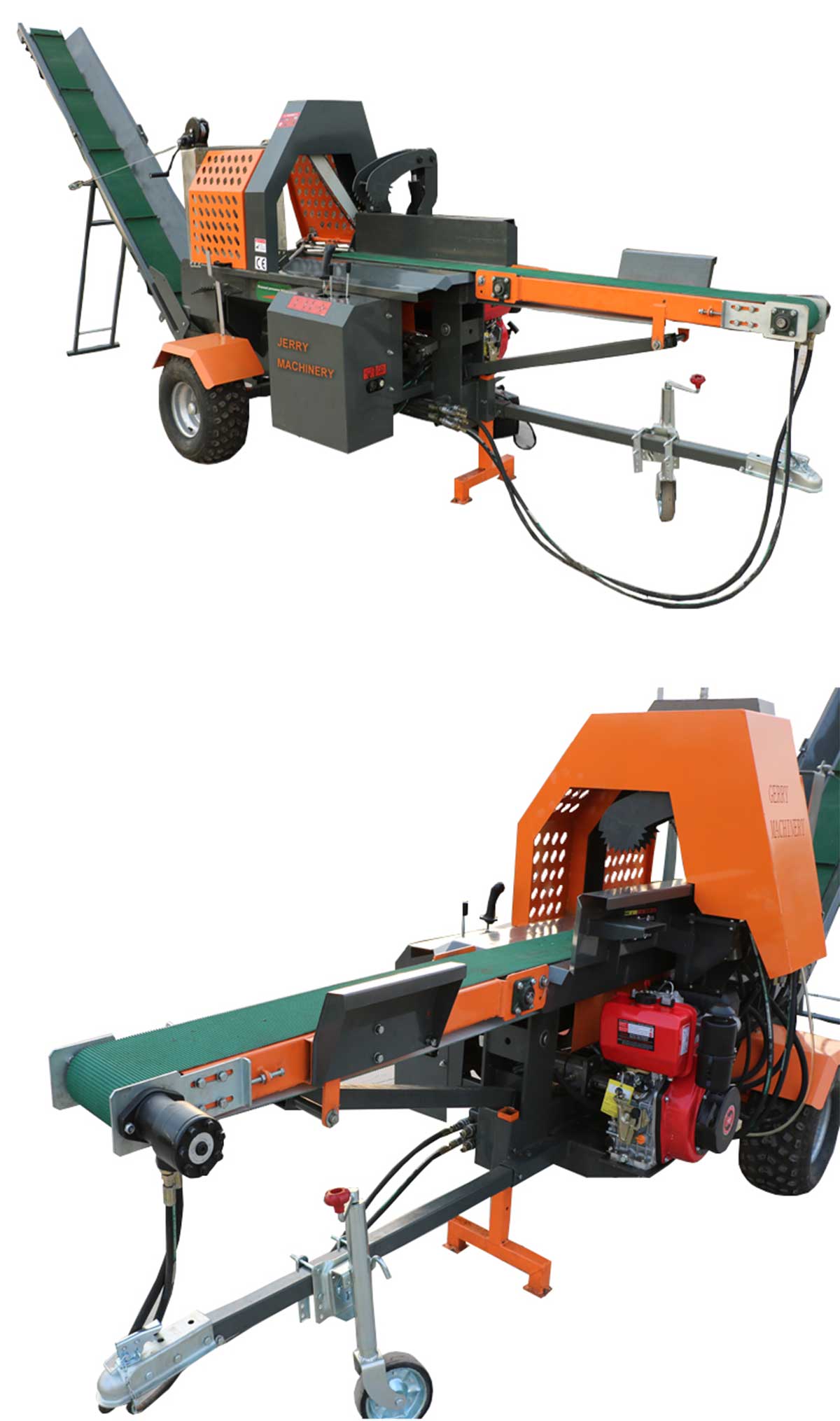

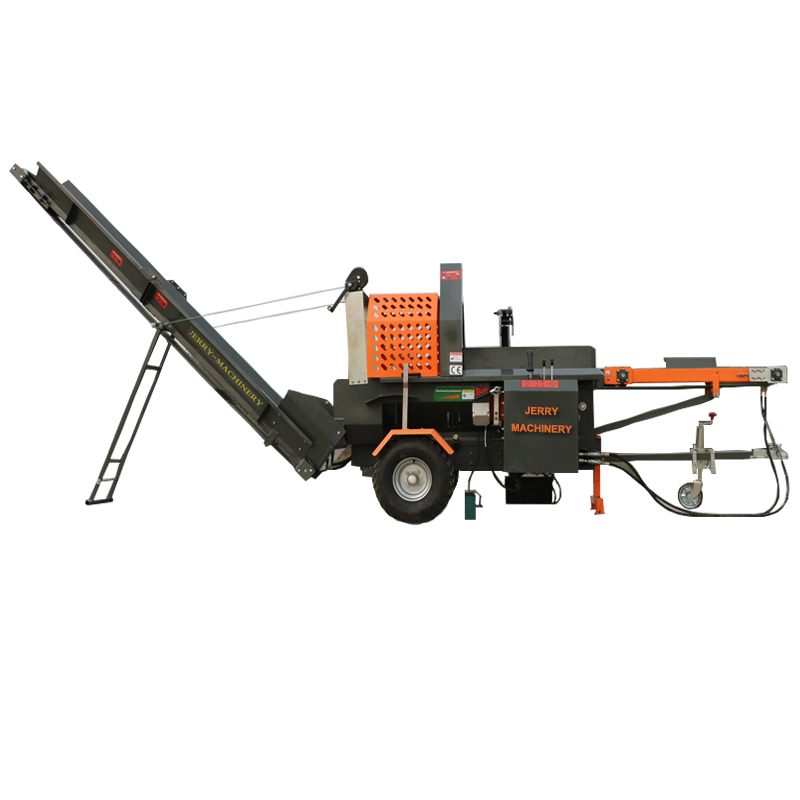

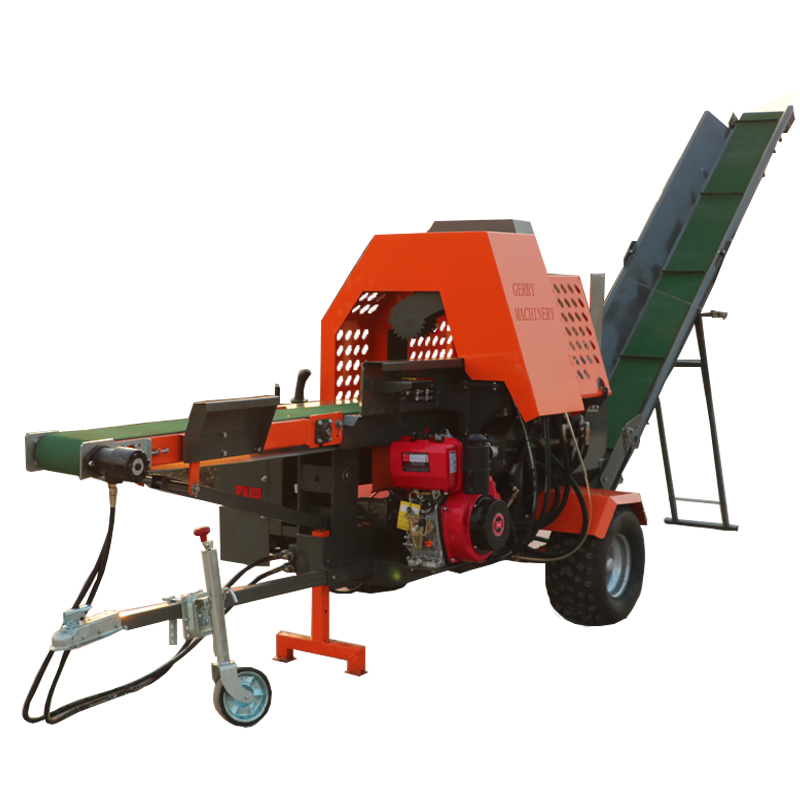

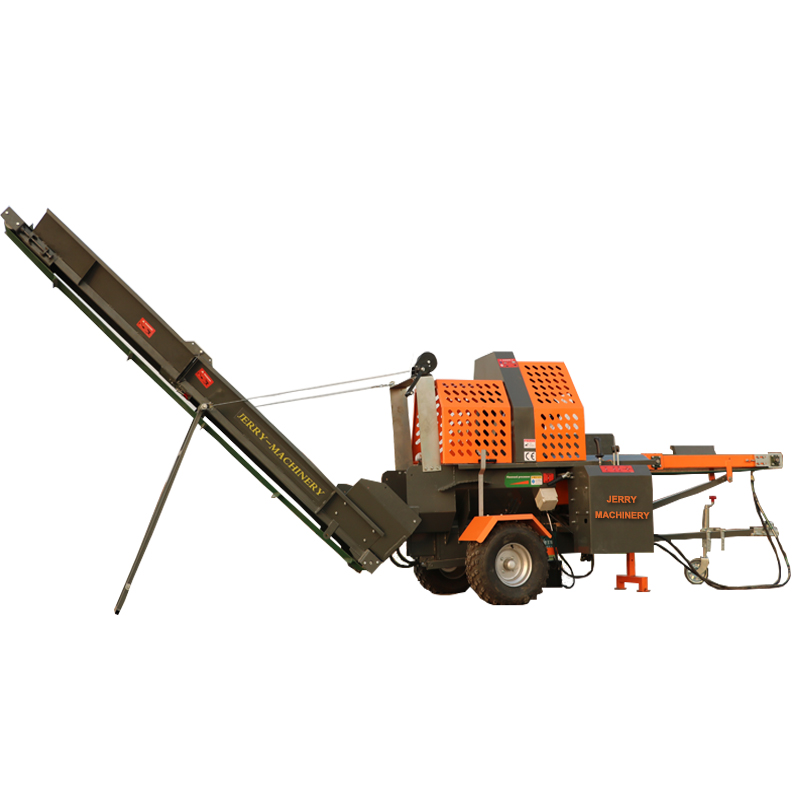

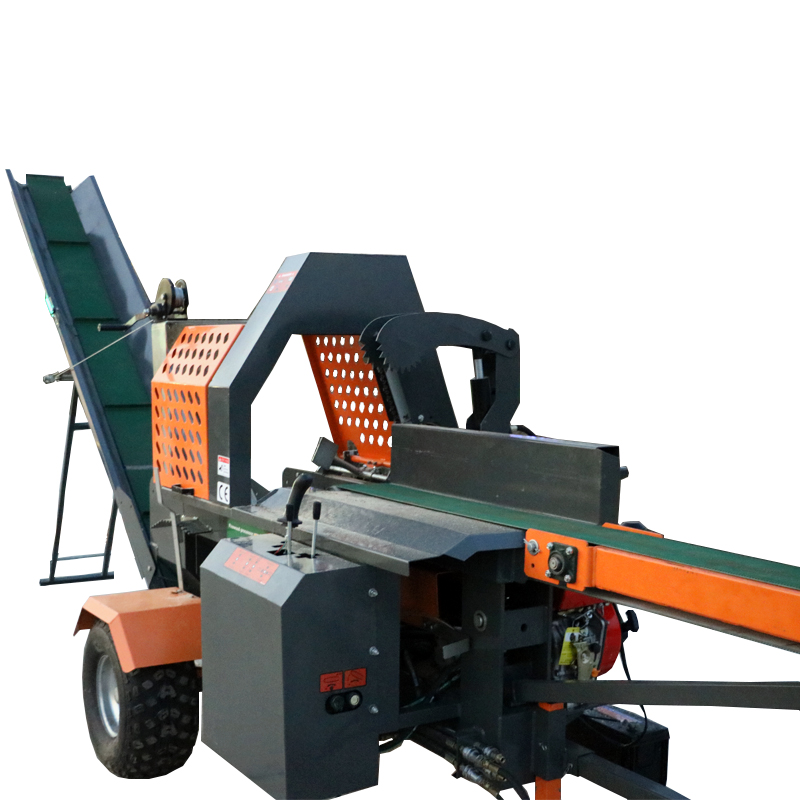

The JR480D is our 20ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard. The JR480D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard.
We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head.

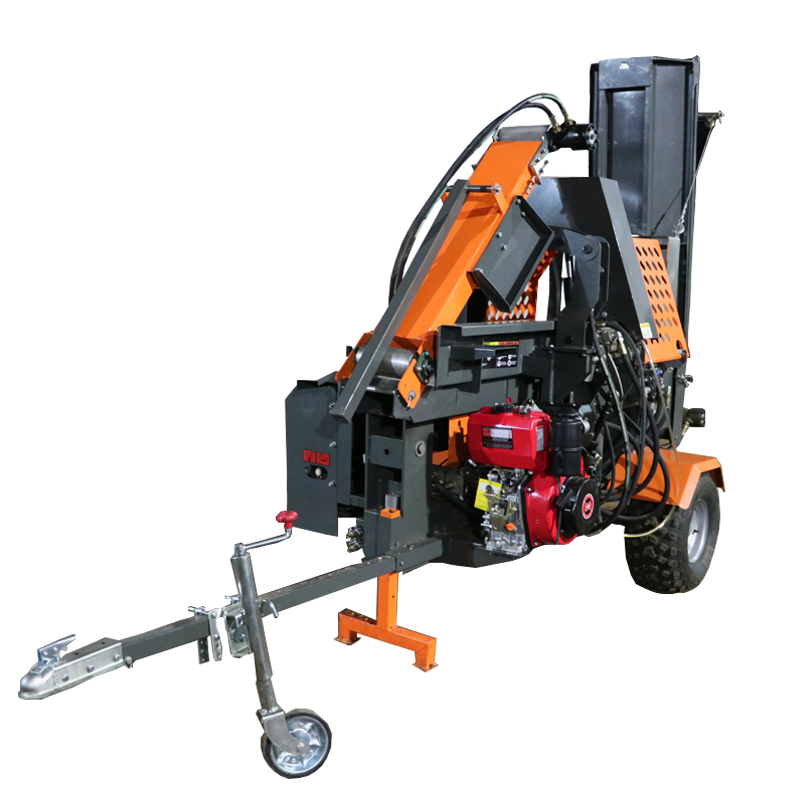

The processor has a 50mm tow hitch for towing around the yard or working area.
Product Details

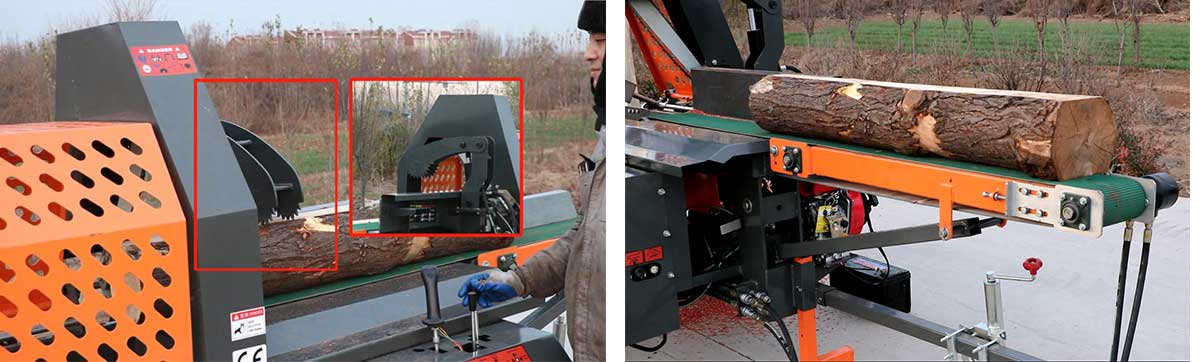

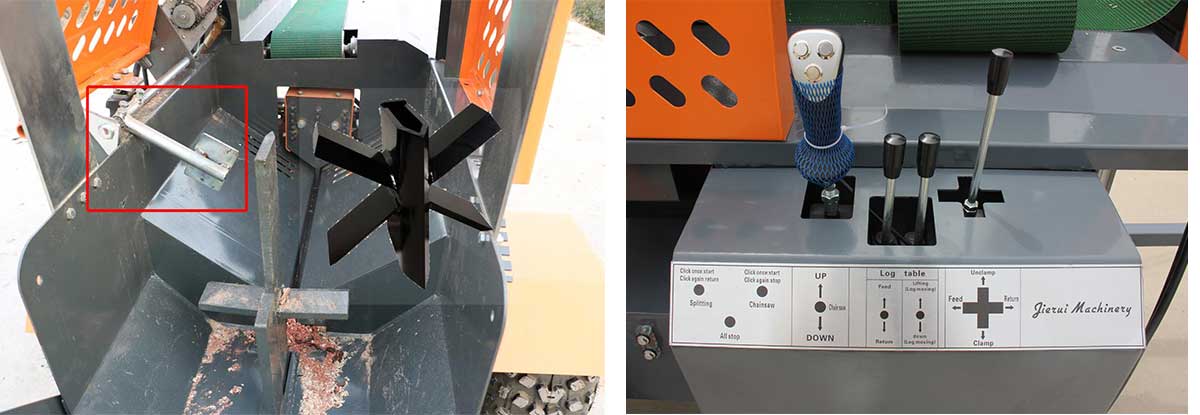

Hydraulic automatic log clamping Automatic feed conveyor system
Both 4-way and 6-way are supported

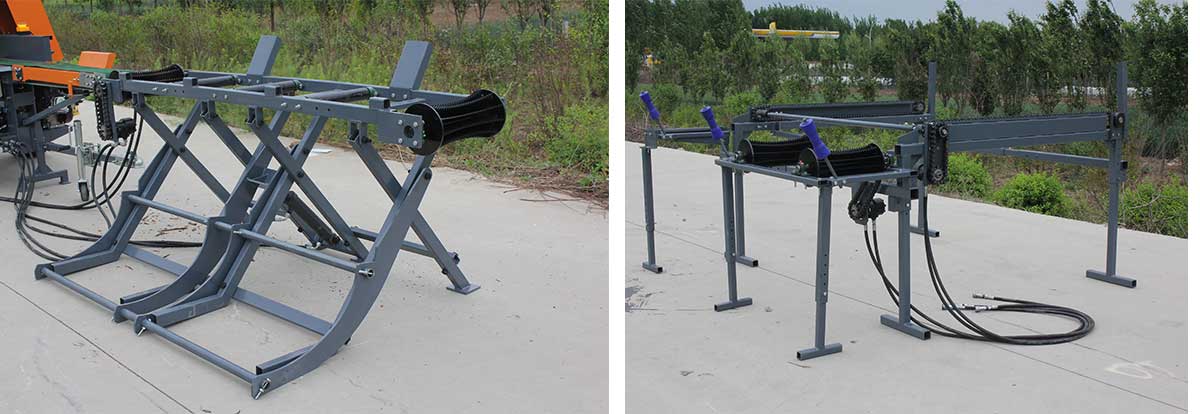

Log lifter-JR100 Log table-JR200

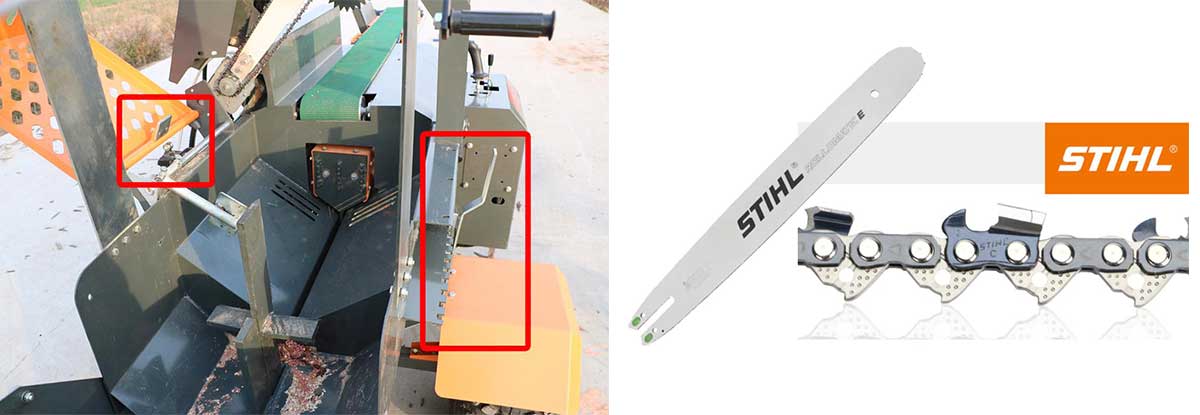

Splitting wedges can be adjusted up or down imported from Germany
