15T Kinetic Fast Wood Splitter Woodworking Machine

The vertical and horizontal dual-purpose gasoline splitter's dual-mode design and gasoline engine make it a reliable choice for a wide range of log splitting tasks, from residential wood processing to more demanding commercial work.





Make an inquiry will get the best shipping quotation

15T
$650.00
  Contact Now WhatsApp
15T
$650.00
Product Details

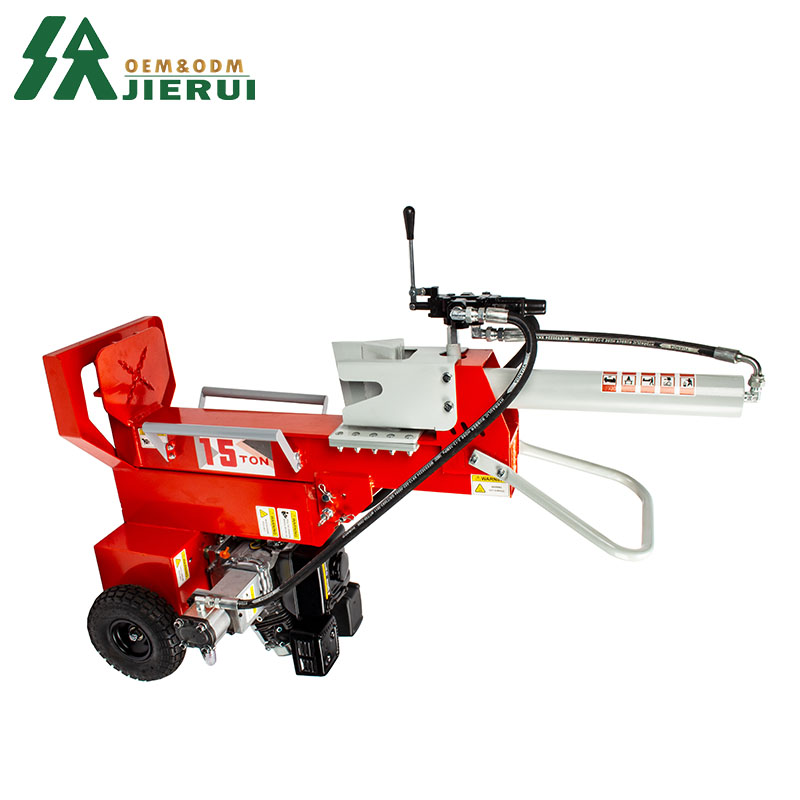

The JIERUI Vertical and Horizontal Dual-Use 15T Log Splitter is a powerful, efficient, and safe tool for anyone who needs to split logs quickly and effectively. Its dual-use design, fast cycle time, and 15-ton splitting force make it a versatile option for handling a variety of log sizes, from smaller pieces to large, heavy logs. Whether you're using it for personal firewood processing or commercial tasks, this log splitter offers both flexibility and reliability.

Kinetic Fast Wood Splitter

The 15T vertical and sleeping log splitter is designed to provide a versatile, powerful and efficient solution for a wide range of wood splitting tasks.

15T vertical, horizontal log slitting machine main features:

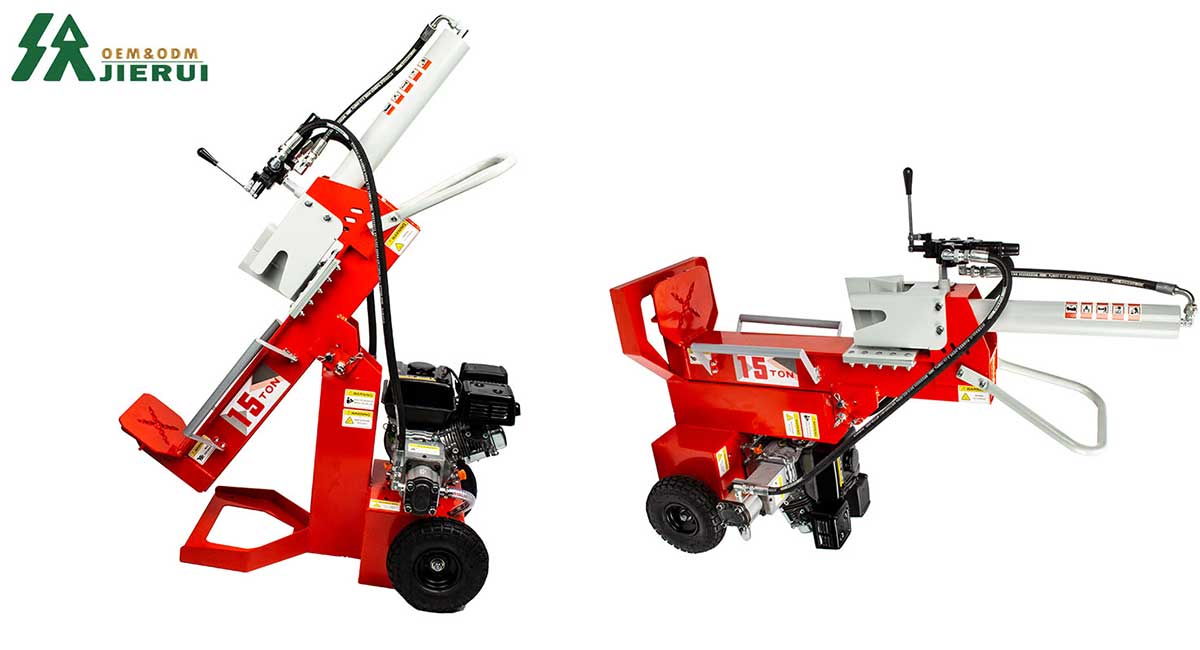

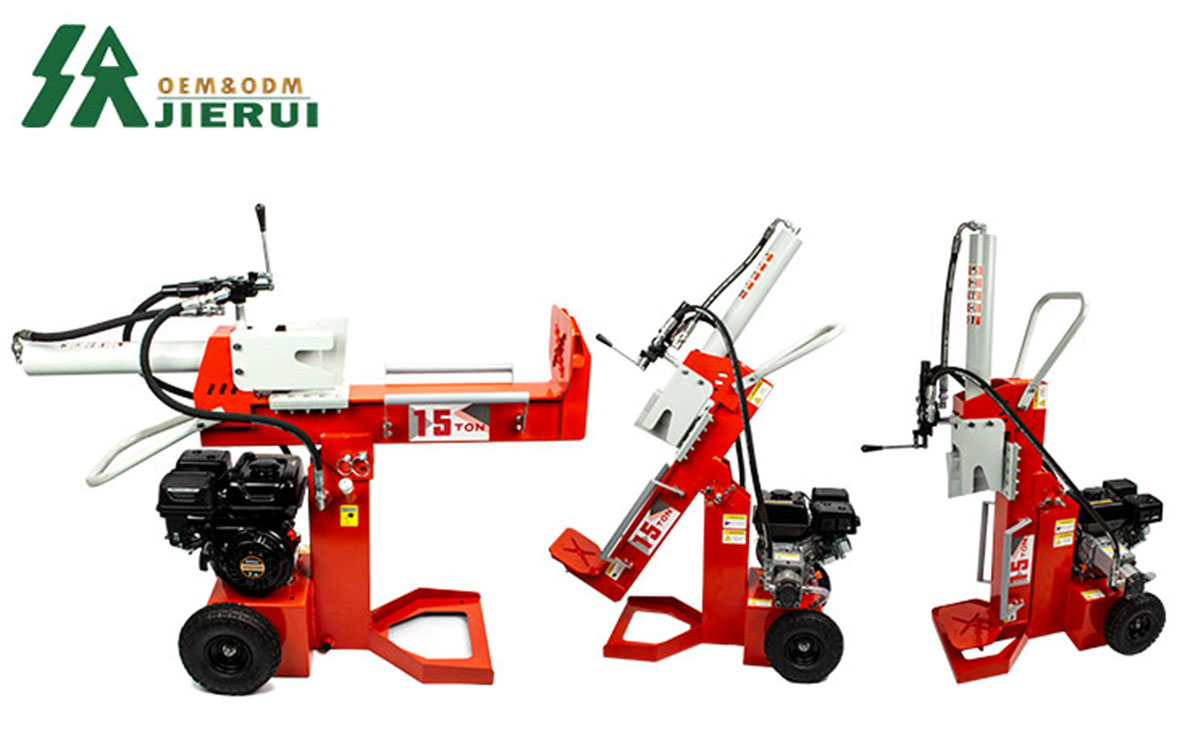

Dual operation mode:

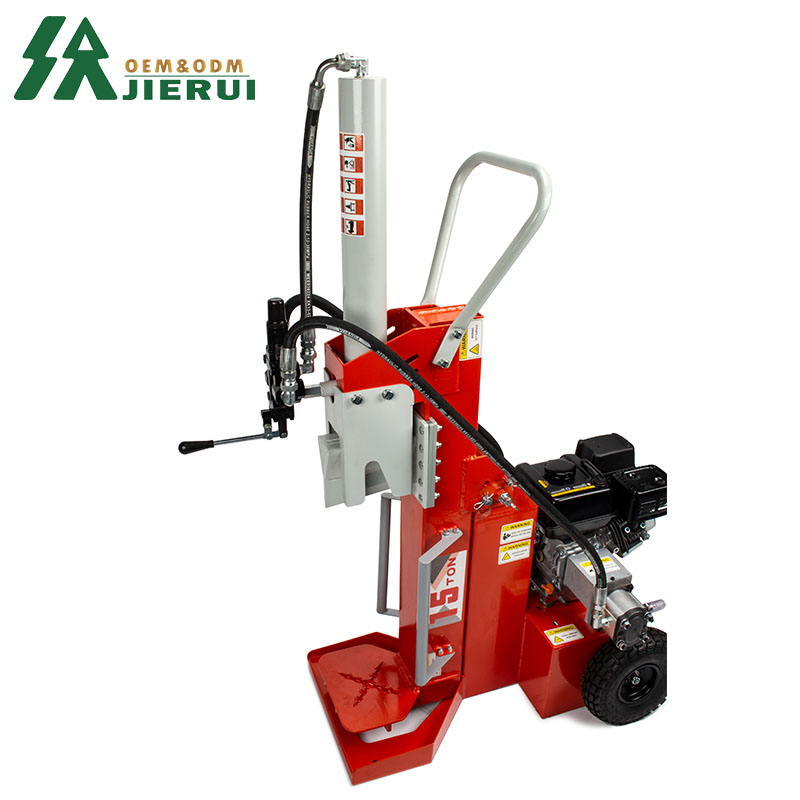

Vertical mode:

Suitable for larger, heavier logs. In this mode, logs can be easily rolled into place without the need for lifting, reducing physical stress and increasing safety. This mode is especially useful for splitting large logs that are too heavy to lift manually.

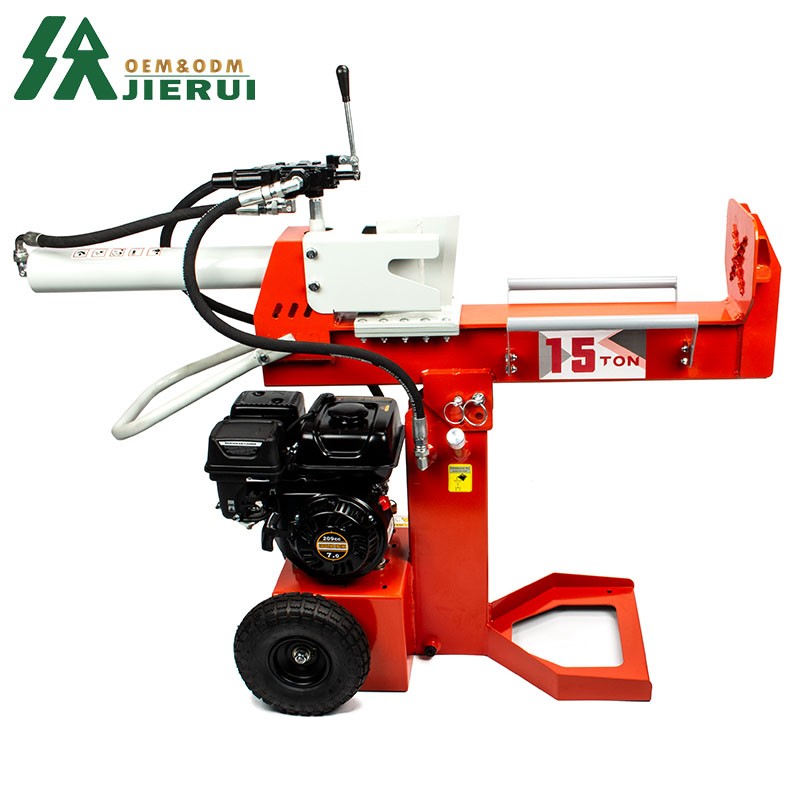

Landscape mode:

Perfect for small logs that can be easily lifted into the splitter. This mode provides greater stability and accuracy when processing logs that do not require a vertical position.

Powerful gasoline engine:


Equipped with a gasoline engine, this log splitter provides the necessary maneuverability and power for tough outdoor split tasks. The engine is ideal for use in remote areas where electricity may not be available, ensuring reliable performance in forestry operations, wood processing and more.

Security features:


Safety protection: The built-in safety function of the machine is designed to protect the operator from accidents during use.

Automatic shutdown system: In the event of a malfunction or other problem, the automatic shutdown system ensures that the machine is stopped immediately to prevent further damage or accidents.


Portability:


Designed on wheels, this log splitter is highly portable, allowing it to be easily transported to different workplaces, properties, or yards. Whether you need to move it around your property or take it to a remote location, the wheel makes the task effortless.

Ease of Use:

The machine is designed with a user-friendly control system, making it easy for operators of all skill levels to operate. The intuitive control panel, coupled with an efficient hydraulic system, ensures smooth, quick operation with minimal effort.

Hydraulic System:

The log splitter is equipped with an efficient hydraulic system that ensures a quick and powerful split. The hydraulic power makes the splitting process more reliable, consistent, and efficient, even when dealing with dense or tough hardwoods.


15T vertical and sleeping splitter

Parameter type
Parameter
Production dimension (L/W/H *inch)
56.3/20.5/45.6
Net weight (KG)
125
Packing size (inch)
30.7/16.5/46
Total weight of packing (KG)
145
Horizontal/vertical
Horizontal and vertical
Splitting method (optional)
2 ways
Cycle
15S
Model
CBT/203
Control valve
23.3GAL three-position automatic return
Max. tonnage
15T
Hydraulic oil No.
46#
Filter
Available
Wheel tires
4.1-3.5-4
Traction(inch)
10
Min. hydraulic oil level
1.32GAL
Max. hydraulic oil level
1.72GAL
Inner diameter of oil cylinder (inch)
2.76
Splitting stroke Length (inch)
20.5
Working pressure
16MP-25MP adjustable
OEM
Acceptable
Engine brand
RATO
Engine type
Air-cool and four-stroke gasoline engine, OHV
Engine displacement
7P 209CC
Axial direction of engine
Horizontal axis
Start engine
Electric/recoil
Rated torque* (N.m@3060rpm)
12.9


Product Details

Kinetic Fast Wood Splitter

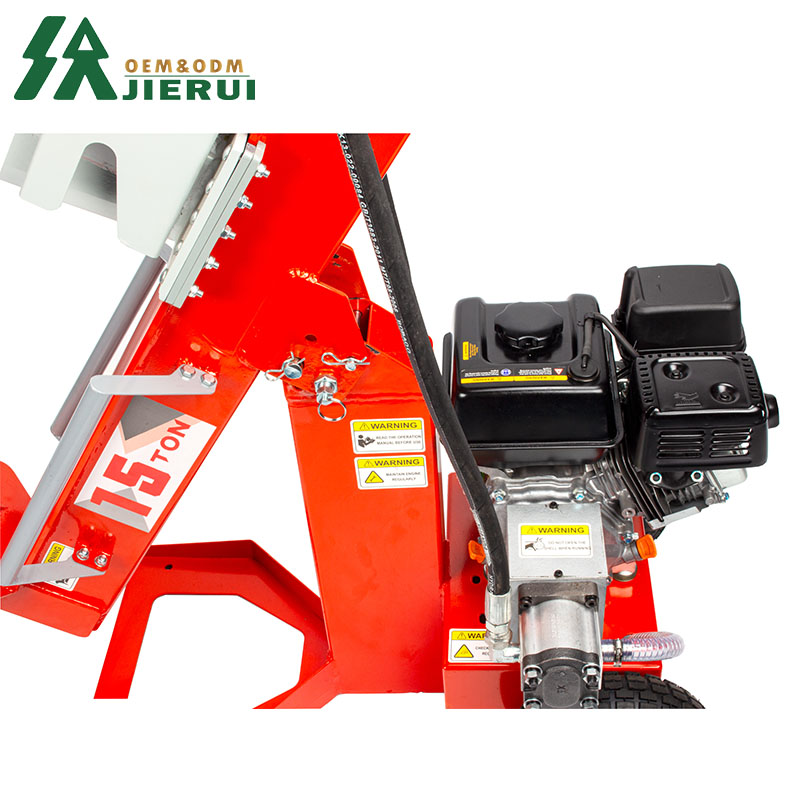

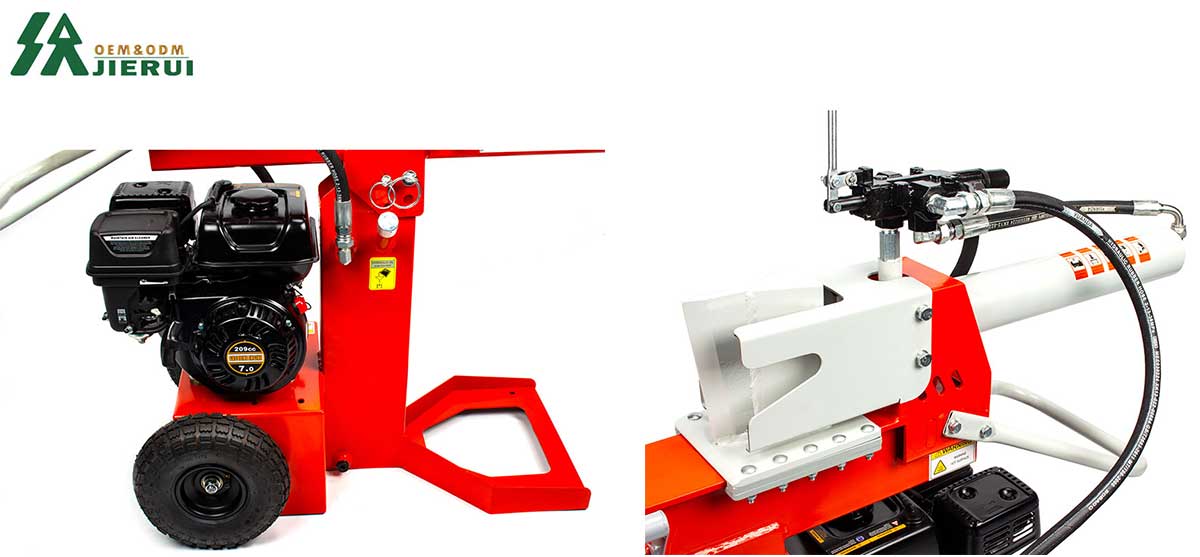

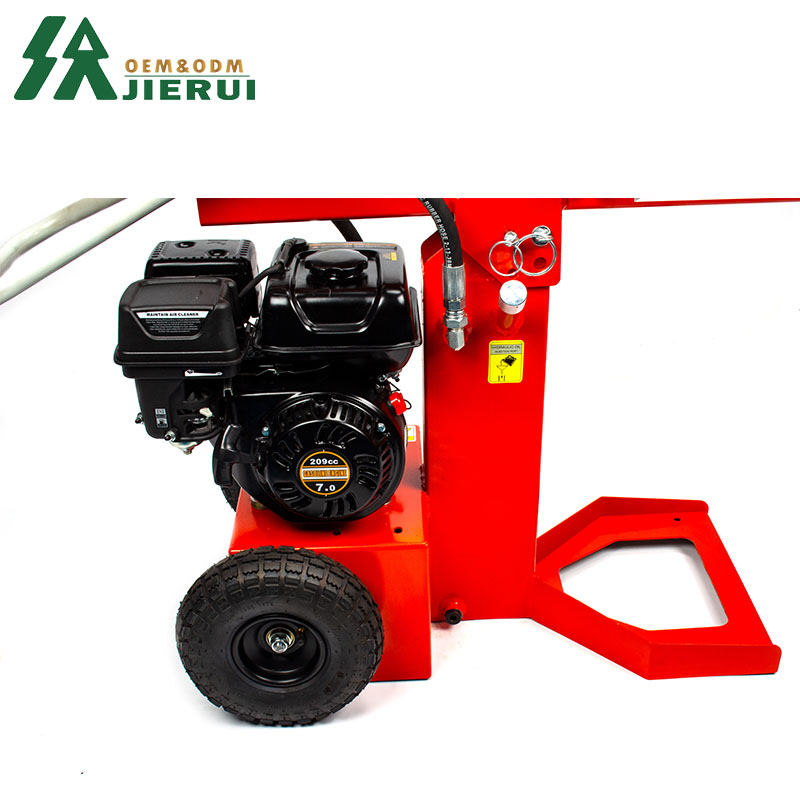

1.Famous engine:

Delivers superior power and reliability, enabling the machine to handle heavy split tasks in harsh outdoor conditions.

Easier maintenance and support services, which improves the overall user experience and prolongs the life of the machine.

More fuel efficient, lower operating costs, making the log separator more economical to operate.

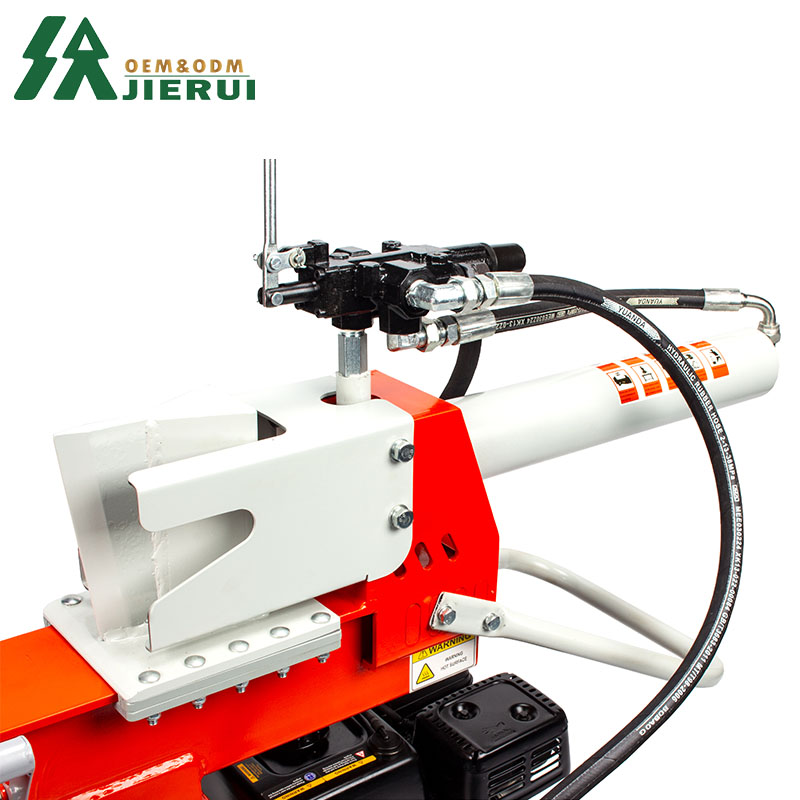

2.High strength solid hydraulic rod:

It is equipped with high-strength solid hydraulic rods to ensure maximum durability and reliability during operation. This robust hydraulic rod is able to withstand the high pressures and stresses involved in log splitting, making it ideal for heavy-duty tasks and long-term use.


Kinetic Fast Wood Splitter

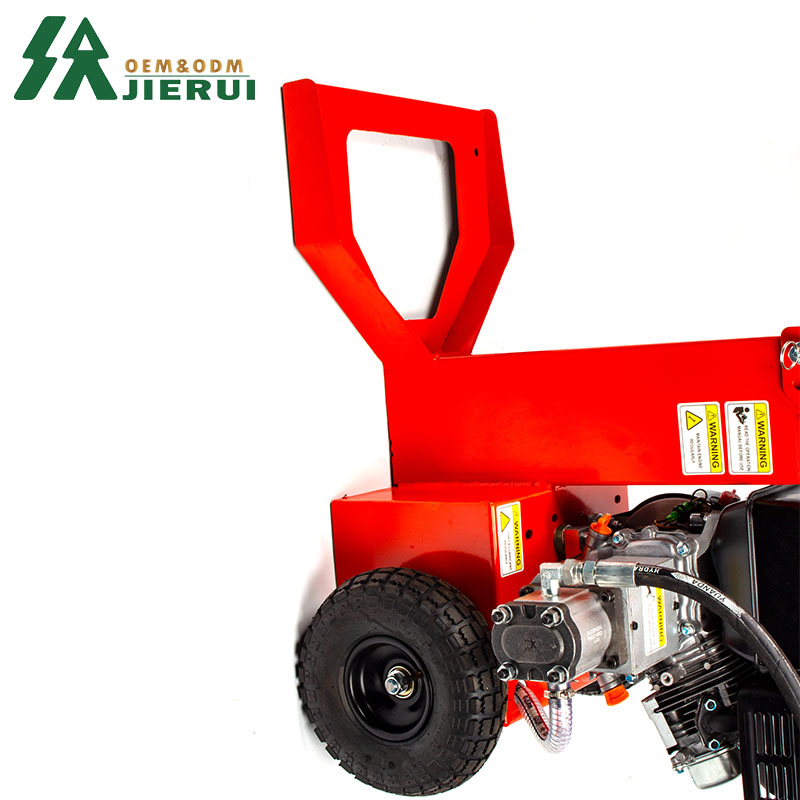

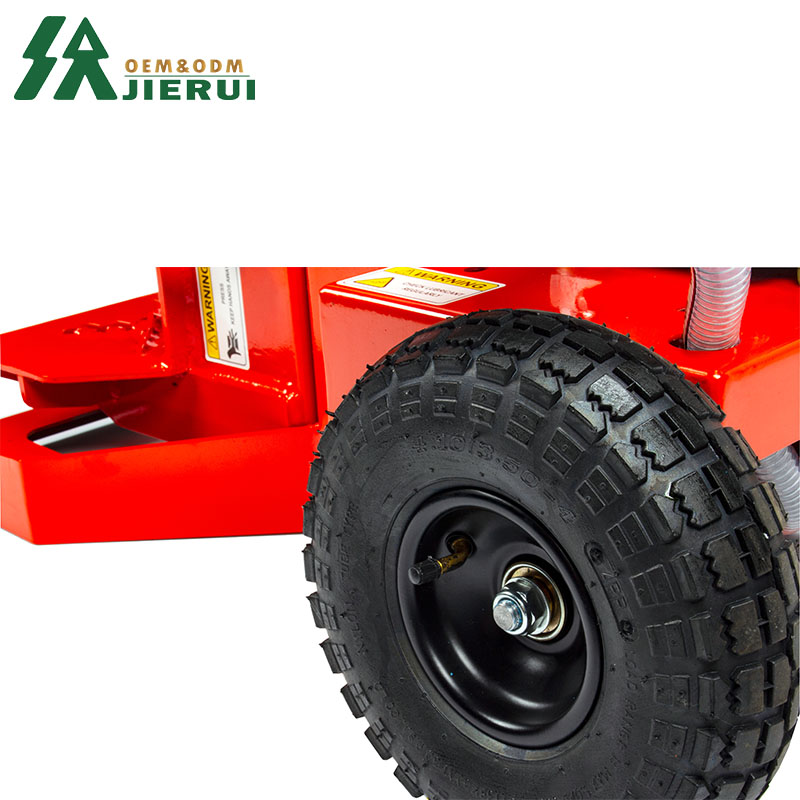

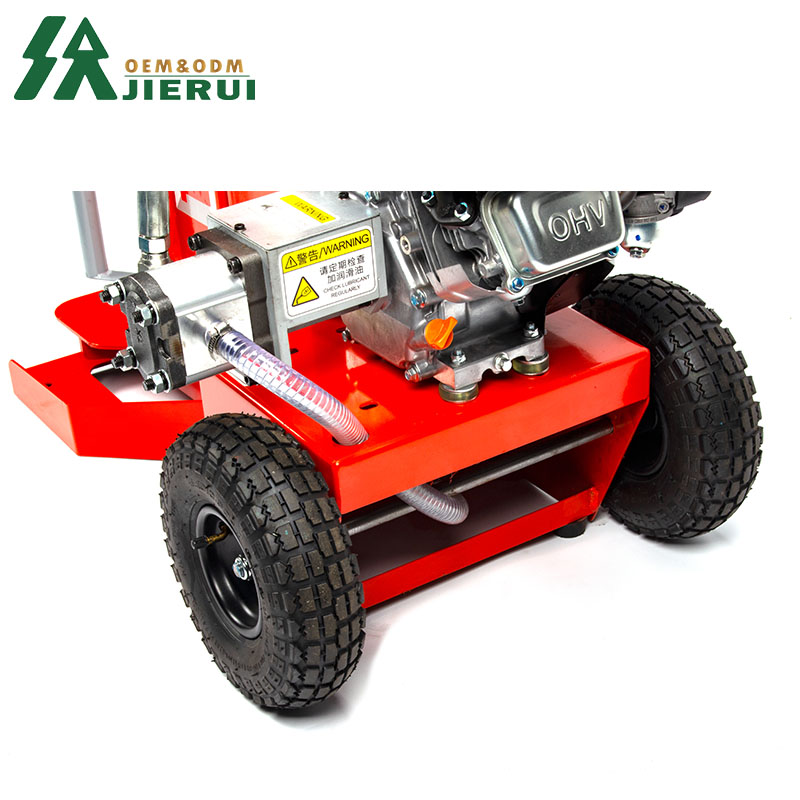

3. High quality tires:

Ensures smooth and easy transportation over all kinds of terrain. Whether you need to move it around a rough, uneven yard or forest site, these durable tires provide outstanding traction and stability.

They can withstand a lot of use and are resistant to wear, making them ideal for harsh outdoor conditions, where log separators are often used.


4.Integrated welding cleaver:

The integrated welding cutter is the key component of the cutting mechanism of log cutting machine. Made from high-strength steel or similar durable materials, kitchen knives are designed to provide a consistent, powerful split with minimal effort. It cuts hard logs efficiently, reducing the need for multiple crossings.


Kinetic Fast Wood Splitter

Kinetic Fast Wood Splitter

Contact us today for a consultation and receive a free product brochure from Jierui Machinery Equipment Co., Ltd., packed with exciting product information, inspiration, and innovative solutions!

Whether you're involved in forestry, wood processing, or industrial woodworking, our wide range of sawmills, firewood processors, wood splitters, and other machinery is designed to help you achieve more.
