Factory Direct Electric 15T Log Splitter

Jierui Machinery introduced the 15T horizontal electric wood splitter, splitting cycle of 11 seconds, one-hand valve control, can achieve one-hand operation of the machine, the maximum splitting diameter of 500mm, support OEM.





Make an inquiry will get the best shipping quotation

15T
$550.00
  Contact Now WhatsApp
15T
$550.00
Product Details

A 15T log splitter is usually a mid-range machine capable of splitting logs with moderate force. It is ideal for residential use, small firewood operations, or lighter forestry tasks.

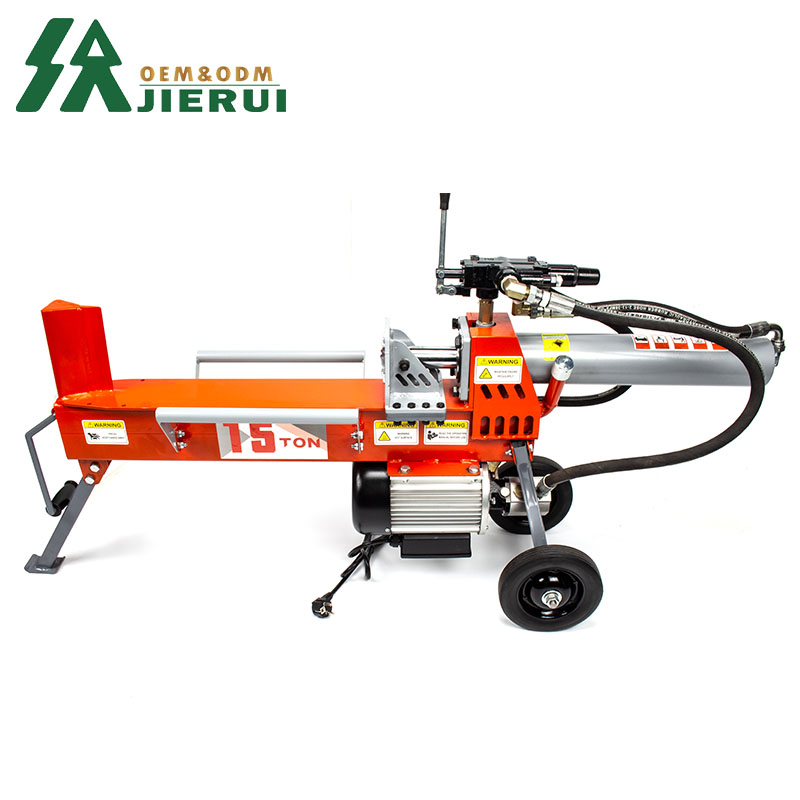

15T Log Splitter

Contact us today for a consultation and receive a free product brochure from Jierui Machinery Equipment Co., Ltd. containing exciting product information, inspiration and innovative solutions. Discover how we can enhance your project and bring more life to your work!

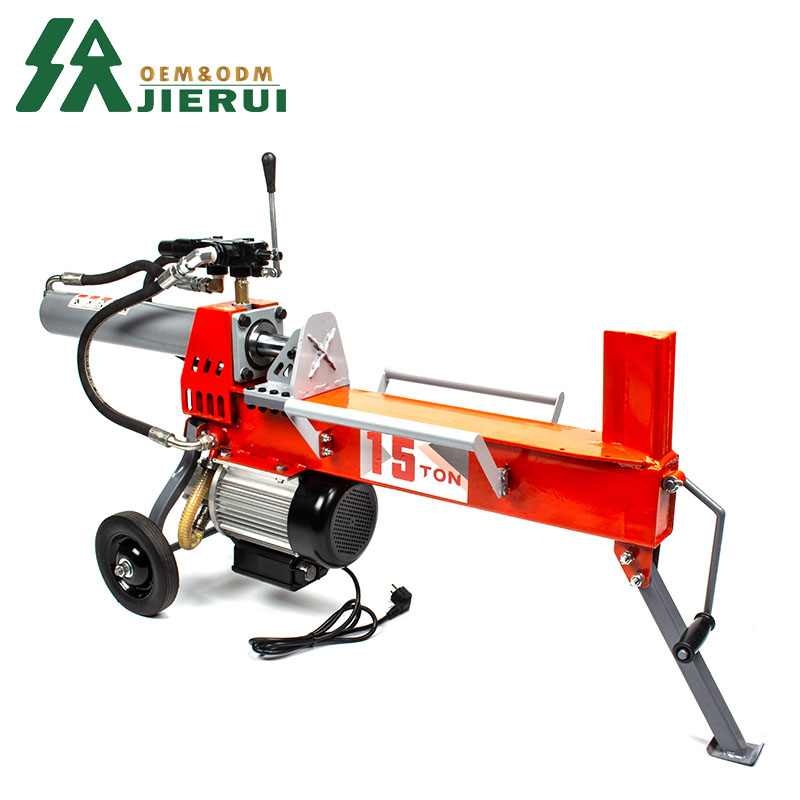

15T Log Splitter

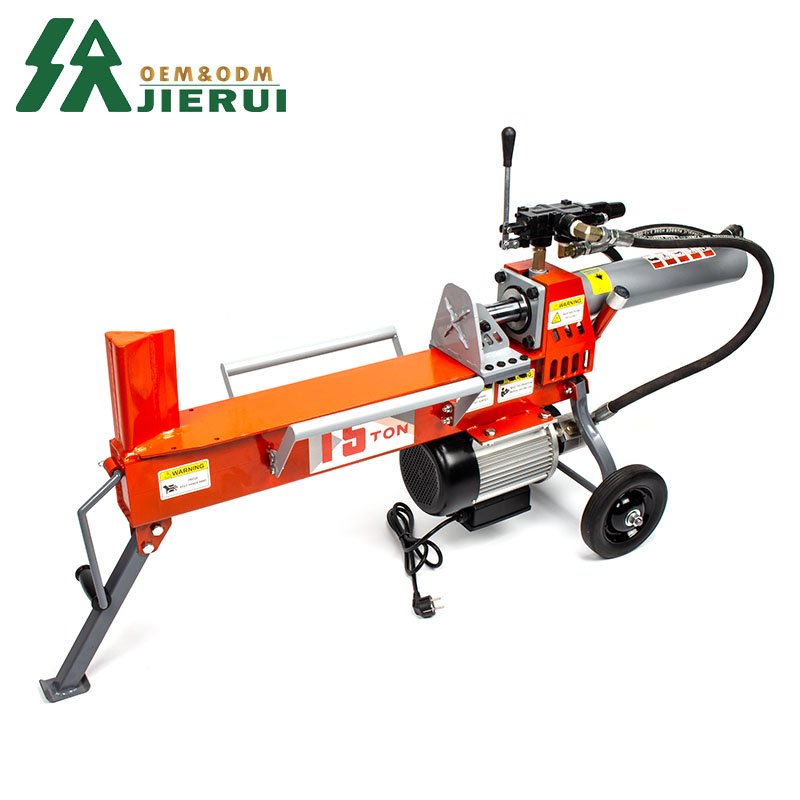

15T Log Splitter

                                WP-15T Log splitter
Parameter type
Parameter
Production dimension (L/W/H *inch)
59/15.7/32.32
Net weight (KG)
72
Packing size (inch)
59.4/30.7/28.5
otal weight of packing (KG)
142
Horizontal/Vertical
Horizontal
Splitting method (optional)
2 ways/4 ways
Cycle
11S
 Oil pump model/flow L/min
CBNA-10.5/1.6D
Control valve
21.1GAL three-position
Max. tonnage
15T
Working voltage/Hz
220V/50Hz or 240V/60Hz
Motor power
4.1HP
Protection level
IP54
Working pressure
18MP-22MP
Customer warranty
1year
Customer warranty
1year
Splitting stroke Length(inch)
20.5
Splitting diameter φ(inch)
0.2-20
Operating method
single-handed valve
Max. tonnage
15T
 Hydraulic oil No.
46#
Tires
6
Hydraulic oil
1.98GAL
Inner diameter of cylinder(inch)
3.15
Piston diameter(inch)
1.58
OEM
Acceptable


The 15 ton Log splitter main features usually include: Splitting force:

15 tons of pressure, can handle medium and large logs. Operation: hydraulic drive system, control valve operation. Make log splitting smooth and efficient. Splitting ability: Can split logs of different diameters, usually up to 50-500mm. Cycle time: A reasonable cycle time of 11 seconds. Mobility: Usually with wheels for easy transportation around the site. Safety features: Modern safety standards, such as safety guard, automatically turn off if security mechanisms are violated.


Product Details

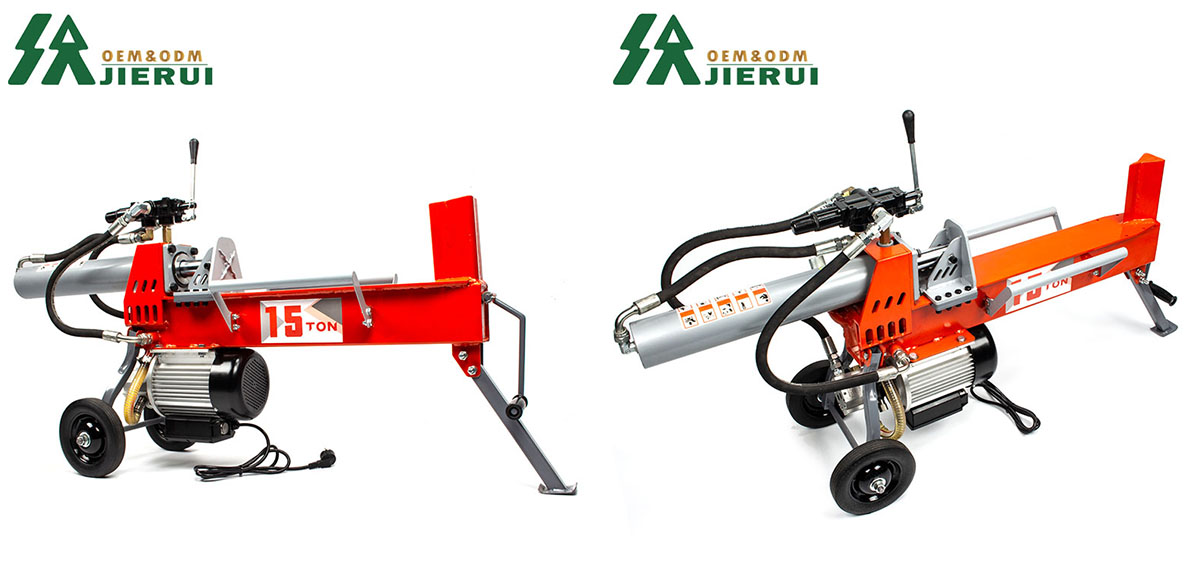

15T Log Splitter

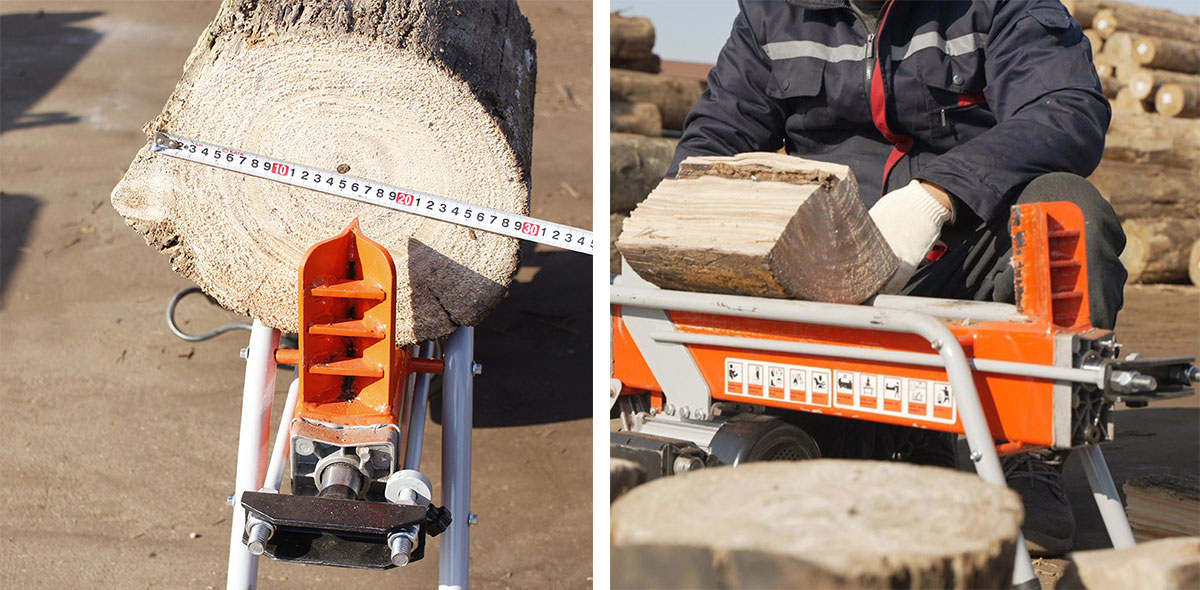

Splitting size 50-500mm                                                               One handed operation


15T Log Splitter

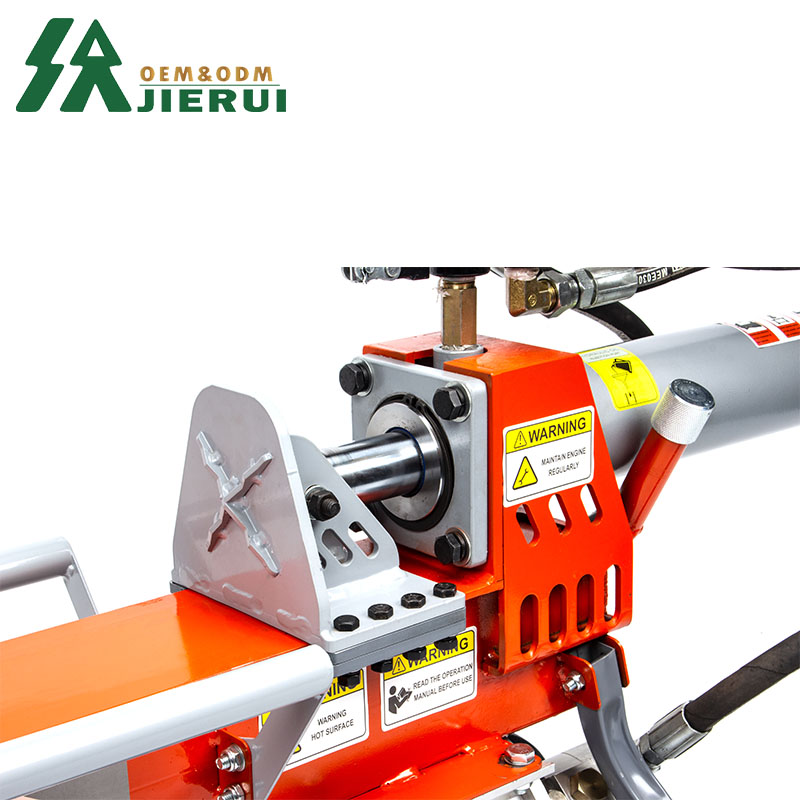

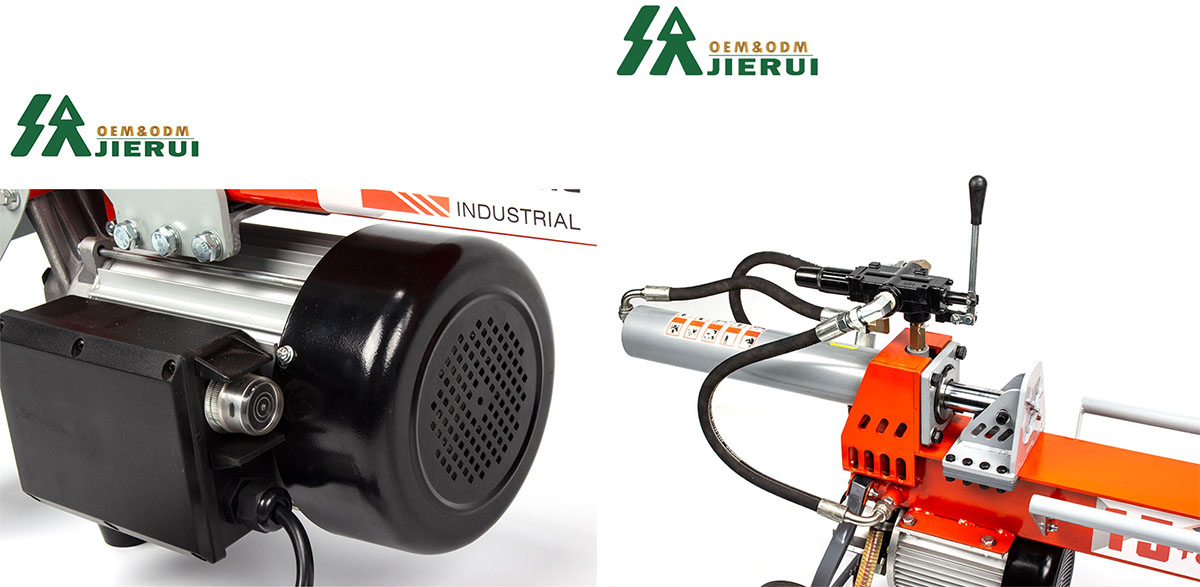

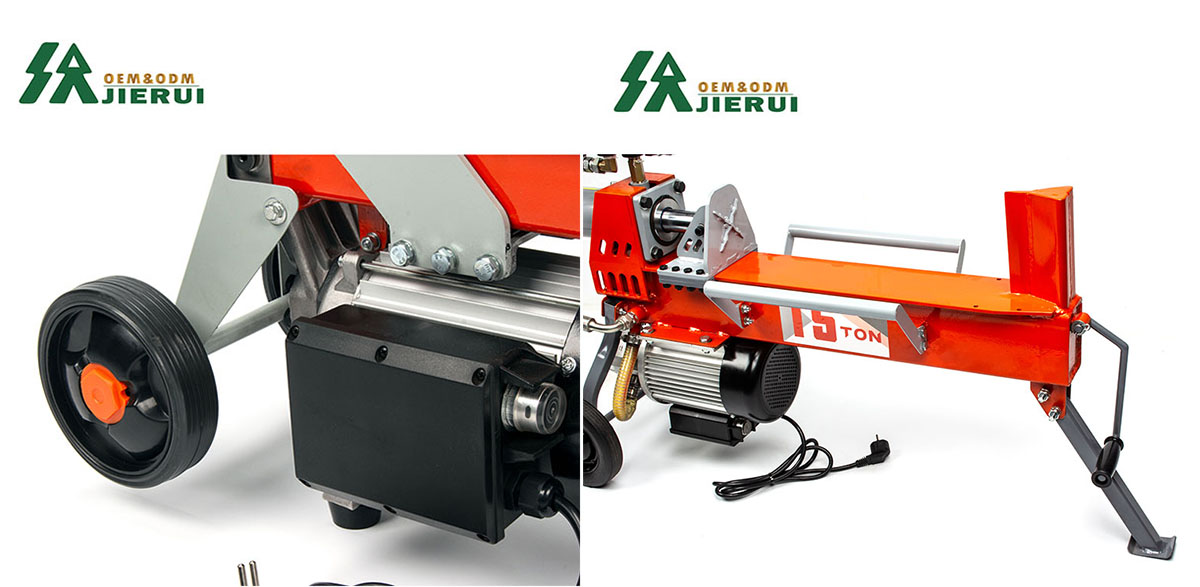

High performance European standard motor                             High strength solid hydraulic rod


15T Log Splitter

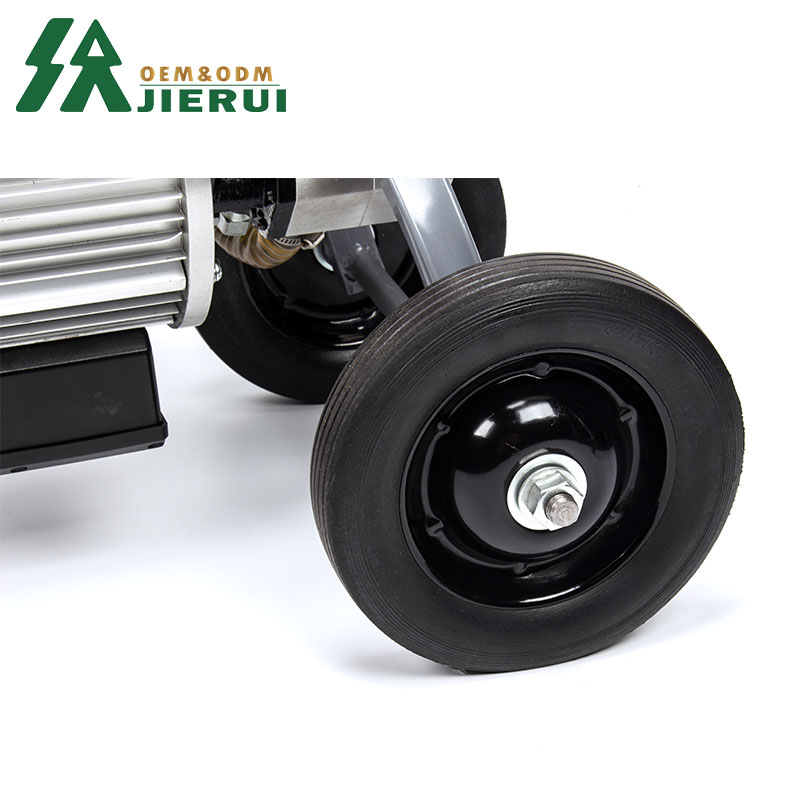

High quality tires                                                                        Integrated welding cleaver

15T Log Splitter
