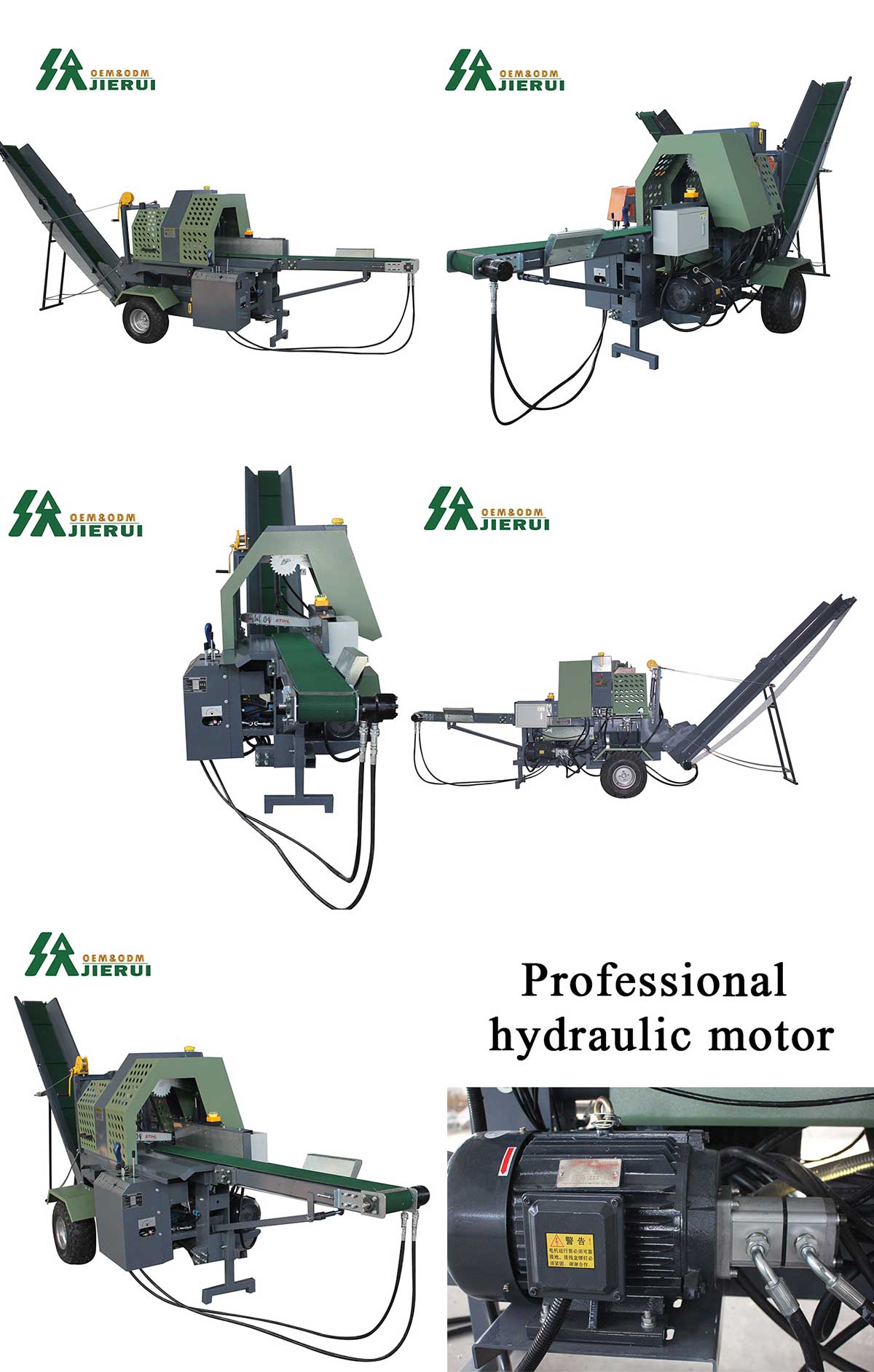

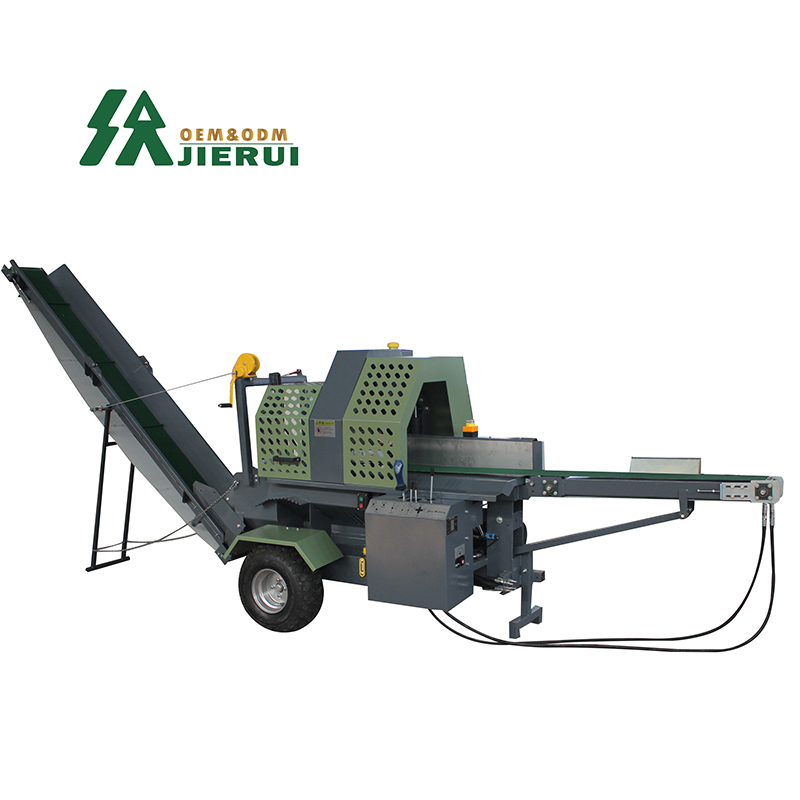

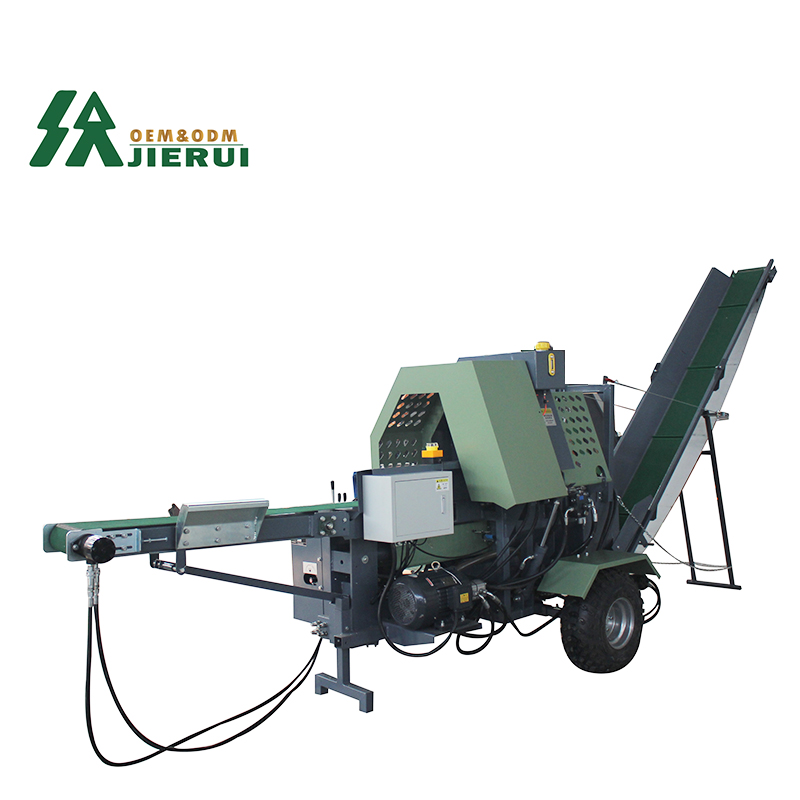

Hot Sale Electric Firewood Processor

1.Electrically opening

2. Hydraulic automatic log clamping

3.Automatic feed conveyor system








Make an inquiry will get the best shipping quotation

20T
$3,900.00
  Contact Now WhatsApp
20T
$3,900.00
Product Details

The electric firewood processor offering multiple power options—gasoline, diesel, and electric—gives users flexibility depending on their needs and available resources. Customization adds an extra layer of versatility, allowing your firewood processor to adapt to various operational requirements or preferences. If you need any more details or help with the customization options, feel free to ask!



Wood Processor

Make an inquiry now and receive a FREE product brochure loaded with vital product information and creative inspiration. Join us at JIERUI Machinery Equipment Co., LTD to elevate your operations and experience the future of machinery!

Wood Processor

Supports multiple power supply options:

1.Gasoline: For those who prefer the convenience and availability of gasoline, our processor offers a powerful and efficient gasoline engine.

2.Diesel: If you need a more robust and fuel-efficient option, our diesel-powered processor delivers high torque and longer runtime, ideal for heavy-duty tasks.

3.Electric: For environmentally conscious users or those with access to consistent electrical power, our electric model offers a clean, quiet, and low-maintenance alternative.

Customization :

 We understand that every operation is unique. That’s why we offer customization options to ensure our firewood processor meets your exact requirements. Whether you need specific power configurations, additional features, or modifications, we are here to customize the equipment to your satisfaction.


PerformanceMax splitting power20T
Max splitting lengthStandard 610mm (24 inch)
Max cutting & splitting diameter480mm (19 inch)
Cycle time8-12S
Work efficiency4-7CBM/H
Wood fixingHydraulic
Saw cuttingJoystick with solenoid valve
Saw lubricationAutomatic by hydraulic system
SplittingAutomatic
Splitting wedge4 way (height adjustable)
Machine assemblyEngine7.5KW hydraulic motor
Pump20GMP (2-stage)
Splitting cylinder3.15”x24”x2”
Hydraulic oil tank100L
Feeding conveyor2400*200mm
Rear loading conveyor3200*250mm
Tyre22x11-10
Traction50mm ball couple
PackingSize2300x1250x1750mm
Weight980KG
Loading Q\ty 7/16 pcs (20GP/40HQ)

The JR480D is our 20ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard.  The JR480D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard.



 We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head.


 The processor has a 50mm tow hitch for towing around the yard or working area.


Detail picture

Wood Processor

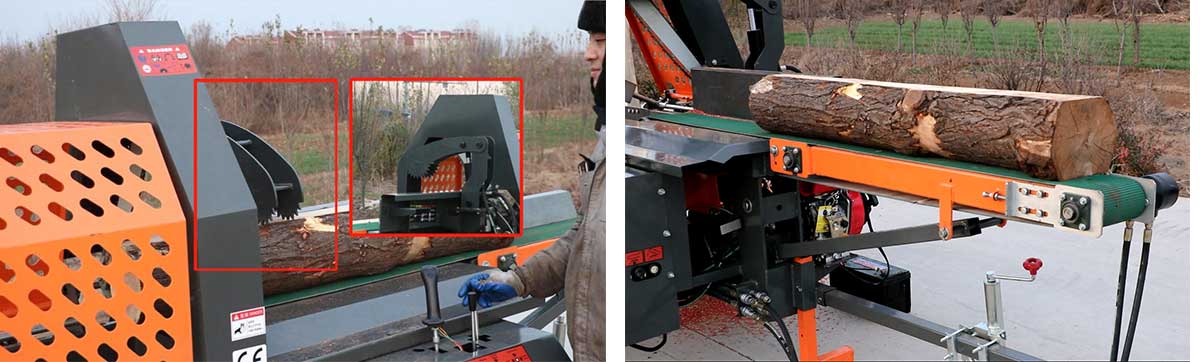

Hydraulic automatic log clamping                                               Automatic feed device

Wood Processor

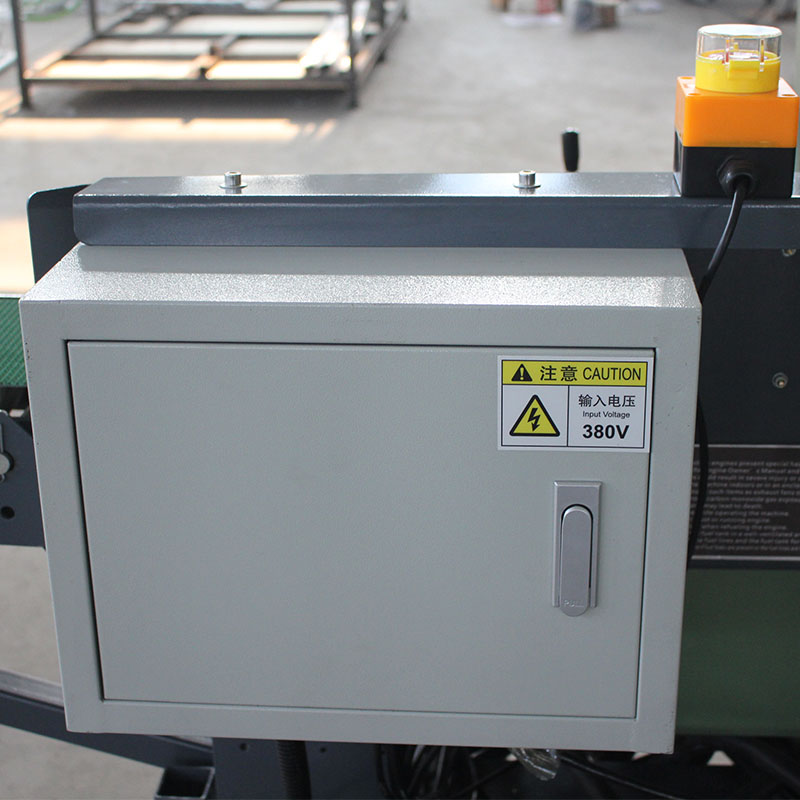

Setting the length of firewood                                                     Fully automatic control system

Both 4-way and 6-way are supported

Wood Processor

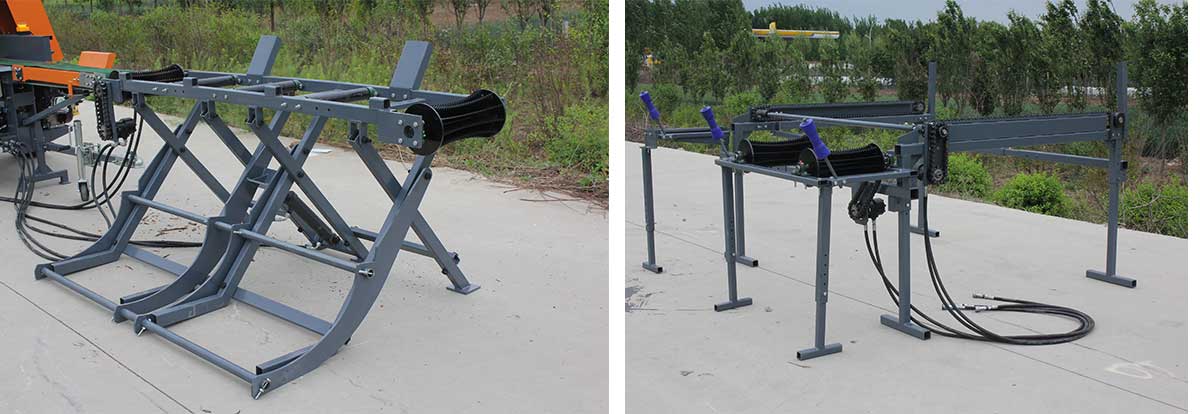

Log lifter-JR100                                                                              Log table-JR200

Wood Processor

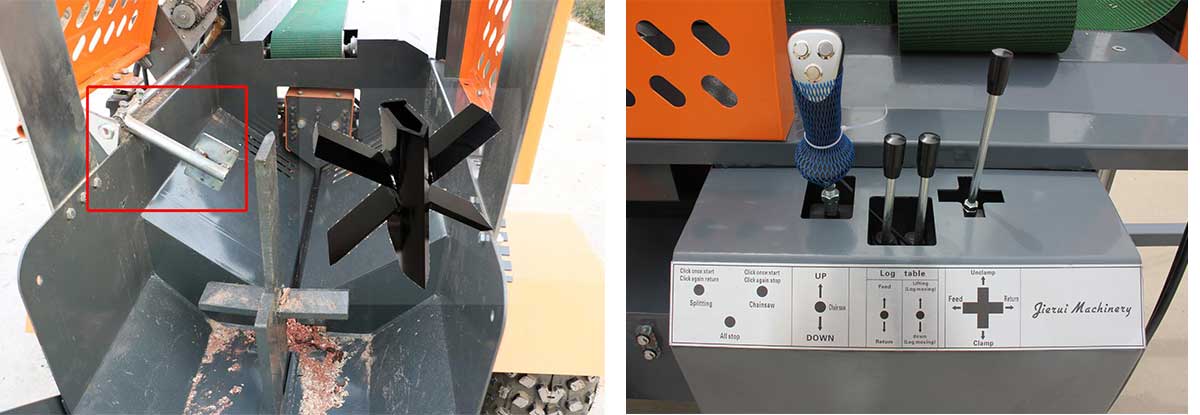

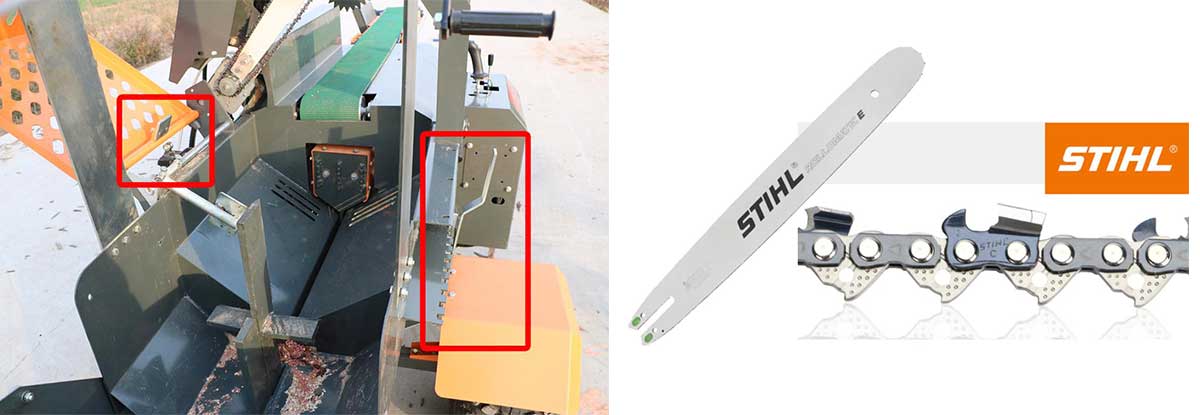

Automatic safety protection device                                                We use STIHL chain saw guides and chains

Splitting wedges can be adjusted up or down                               imported from Germany

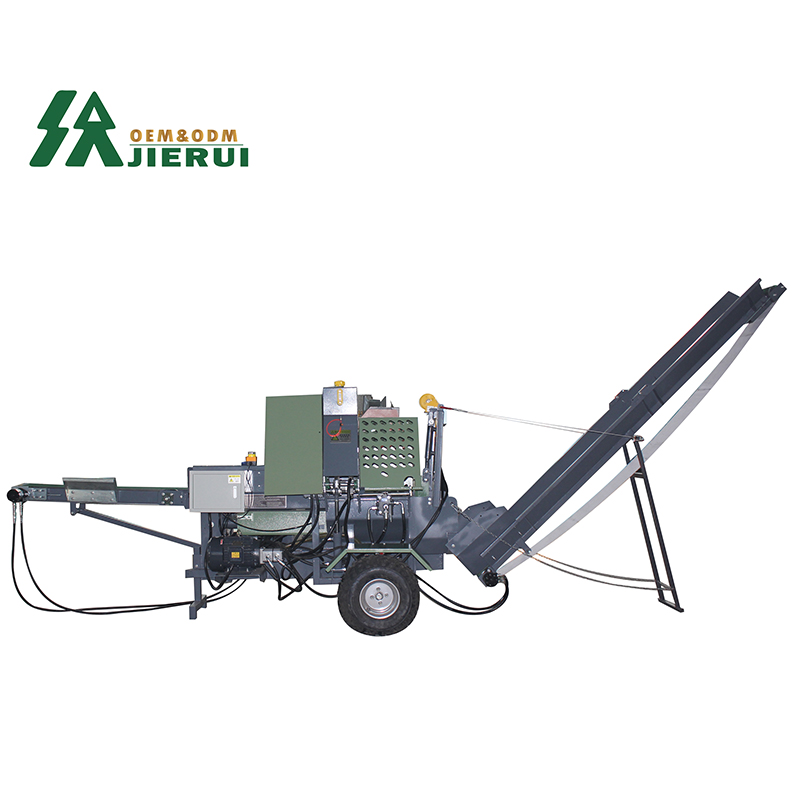

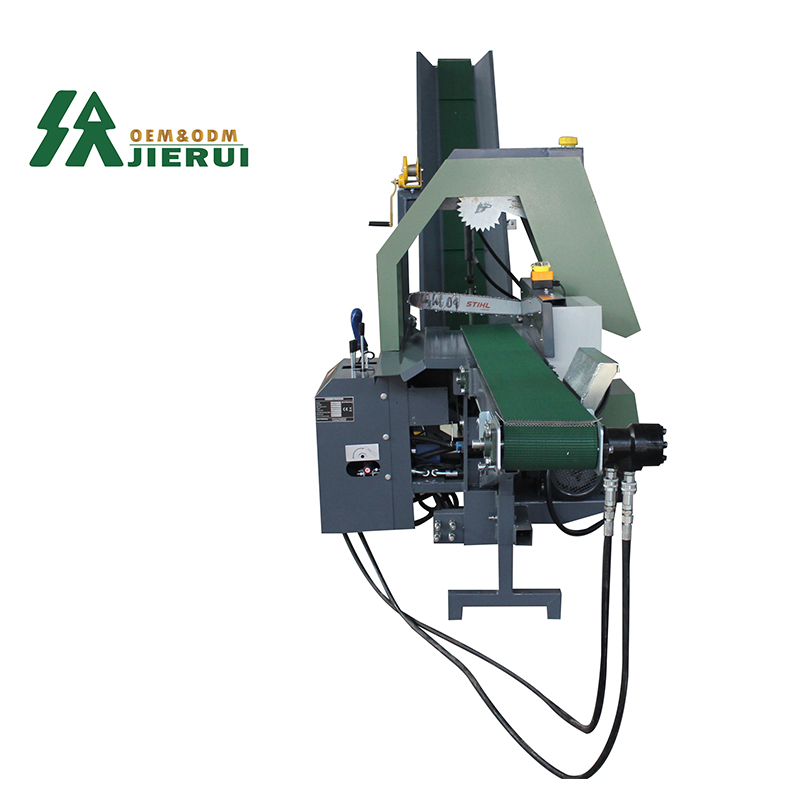

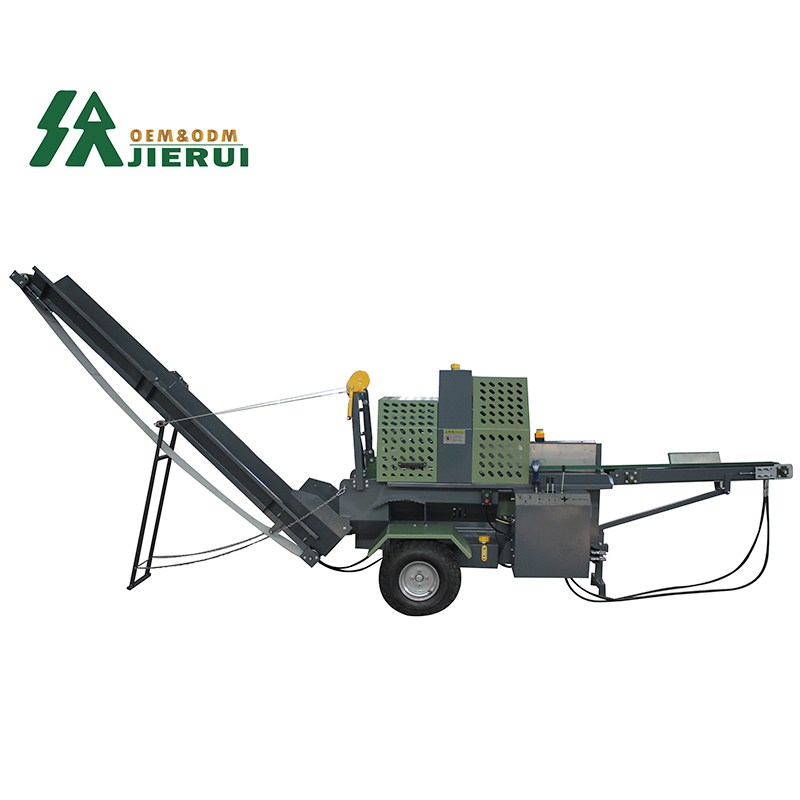

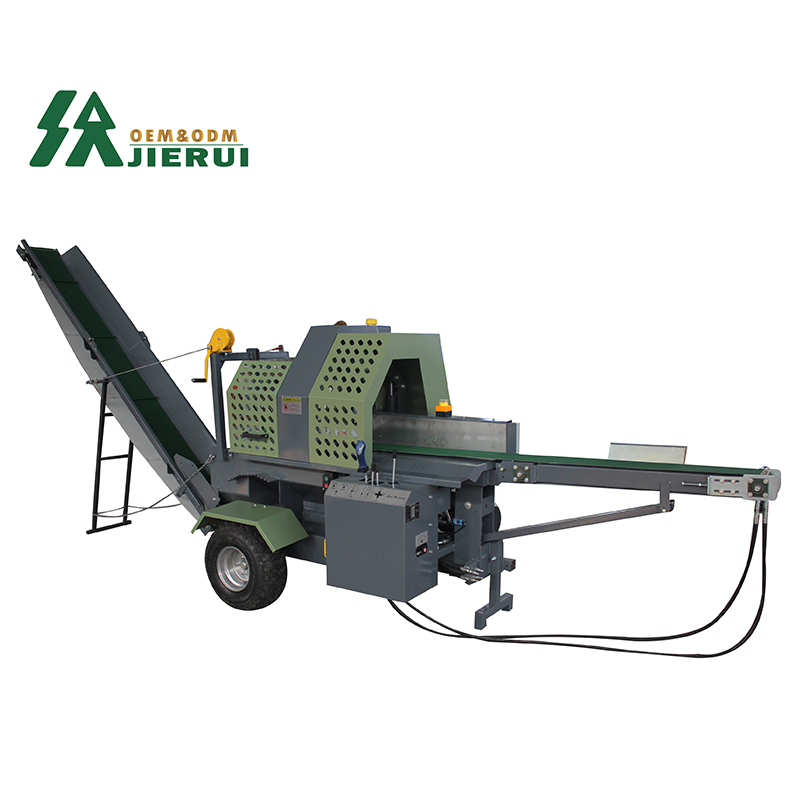

Product Display

Wood Processor

Real-Time Tracking: Provide customers with real-time tracking information to keep them informed about the shipment's status.

Customer Support: Maintain open communication with customers and logistics partners to promptly address any issues that may arise during shipping.


Shandong Jerry Machinery Equipment Co., Ltd. is a leading global manufacturer of high-quality sawmills. We are dedicated to the production, research, and development of sawmills, proudly serving over 12,000 enterprises worldwide. Our products are exported to 61 countries, reflecting our global reach and reputation.

Our extensive product range includes log sawing equipment, solid wood furniture processing equipment, and firewood splitting equipment. We have earned the trust of many customers through our standardized quality management and exceptional service, establishing ourselves as one of the best sawmill suppliers globally.

We are committed to ongoing technological innovation and accelerating the research and development of sawmill machinery. Our goal is to provide each partner with the best combination of sawmill production lines, ensuring top-notch performance and efficiency.
