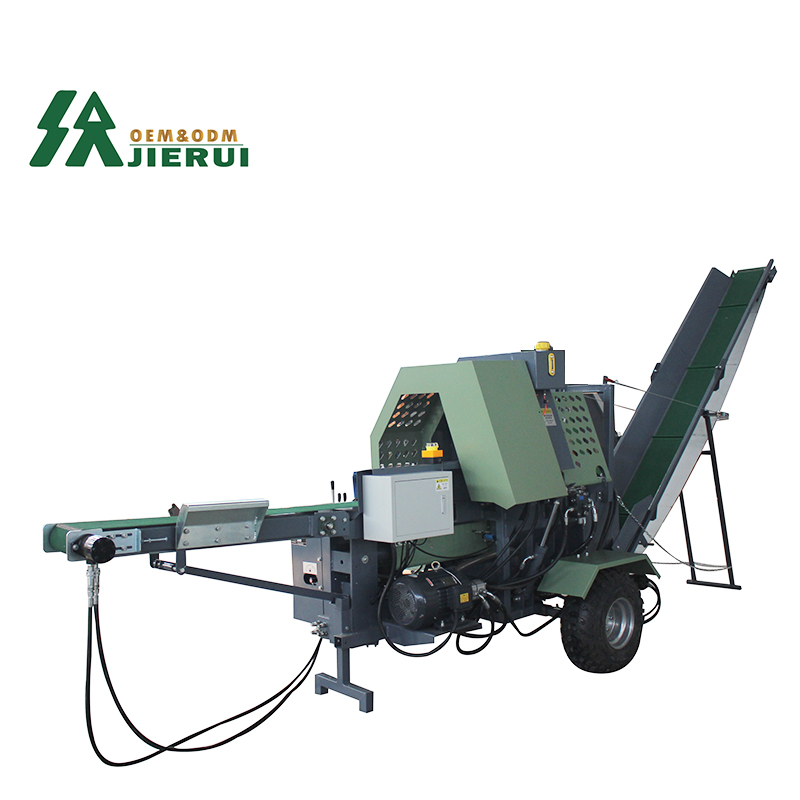

20T Electric Firewood Processor For Sale

Our firewood processor supports multiple power options,whether gasoline,diesel,or electric, and supports customization.









Make an inquiry will get the best shipping quotation

20T
$3,900.00
  Contact Now WhatsApp
20T
$3,900.00
Product Details

Jierui wood process machines are equipped with safety guards and emergency stop buttons to protect operators and ensure safe operation. Firewood processors can be powered by gasoline, diesel engines or electric motors, depending on the power needs and working conditions to choose your most ideal power.

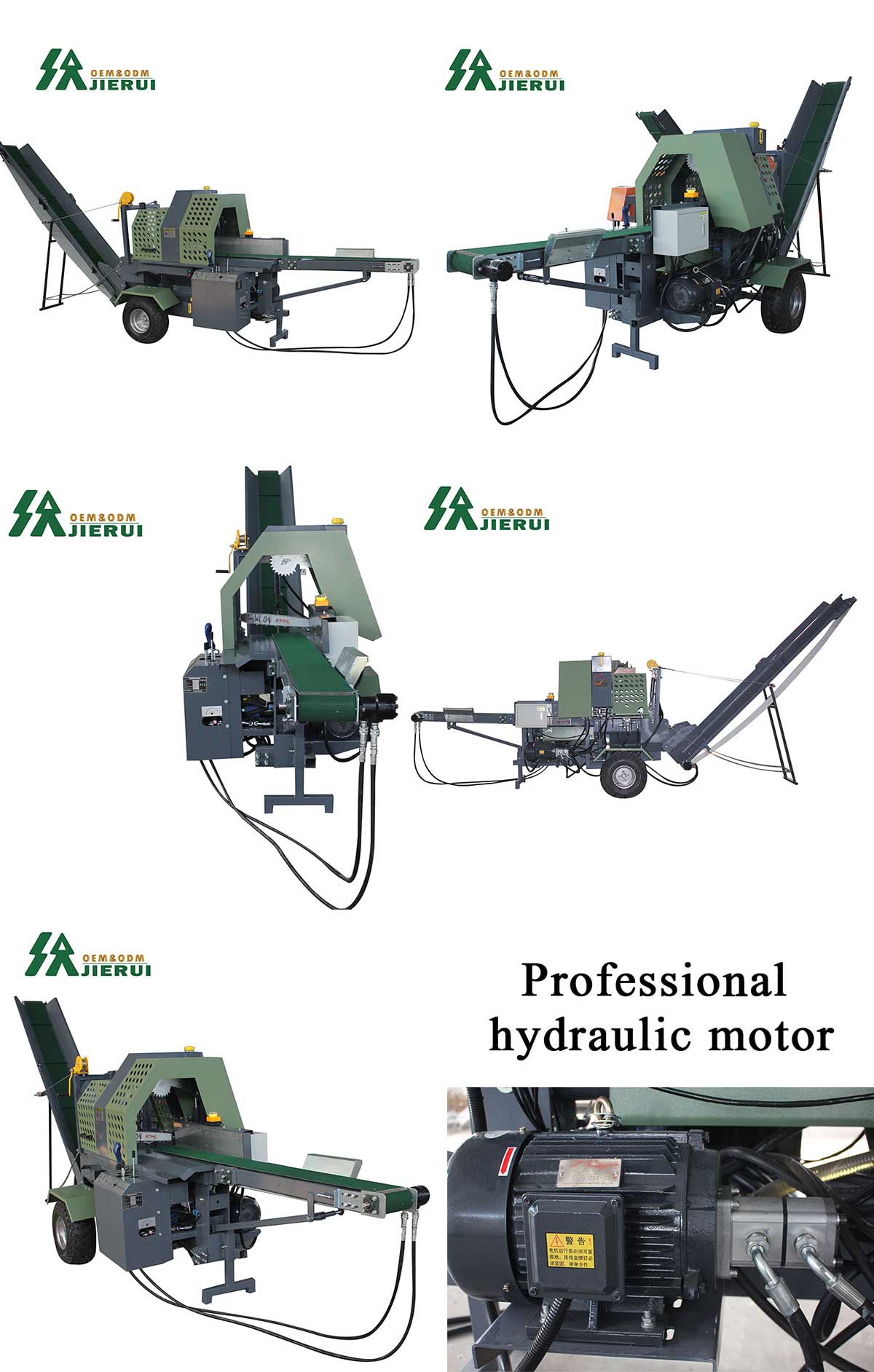

Firewood Processing Machine

Reach out today to discover how we can provide you with a better product that fits within your budget. Our team is ready to help you find the perfect solution tailored to your needs!


Firewood Processing Machine

WHY CHOOSE US


1. Unmatched Quality and Performance

Durable and Reliable: Our equipment is built to last, using high-quality materials and advanced engineering to ensure consistent and reliable performance, even in demanding environments.

Efficient Operation: Our machines are designed for maximum efficiency, allowing you to process firewood faster and with less effort compared to other brands.

2. Safety First

Compliant with CE Standards: All our equipment, including the JR480D, complies with the latest CE safety standards, ensuring that you can operate our machines with peace of mind.

Built-In Safety Features: Our machines are equipped with automatic safety shutdowns, protective guards, and user-friendly controls to minimize the risk of accidents.

3. Easy to Use and Maintain

Simple Operation: We design our equipment to be easy to use, even for those who are new to firewood processing. With intuitive controls and automated features, you can focus on getting the job done without hassle.

Low Maintenance: Our machines require minimal maintenance, saving you time and reducing downtime, so you can keep working efficiently.

4. Comprehensive Support and Service

Expert Guidance: From selecting the right equipment to offering technical support, our team is here to assist you at every step.

After-Sales Service: We provide robust after-sales service, including spare parts, maintenance tips, and troubleshooting, to ensure your equipment continues to perform at its best.

PerformanceMax splitting power20T
Max splitting lengthStandard 610mm (24 inch)
Max cutting & splitting diameter480mm (19 inch)
Cycle time8-12S
Work efficiency4-7CBM/H
Wood fixingHydraulic
Saw cuttingJoystick with solenoid valve
Saw lubricationAutomatic by hydraulic system
SplittingAutomatic
Splitting wedge4 way (height adjustable)
Machine assemblyEngine7.5KW hydraulic motor
Pump20GMP (2-stage)
Splitting cylinder3.15”x24”x2”
Hydraulic oil tank100L
Feeding conveyor2400*200mm
Rear loading conveyor3200*250mm
Tyre22x11-10
Traction50mm ball couple
PackingSize2300x1250x1750mm
Weight980KG
Loading Q\ty 7/16 pcs (20GP/40HQ)

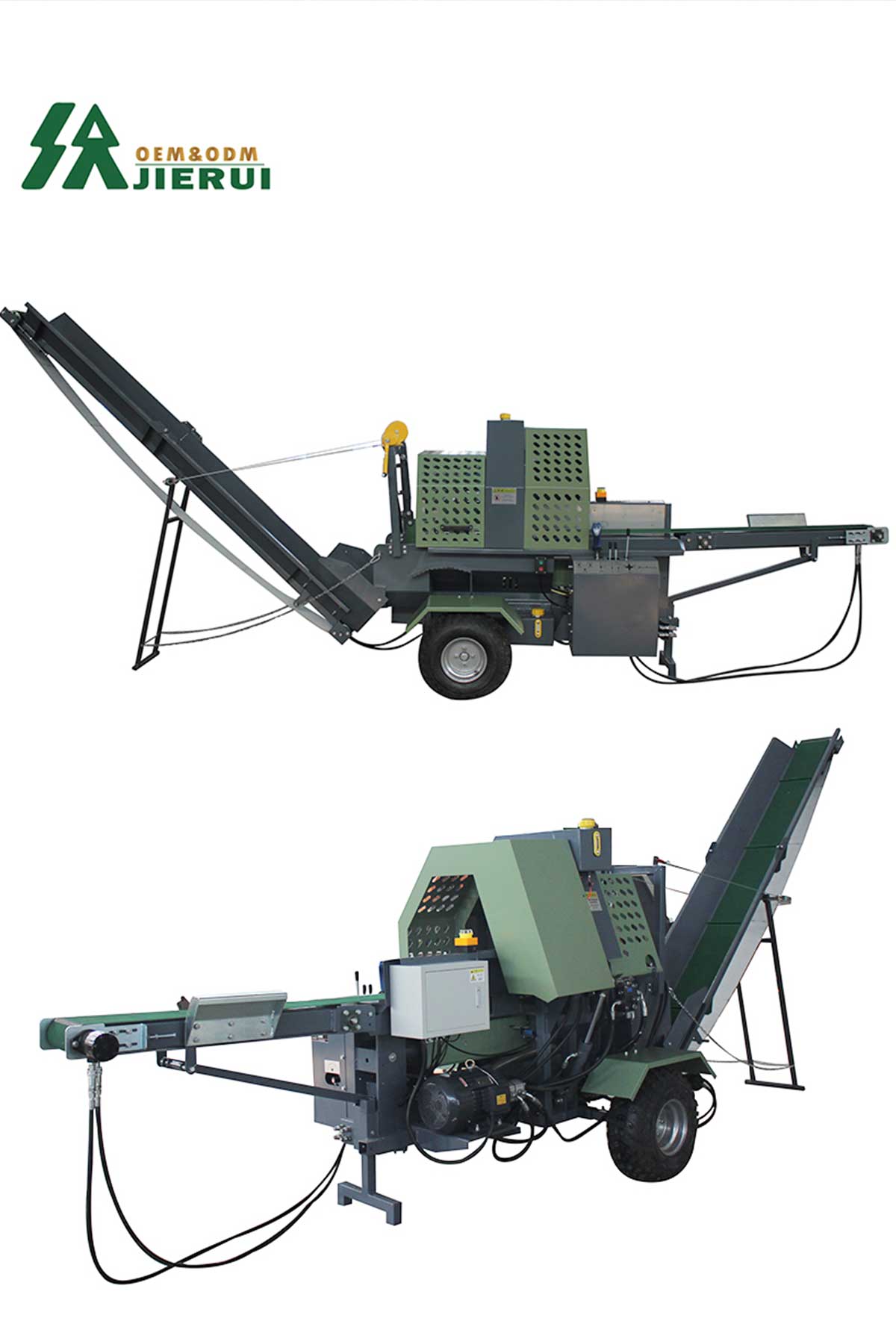

Firewood Processing Machine


The JR480D is a 20-ton splitting force model designed for efficiency, simplicity, and safety. Equipped with a modern hydraulic system, this processor ensures smooth and easy operation, fully complying with the 2018 CE safety standards. Key features include:

  • Hydraulic Feeder & 3-Meter Conveyor: Streamlines the feeding process and material handling.

  • 22″ STIHL Chainsaw Blade: Provides powerful cutting performance.

  • Briggs & Stratton Engine: Comes with an electric start for convenience.

Safety is a priority with the JR480D. The saw only engages when the safety handle is used, and all guards are down. If a guard is raised, the hydraulic system automatically halts the saw and splitter, ensuring increased operator safety. After the timber is sawn and drops into the splitting area, the ram automatically engages, pushing the log into the fully height-adjustable 4-way splitting head.

For added convenience, the processor is equipped with a 50mm tow hitch, making it easy to tow around the yard or working area. The JR480D is designed to make firewood processing efficient and safe, even for operators with minimal experience.


Product Details




Firewood Processing Machine

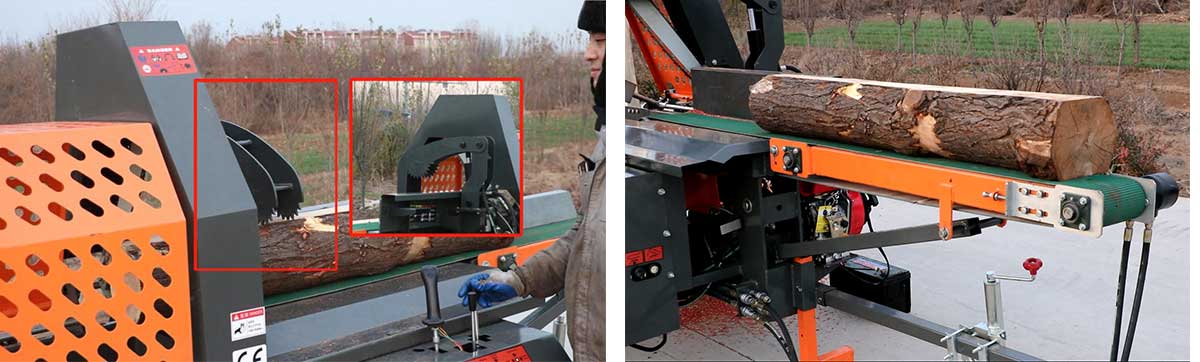

Hydraulic automatic log clamping                                               Automatic feed conveyor system

Firewood Processing Machine

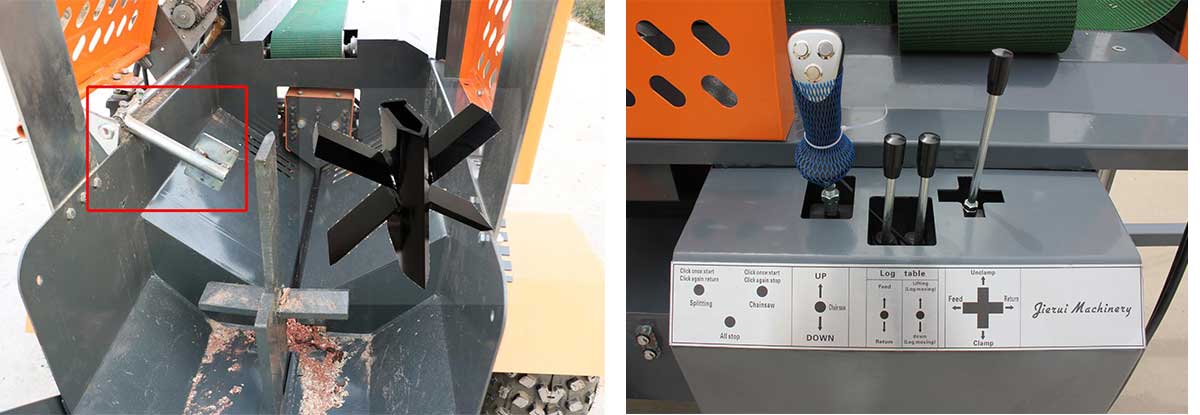

Setting the length of firewood                                                      Fully automatic control system

Both 4-way and 6-way are supported

Firewood Processing Machine

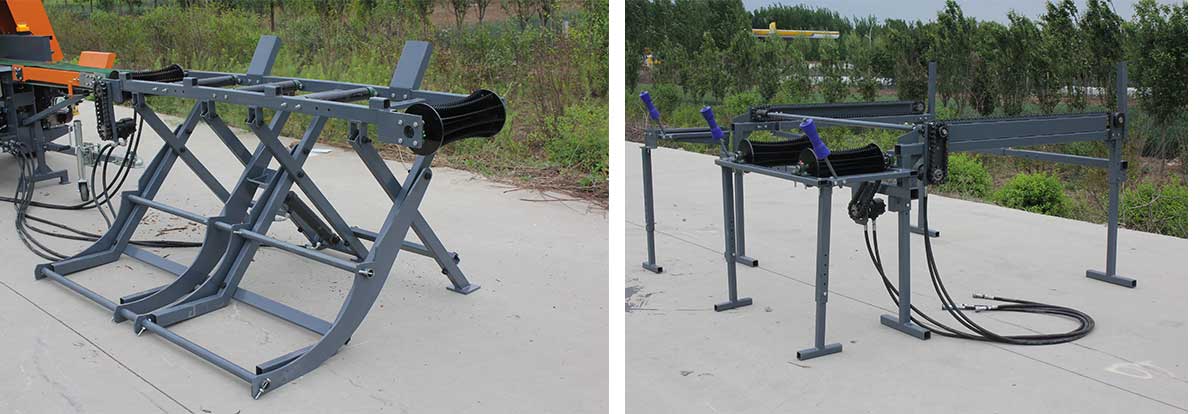

Log lifter-JR100                                                                              Log table-JR200

Firewood Processing Machine

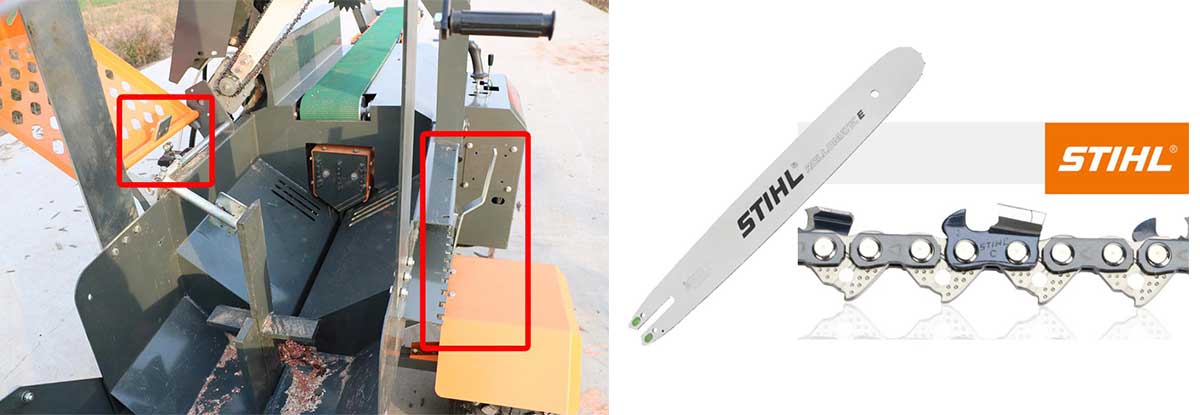

Automatic safety protection device                                                       We use STIHL chain saw guides and chains

Splitting wedges can be adjusted up or down                                      imported from Germany


Product Display

Firewood Processing Machine

Real-Time Tracking: Provide customers with real-time tracking information to keep them informed about the shipment's status.

Customer Support: Maintain open communication with customers and logistics partners to promptly address any issues that may arise during shipping.
