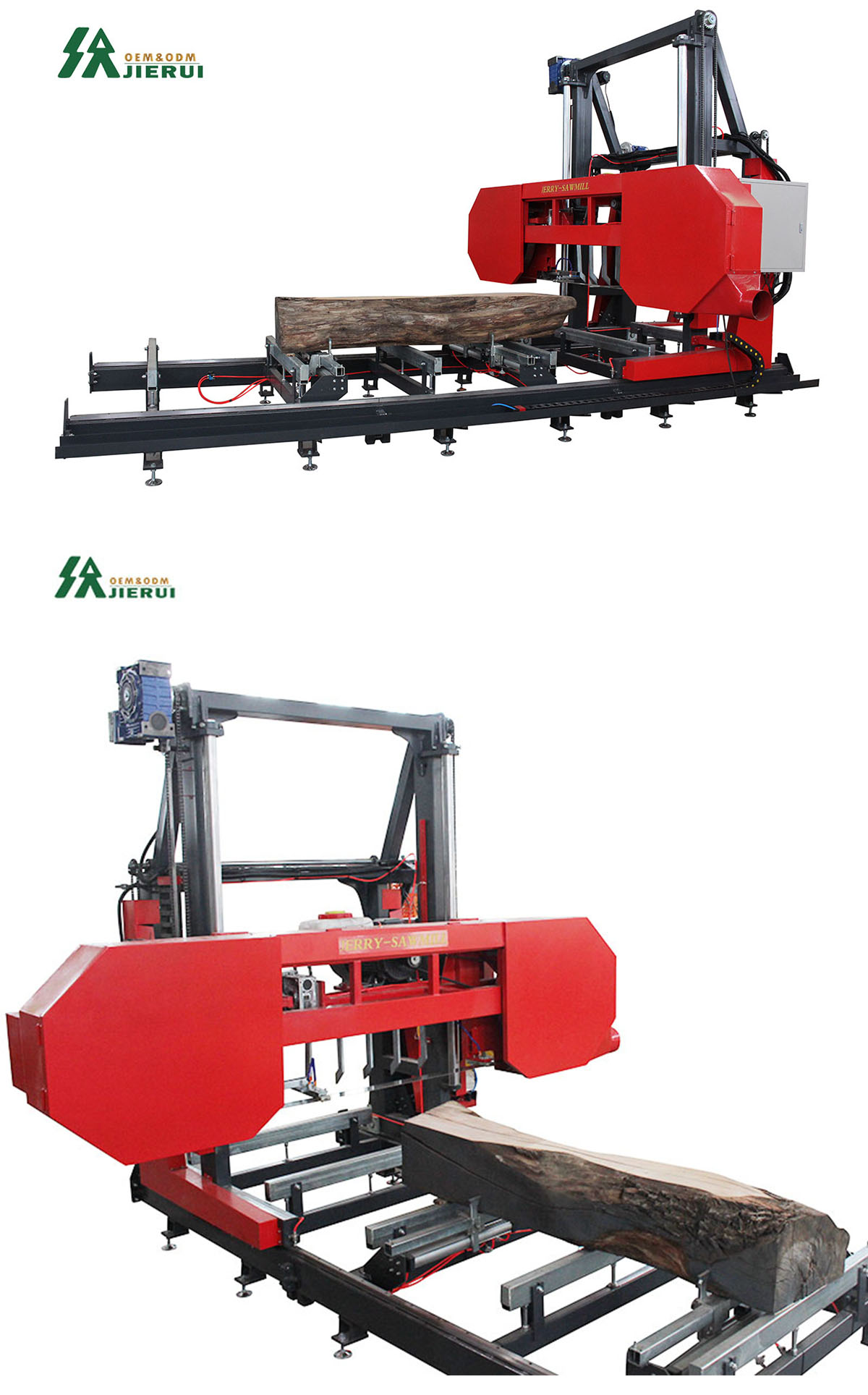

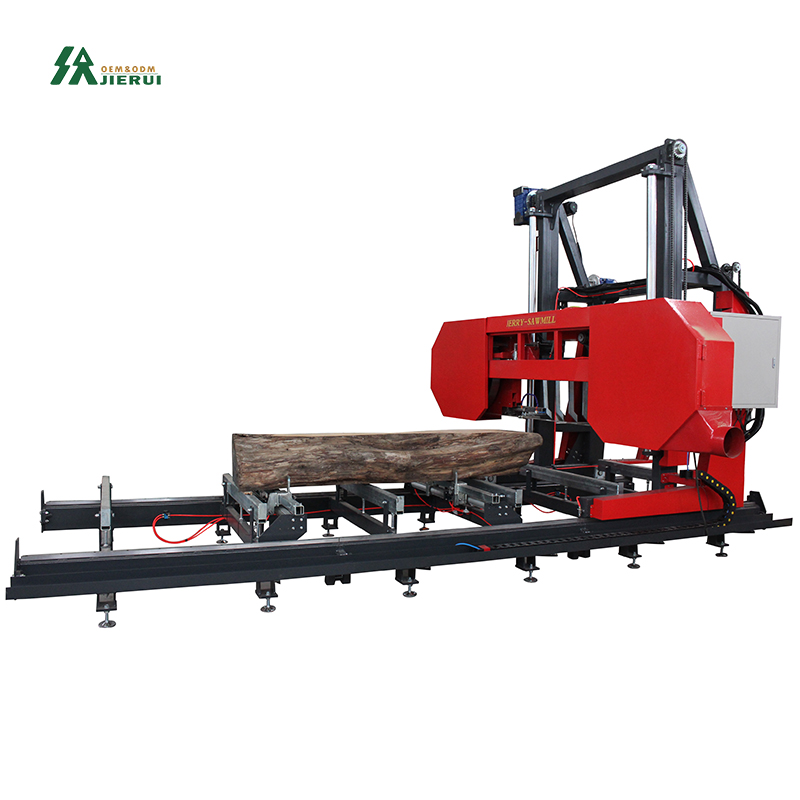

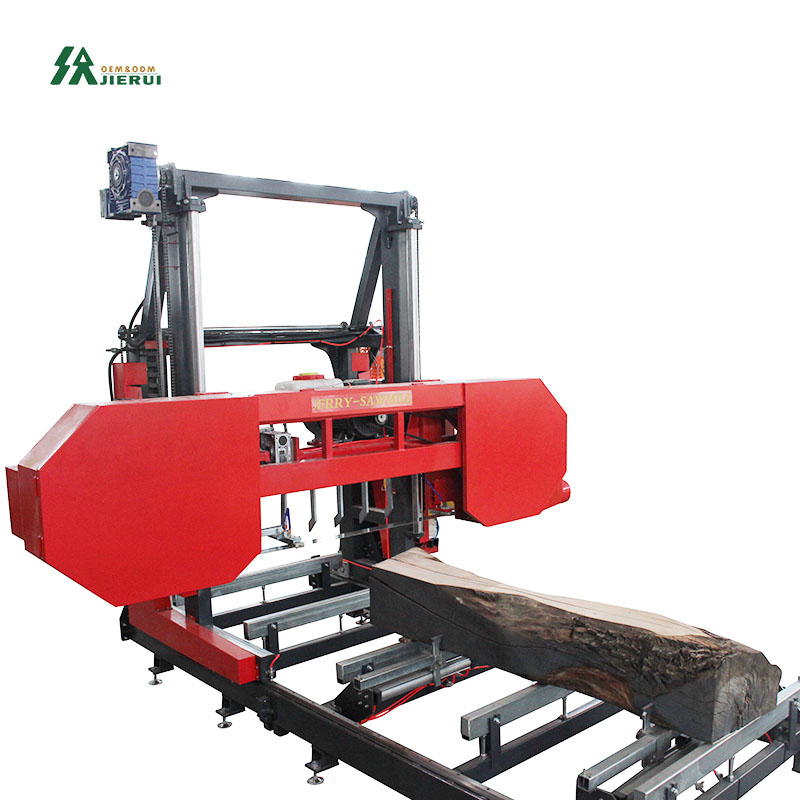

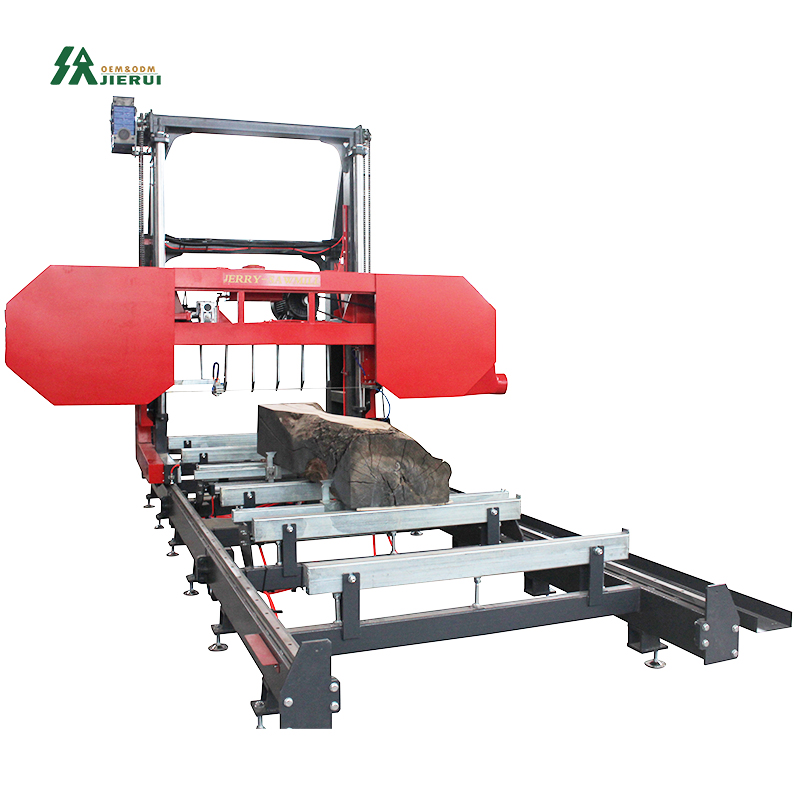

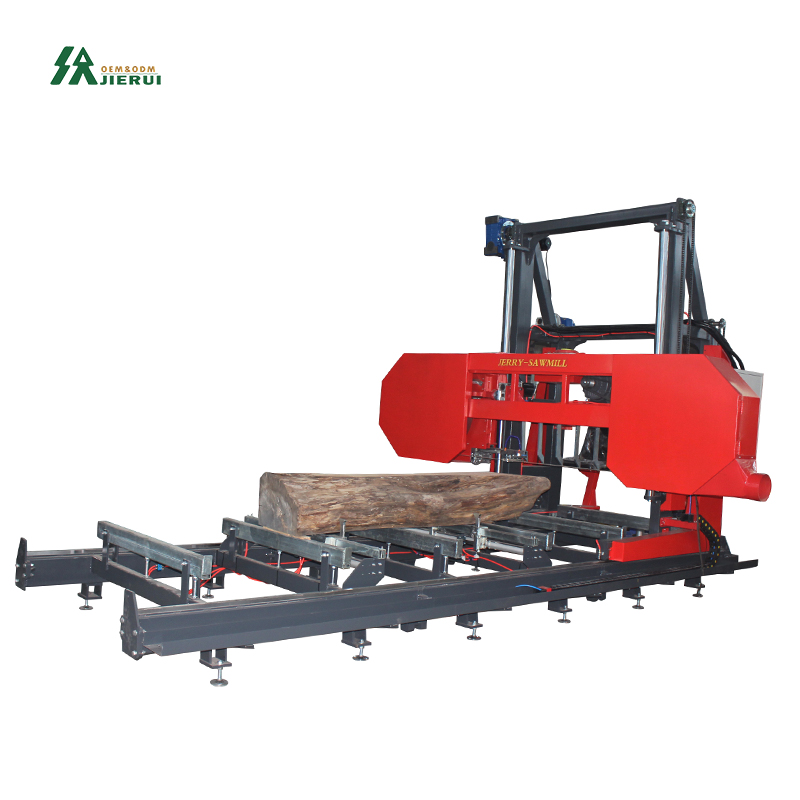

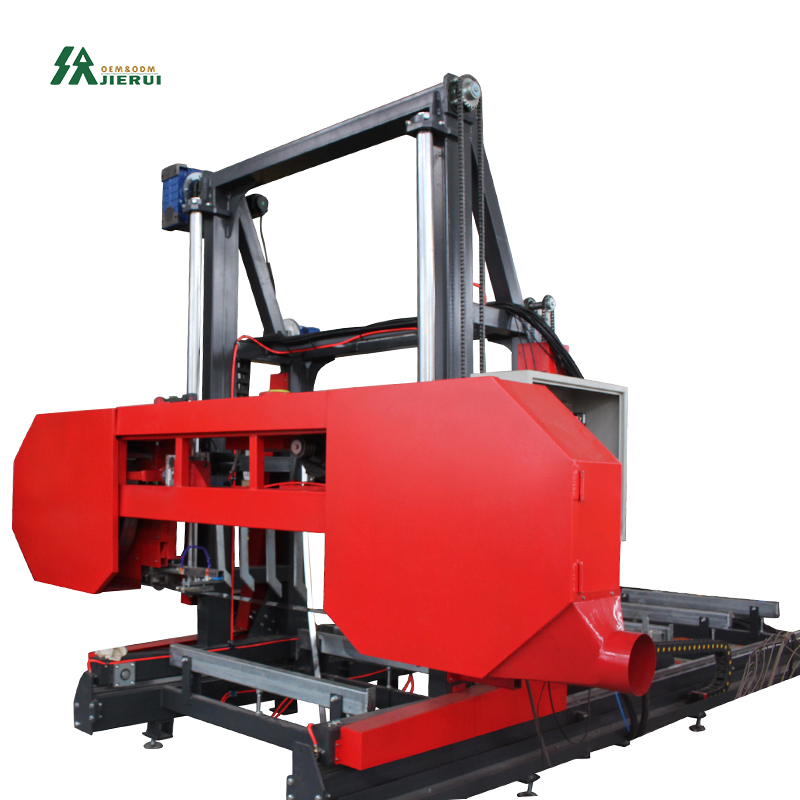

Horizontal Heavy-duty Automatic Sawmill For Sale
1.Simple installation, easy operation, with large joystick and multi-language touch screen.
2.Tensioning of saw blades
Exclusive patented hydraulic tensioning device that does not release pressure and has high strength.
Make an inquiry will get the best shipping quotation
The Simple Heavy Duty Sawmill is designed as an entry-level, fully automated sawmill that offers impressive features at an affordable price point. It prioritizes user convenience with a simple installation process and intuitive operation. Key features include:
Large joystick control for easy maneuvering and precision during operation.
Multi-language touch screen, ensuring accessibility for operators from different regions.
Automated cutting system, providing efficiency and reducing manual labor.
The Simple Heavy Duty Sawmill is an excellent choice for those seeking advanced functionality without breaking the budget, offering both ease of use and reliable performance.
Come to us for an inquiry
You will receive a free product brochure filled with product information,Inspiration, more life with JIERUI Machinery Equipment Co., LTD
Sawmill parameters | JR1000D | JR1300D | JR1600D | JR2000D |
Max Log Cutting Dia(cm) | 100 | 130 | 160 | 200 |
Max Log Cutting Dia(inch) | 39 | 51 | 63 | 79 |
Max Log Cutting Length | 4.5m | 4.5m | 4.5m | 4.5m |
Track Length | 6m | 6m | 6m | 6m |
Gasoline/Diesel engine | 22 HP | 25 HP | 25 /30 HP | 30 HP |
Engine starting mode | Electric starting | Electric starting | Electric starting | Electric starting |
Packing Size | 3.5*2.2*2m | 20 'container | 20 'container | 40 'container |
Saw Wheel DiameterSaw Wheel Diameter | 770mm | 770mm | 900mm | 1100mm |
Saw blade width | 85mm | 85mm | 85mm | 1100mm |
Lifting | Auto | Auto | Auto | Auto |
Walking | Auto | Auto | Auto | Auto |
Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
Weight | 3000kg | 3800kg | 4500kg | 6000kg |
Warranty | 1 year | 1 year | 1 year | 1 year |
Color customization | Supported | Supported | Supported | Supported |
Logo customization | Supported | Supported | Supported | Supported |
Why Choose Us?

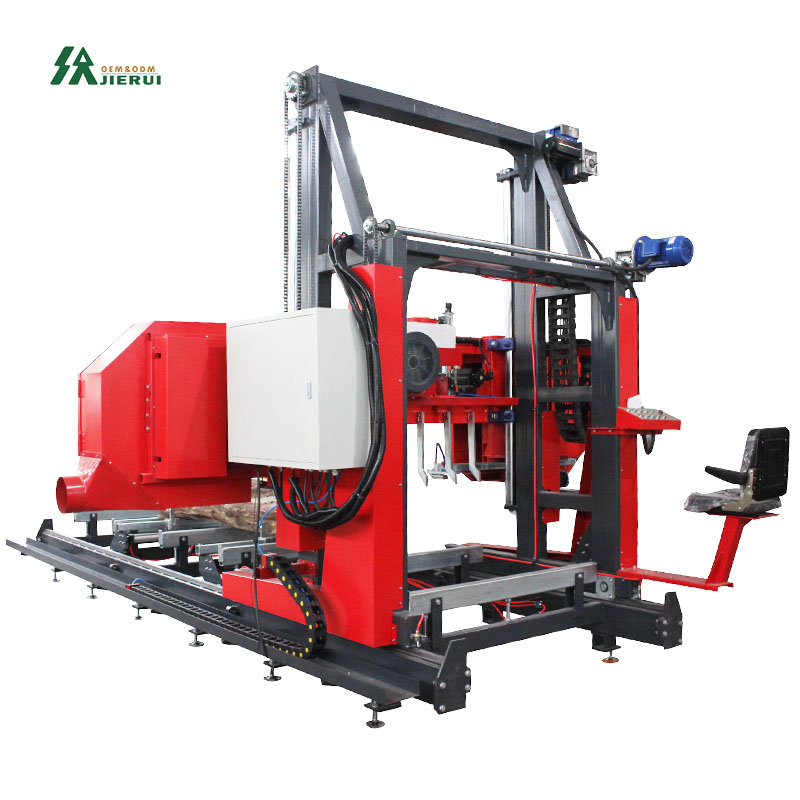

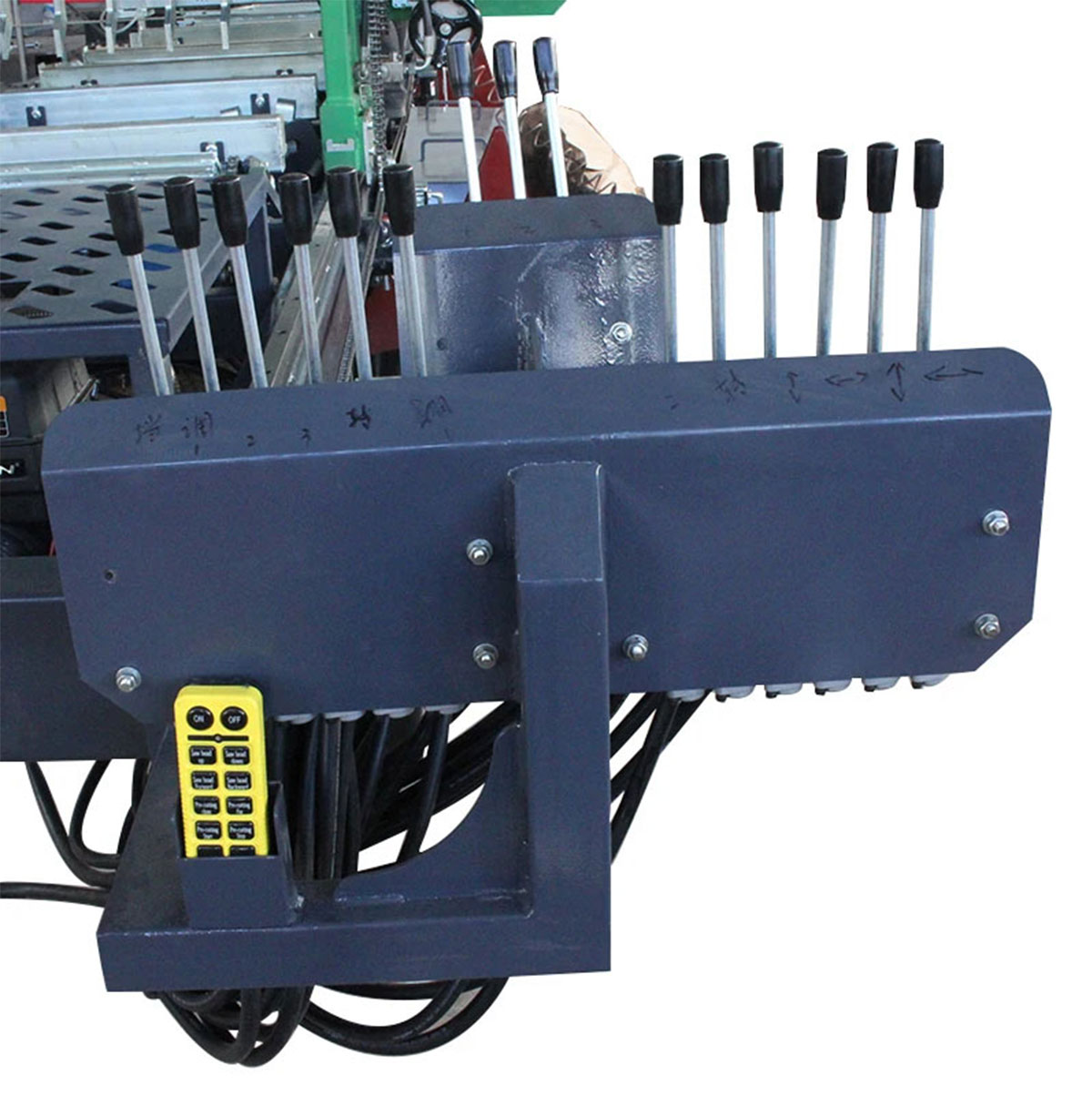

Wireless Control
No need to move back and forth to follow the sawmill, just sit on the chair and click the button to control the sawmill's work Fully enjoy the fun.

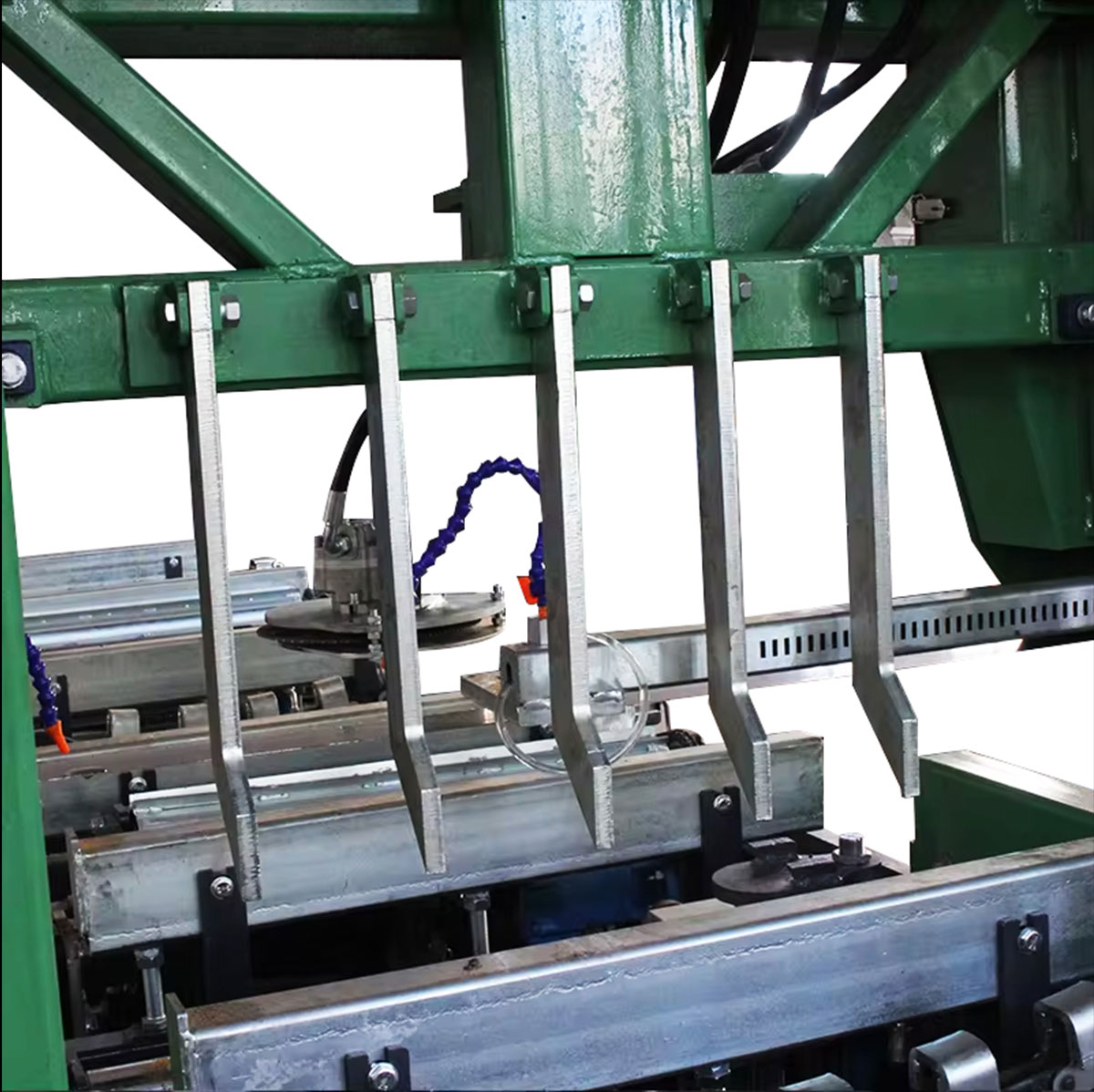

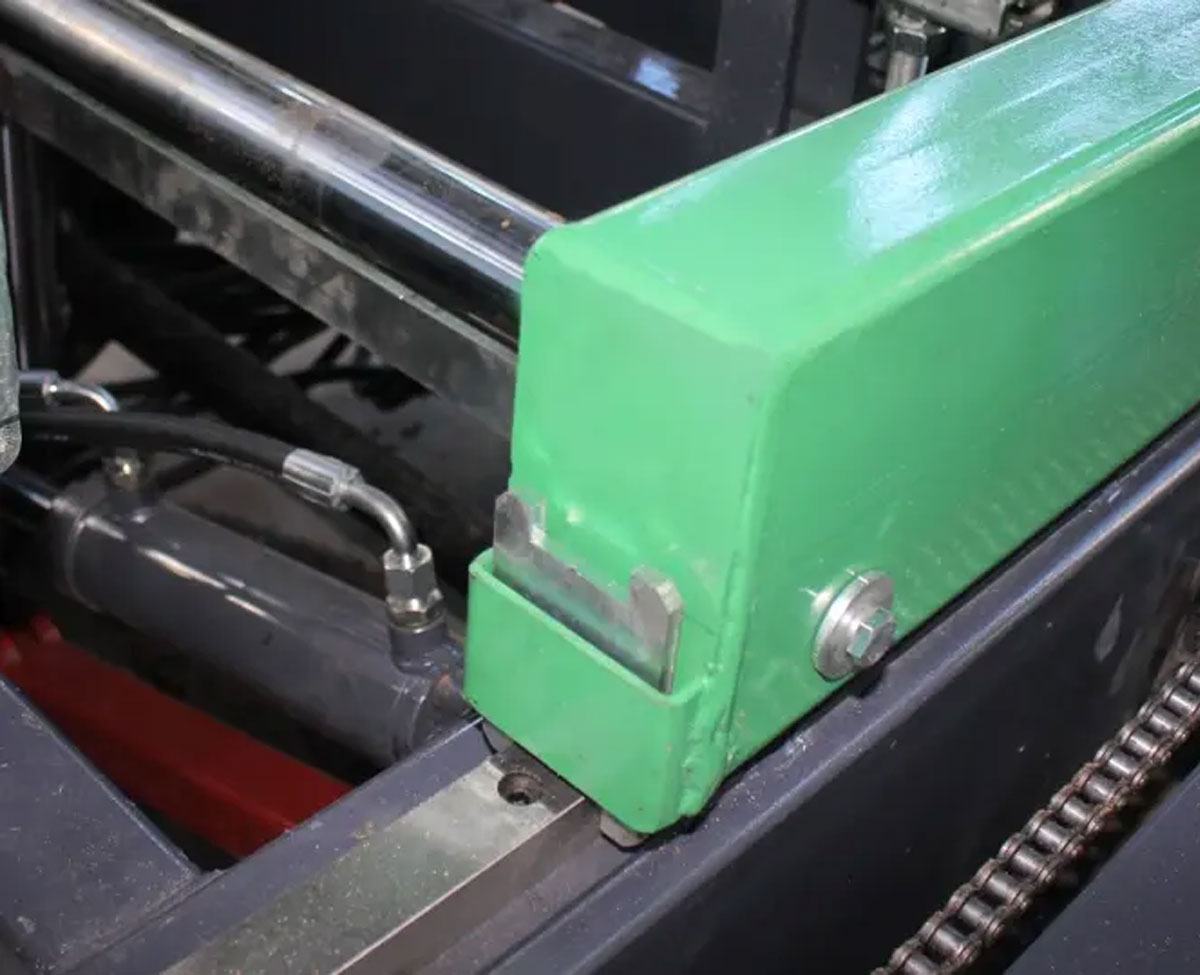

Rail sawdust removal
The sawmill is equipped with a specialized sawdust removal mechanism that improves sawing accuracy and protects the track. This system effectively clears sawdust from the rail, ensuring a clean cutting environment and maintaining the precision and durability of the track.

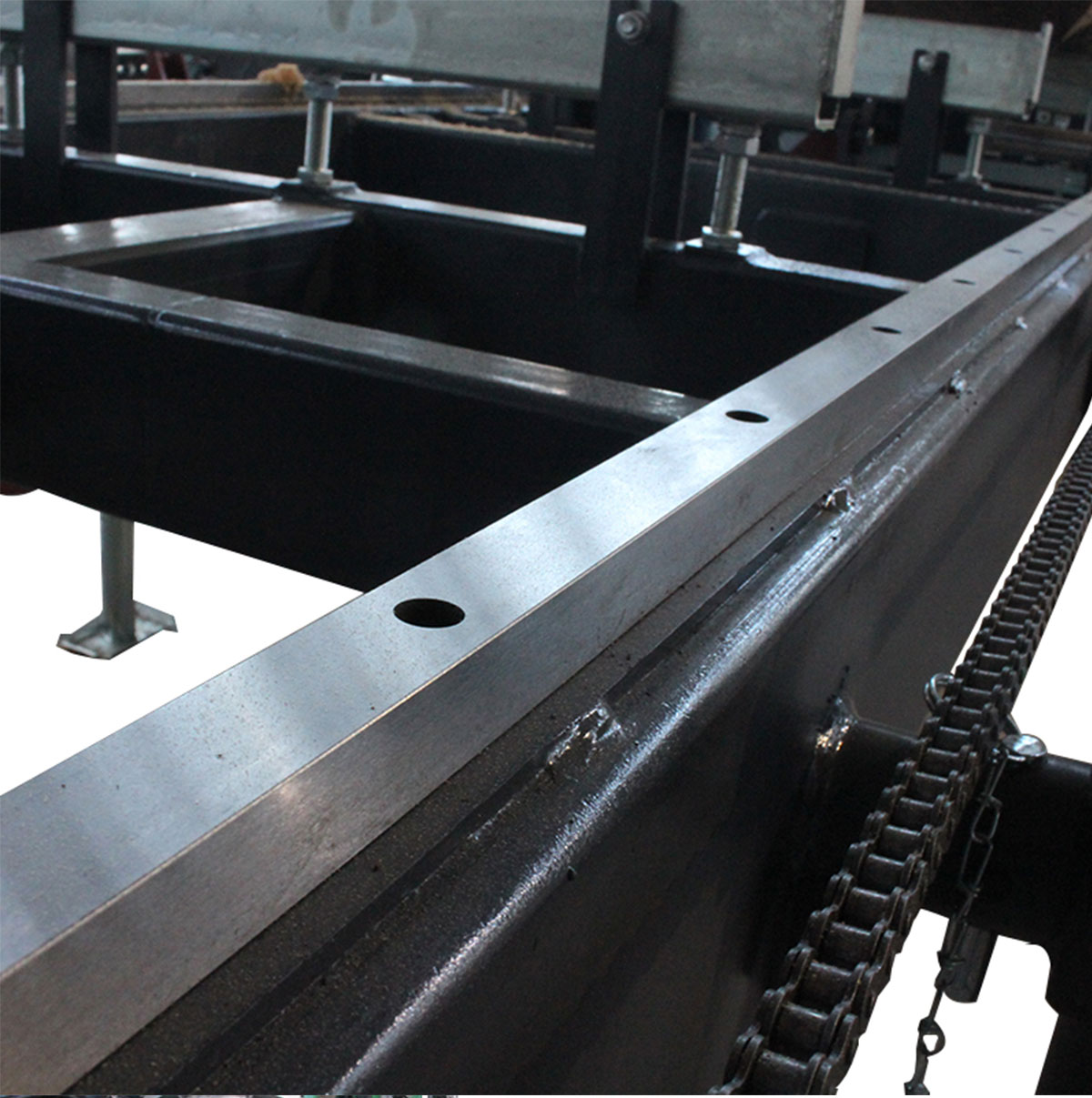

High precision track
After precision machining of the track and high-temperature quenching, it has sufficient hardness and can move back and forth millions of times without deformation.

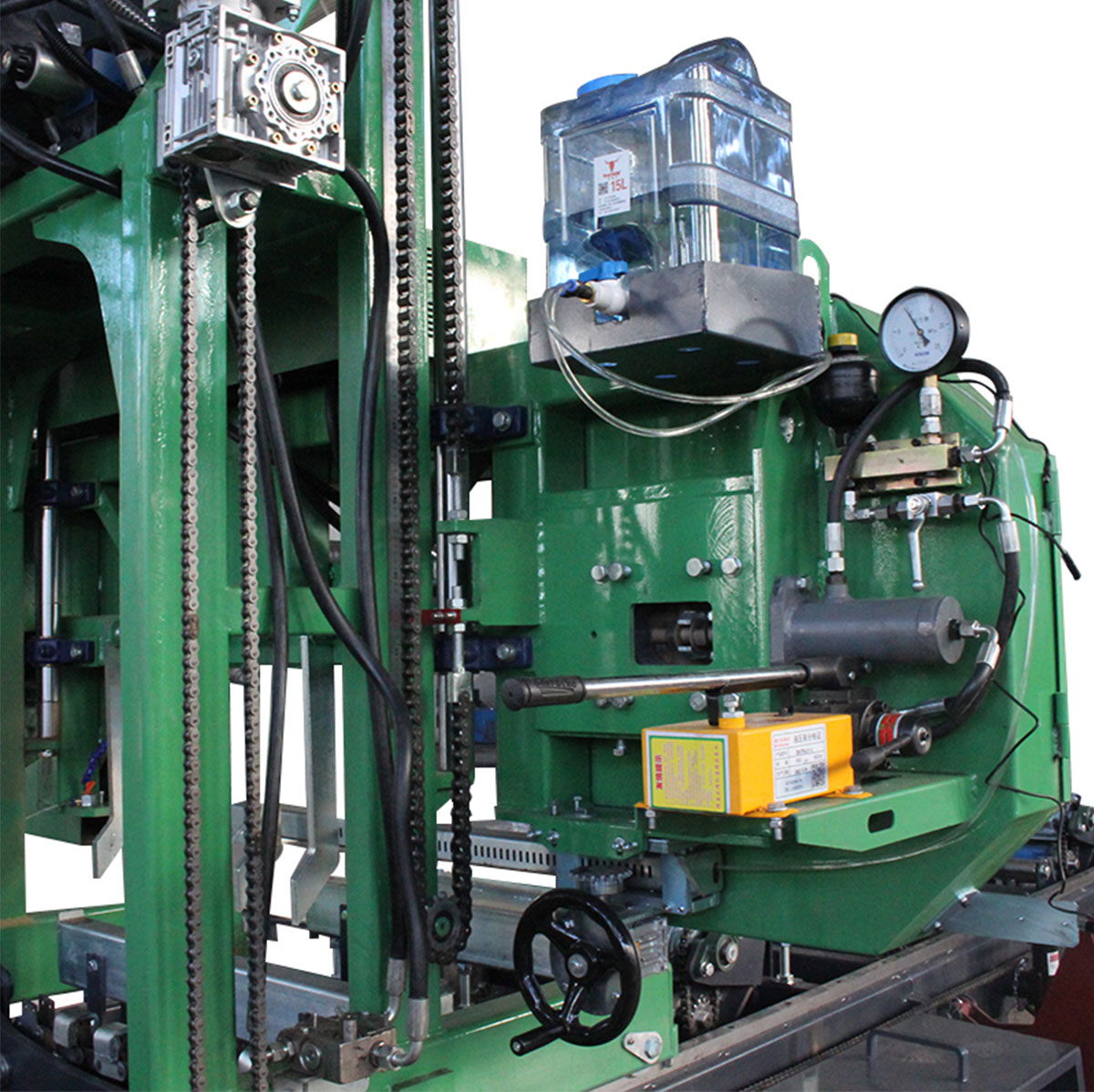

Tensioning of saw blades
Exclusive patented hydraulic tensioning device that does not release pressure and has high strength

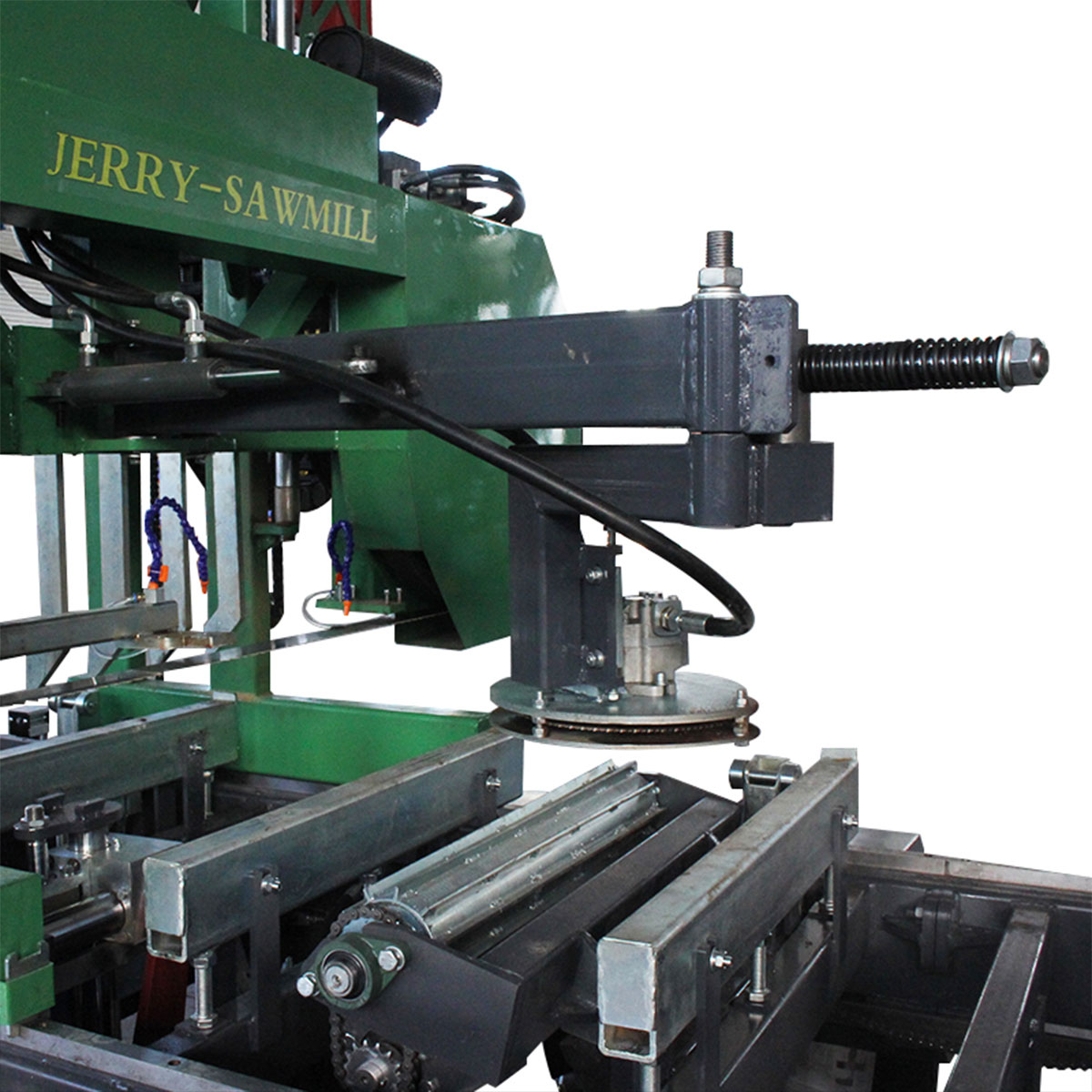

Pre-cutting
Features an adjustable hydraulic pre-cutting mechanism that enhances the protection of saw blades. This mechanism allows for precise adjustment to ensure optimal blade performance and longevity, reducing wear and extending the life of the saw blades.
Wooden board return
The machine a wooden board return feature, allowing the sawn wooden board to be easily returned to the starting place without the need for manual handling. This convenient feature eliminates the need to repeatedly move the board, enhancing efficiency and saving time during the sawing process.
Function

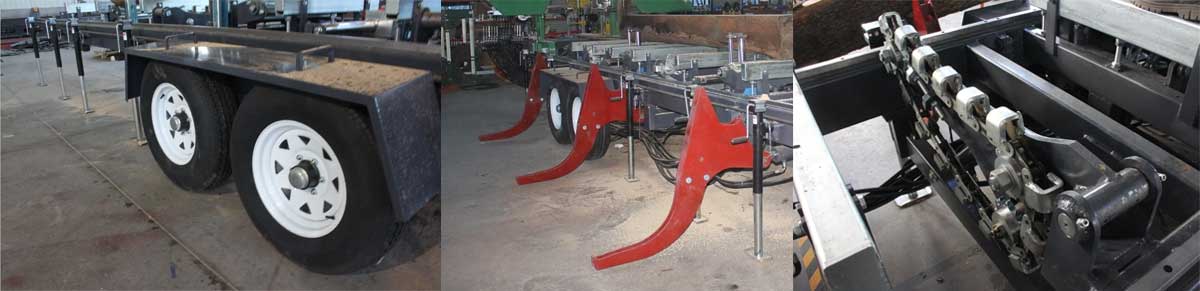

1.Four-Tire Trailer: Equipped with a robust four-tire trailer, capable of handling a maximum load capacity of 6 tons for reliable transportation.
2.Log Lifting: Features a powerful log lifting system with a capacity to lift up to 5 tons, facilitating the handling of heavy logs with ease.
3.Log Turnover: Includes a high-strength, fast-speed log turnover mechanism, designed for efficient and quick processing of logs.

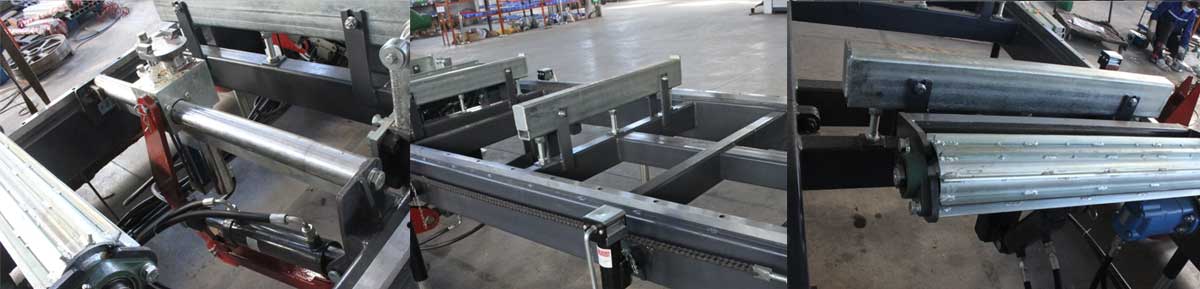

1.Fully Automatic Log Clamping Device: Ensures secure and precise clamping of logs without manual intervention, enhancing safety and efficiency.
2.Adjustable Log Support: Provides customizable support for logs of various sizes, ensuring stability and accurate cuts.
3.Automatic Log Movement: Facilitates seamless and effortless movement of logs through the sawmill, streamlining the cutting process and improving overall productivity.
