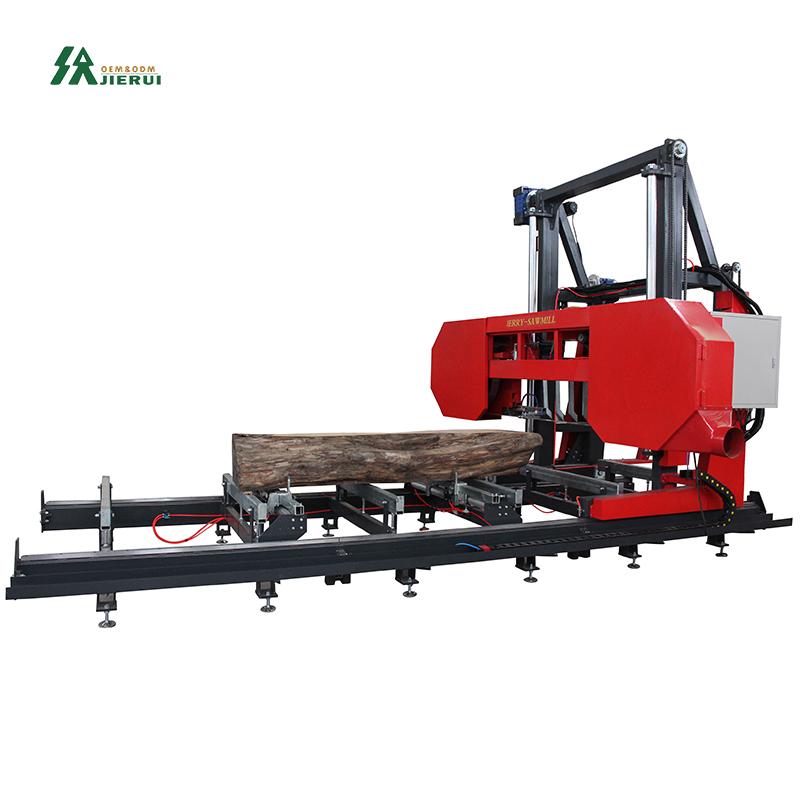

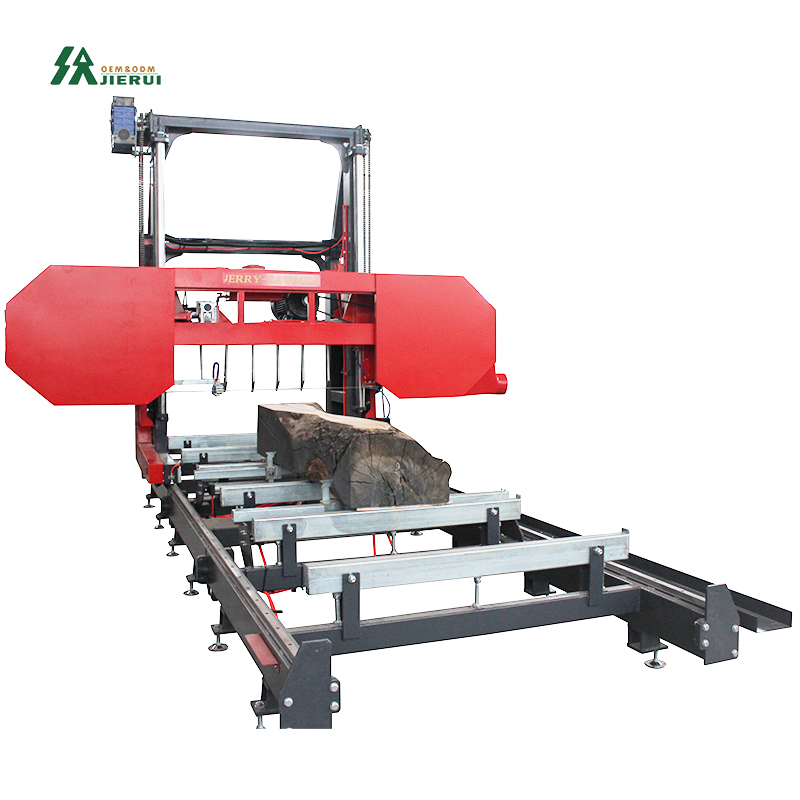

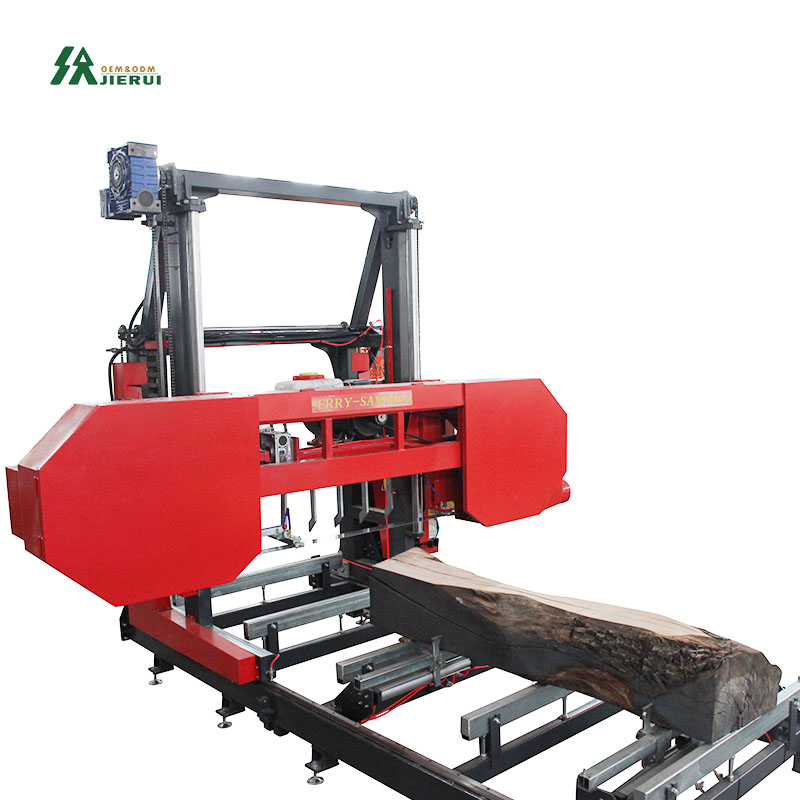

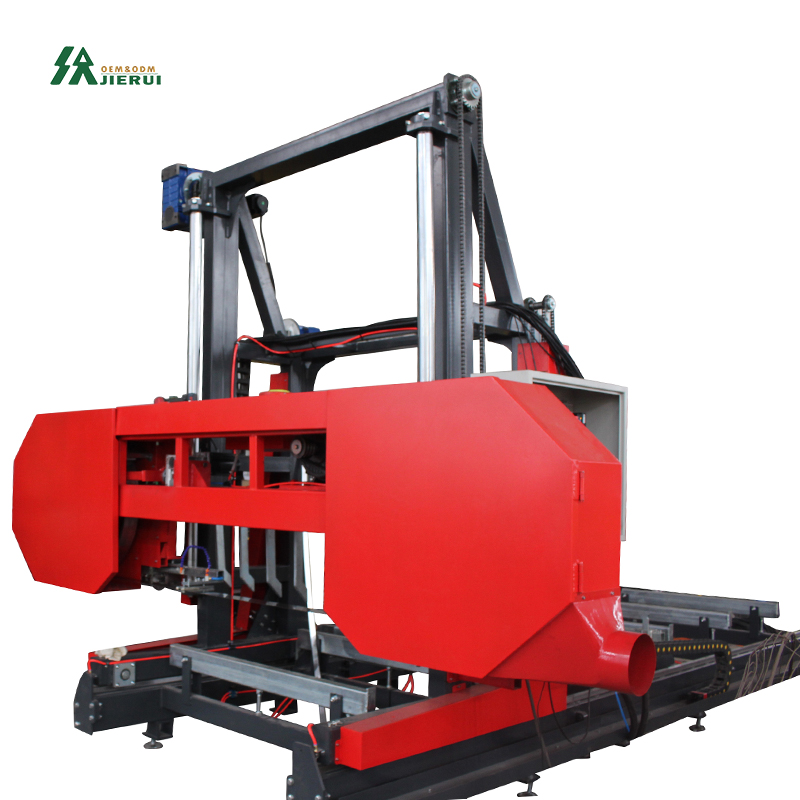

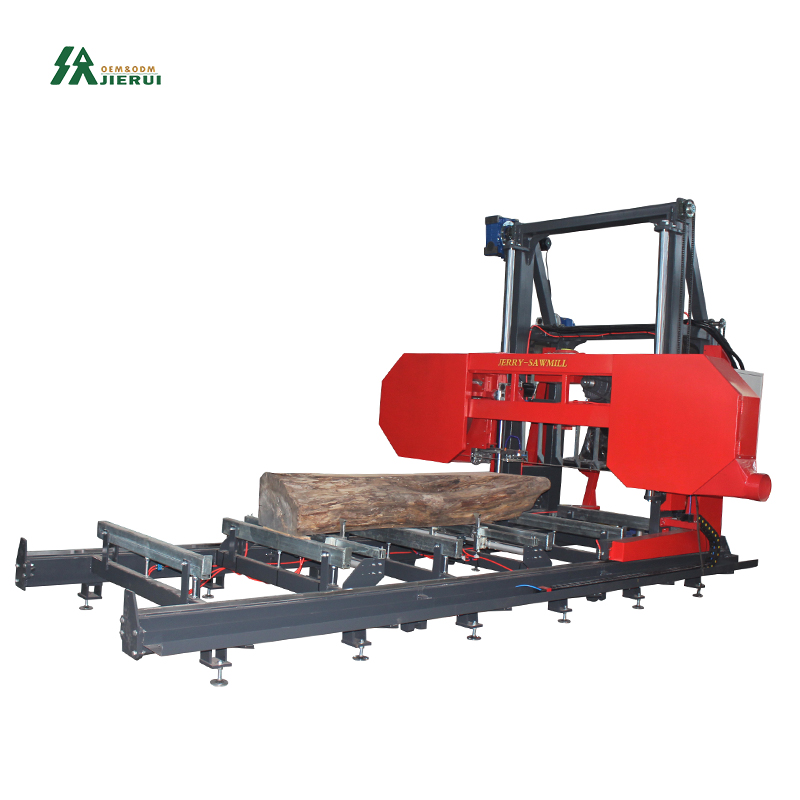

Custom Simple Heavy Duty Sawmill
1.Simple installation, easy operation, with large joystick and multi-language touch screen.
2.Tensioning of saw blades
Exclusive patented hydraulic tensioning device that does not release pressure and has high strength.
Make an inquiry will get the best shipping quotation

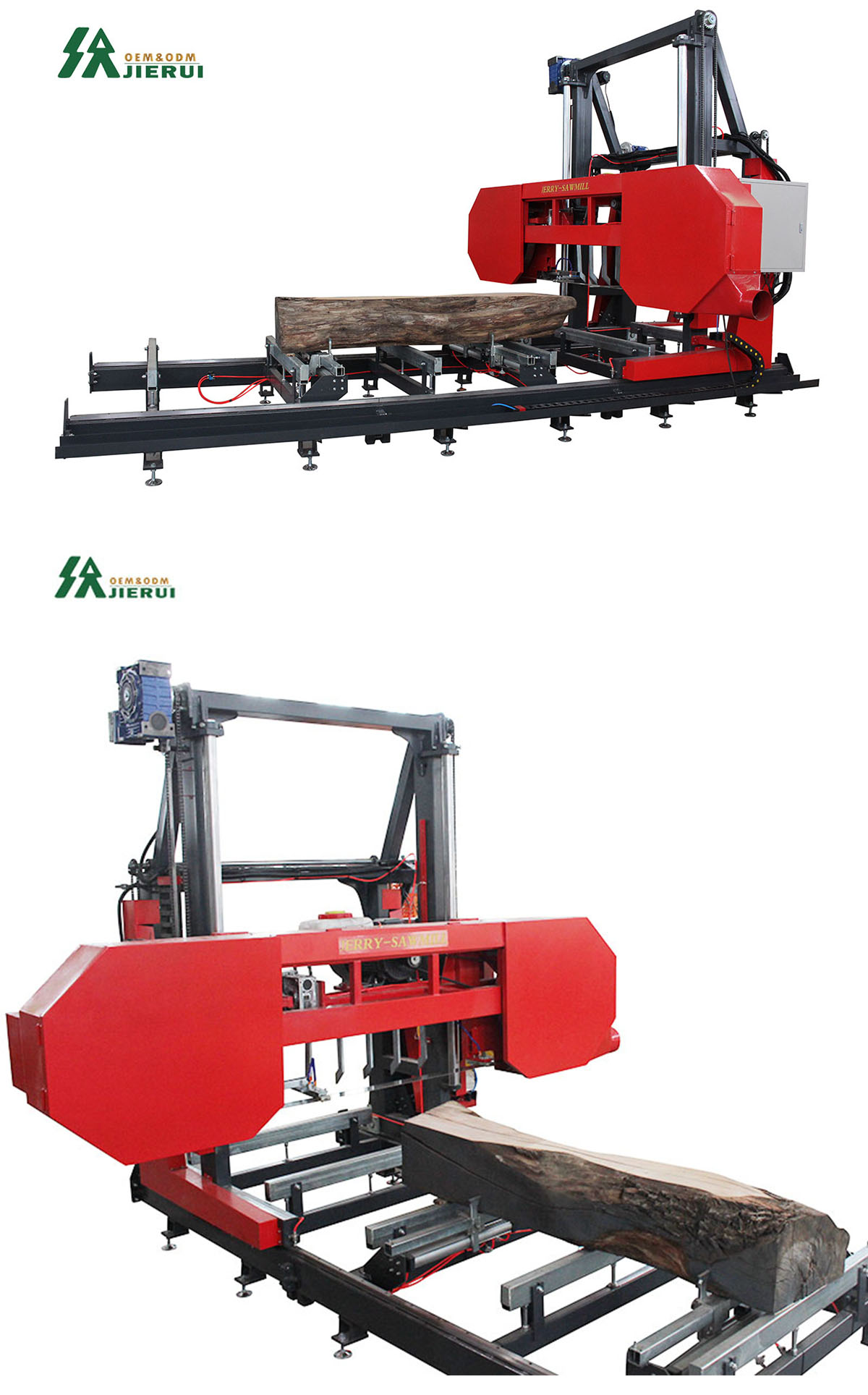

The Simple Heavy Duty sawmill is an entry-level fully automated sawmill packed with impressive features while maintaining a budget-friendly price.Simple installation, easy operation, with large joystick and multi-language touch screen.
Click on the image to make an inquiry immediately and you will receive a free brochure.
Sawmill parameters | JR1000D | JR1300D | JR1600D | JR2000D |
Max Log Cutting Dia(cm) | 100 | 130 | 160 | 200 |
Max Log Cutting Dia(inch) | 39 | 51 | 63 | 79 |
Max Log Cutting Length | 4.5m | 4.5m | 4.5m | 4.5m |
Track Length | 6m | 6m | 6m | 6m |
Gasoline/Diesel engine | 22 HP | 25 HP | 25 /30 HP | 30 HP |
Engine starting mode | Electric starting | Electric starting | Electric starting | Electric starting |
Packing Size | 3.5*2.2*2m | 20 'container | 20 'container | 40 'container |
Saw Wheel DiameterSaw Wheel Diameter | 770mm | 770mm | 900mm | 1100mm |
Saw blade width | 85mm | 85mm | 85mm | 1100mm |
Lifting | Auto | Auto | Auto | Auto |
Walking | Auto | Auto | Auto | Auto |
Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
Weight | 3000kg | 3800kg | 4500kg | 6000kg |
Warranty | 1 year | 1 year | 1 year | 1 year |
Color customization | Supported | Supported | Supported | Supported |
Logo customization | Supported | Supported | Supported | Supported |
Why Choose Us?

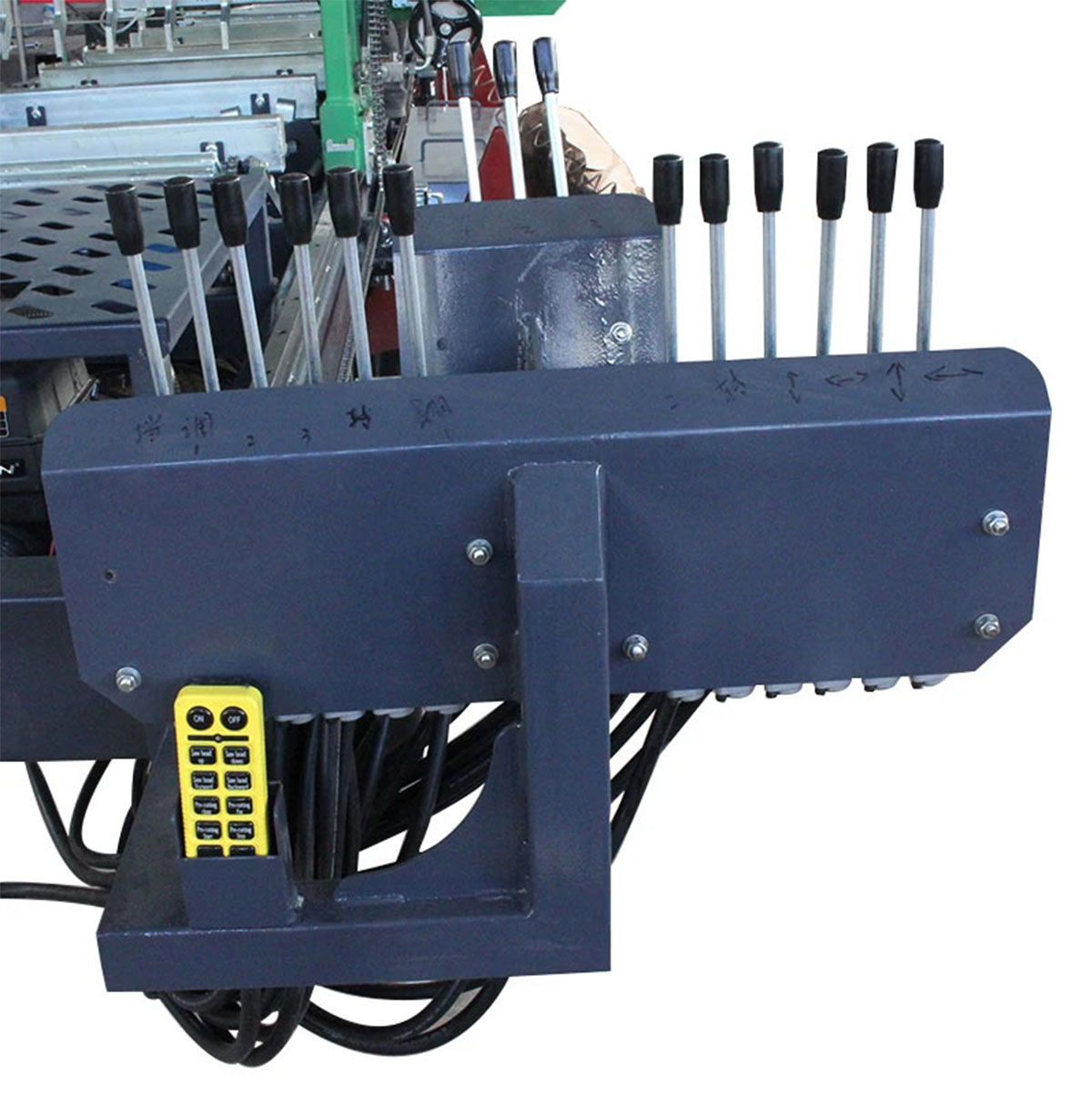

Wireless Control
No need to move back and forth to follow the sawmill, just sit on the chair and click the button to control the sawmill's work Fully enjoy the fun.

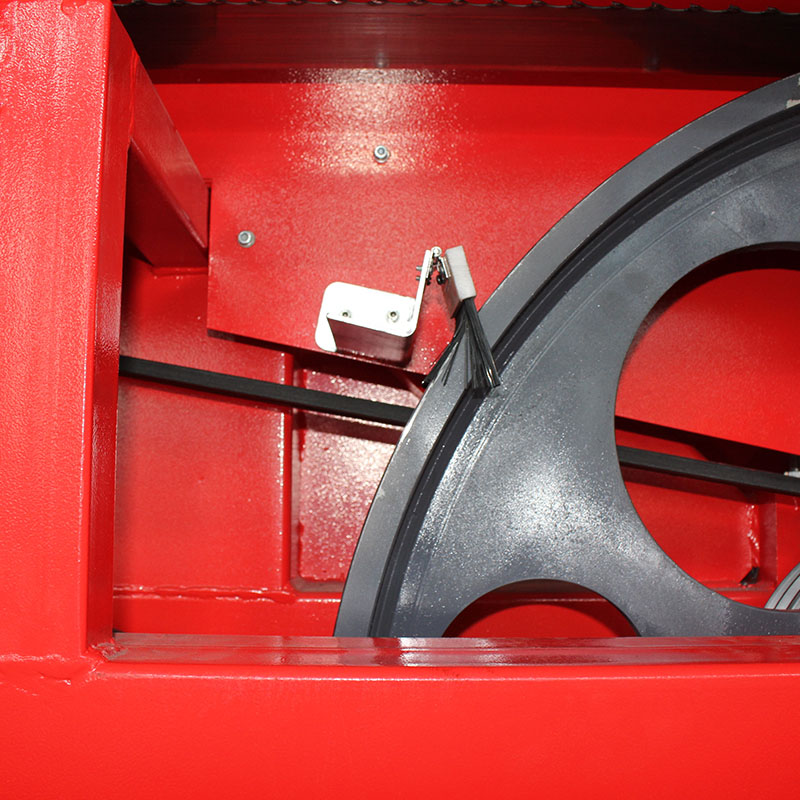

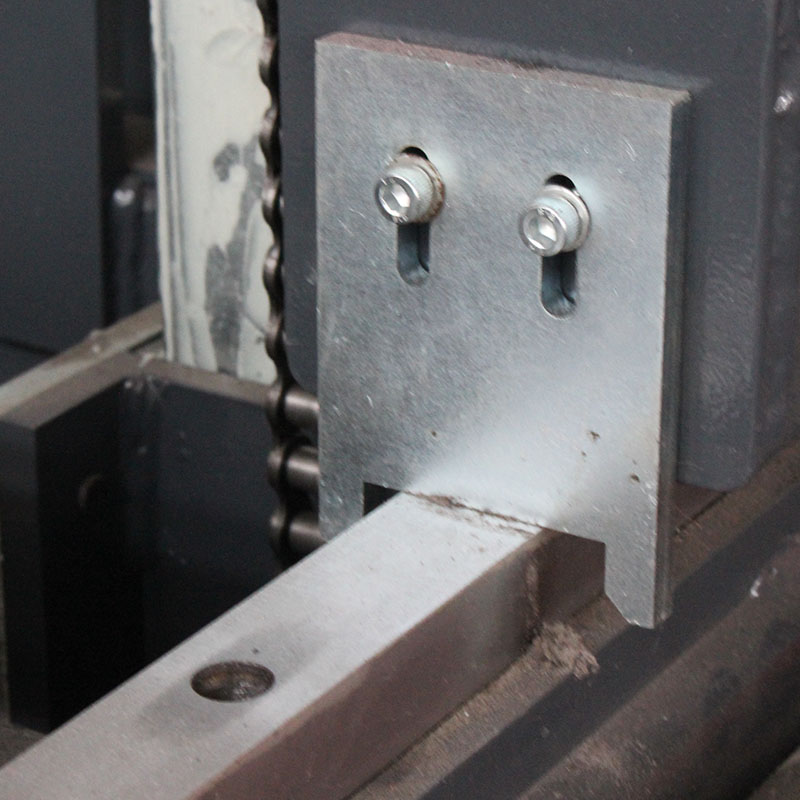

Rail sawdust removal
Specialized sawdust removal mechanism for better sawing accuracy and better protection of the track.

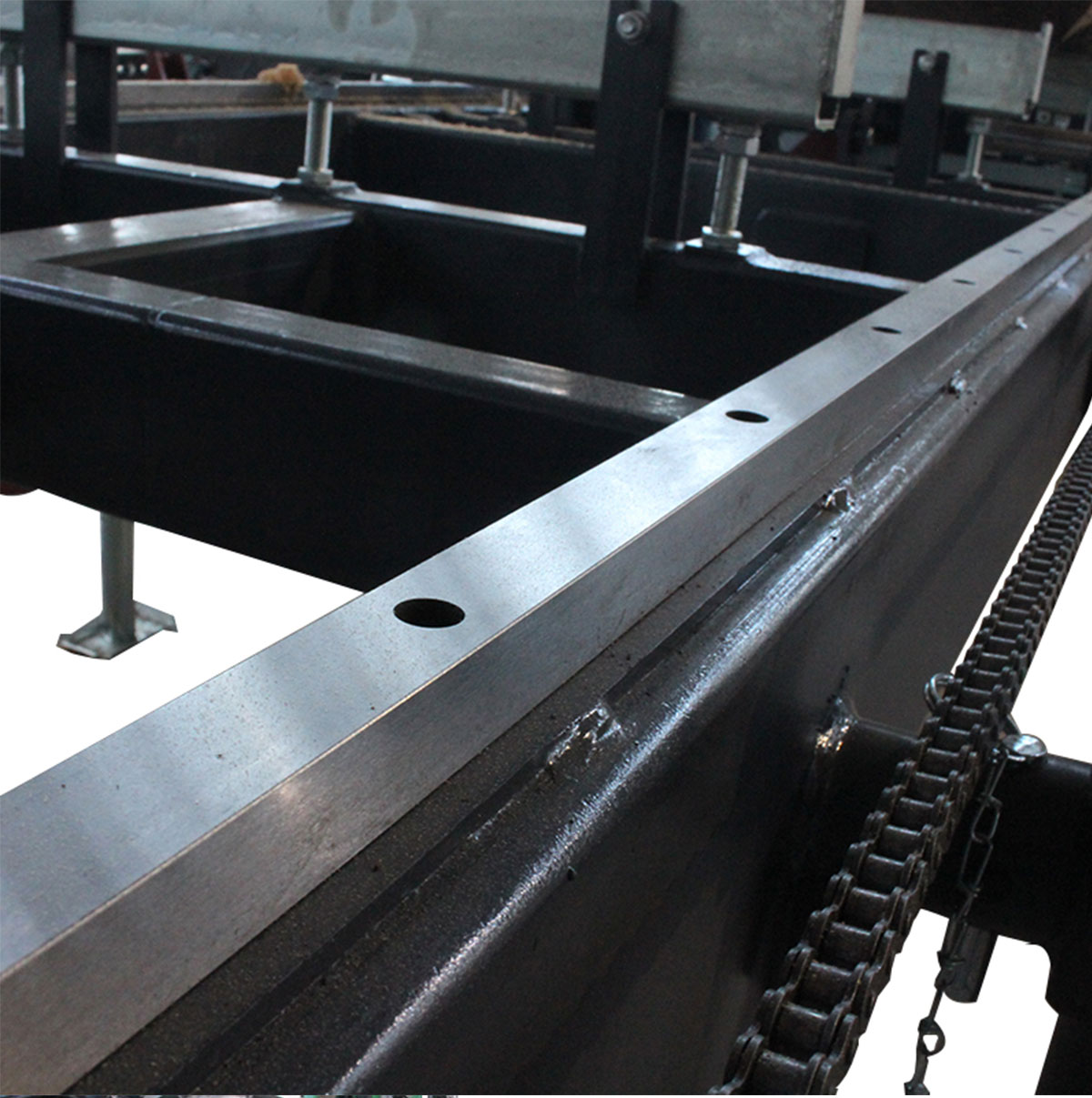

High precision track
Features a high precision track that has undergone precision machining and high-temperature quenching. This process ensures the track attains the necessary hardness to withstand millions of back-and-forth movements without deformation, guaranteeing long-term durability and consistent performance.

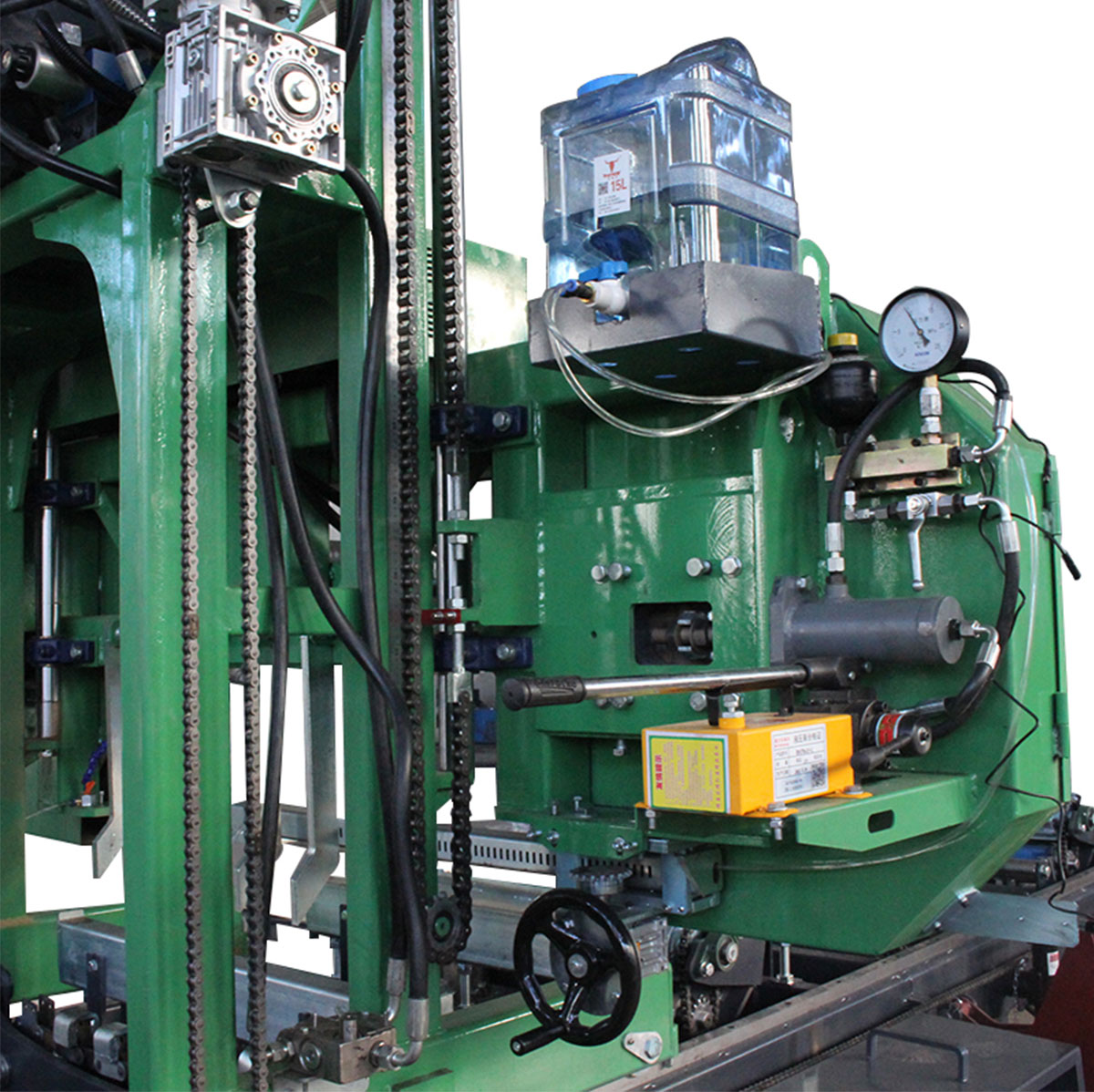

Tensioning of saw blades
The JR1000 Sawmill is equipped with an exclusive patented hydraulic tensioning device designed to maintain consistent tension on the saw blades. This advanced tensioning system is built with high-strength materials, ensuring durability and reliability during operation. One of the key features of this device is its ability to hold pressure without releasing it, which ensures that the saw blades remain properly tensioned throughout the sawing process. This not only improves cutting accuracy but also extends the life of the blades by preventing slack or over-tensioning, which can lead to premature wear or breakage. The hydraulic tensioning device is essential for achieving precise and efficient sawing.

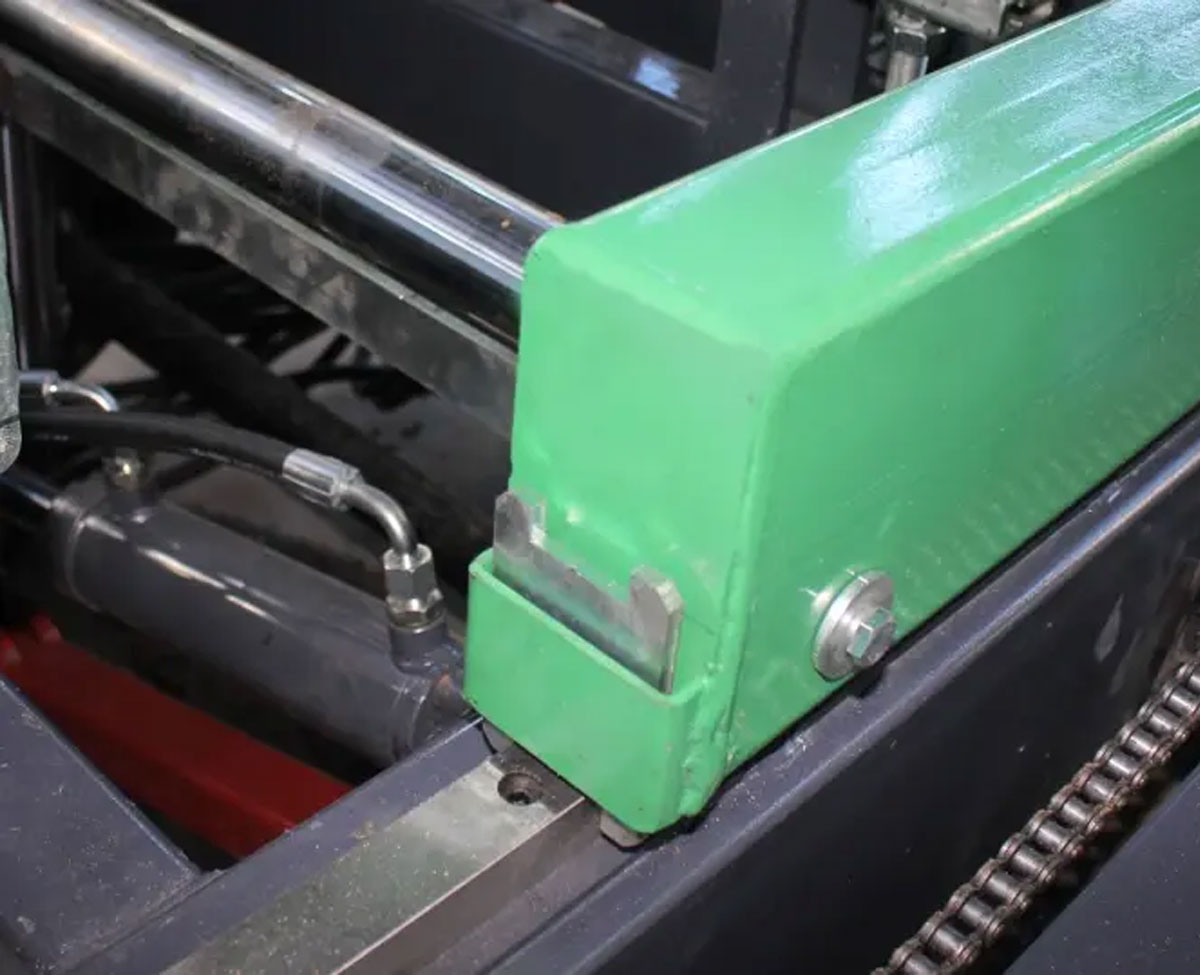

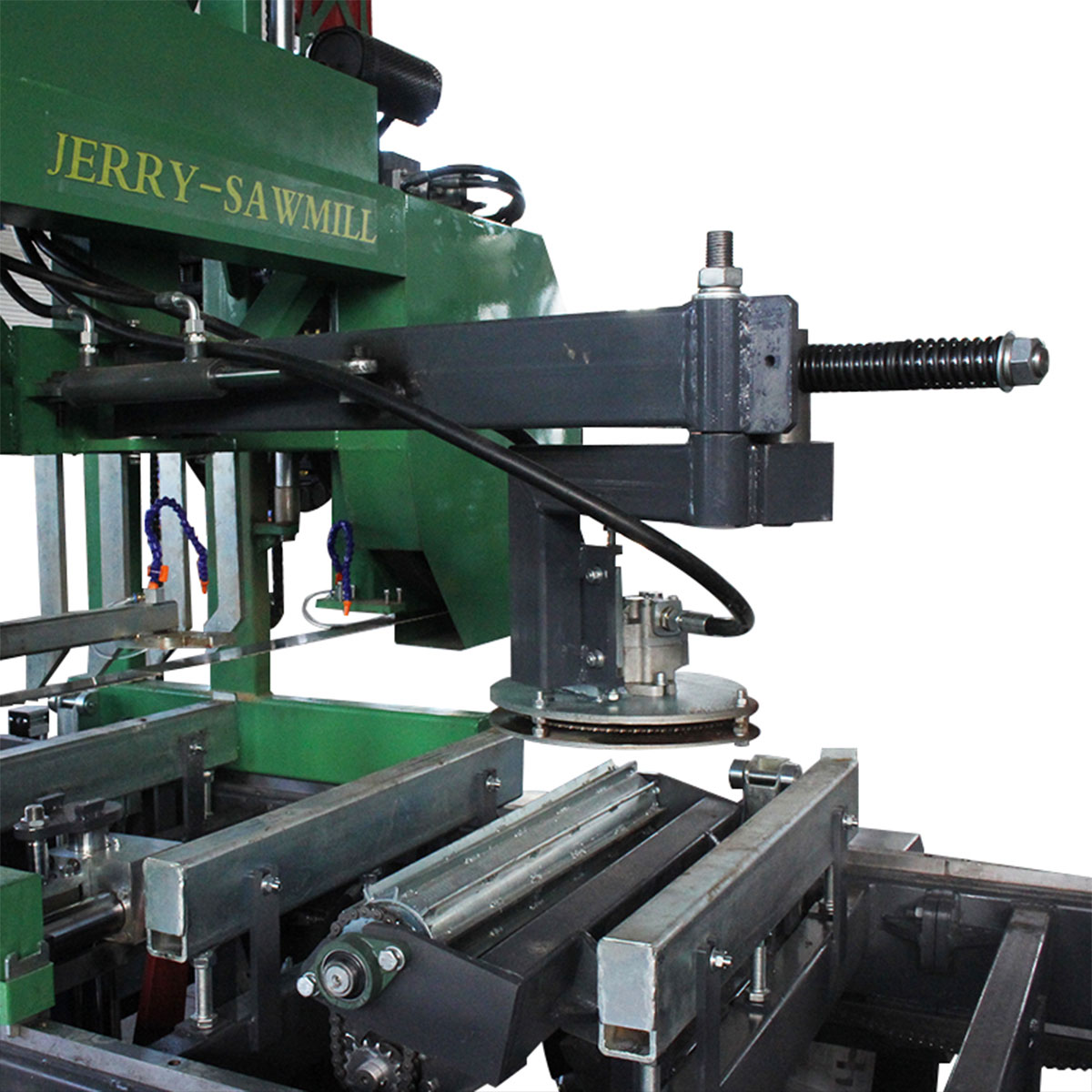

Pre-cutting
Adjustable hydraulic pre cutting mechanism for better protection of saw blades
Wooden board return
When the sawn wooden board is completed, it will be easily brought back to the starting place without the need to move the board again and again.
Function

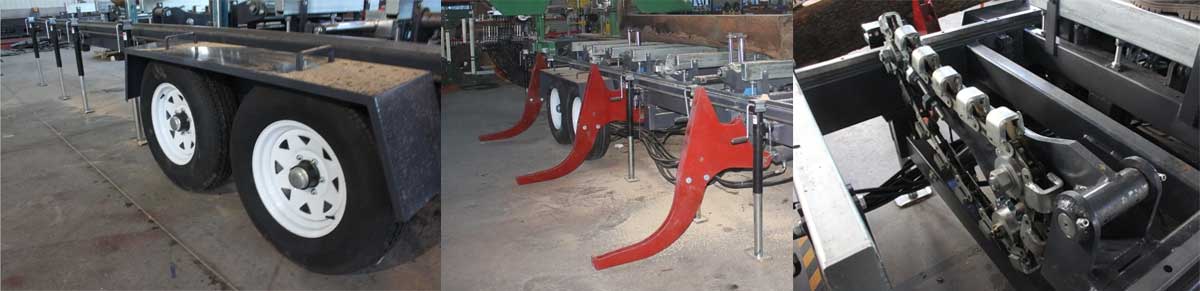

1.A four tire trailer with a maximum load capacity of 6 tons.
2.Log lifting, capable of lifting up to 5 tons of weight.
3.Log turnover, high strength and fast speed.

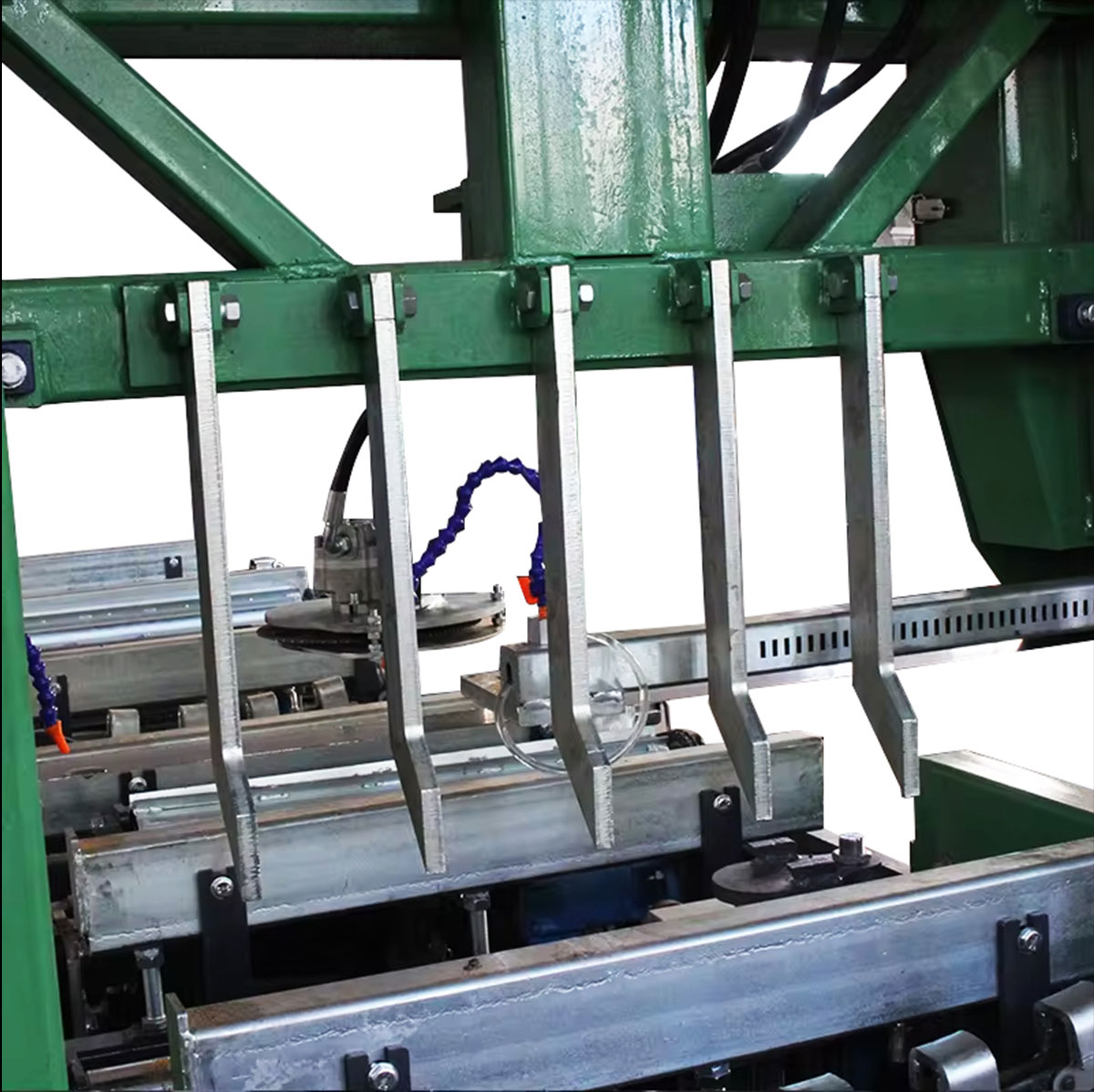

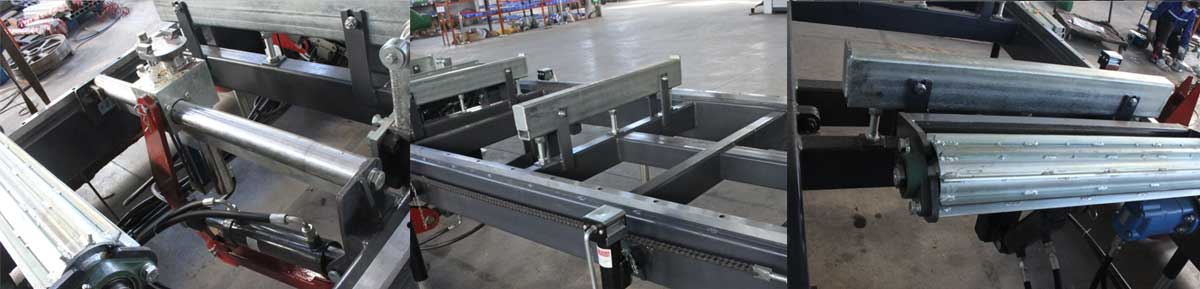

1.Fully automatic log clamping device.
2.Adjustable log support.
3.Automatic log movement.
FAQ
Q: Can I customized the machine from your company?
A: Of course you can,we can manufacture the machine based on your customsized requirement.
Q: How does your factory do regarding quality controlling?
A: We prioritize quality at every stage of production. All raw materials we use are environmentally friendly. Our skilled workers pay close attention to every detail during the production and packing processes. Additionally, our dedicated quality control department is responsible for ensuring high standards are maintained at each step.
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden box, all to meet the export packaging standards.
Q: How about the after-sale service?
A:TM online for 24 hours :Tel/Whatsapp :+8618866126681 skype,MSN,whatsapp,also contact by email :Jerry@jerry-sawmill.com etc.
