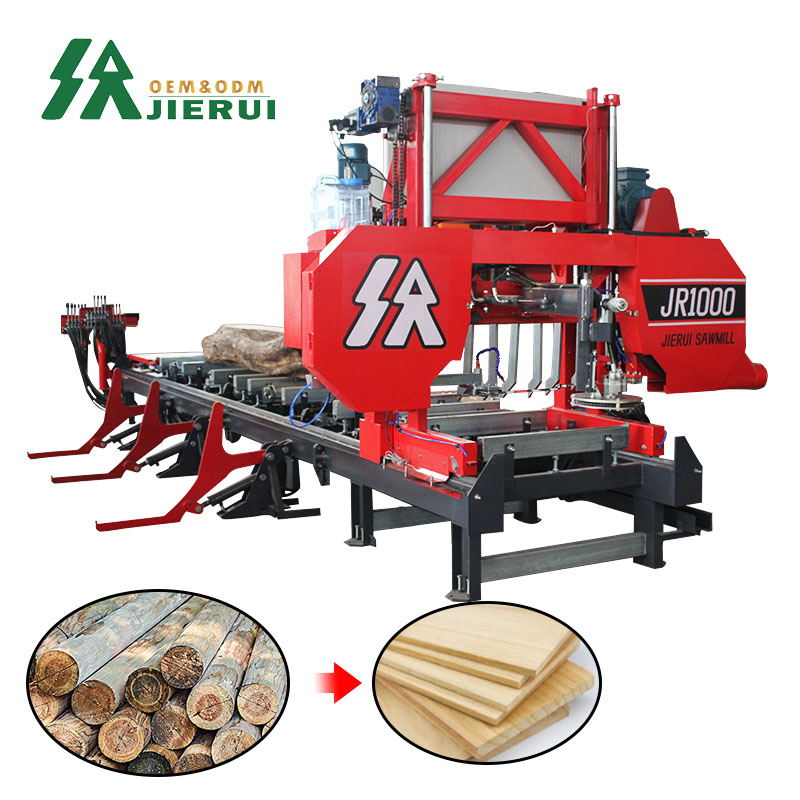

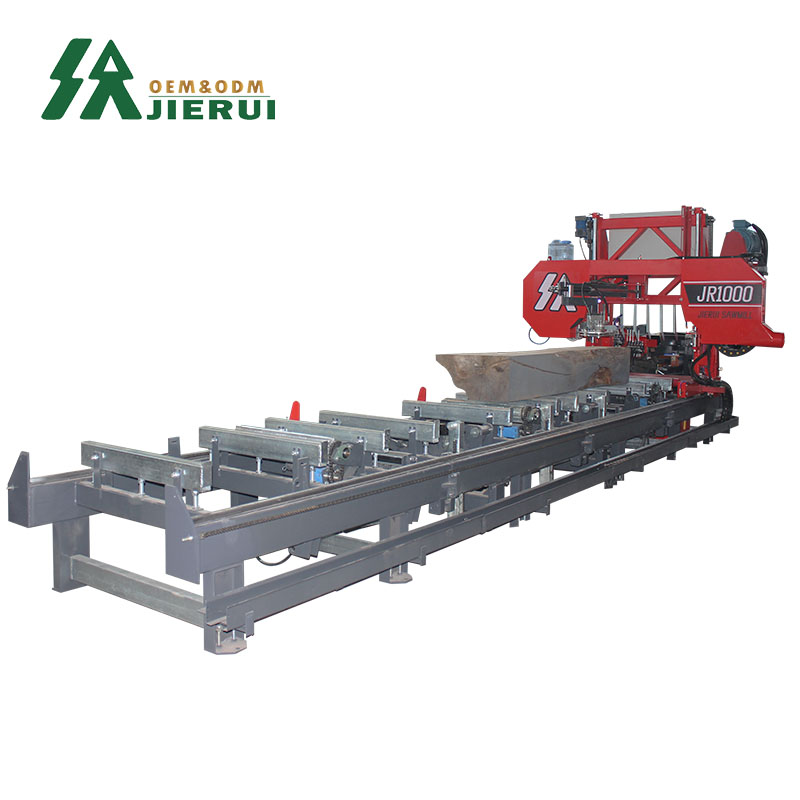

Best Wood Cutting Saw Mill With CE
1. Auto CNC heavy duty sawmill tools have faster cutting speed and higher quality than ordinary sawing machines, and less sawdust loss.
2. Simple installation and easy operation, with an oversized joystick and multi-language touch screen.
3. High cutting efficiency and high flatness of the cutting board.
4. The thickness of the processed wood can be switched as needed.
5.Intelligent operation, safer than ordinary sawing machines.
Make an inquiry will get the best shipping quotation

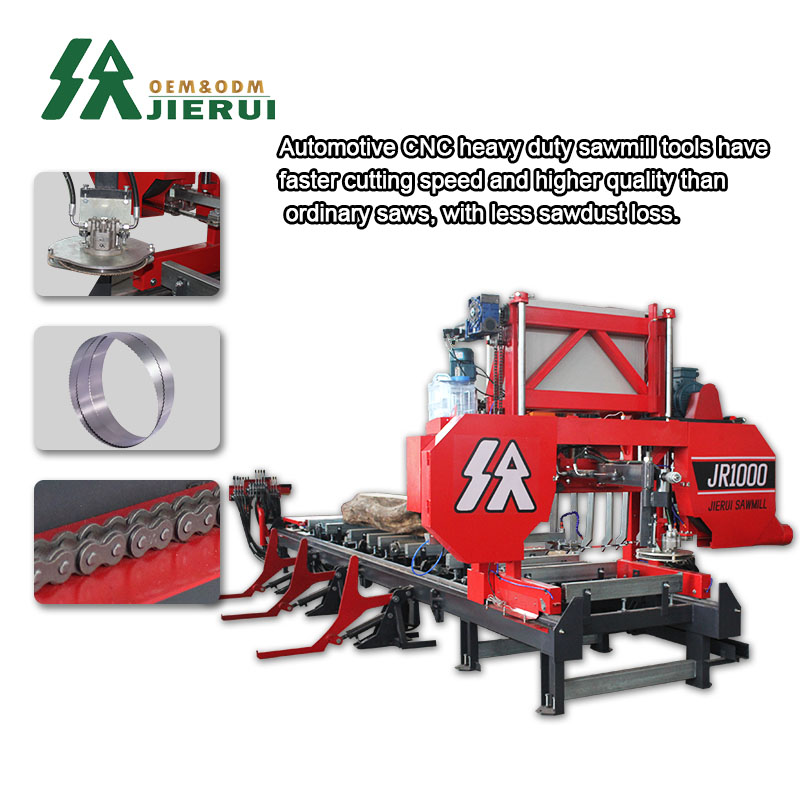

Automotive CNC sawmill tools have faster cutting speed andhigher quality than ordinary saws, with less sawdust loss.Maximum blade width up to 1100mm up to 1100mm,Safe cutting Speed 4m/min.
Come to us for an inquiry
You will receive a free product brochure filled with product information,Inspiration, more life with JIERUI Machinery Equipment Co., LTD
Our advantages:
Faster Cutting Speeds: Achieves quicker cutting speeds compared to conventional sawmills, increasing productivity and efficiency.
Superior Quality: Delivers high-quality cuts with reduced sawdust loss, maximizing material usage and minimizing waste.
Design and Operation:
Rationalized Design: Features an easy installation process and a large rocker for improved handling and stability.
Multilingual Touch Screen: Equipped with a user-friendly multilingual touch screen, making operation straightforward and accessible for users from different regions.
High Cutting Efficiency:
Excellent Flatness: Ensures high cutting efficiency and excellent flatness of the cutting plate, providing precision and consistency in every cut.
Adjustable Thickness:
Customizable Processing: Allows for easy adjustment of processed wood thickness to meet specific requirements, offering flexibility for various applications.
Smart and Safe:
Intelligent Operation: Includes automatic sawing capabilities, enhancing safety and reducing the need for manual intervention compared to traditional saws.
Sawmill parameters | JR1000D | JR1300D | JR1600D | JR2000D |
Max Log Cutting Dia(cm) | 100 | 130 | 160 | 200 |
Max Log Cutting Dia(inch) | 39 | 51 | 63 | 79 |
Max Log Cutting Length | 4.5m | 4.5m | 4.5m | 4.5m |
Track Length | 6m | 6m | 6m | 6m |
Gasoline/Diesel engine | 22 HP | 25HP | 25/30HP | 30HP |
Engine starting mode | Electric starting | Electric starting | Electric starting | Electric starting |
Packing Size | 3.5*2.2*2m | 20 'container | 20 'container | 40 'container |
Saw Wheel Diameter | 770mm | 770mm | 900mm | 1100mm |
Saw blade width | 85mm | 85mm | 85mm | 110mm |
Lifting | Auto | Auto | Auto | Auto |
Walking | Auto | Auto | Auto | Auto |
Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
Weight | 3000kg | 3800kg | 4500kg | 6000kg |
Warranty | 1 year | 1 year | 1 year | 1 year |
Color customization | Supported | Supported | Supported | Supported |
Logo customization | Supported | Supported | Supported | Supported |
Product details

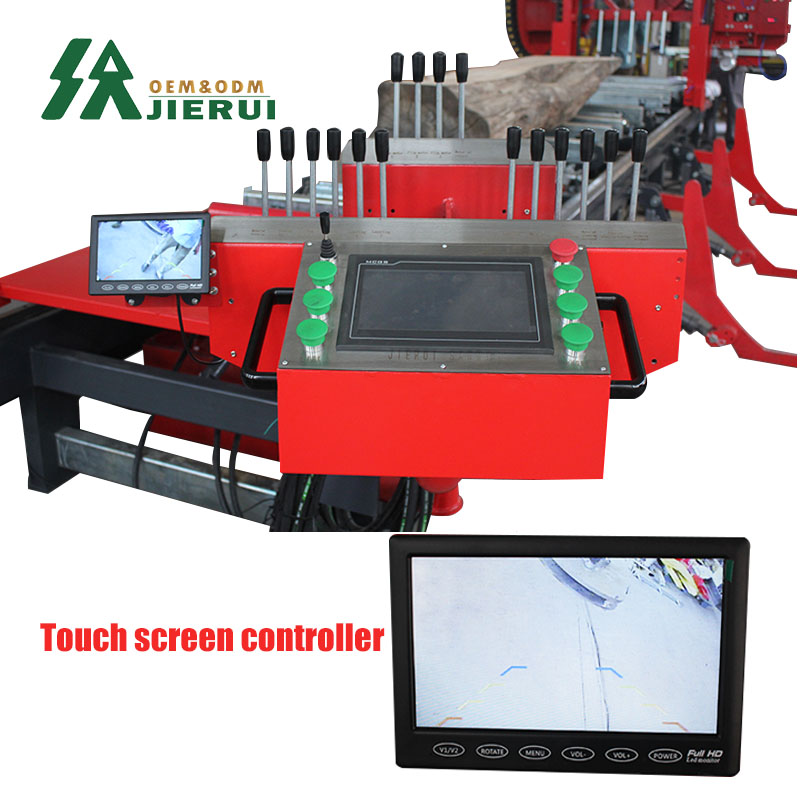

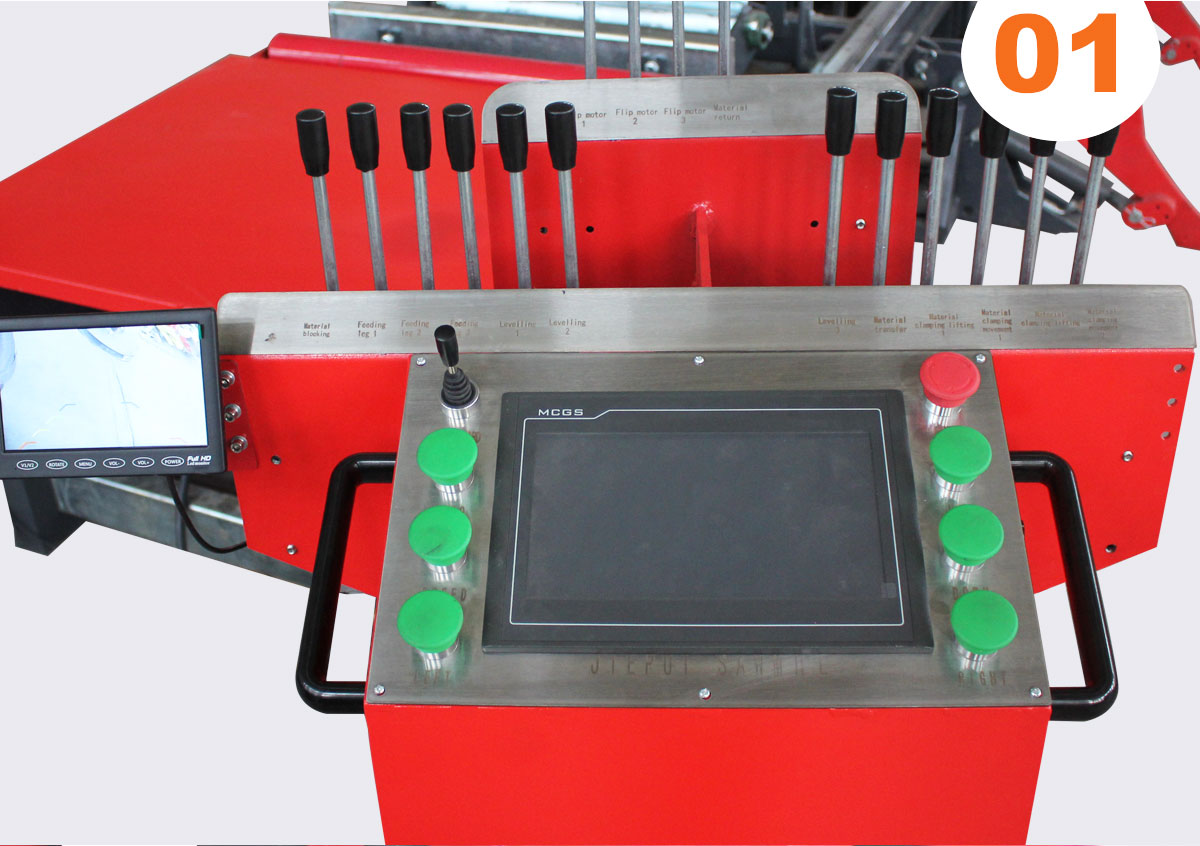

Intelligent human-computer interaction
PLC control,Can achieve fully automatic circular sawing,Support for multiple languages

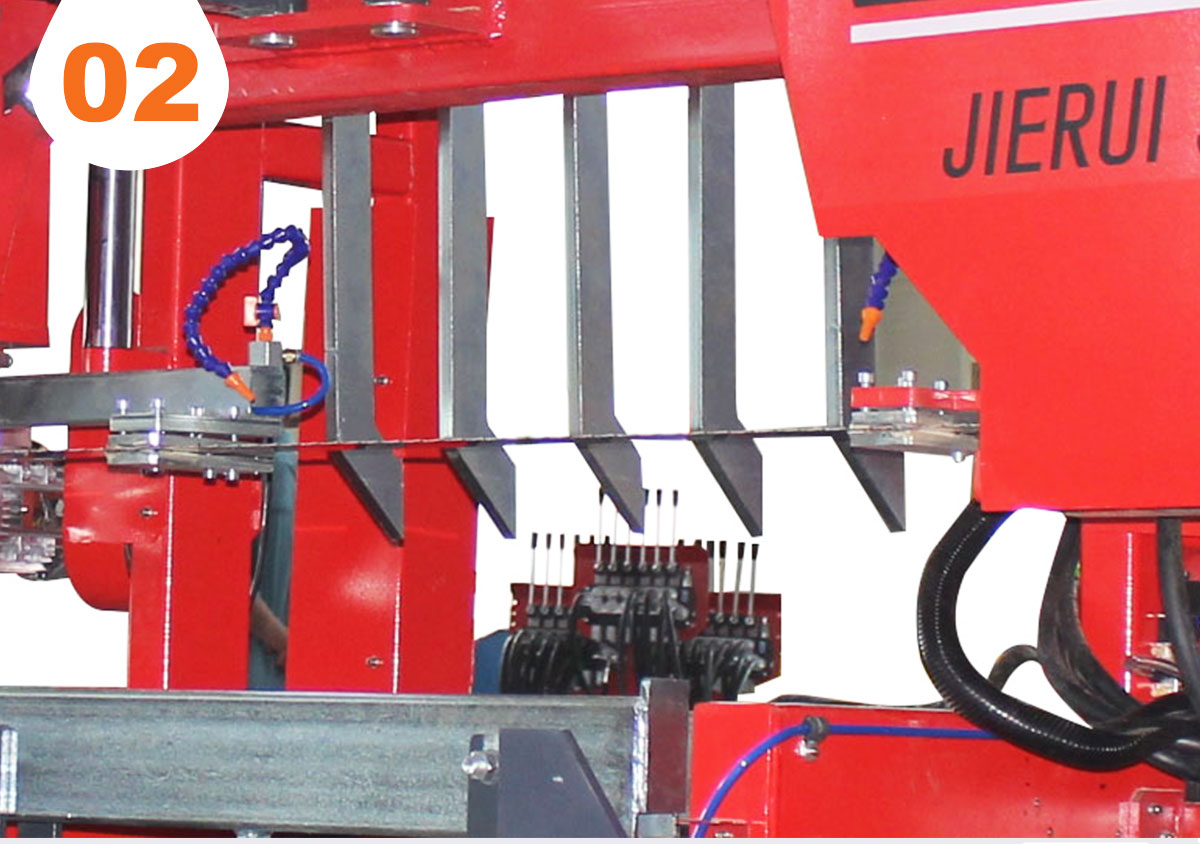

Automatically adapt to the diameter of logs, can achieve automatic adjustment, and uses wear-resistant ceramic sheets.

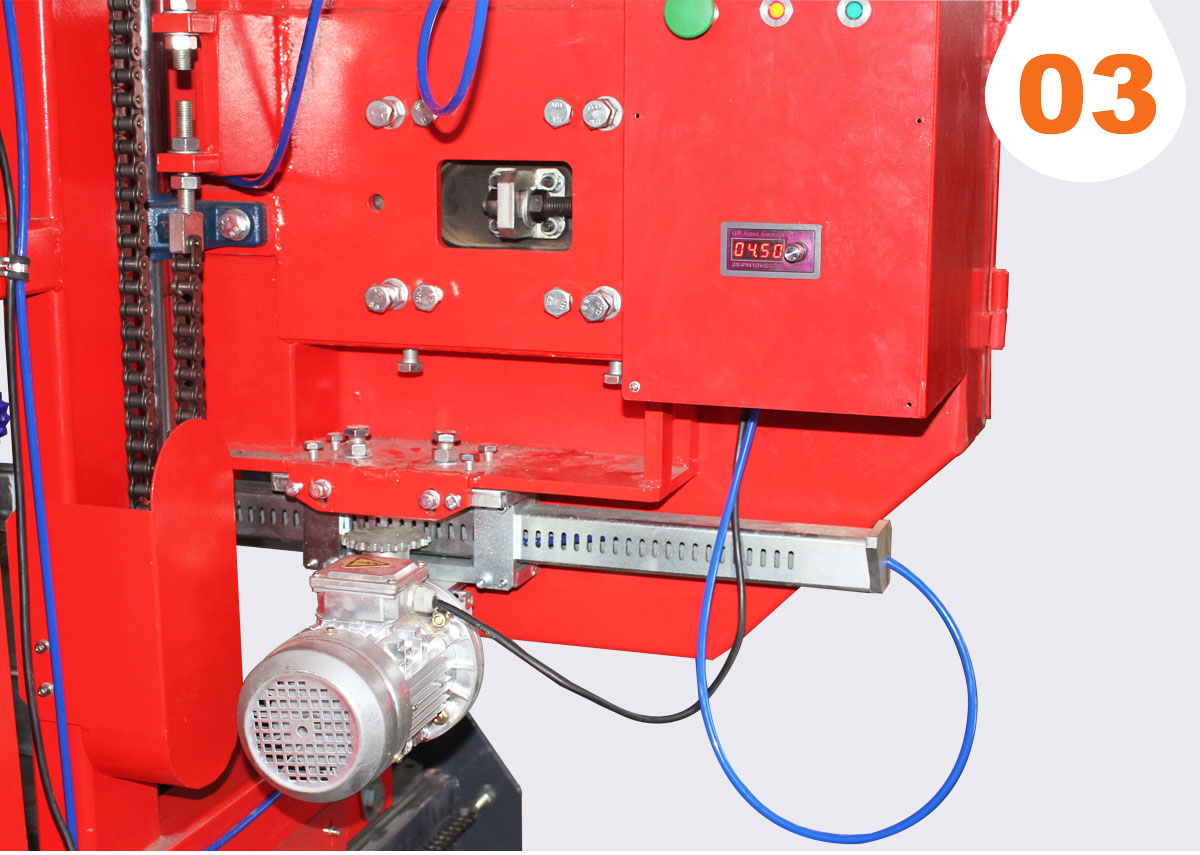

Fully automatic saw blade tensioning system
A fully automatic saw blade tensioning system with automatic detection of saw blade tension progress and forced emergency stop when the saw blade breaks is a valuable feature for enhancing safety and efficiency. Here's how it can benefit your sawmill equipment:
Automatic Tensioning: The system ensures that the saw blade is always maintained at the optimal tension, reducing manual adjustments and preventing issues related to incorrect blade tension.
Real-Time Monitoring: By continuously monitoring the tension of the saw blade, the system can detect any deviations from the ideal tension, allowing for timely adjustments or alerts to prevent damage or suboptimal performance.
Emergency Stop: In the event of a blade breakage, the forced emergency stop feature will immediately halt operations, minimizing the risk of injury and preventing further damage to the equipment.
Enhanced Safety: With automatic detection and emergency stop capabilities, the system greatly improves operational safety by reducing the likelihood of accidents caused by blade failures.
Increased Efficiency: Automatic adjustments and monitoring reduce downtime associated with manual checks and repairs, allowing for smoother and more continuous operation.
Incorporating such a system into your sawmills can provide significant benefits in terms of safety, efficiency, and overall performance.

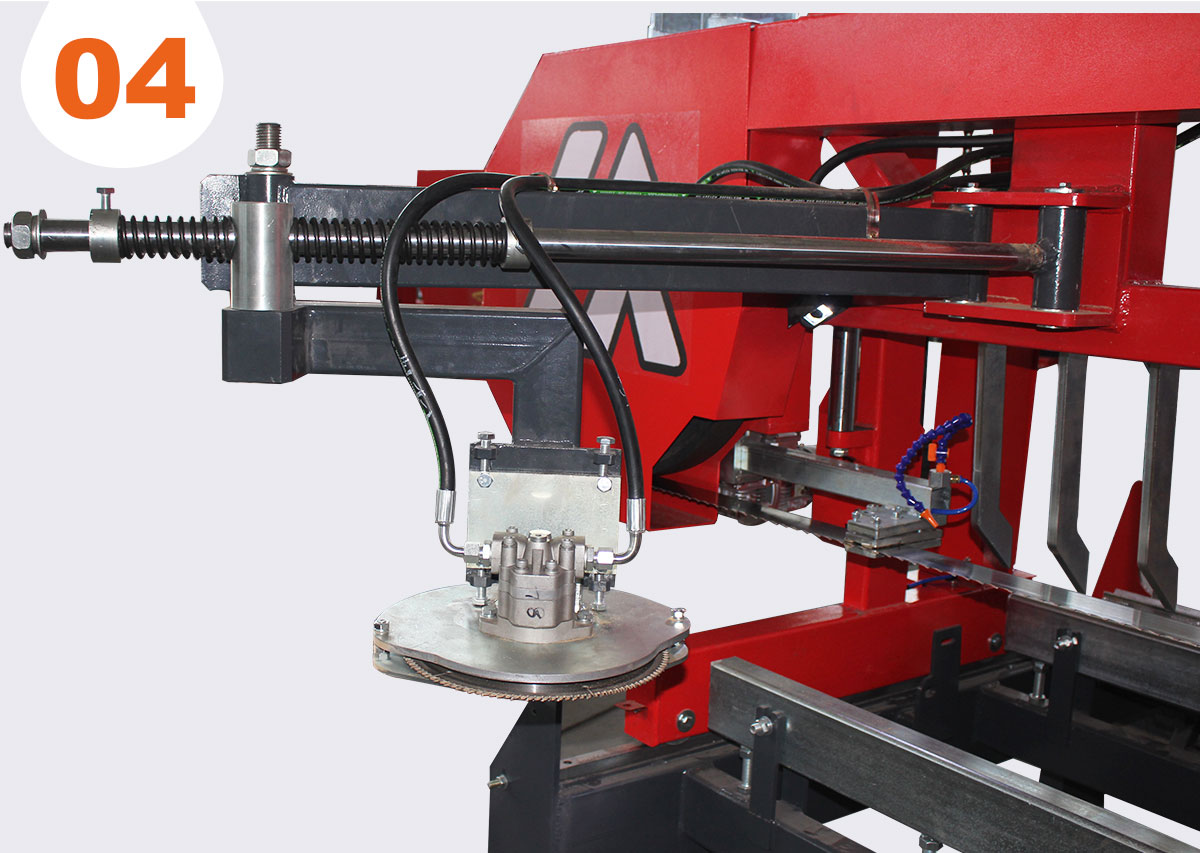

Automatically adapt to the shape of the log for better protection of the saw blade.

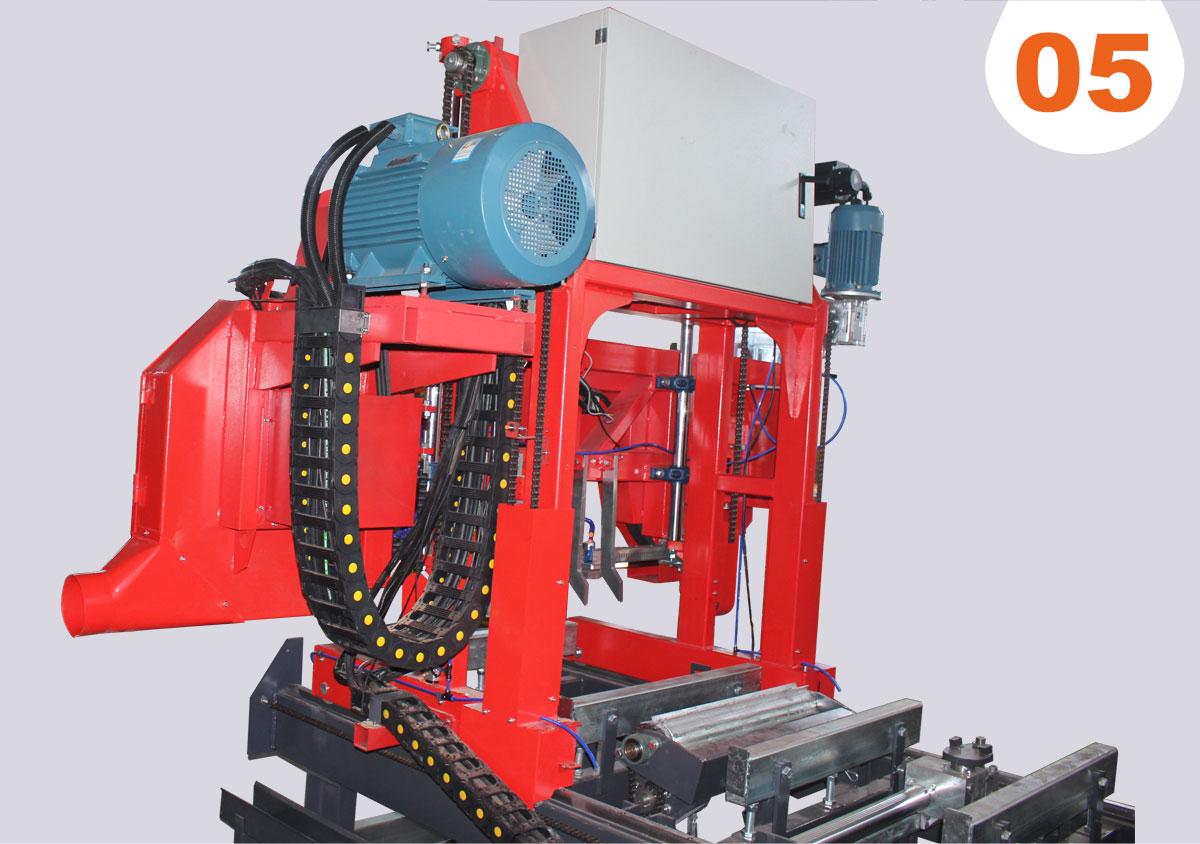

Not only does it support electricity, but also gasoline power. Diesel power is supported
Finished product display

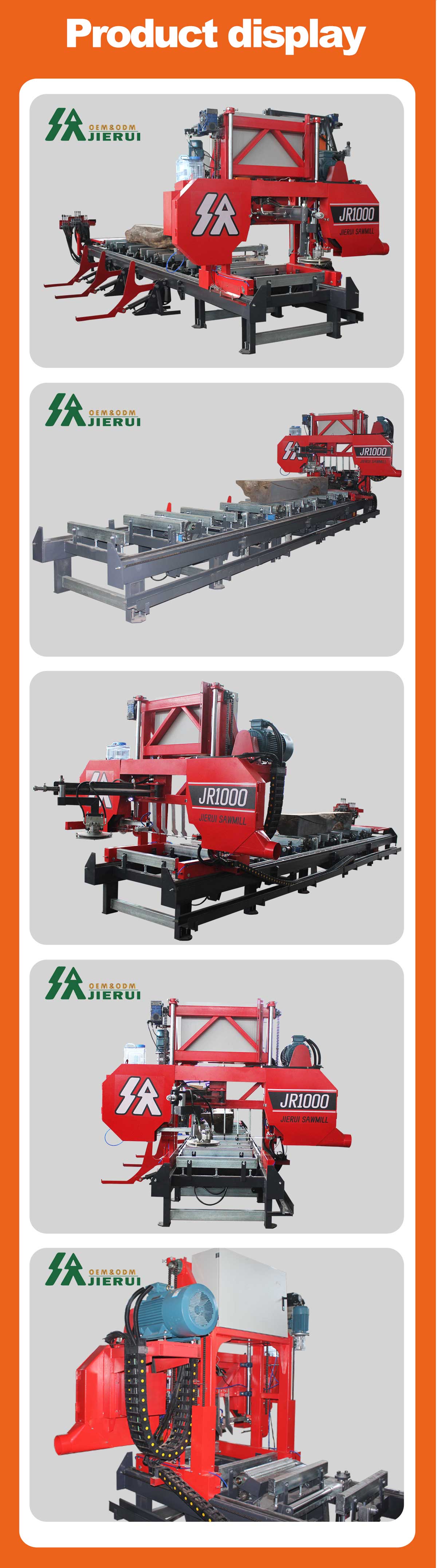

Multi-picture display products
