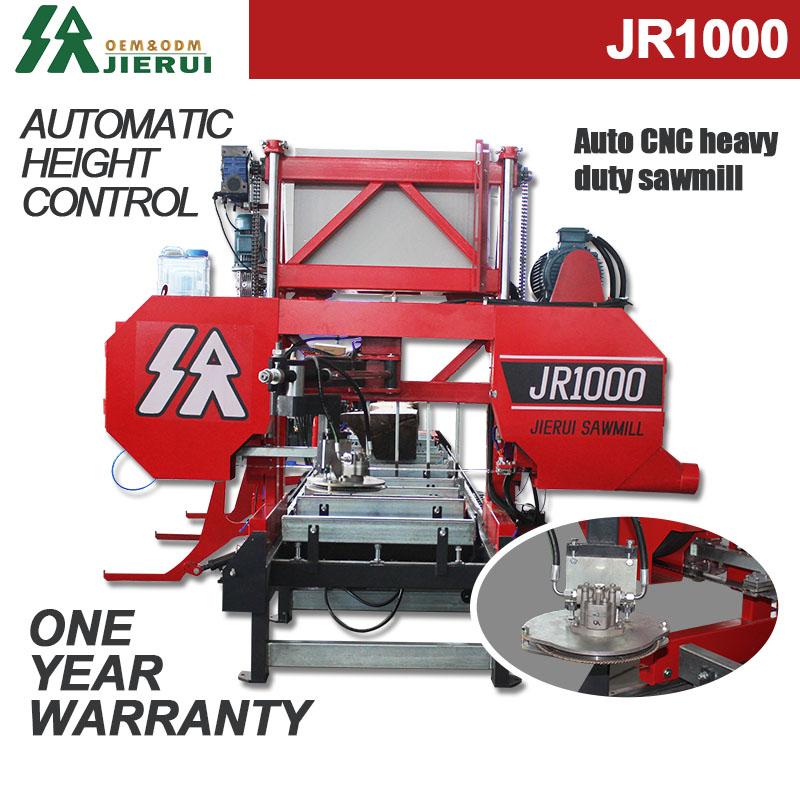

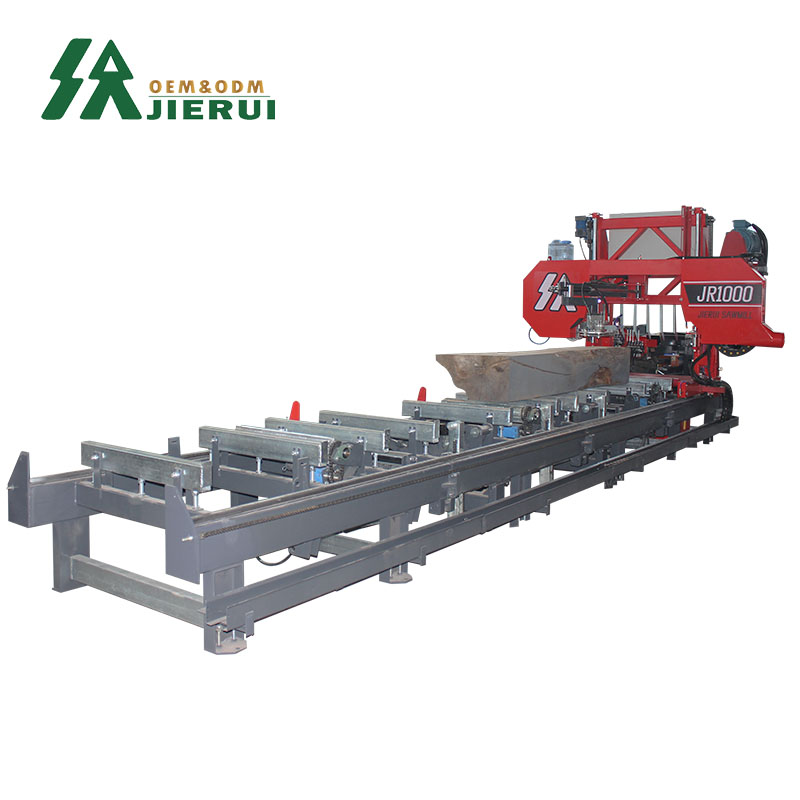

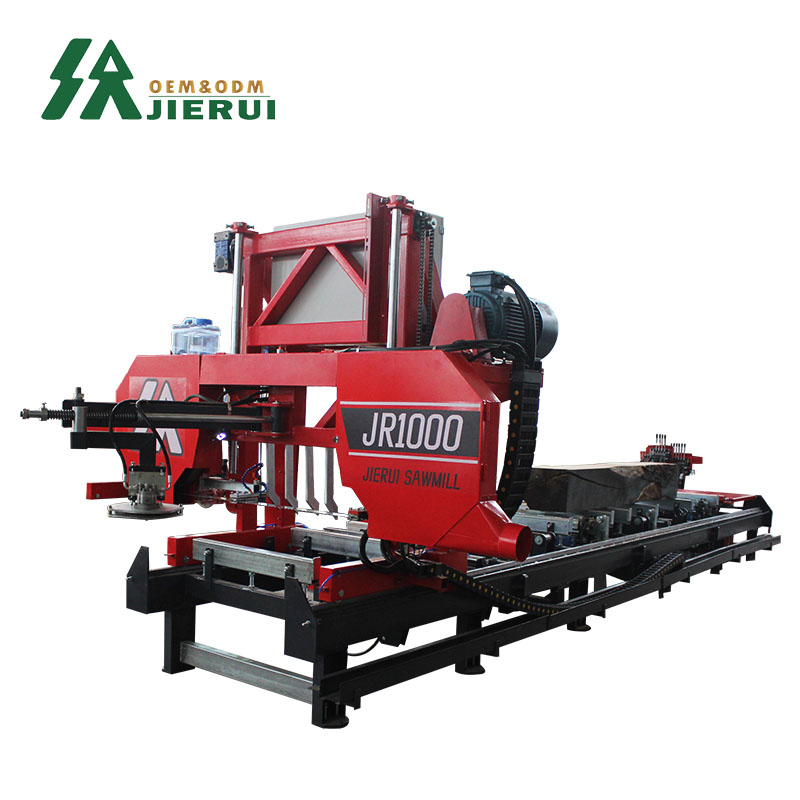

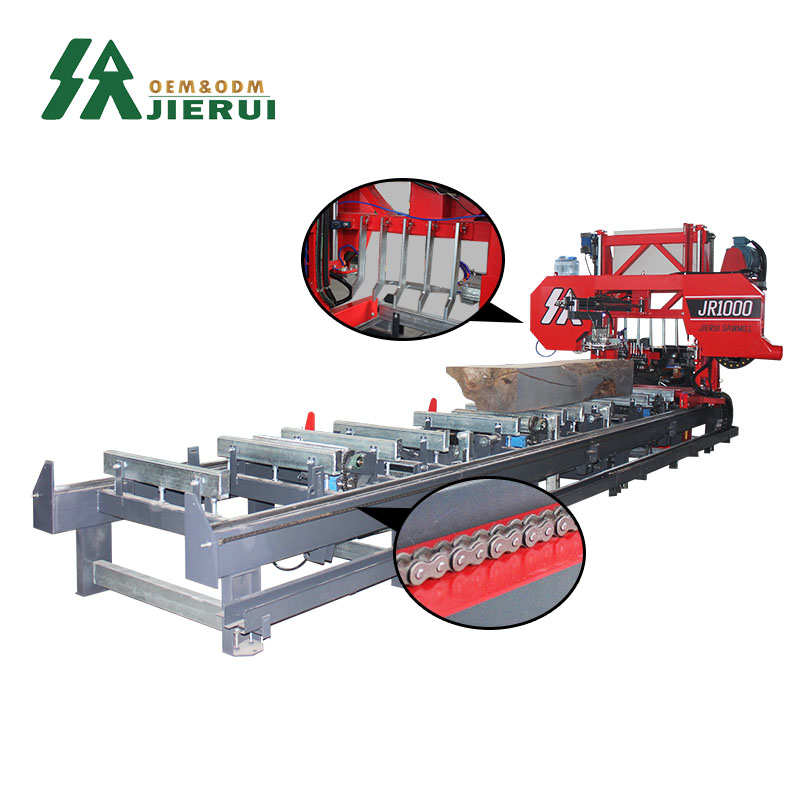

Automatic Horizontal Band Saw Mill

1. Auto CNC heavy duty sawmill tools have faster cutting speed and higher quality than ordinary sawing machines, and less sawdust loss.

2. Simple installation and easy operation, with an oversized joystick and multi-language touch screen.

3. High cutting efficiency and high flatness of the cutting board.

4. The thickness of the processed wood can be switched as needed.

5.Intelligent operation, safer than ordinary sawing machines.



Make an inquiry will get the best shipping quotation

JR1000
$20,000.00
  Contact Now WhatsApp
JR1000
$20,000.00
Product Details

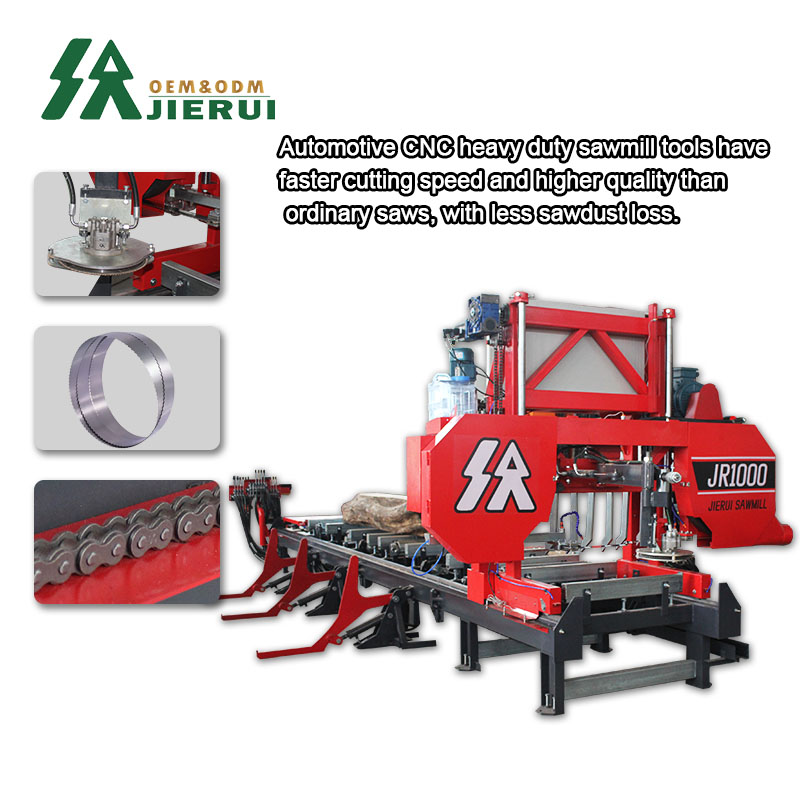

Automotive CNC sawmill tools have faster cutting speed andhigher quality than ordinary saws, with less sawdust loss.Maximum blade width up to 1100mm up to 1100mm,Safe cutting Speed 4m/min.



CNC Sawmill

Come to us for an inquiry

You will receive a free product brochure filled with product information,Inspiration, more life with JIERUI Machinery Equipment Co., LTD

CNC Sawmill

Our CNC Sawmill is designed to deliver exceptional performance and efficiency, integrating advanced technology to enhance the cutting process. Here’s what makes it stand out:

Performance:

  • Faster Cutting Speeds: Achieves quicker cutting speeds compared to conventional sawmills, increasing productivity and efficiency.

  • Superior Quality: Delivers high-quality cuts with reduced sawdust loss, maximizing material usage and minimizing waste.

Design and Operation:

  • Rationalized Design: Features an easy installation process and a large rocker for improved handling and stability.

  • Multilingual Touch Screen: Equipped with a user-friendly multilingual touch screen, making operation straightforward and accessible for users from different regions.

High Cutting Efficiency:

  • Excellent Flatness: Ensures high cutting efficiency and excellent flatness of the cutting plate, providing precision and consistency in every cut.

Adjustable Thickness:

  • Customizable Processing: Allows for easy adjustment of processed wood thickness to meet specific requirements, offering flexibility for various applications.

Smart and Safe:

  • Intelligent Operation: Includes automatic sawing capabilities, enhancing safety and reducing the need for manual intervention compared to traditional saws.

CNC Sawmill



Sawmill parametersJR1000DJR1300DJR1600DJR2000D
Max Log Cutting Dia(cm)100
130160200
Max Log Cutting Dia(inch)39516379
Max Log Cutting Length4.5m4.5m4.5m4.5m
Track Length6m6m6m6m
Gasoline/Diesel engine22 HP25HP25/30HP30HP
Engine starting modeElectric startingElectric startingElectric startingElectric starting
Packing Size3.5*2.2*2m20 'container20 'container40 'container
Saw Wheel Diameter770mm770mm900mm1100mm
Saw blade width85mm85mm85mm110mm
LiftingAutoAutoAutoAuto
WalkingAutoAutoAutoAuto
Safe cutting Speed6m/min6m/min4m/min4m/min
Weight3000kg3800kg4500kg6000kg
Warranty1 year1 year1 year1 year
Color customizationSupportedSupportedSupportedSupported
Logo customizationSupportedSupportedSupportedSupported

Product details


CNC Sawmill

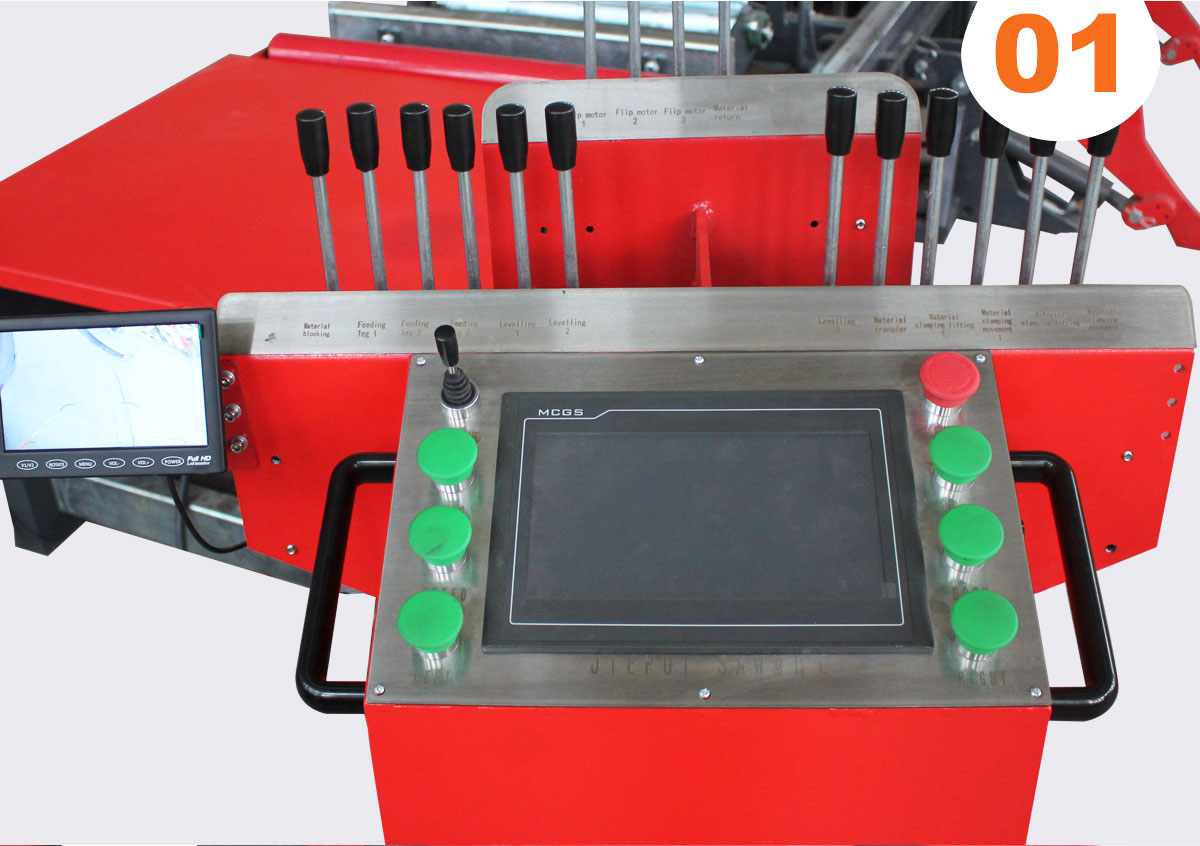

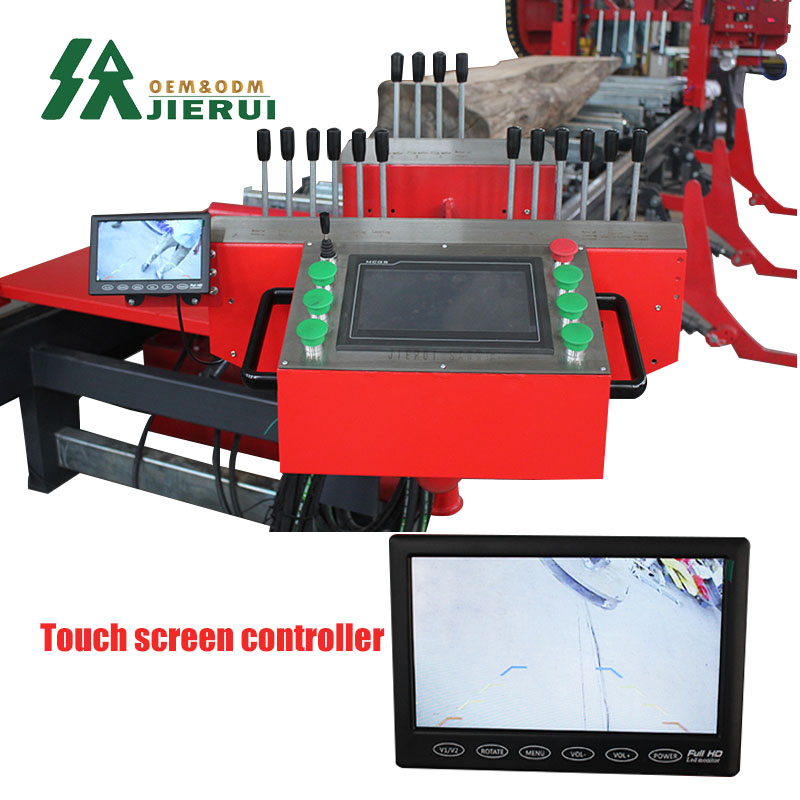

Intelligent human-computer interaction

PLC control,Can achieve fully automatic circular sawing,Support for multiple languages

CNC Sawmill

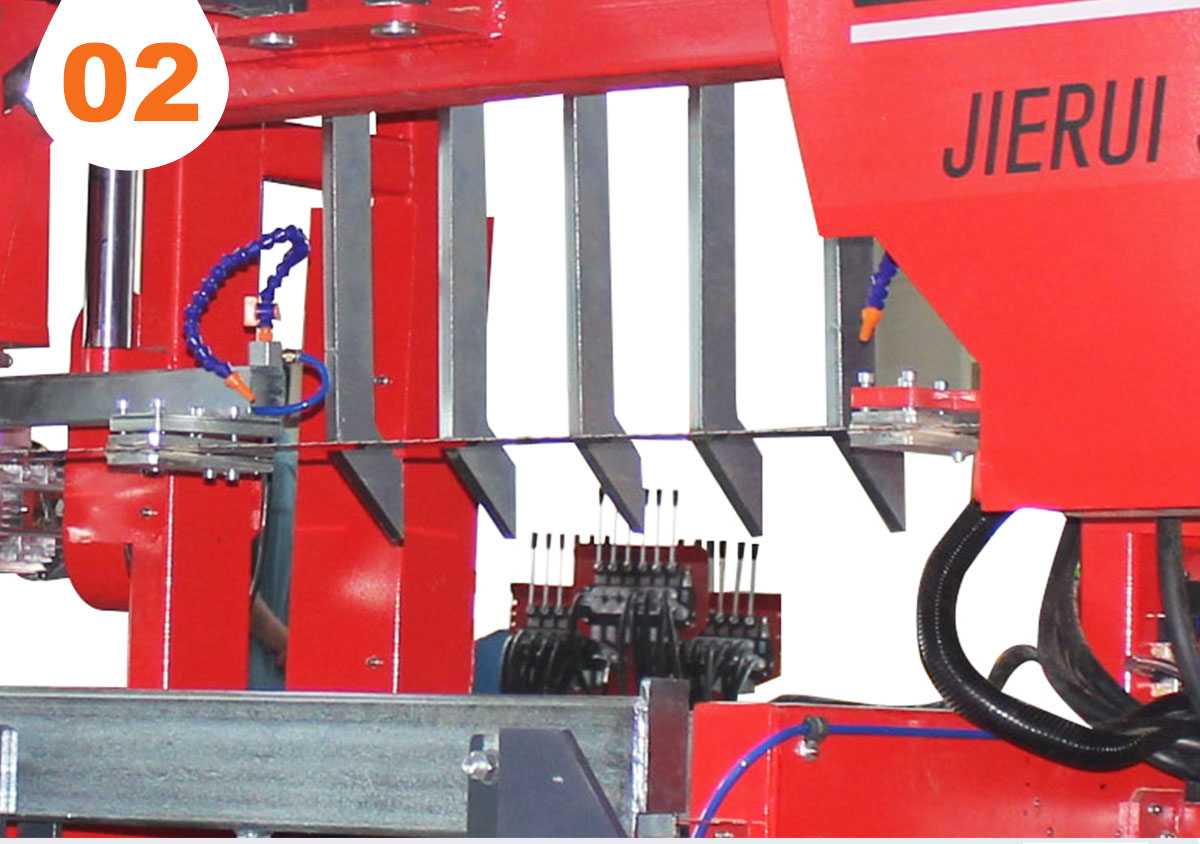

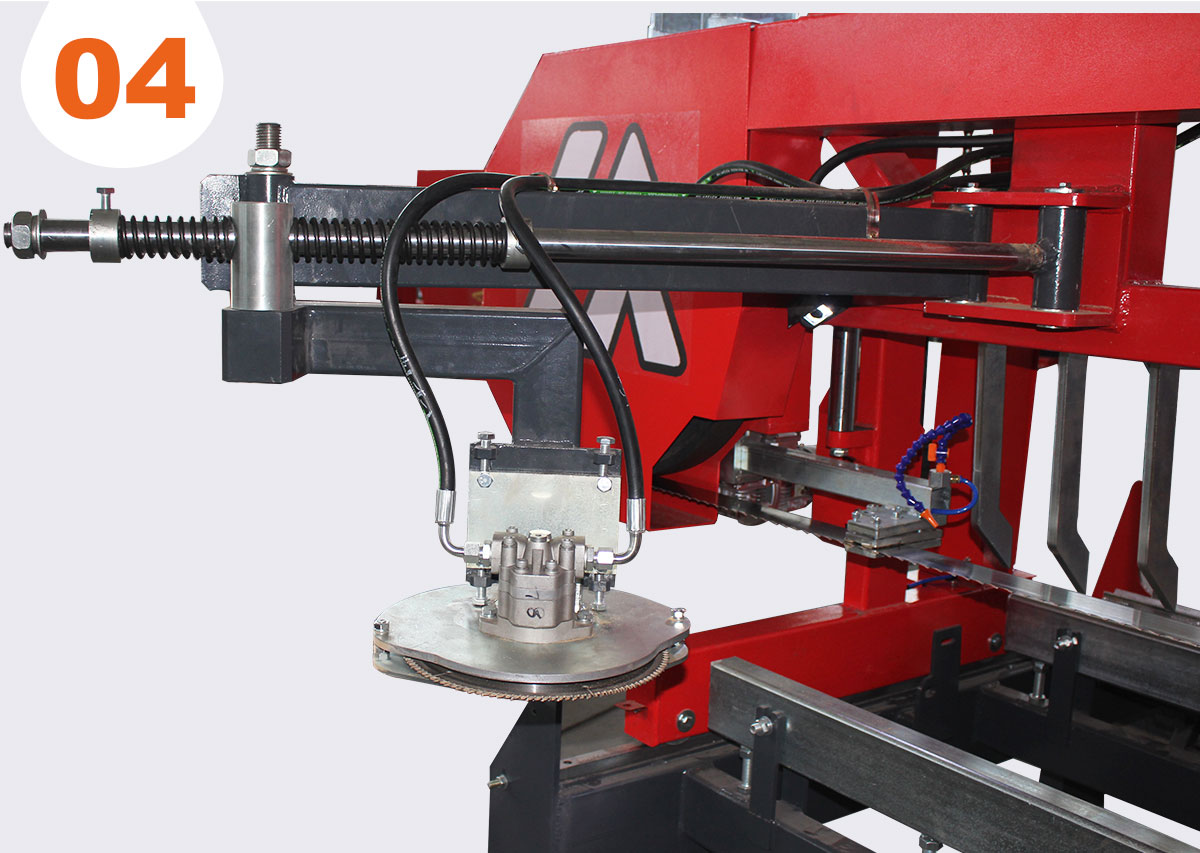

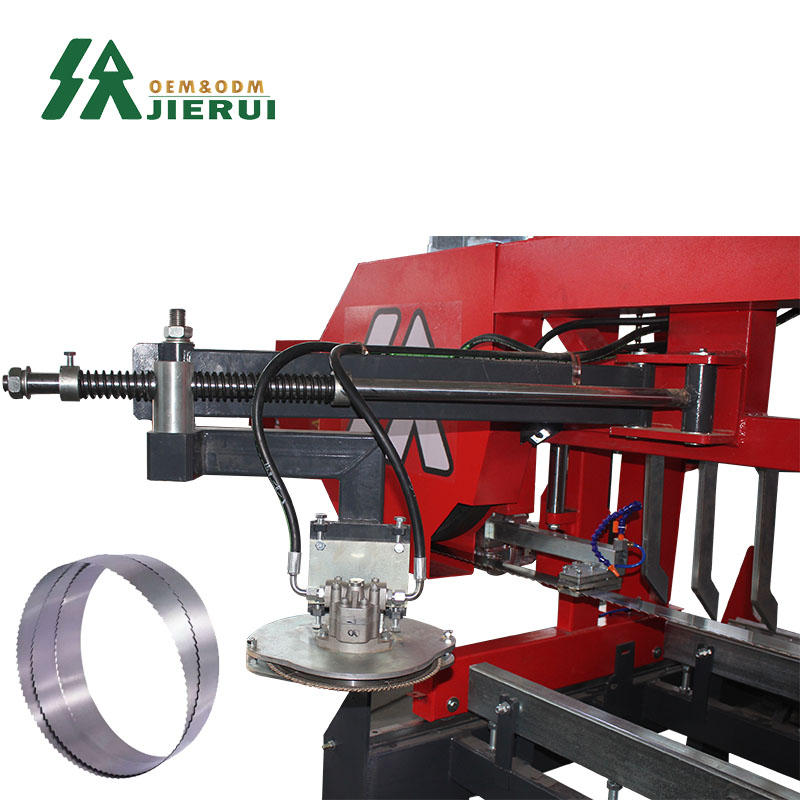

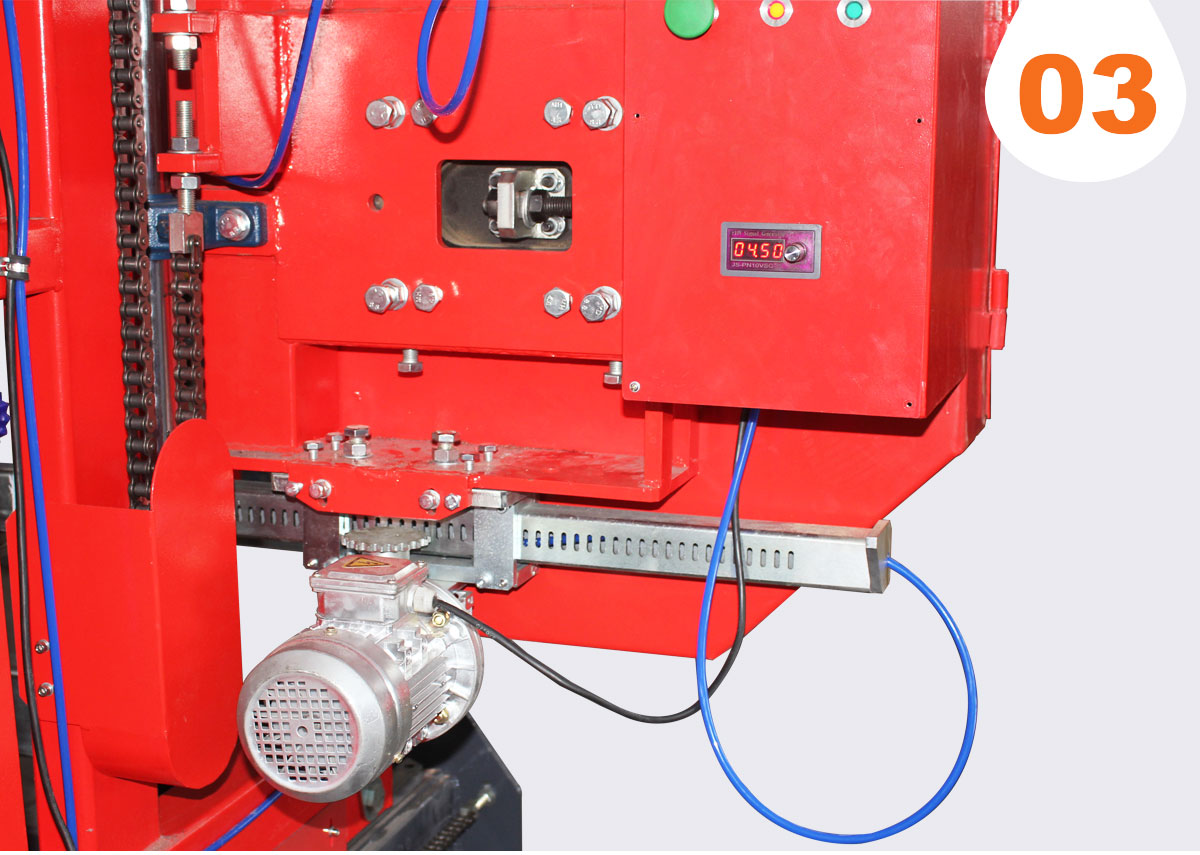

Automatic saw blade guidance system

Automatically adapt to the diameter of logs, can achieve automatic adjustment, and uses wear-resistant ceramic sheets.

CNC Sawmill

Fully automatic saw blade tensioning system

Automatic detection of saw blade tension progress, forced emergency stop when saw blade breaks.

CNC Sawmill

Pre cutting system

  • Automatic Adaptation: The system uses sensors or smart technology to detect the shape and dimensions of the log. It then adjusts the pre-cutting process accordingly to ensure that the saw blade engages with the log at the optimal angle and position.

  • Blade Protection: By pre-cutting the log in a way that reduces stress and resistance on the saw blade, the system significantly reduces the risk of blade damage. This includes minimizing the chances of bending, breaking, or dulling the blade, leading to longer blade life and less frequent replacements.

  • Improved Sawing Precision: The pre-cutting system enhances the accuracy of the initial cuts, ensuring that the log is properly aligned and prepared before the main cutting process. This results in cleaner cuts and reduces waste, contributing to more efficient wood processing.

  • Enhanced Safety: Automatically adapting to the log's shape minimizes unexpected movements or resistance during cutting, reducing the risk of accidents or injuries.

CNC Sawmill

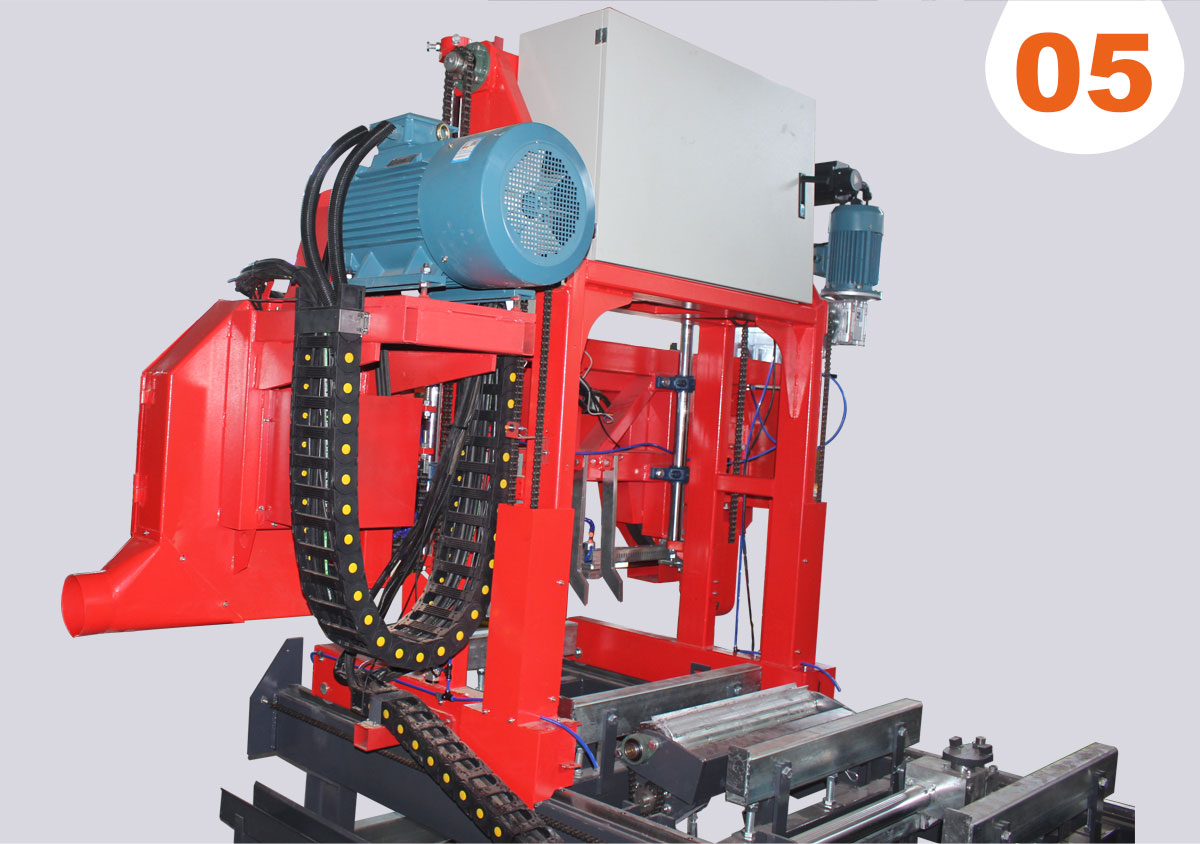

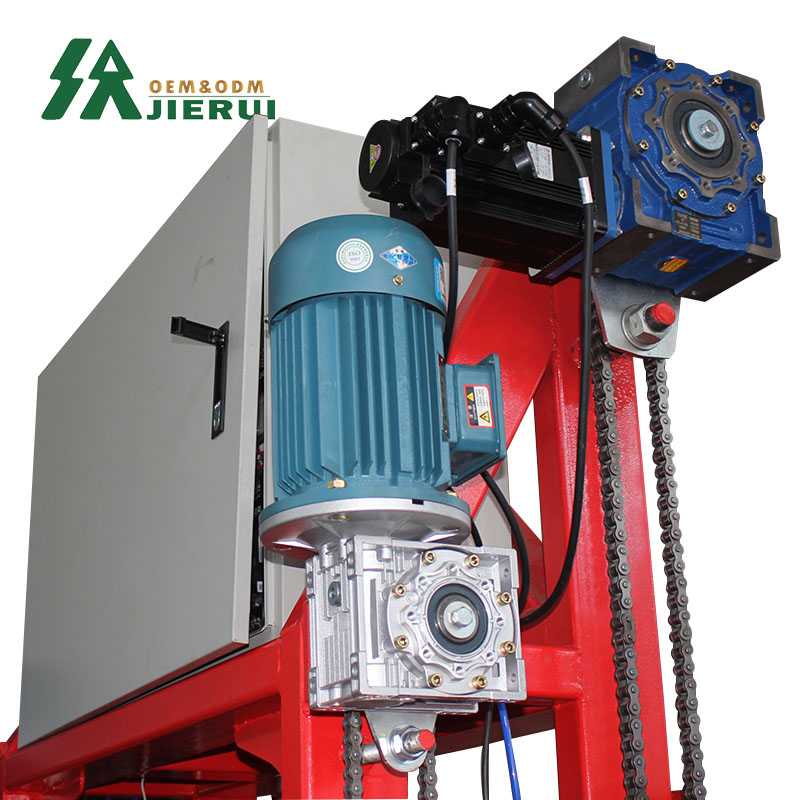

More power options

Not only does it support electricity, but also gasoline power. Diesel power is supported


Application effect

CNC Sawmill

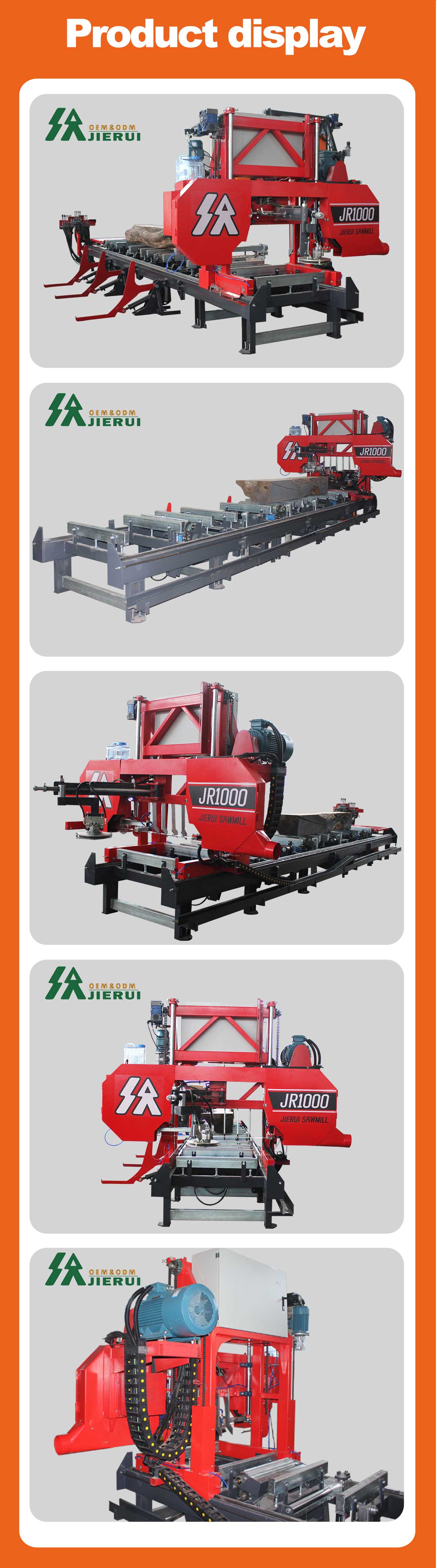

Product Display

CNC Sawmill

FAQ

Q: Can I customized the machine from your company?

A: Of course you can,we can manufacture the machine based on your customsized requirement.


Q: How does your factory do regarding quality controlling?

A: All raw material we used are environmental-friendly

Skillful workers care every details in handling the producing and packing process Quality control department are specially responsible for quality in each process


Q:Does the packing strong?

A:Yes, of course! All of our export packing with strong wooden box, all to meet the export packaging standards.


Q: How about the after-sale service?

A:TM online for 24 hours :Tel/Whatsapp :+8618866126681 skype,MSN,whatsapp,also contact by email :Jerry@jerry-sawmill.com etc.
