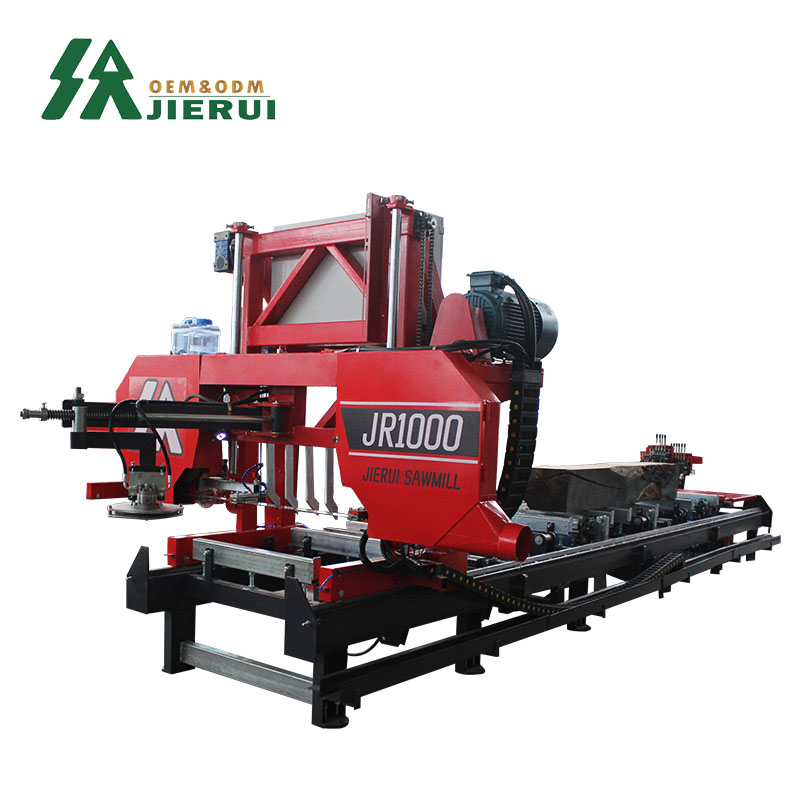

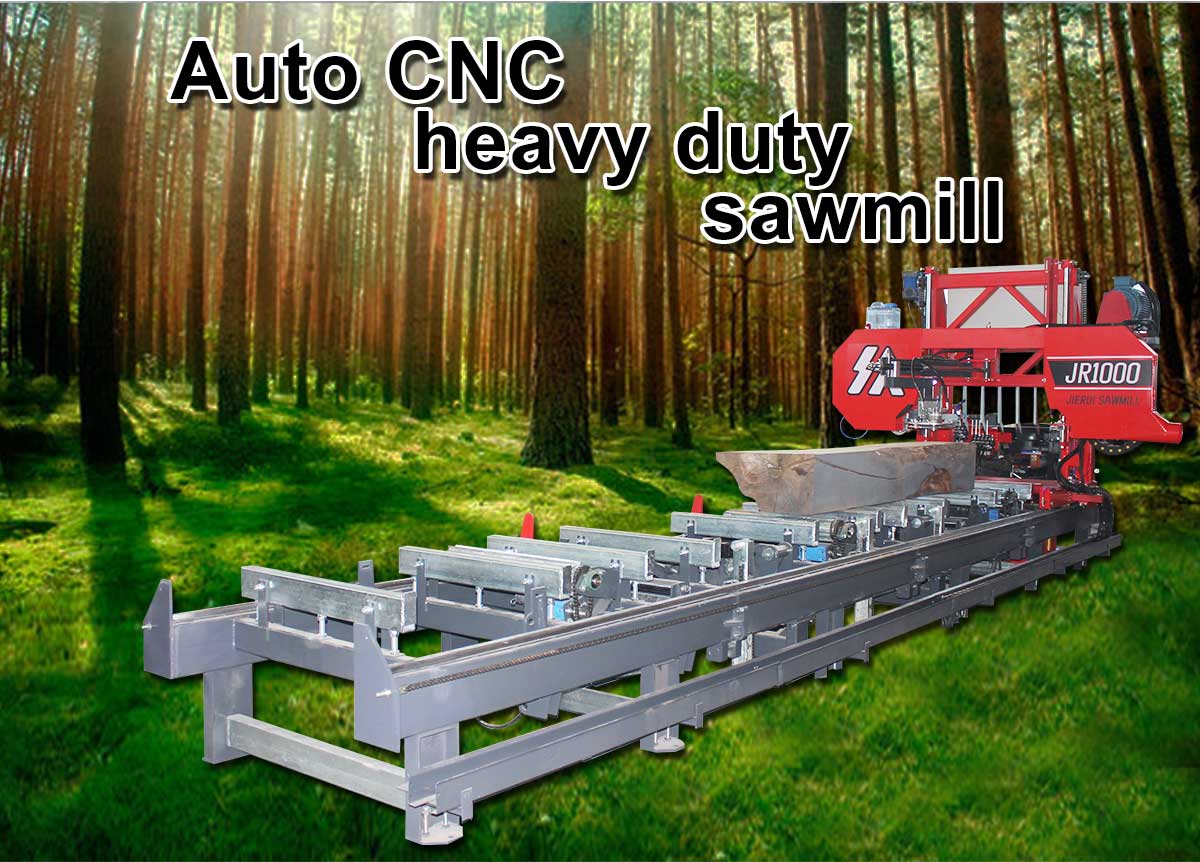

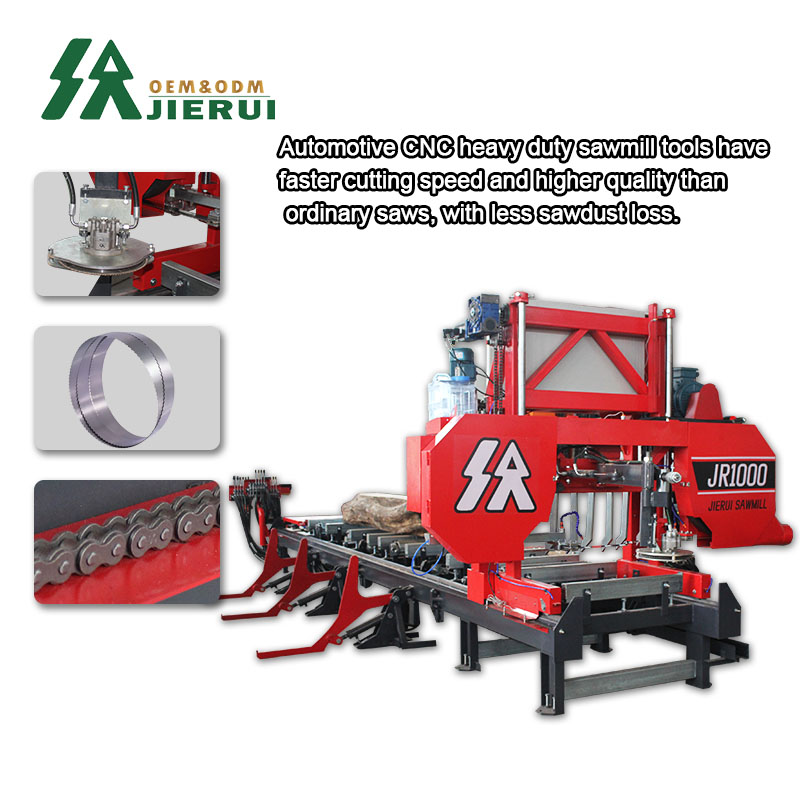

Automatic Commercial CNC Sawmill
1. Auto CNC heavy duty sawmill tools have faster cutting speed and higher quality than ordinary sawing machines, and less sawdust loss.
2. Simple installation and easy operation, with an oversized joystick and multi-language touch screen.
3. High cutting efficiency and high flatness of the cutting board.
4. The thickness of the processed wood can be switched as needed.
5.Intelligent operation, safer than ordinary sawing machines.
Make an inquiry will get the best shipping quotation
Automotive CNC sawmill tools have faster cutting speed andhigher quality than ordinary saws, with less sawdust loss.Maximum blade width up to 1100mm up to 1100mm,Safe cutting Speed 4m/min.
Make an inquiry now and receive a FREE product brochure loaded with vital product information and creative inspiration. Join us at JIERUI Machinery Equipment Co., LTD to elevate your operations and experience the future of machinery!
Our CNC sawmill is engineered to offer exceptional performance and efficiency through a combination of advanced technology and user-centric design. Here’s what sets it apart:
Performance:
Faster Cutting Speeds: Achieves quicker cutting speeds compared to traditional sawmills, significantly boosting productivity and efficiency.
Superior Quality: Provides high-quality cuts with reduced sawdust loss, maximizing material usage and minimizing waste.
Design and Operation:
Rationalized Design: Features an easy installation process and a large rocker for improved handling and stability, ensuring smooth and efficient operation.
Multilingual Touch Screen: Equipped with a user-friendly multilingual touch screen, making the sawmill straightforward and accessible for users from various regions.
High Cutting Efficiency:
Excellent Flatness: Guarantees high cutting efficiency and excellent flatness of the cutting plate, ensuring precision and consistency in every cut.
Adjustable Thickness: Allows for easy adjustment of processed wood thickness, offering customizable processing to meet specific requirements and providing flexibility for various applications.
Smart and Safe:
Intelligent Operation: Incorporates automatic sawing capabilities, enhancing safety and reducing the need for manual intervention compared to traditional saws.
Our CNC sawmill is designed to deliver exceptional performance and efficiency, integrating advanced features such as faster cutting speeds, superior quality, and intelligent operation. With its rationalized design, multilingual touch screen, and adjustable thickness, it provides a flexible, safe, and highly efficient solution for all your sawing needs
Sawmill parameters | JR1000D | JR1300D | JR1600D | JR2000D |
Max Log Cutting Dia(cm) | 100 | 130 | 160 | 200 |
Max Log Cutting Dia(inch) | 39 | 51 | 63 | 79 |
Max Log Cutting Length | 4.5m | 4.5m | 4.5m | 4.5m |
Track Length | 6m | 6m | 6m | 6m |
Gasoline/Diesel engine | 22 HP | 25HP | 25/30HP | 30HP |
Engine starting mode | Electric starting | Electric starting | Electric starting | Electric starting |
Packing Size | 3.5*2.2*2m | 20 'container | 20 'container | 40 'container |
Saw Wheel Diameter | 770mm | 770mm | 900mm | 1100mm |
Saw blade width | 85mm | 85mm | 85mm | 110mm |

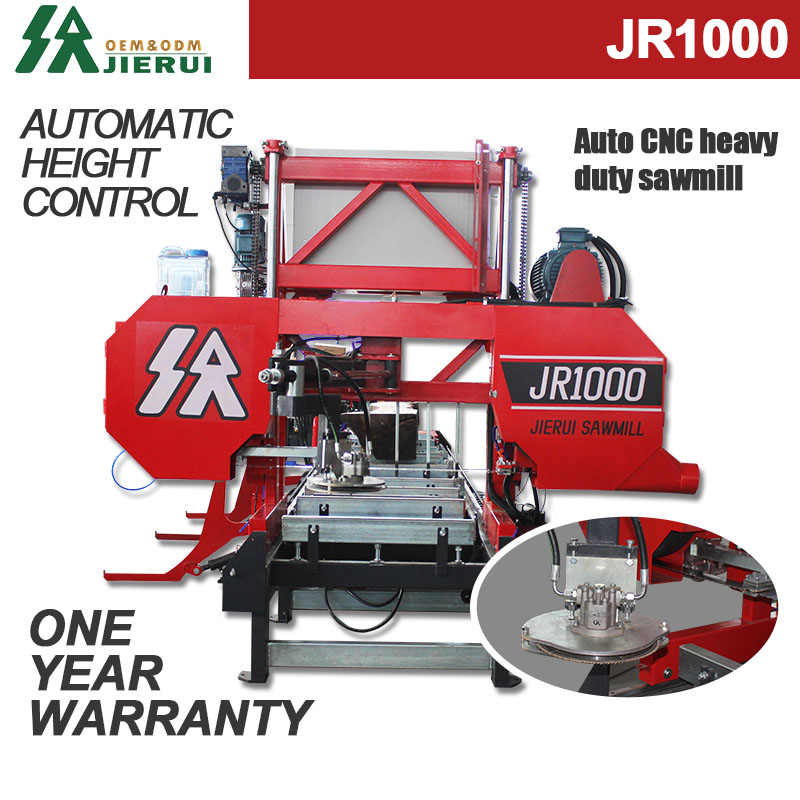

Lifting | Auto | Auto | Auto | Auto |
Walking | Auto | Auto | Auto | Auto |
Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min |
Weight | 3000kg | 3800kg | 4500kg | 6000kg |
Warranty | 1 year | 1 year | 1 year | 1 year |
Color customization | Supported | Supported | Supported | Supported |
Logo customization | Supported | Supported | Supported | Supported |
Product etail picture

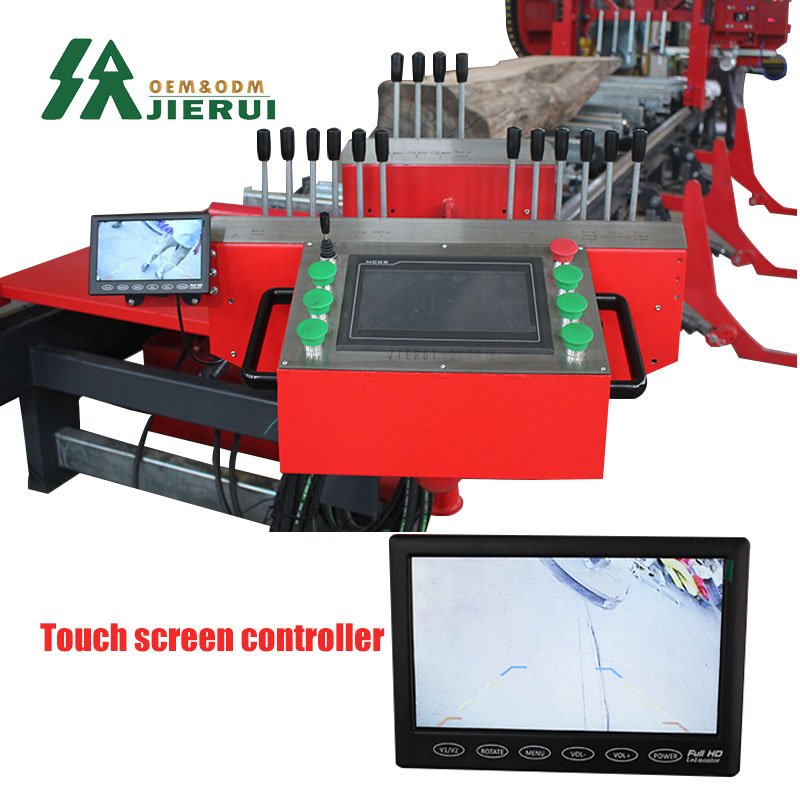

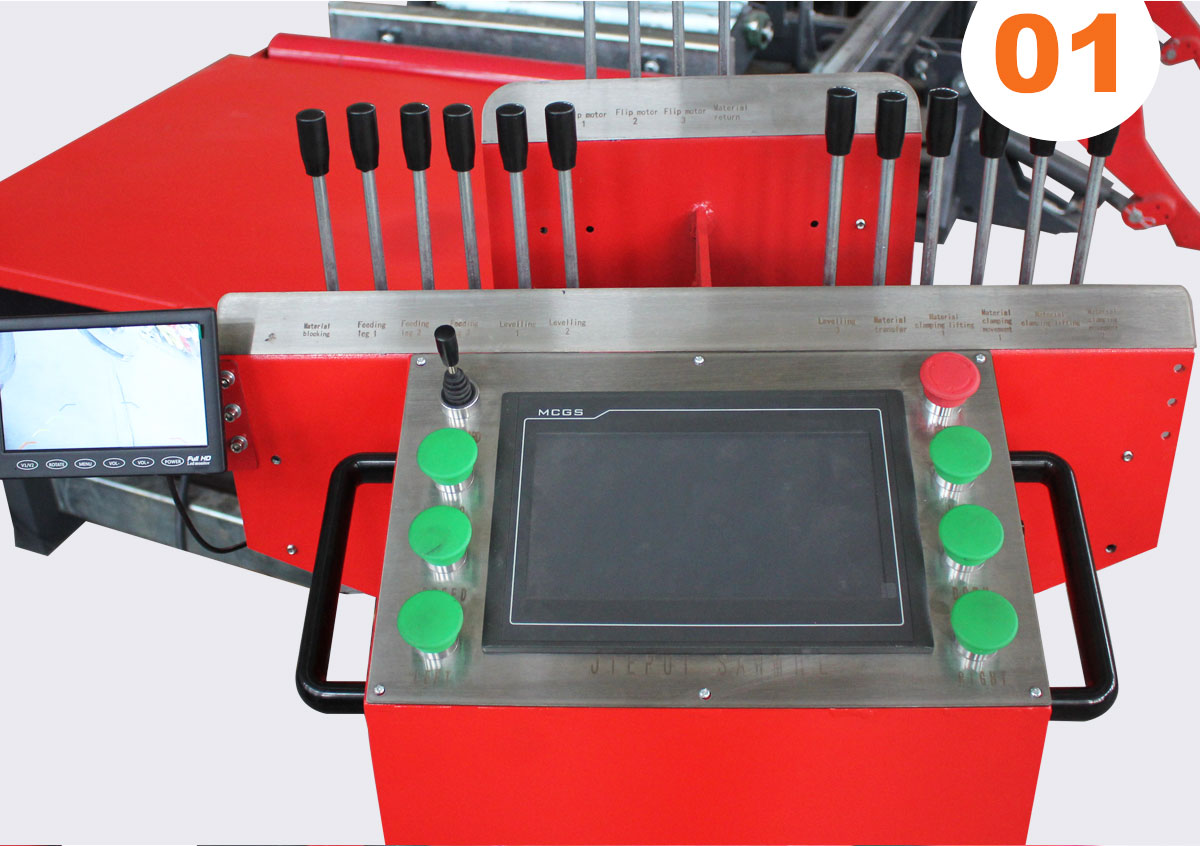

Intelligent human-computer interaction
1.Our sawmill features PLC (Programmable Logic Controller) control, which enables advanced automation and precision in operation. This system ensures that the sawmill can execute complex tasks with high reliability and efficiency.
2. Fully Automatic Sawing:With fully automatic sawing capabilities, the sawmill can perform cutting operations without manual intervention. This enhances productivity and consistency in cutting tasks.
3. Support for Multiple Languages:The system supports multiple languages, making it user-friendly for operators from different regions. This feature ensures that you can easily navigate and operate the sawmill in your preferred language, improving overall usability.
Our sawmill’s intelligent human-computer interaction through PLC control provides fully automated circular sawing and multi-language support, making it a highly efficient and versatile solution for diverse woodworking needs.

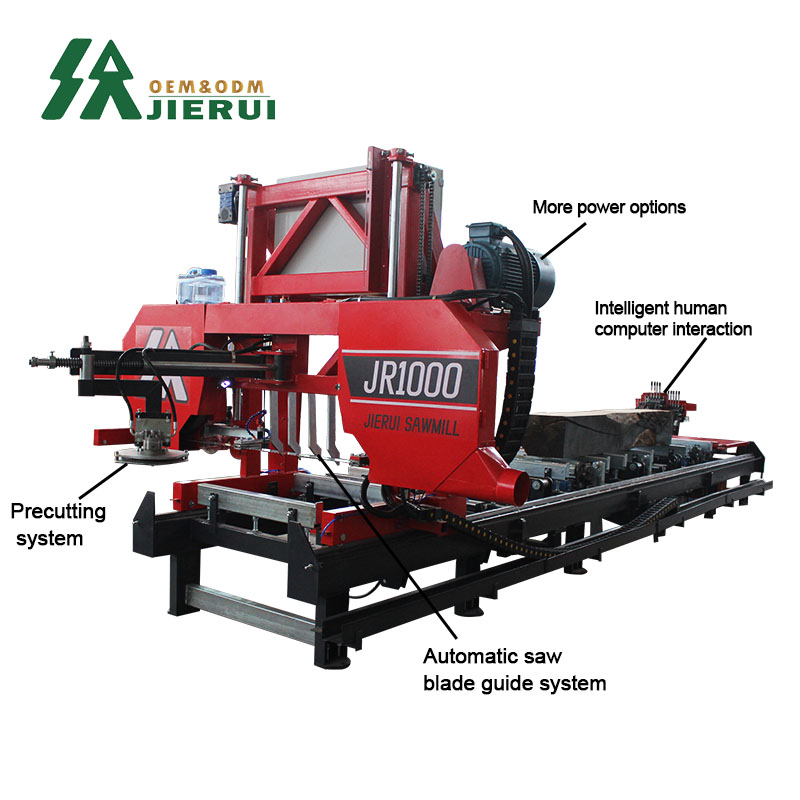

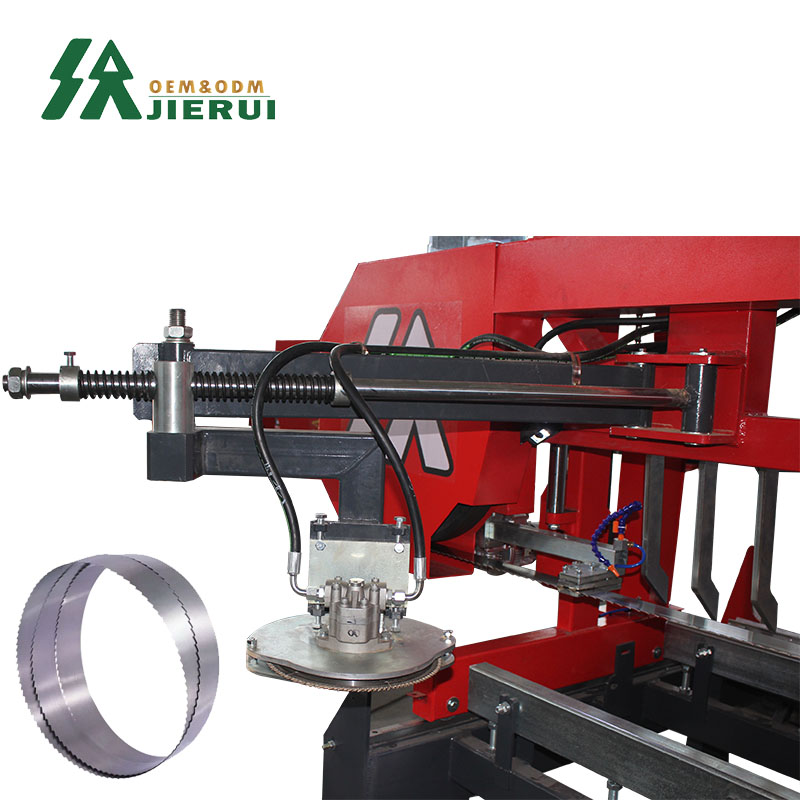

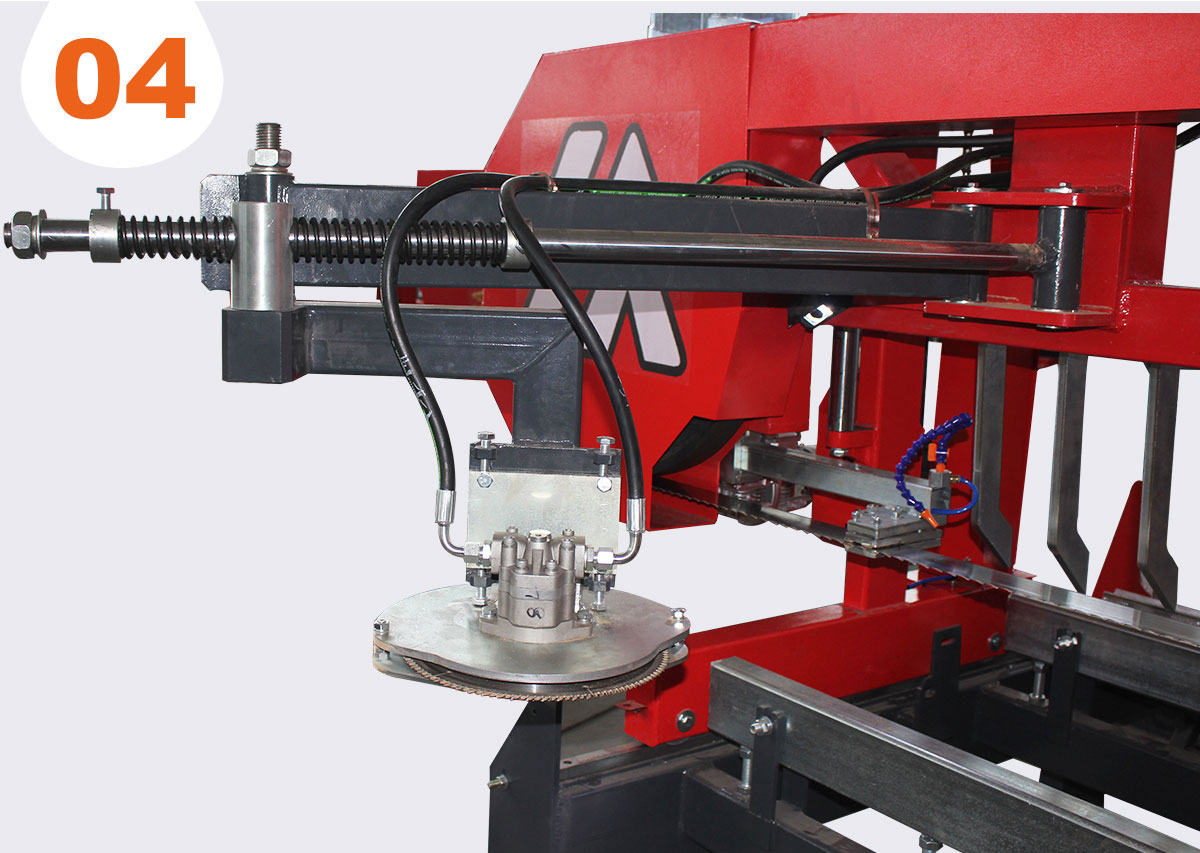

1.Automatic Adaptation to Log Diameter:
Our sawmill features an automatic saw blade guidance system that automatically adjusts to the diameter of the logs being processed. This ensures optimal alignment and precision, regardless of the size of the log.
2. Wear-Resistant Ceramic Sheets:
The system incorporates wear-resistant ceramic sheets, which are designed to withstand the rigors of continuous use. These sheets enhance the durability of the guidance system, reduce maintenance needs, and ensure consistent performance.

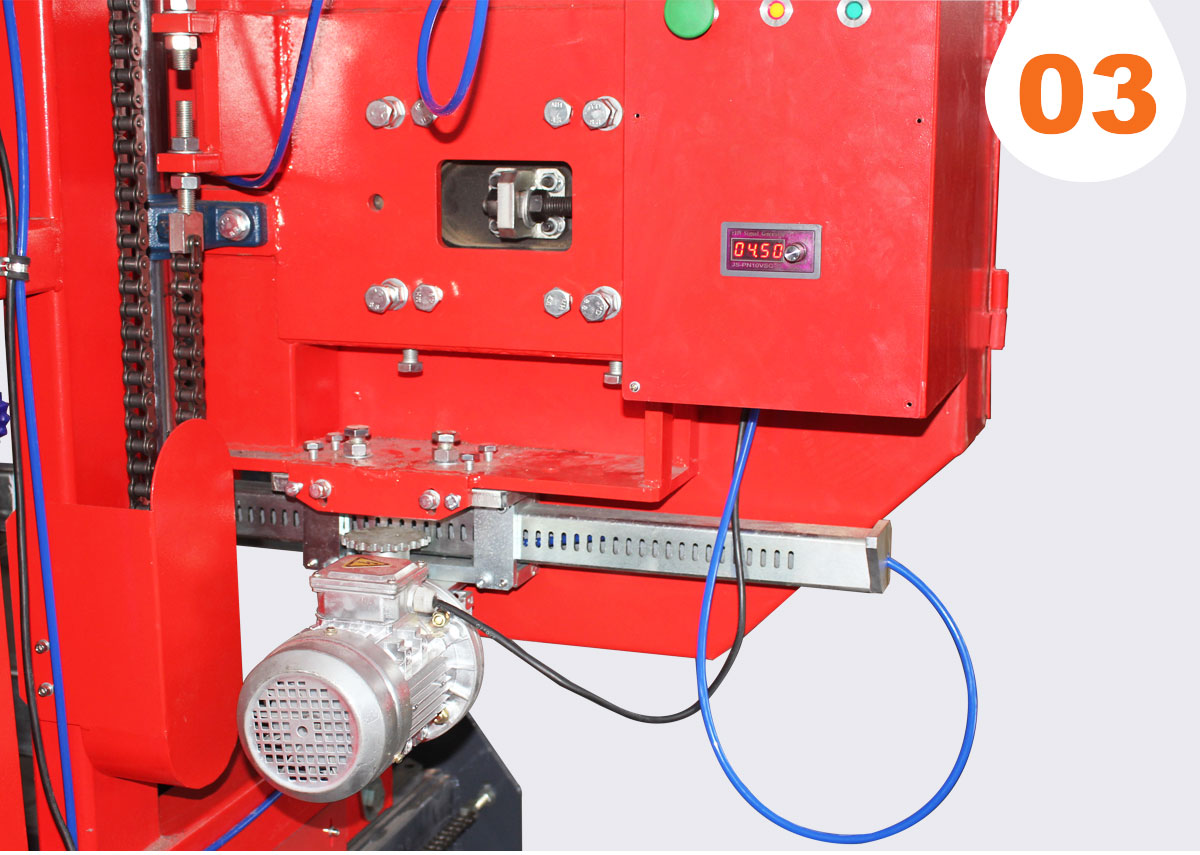

Automatic detection of saw blade tension progress, forced emergency stop when saw blade breaks.

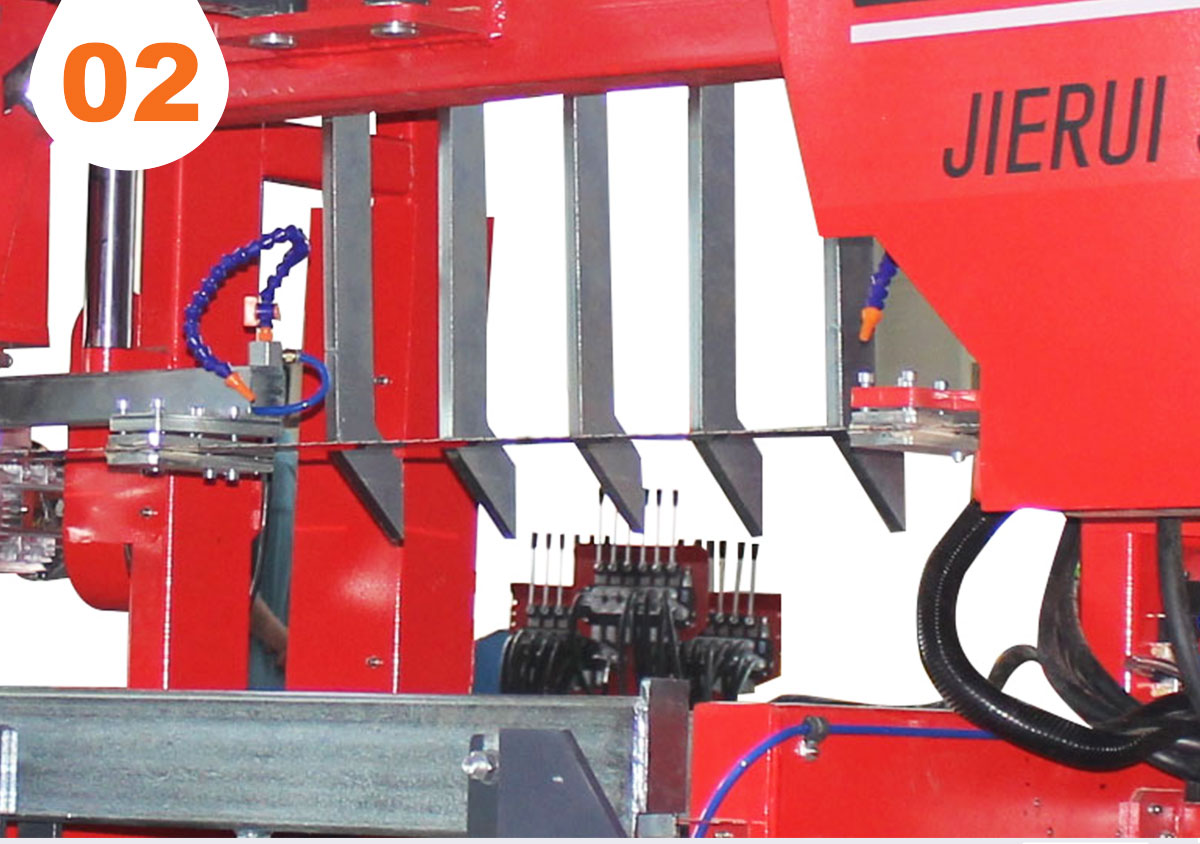

Automatically adapt to the shape of the log for better protection of the saw blade.

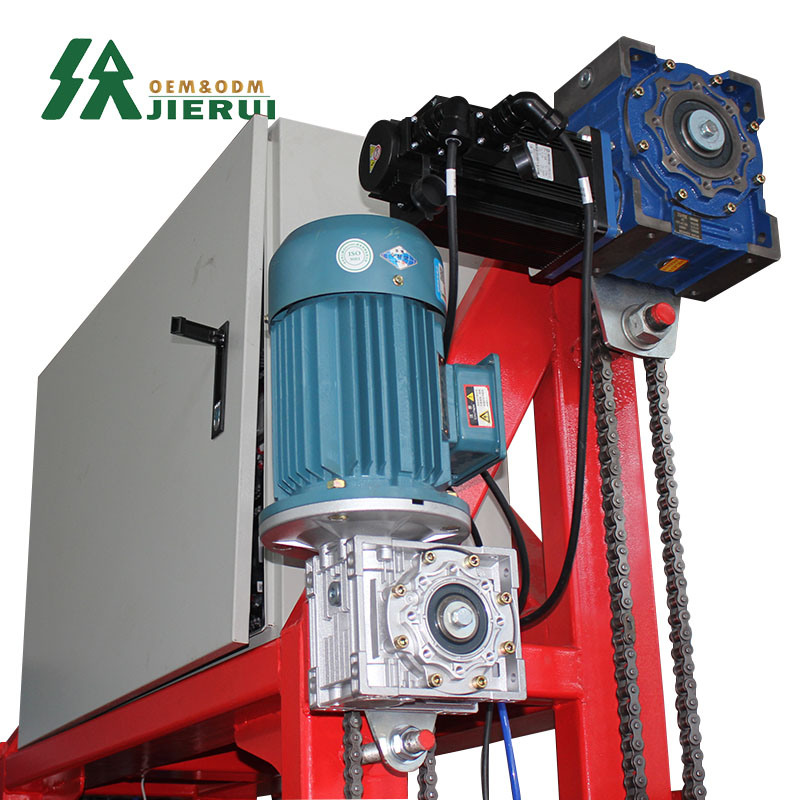

Our sawmills are designed to accommodate multiple power options, including electricity, gasoline, and diesel, offering you the flexibility to choose the power source that best fits your operational needs and location.
Application effect

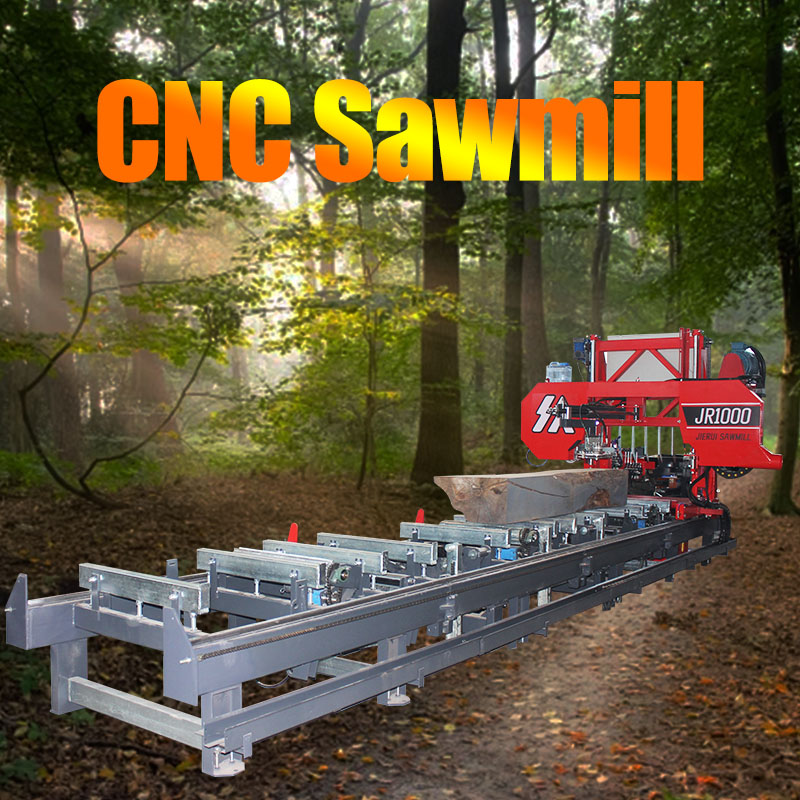

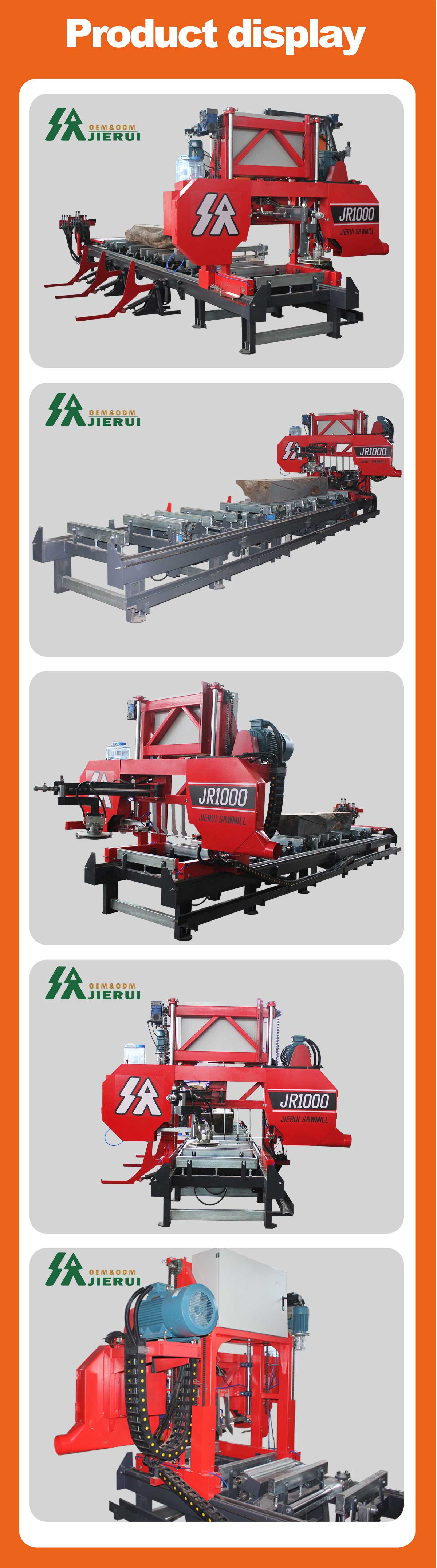

Product Display
Packaging&shipping
Company Profile
Shandong Jerry Machinery Equipment Co., Ltd. is a leading global manufacturer of high-quality sawmills. We are dedicated to the production, research, and development of sawmills, proudly serving over 12,000 enterprises worldwide. Our products are exported to 61 countries, reflecting our global reach and reputation.
Our extensive product range includes log sawing equipment, solid wood furniture processing equipment, and firewood splitting equipment. We have earned the trust of many customers through our standardized quality management and exceptional service, establishing ourselves as one of the best sawmill suppliers globally.
We are committed to ongoing technological innovation and accelerating the research and development of sawmill machinery. Our goal is to provide each partner with the best combination of sawmill production lines, ensuring top-notch performance and efficiency.
